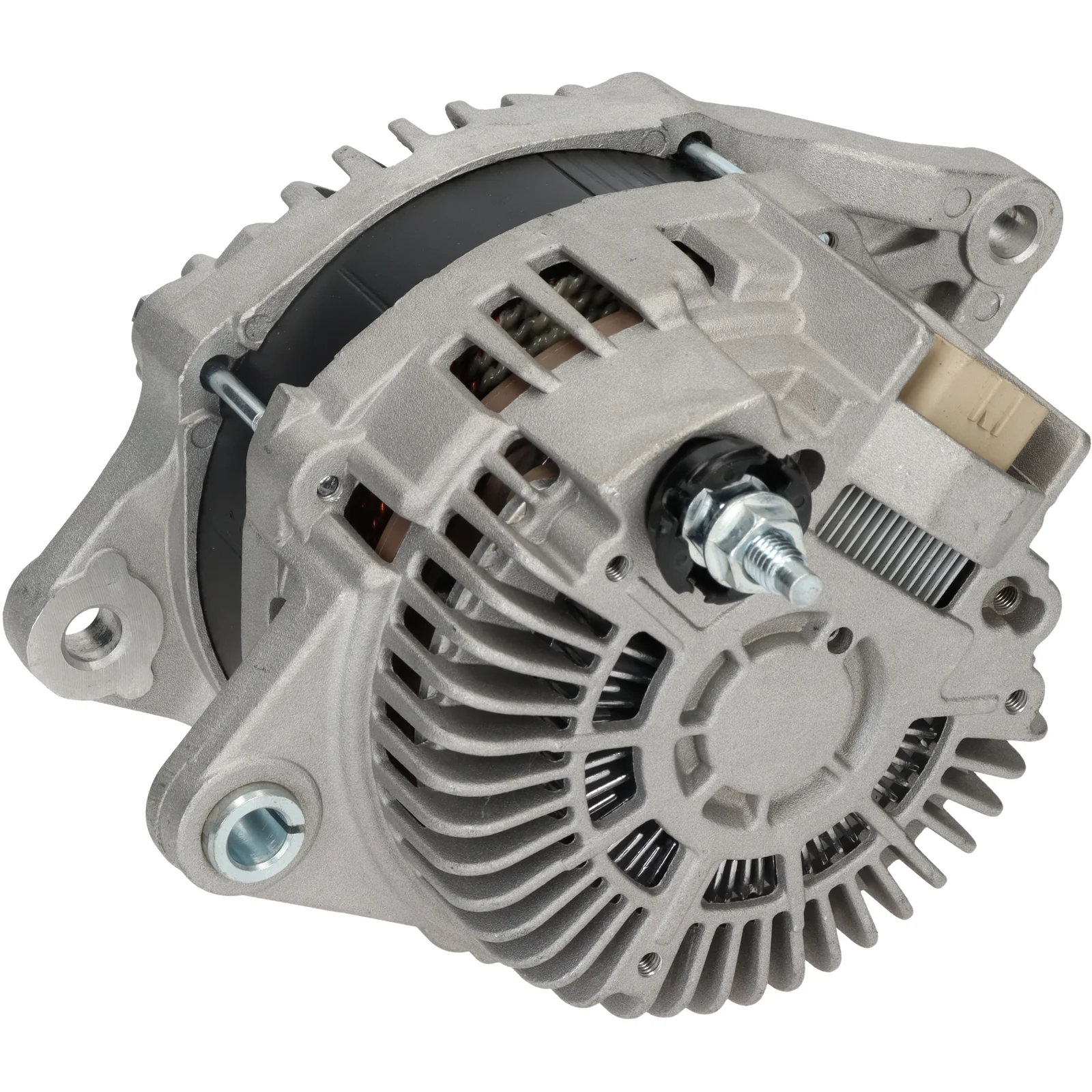

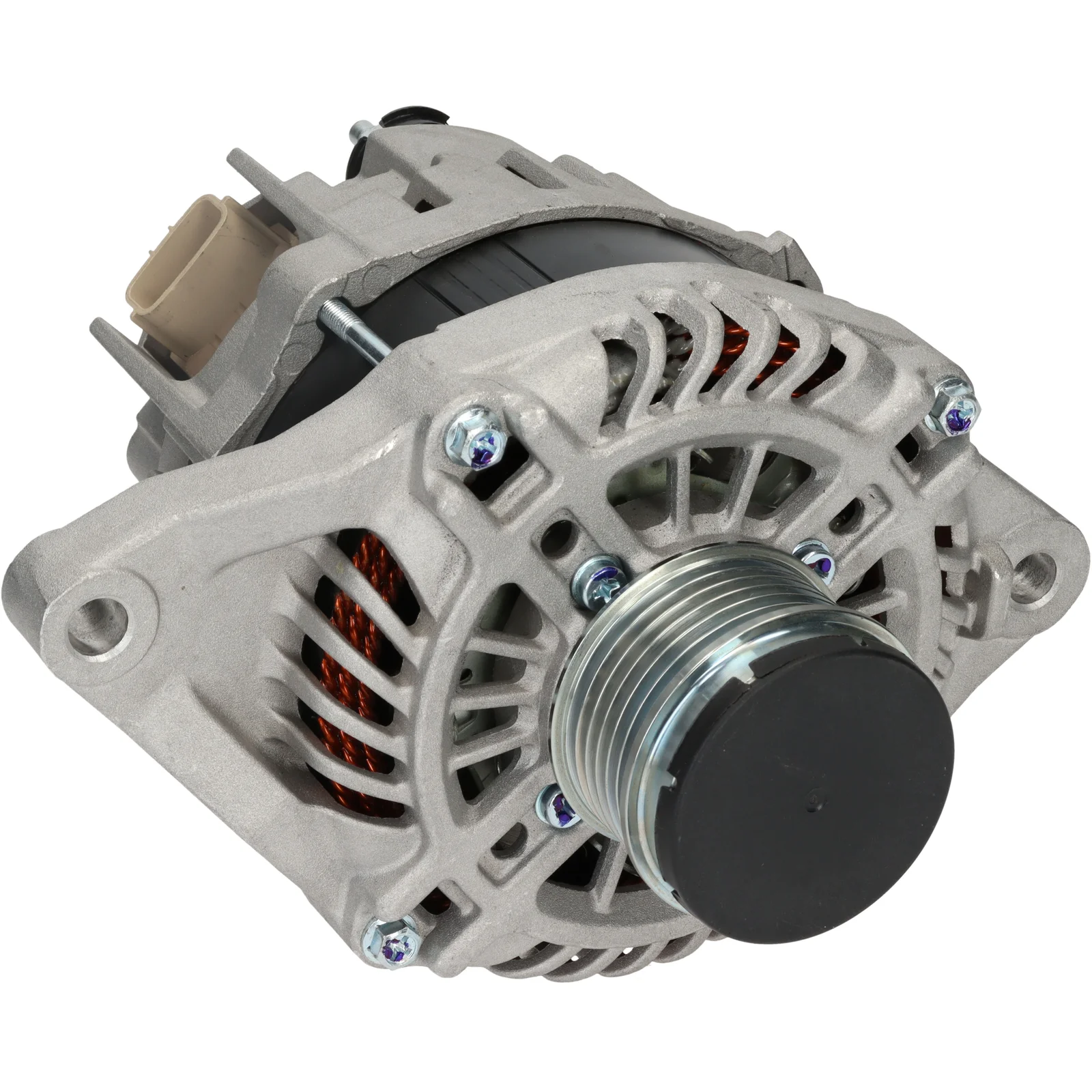

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116394

HC-Cargo Dynamo

Teknisk info:

Spenningsnivå: 14, Amp: 130, Rotasjon: med klokken, Monteringsbrakett avstand: 54.00

Beskrivelse

Spenningsspenning: 14
Ampere: 130
Bøssing av remskive: 33,50
Bredde/holderarm: 13,00
Monteringsbrakett avstand: 54,00
Braketthull: 10,50
Remjusteringsbrakett hull posisjon: 2
Remjusteringsbrakett hull 1: 10,50
Remskivediameter: 55,00
Vindegroper/remskive: 6
Radius: 83,00
Radius 2: 102,00
B+: M8
Posisjon/B+ i min.: 43
D+ Størrelse: Elettrode
Rotasjon: CW
Elektrodenummer: PL68
Total lengde mm: 188,00
Terminaltype: G-S-L-F
Remskive: SP/FW
Vifte: IF
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 54.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 2
Plug no. PL68
Bracket hole 10.50
Position/B+ in min. 43
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 33.50
Radius 83.00
D+ Size Plug
Radius 2 102.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type G-S-L-F
Voltage 14
Total length 188.00 mm
Width/holder arm 13.00
Amp 130

  • OEM
    A002TX0881A, A2TX0881, A2TX0881A, A2TX0891A, F032116394, 1800a121, 1800a288, 1800A546, 1986A00776

  • Konkurrentreferens
    A5285, A5323, DRA1293, 28-6896, 155.901.130, 226.306.1302, 13226, 13226N, 444311, 12061058, 0986085180

  • NormaliseratArtNr
    a002tx0881a, a2tx0881, a2tx0881a, a2tx0891a, a5285, a5323, dra1293, f032116394, 1800a121, 1800a288, 1800a546, 1986a00776, 13226, 13226n, 286896, 444311, 12061058, 155901130, 0986085180, 2263061302

  • Passar modeller
    Mitsubishi Model: Lancer Model series: Lancer Model type: Flexfuel (CY3A) Size of motor: 1.8 Brand of engine: 4B10 Type description: CY_A, CZ_A Body: Saloon From date: 01-01-2010 Fuel: Petrol/Ethanol Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Size of motor: 2.4 Brand of engine: 4B12 Type description: GG_W, GF_W, ZJ From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: Bifuel 4WD Type of engine: Bifuel Size of motor: 2.0 Type description: GG_W, GF_W, ZJ Body: Closed Off-Road Vehicle From date: 01-10-2012 Fuel: Petrol/Electro Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: Bifuel Type of engine: Bifuel Size of motor: 2.0 Brand of engine: 4J11 Type description: GG_W, GF_W, ZJ Body: Closed Off-Road Vehicle From date: 01-10-2012 Fuel: Petrol/Electro Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Size of motor: 2.0 Brand of engine: 4B11 Type description: GG_W, GF_W, ZJ, ZL, ZK Body: SUV From date: 01-03-2013 To date: 01-12-2018 Fuel: Petrol Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Size of motor: 2.0 Brand of engine: 4J11 Type description: GG_W, GF_W, ZJ, ZL, ZK Body: SUV From date: 01-04-2013 Fuel: Petrol Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsspenning: 14
    Ampere: 130
    Bøssing av remskive: 33,50
    Bredde/holderarm: 13,00
    Monteringsbrakett avstand: 54,00
    Braketthull: 10,50
    Remjusteringsbrakett hull posisjon: 2
    Remjusteringsbrakett hull 1: 10,50
    Remskivediameter: 55,00
    Vindegroper/remskive: 6
    Radius: 83,00
    Radius 2: 102,00
    B+: M8
    Posisjon/B+ i min.: 43
    D+ Størrelse: Elettrode
    Rotasjon: CW
    Elektrodenummer: PL68
    Total lengde mm: 188,00
    Terminaltype: G-S-L-F
    Remskive: SP/FW
    Vifte: IF
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 54.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 2
    Plug no. PL68
    Bracket hole 10.50
    Position/B+ in min. 43
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 33.50
    Radius 83.00
    D+ Size Plug
    Radius 2 102.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type G-S-L-F
    Voltage 14
    Total length 188.00 mm
    Width/holder arm 13.00
    Amp 130
  • Kjøretøymatching

    • OEM
      A002TX0881A, A2TX0881, A2TX0881A, A2TX0891A, F032116394, 1800a121, 1800a288, 1800A546, 1986A00776

    • Konkurrentreferens
      A5285, A5323, DRA1293, 28-6896, 155.901.130, 226.306.1302, 13226, 13226N, 444311, 12061058, 0986085180

    • NormaliseratArtNr
      a002tx0881a, a2tx0881, a2tx0881a, a2tx0891a, a5285, a5323, dra1293, f032116394, 1800a121, 1800a288, 1800a546, 1986a00776, 13226, 13226n, 286896, 444311, 12061058, 155901130, 0986085180, 2263061302

    • Passar modeller
      Mitsubishi Model: Lancer Model series: Lancer Model type: Flexfuel (CY3A) Size of motor: 1.8 Brand of engine: 4B10 Type description: CY_A, CZ_A Body: Saloon From date: 01-01-2010 Fuel: Petrol/Ethanol Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Size of motor: 2.4 Brand of engine: 4B12 Type description: GG_W, GF_W, ZJ From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: Bifuel 4WD Type of engine: Bifuel Size of motor: 2.0 Type description: GG_W, GF_W, ZJ Body: Closed Off-Road Vehicle From date: 01-10-2012 Fuel: Petrol/Electro Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: Bifuel Type of engine: Bifuel Size of motor: 2.0 Brand of engine: 4J11 Type description: GG_W, GF_W, ZJ Body: Closed Off-Road Vehicle From date: 01-10-2012 Fuel: Petrol/Electro Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Size of motor: 2.0 Brand of engine: 4B11 Type description: GG_W, GF_W, ZJ, ZL, ZK Body: SUV From date: 01-03-2013 To date: 01-12-2018 Fuel: Petrol Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Size of motor: 2.0 Brand of engine: 4J11 Type description: GG_W, GF_W, ZJ, ZL, ZK Body: SUV From date: 01-04-2013 Fuel: Petrol Approved: Yes
      1 / 2
