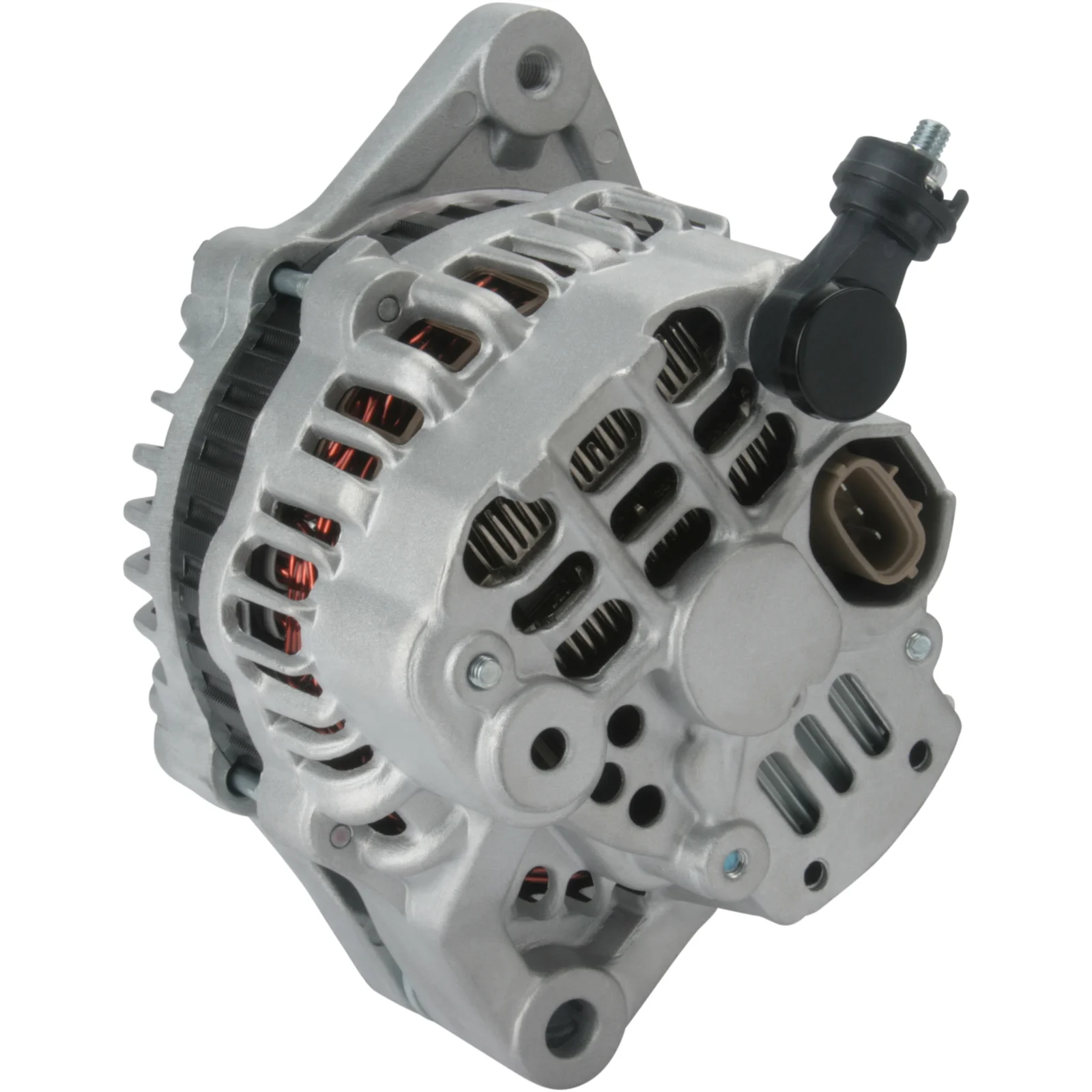

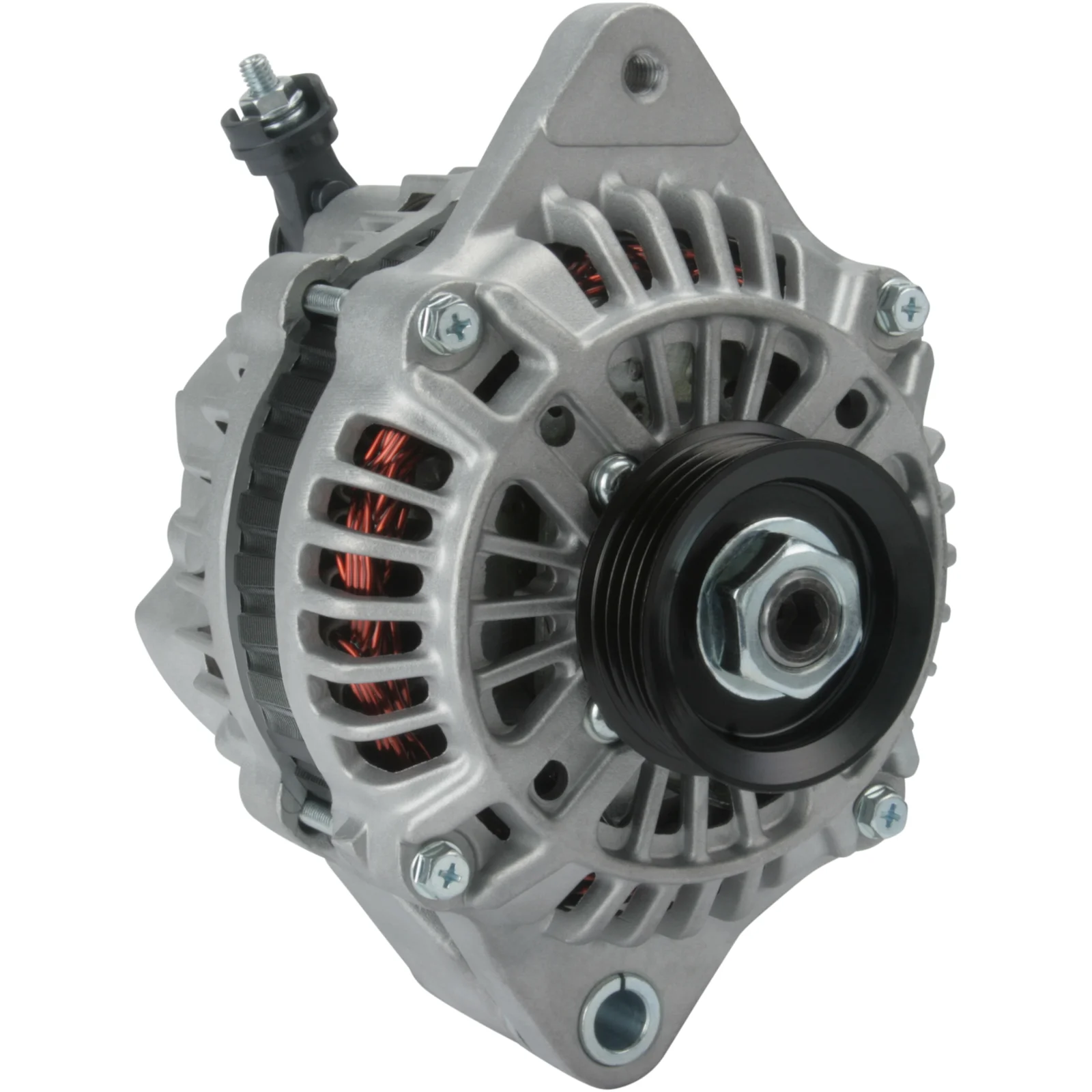

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114245

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 75, Rotasjon: CW, Drift: 54,50

Beskrivelse

Dynamo 12V-75A 12V - 75A, 4gr, (D, IG, L) For Yourex produkt bestilling 90-528-8440

Spenning: 14
Ampere: 75
Drevskive avstand: 90.50
Bredde/holderarm: 58.00
Benkhull: 10.50
Bånd. justeringsbeslag pos.: 60
Bånd. justeringsbeslag hull 1: M8
Drevskivens diameter: 54.50
Riller/drevskive: 4
Radius: 84.00
Radius 2: 80.00
B+: M6
Posisjon/B+ i min.: 5
Rotasjon: medur
Plugg nr.: PL58
Total lengde mm: 155.00
Drevskive: SP

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL58
Bracket hole 10.50
Position/B+ in min. 5
Pulley SP
Pulley dia. 54.50
Pulley dist. 90.50
Radius 84.00
Radius 2 80.00
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 155.00 mm
Width/holder arm 58.00
Amp 75

  • OEM
    A005TB0891, A005TB0891ZE, A005TB1291, A005TB1291ZE, A5T-B0891ZE, A5T-B1291ZE, A5TB0891, a5tb0891ze, A5TB1291, A5TB1291AE, A5TB1291ZE, F032114245, 0986 081 950, 1943ir, 1986A01486, 31400-84E00, 31400-84E01, 114245

  • Konkurrentreferens
    A5052, ALT-H208, CAL35254, DRA0154, F042200112, F042205112, F042A0H208, J5118016, LRA02954, 8EL015630-591, 8EL738212-831, 28-3525, 28-3672, 28-5568, 185.535.075, 245.125.752, 23927R, 209367, 209367A, 301943RI, 446536, 12060948, 0986081950

  • Bilmärken
    Suzuki

  • NormaliseratArtNr
    a005tb0891, a005tb0891ze, a005tb1291, a005tb1291ze, a5052, a5tb0891, a5tb0891ze, a5tb1291, a5tb1291ae, a5tb1291ze, alth208, cal35254, dra0154, f032114245, f042200112, f042205112, f042a0h208, j5118016, lra02954, 8el015630591, 8el738212831, 1943ir, 1986a01486, 23927r, 114245, 209367, 209367a, 283525, 283672, 285568, 301943ri, 446536, 3140084e00, 3140084e01, 12060948, 185535075, 245125752, 0986081950

  • Passar modeller
    Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: M13A Type description: ME, EZ Body: Hatchback From date: 01-02-2005 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: M13A Type description: SG Body: Hatchback From date: 01-02-2005 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.5 Brand of engine: M15A Type description: ME, EZ Body: Hatchback From date: 01-02-2005 Fuel: Gasoline Approved: Yes
    Suzuki Model: Wagon Model series: Wagon R MPV Size of motor: 1.3 Brand of engine: M13A Type description: RB413 Body: Hatchback From date: 01-09-2003 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Suzuki Model: Wagon Model series: Wagon R+ Model type: 4WD Type of engine: VVT Size of motor: 1.3 Brand of engine: M13A Type description: MM Body: MPV From date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Wagon Model series: Wagon R+ Size of motor: 1.3 Brand of engine: M13A Type description: MM Body: MPV From date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Suzuki Series: Swift III Model: 1.3 Engine volume: 1.3 Engine type: M 13 A Year: 02.05-
    1 / 2
  • Beskrivelse
    Dynamo 12V-75A 12V - 75A, 4gr, (D, IG, L) For Yourex produkt bestilling 90-528-8440

    Spenning: 14
    Ampere: 75
    Drevskive avstand: 90.50
    Bredde/holderarm: 58.00
    Benkhull: 10.50
    Bånd. justeringsbeslag pos.: 60
    Bånd. justeringsbeslag hull 1: M8
    Drevskivens diameter: 54.50
    Riller/drevskive: 4
    Radius: 84.00
    Radius 2: 80.00
    B+: M6
    Posisjon/B+ i min.: 5
    Rotasjon: medur
    Plugg nr.: PL58
    Total lengde mm: 155.00
    Drevskive: SP

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL58
    Bracket hole 10.50
    Position/B+ in min. 5
    Pulley SP
    Pulley dia. 54.50
    Pulley dist. 90.50
    Radius 84.00
    Radius 2 80.00
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 155.00 mm
    Width/holder arm 58.00
    Amp 75
  • Kjøretøymatching

    • OEM
      A005TB0891, A005TB0891ZE, A005TB1291, A005TB1291ZE, A5T-B0891ZE, A5T-B1291ZE, A5TB0891, a5tb0891ze, A5TB1291, A5TB1291AE, A5TB1291ZE, F032114245, 0986 081 950, 1943ir, 1986A01486, 31400-84E00, 31400-84E01, 114245

    • Konkurrentreferens
      A5052, ALT-H208, CAL35254, DRA0154, F042200112, F042205112, F042A0H208, J5118016, LRA02954, 8EL015630-591, 8EL738212-831, 28-3525, 28-3672, 28-5568, 185.535.075, 245.125.752, 23927R, 209367, 209367A, 301943RI, 446536, 12060948, 0986081950

    • Bilmärken
      Suzuki

    • NormaliseratArtNr
      a005tb0891, a005tb0891ze, a005tb1291, a005tb1291ze, a5052, a5tb0891, a5tb0891ze, a5tb1291, a5tb1291ae, a5tb1291ze, alth208, cal35254, dra0154, f032114245, f042200112, f042205112, f042a0h208, j5118016, lra02954, 8el015630591, 8el738212831, 1943ir, 1986a01486, 23927r, 114245, 209367, 209367a, 283525, 283672, 285568, 301943ri, 446536, 3140084e00, 3140084e01, 12060948, 185535075, 245125752, 0986081950

    • Passar modeller
      Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: M13A Type description: ME, EZ Body: Hatchback From date: 01-02-2005 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: M13A Type description: SG Body: Hatchback From date: 01-02-2005 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.5 Brand of engine: M15A Type description: ME, EZ Body: Hatchback From date: 01-02-2005 Fuel: Gasoline Approved: Yes
      Suzuki Model: Wagon Model series: Wagon R MPV Size of motor: 1.3 Brand of engine: M13A Type description: RB413 Body: Hatchback From date: 01-09-2003 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Suzuki Model: Wagon Model series: Wagon R+ Model type: 4WD Type of engine: VVT Size of motor: 1.3 Brand of engine: M13A Type description: MM Body: MPV From date: 01-09-2003 Fuel: Gasoline Approved: Yes
      Suzuki Model: Wagon Model series: Wagon R+ Size of motor: 1.3 Brand of engine: M13A Type description: MM Body: MPV From date: 01-09-2003 Fuel: Gasoline Approved: Yes
      Suzuki Series: Swift III Model: 1.3 Engine volume: 1.3 Engine type: M 13 A Year: 02.05-
