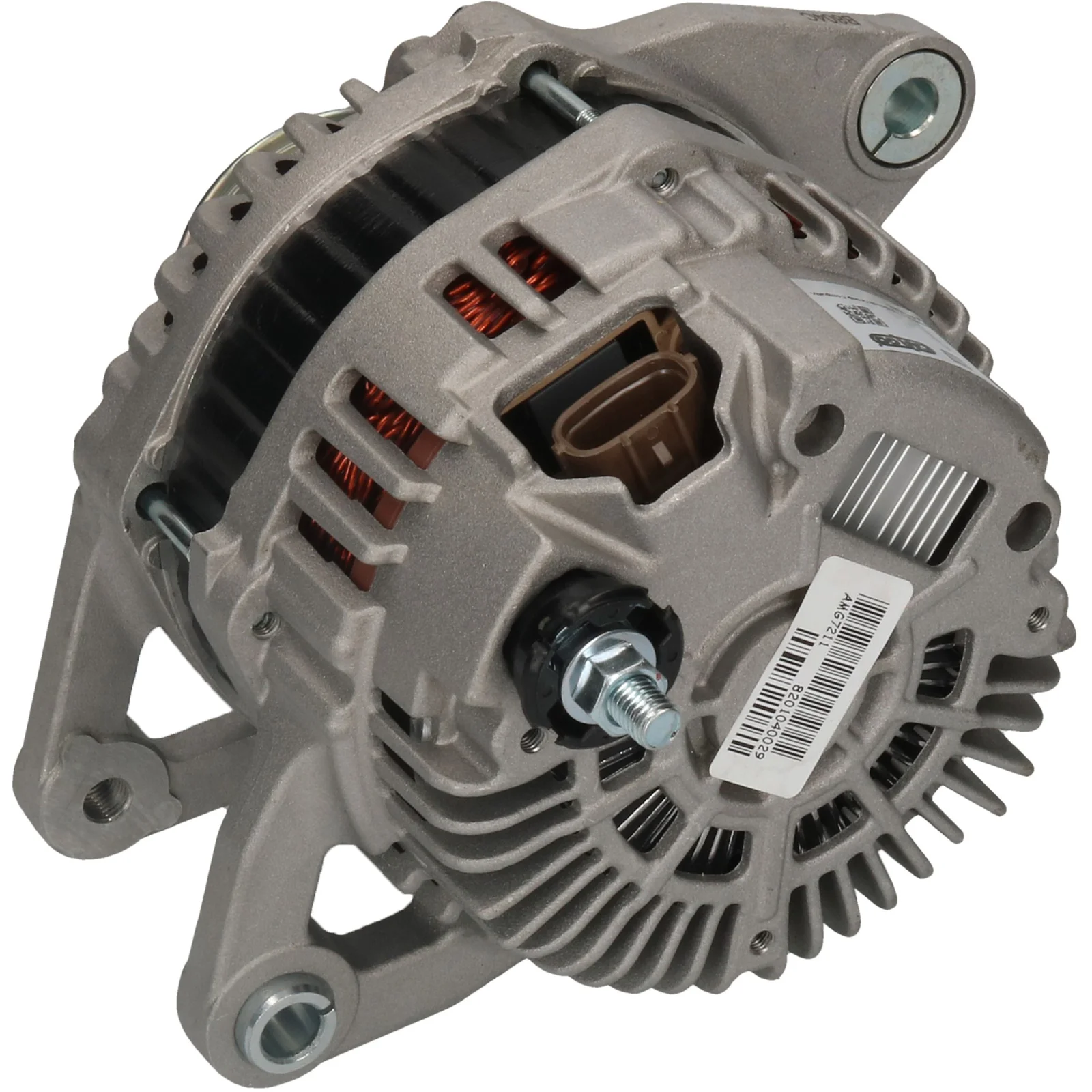

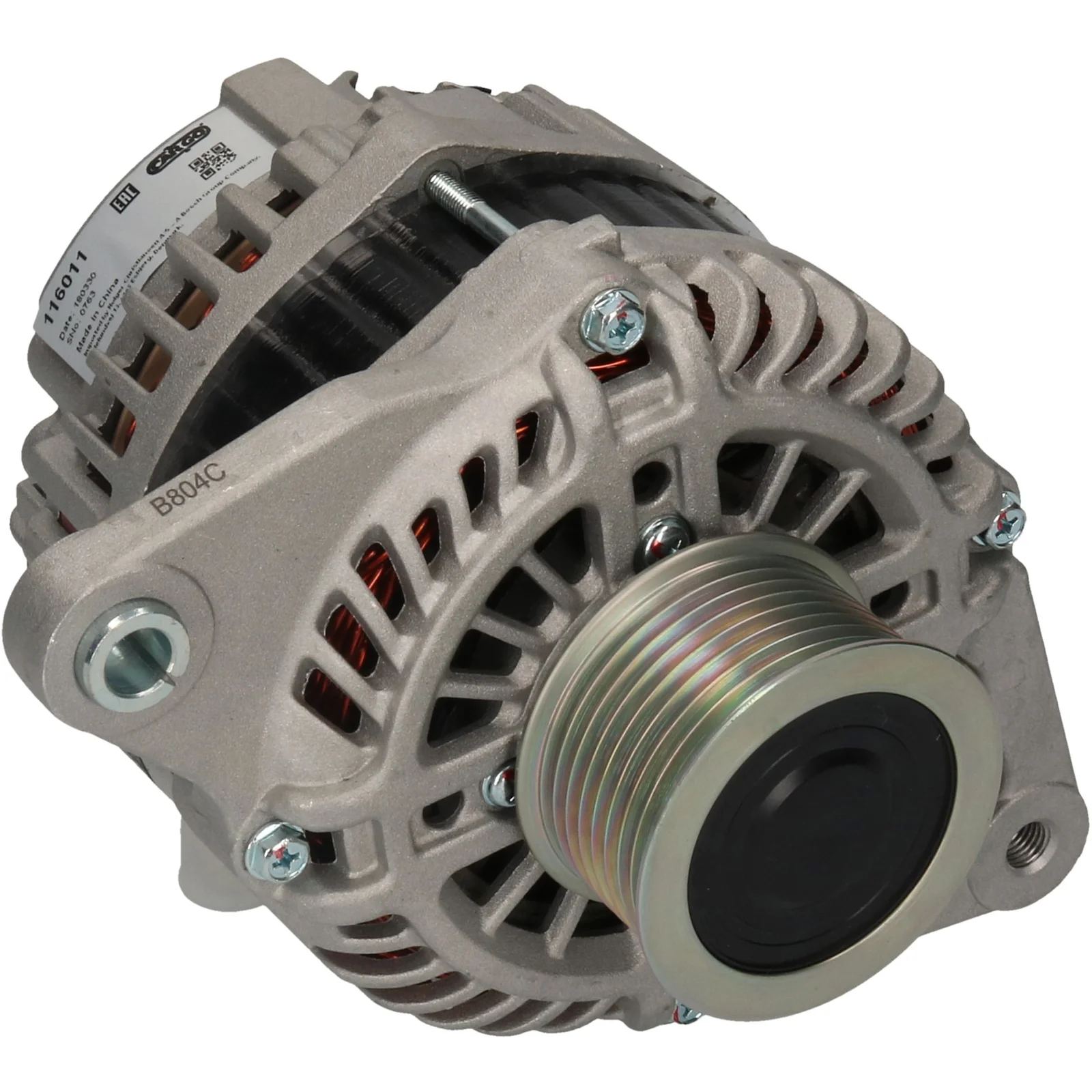

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116011

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 100, Rotasjon: HØYRE, Monteringsfeste avstand: 57,00

Beskrivelse

Spenningsspenning: 14
Ampere: 100
Civledningsdistansen: 26.00
Bredde/holderarm: 13.00
Montasjeanordning avstand: 57.00
Anordningshull: M10
Reim-justeringshull posisjon: 57
Reim-justeringshull 1: 10.50
Civledningsdia.: 59.50
Grooves/civledning: 8
Radius: 95.00
Radius 2: 95.00
B+: M8
Posisjon/B+ i min.: 43
D+ størrelse: Plugg
Rotasjon: med urviseren
Plugg nr.: PL139
Civledning: SP/FW
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 57.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 57
Plug no. PL139
Bracket hole M10
Position/B+ in min. 43
Pulley SP/FW
Pulley dia. 59.50
Pulley dist. 26.00
Radius 95.00
D+ Size Plug
Radius 2 95.00
Regulator type IR
Rotation CW
Grooves/pulley 8
Voltage 14
Width/holder arm 13.00
Amp 100

  • OEM
    A002TJ0681, A2TJ0681, A2TJ0681A, F032116011, r2aa-18-300a, R2AA-18-300B, 2129

  • Konkurrentreferens
    A5121, CAL35310, DRA0866, LRA03638, 8EL011713-841, 27-6778, 145.558.100, 224.310.1002, 20394N, 20394N-OS, 554002RI, 12061042, 0986084480

  • NormaliseratArtNr
    a002tj0681, a2tj0681, a2tj0681a, a5121, cal35310, dra0866, f032116011, lra03638, r2aa18300a, r2aa18300b, 8el011713841, 2129, 20394n, 20394nos, 276778, 554002ri, 12061042, 145558100, 0986084480, 2243101002

  • Passar modeller
    Mazda Model: 3 Model series: 3 Model type: MZR-CD Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2AA Type description: BL From date: 01-01-2009 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Mazda Model: 3 Model series: 3 Model type: MZR-CD Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2AA Type description: BL From date: 01-06-2009 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    Mazda Model: 3 Model series: 3 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Type description: BL Body: Hatchback From date: 01-01-2009 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    Mazda Model: 3 Model series: 3 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Type description: BL Body: Hatchback From date: 01-01-2009 To date: 01-10-2013 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Model type: MZR Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2BF Type description: GH Body: Estate From date: 01-01-2010 To date: 01-07-2013 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Mazda Model: 6 Model series: 6 Model type: MZR Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2BF Type description: GH Body: Hatchback From date: 01-01-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Model type: Sport Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Type description: GH Body: Estate From date: 01-01-2010 To date: 01-07-2013 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2AA Type description: GH From date: 01-01-2010 To date: 01-07-2013 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2BF Type description: GH From date: 01-01-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Type description: GH Body: Estate From date: 01-08-2008 To date: 01-07-2013 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Mazda Model: 6 Model series: 6 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Type description: GH Body: Estate From date: 01-08-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Mazda Model: 6 Model series: 6 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Type description: GH Body: Hatchback From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Type description: GH From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2BF Type description: GH Body: Hatchback From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2BF Type description: GH From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Mazda Model: CX Model series: CX-7 Model type: AWD MZR-CD Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2AA Type description: ER From date: 01-01-2012 To date: 01-03-2013 Fuel: Diesel Approved: Yes
    Mazda Model: CX Model series: CX-7 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Body: SUV From date: 01-07-2009 To date: 01-03-2013 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenningsspenning: 14
    Ampere: 100
    Civledningsdistansen: 26.00
    Bredde/holderarm: 13.00
    Montasjeanordning avstand: 57.00
    Anordningshull: M10
    Reim-justeringshull posisjon: 57
    Reim-justeringshull 1: 10.50
    Civledningsdia.: 59.50
    Grooves/civledning: 8
    Radius: 95.00
    Radius 2: 95.00
    B+: M8
    Posisjon/B+ i min.: 43
    D+ størrelse: Plugg
    Rotasjon: med urviseren
    Plugg nr.: PL139
    Civledning: SP/FW
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 57.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 57
    Plug no. PL139
    Bracket hole M10
    Position/B+ in min. 43
    Pulley SP/FW
    Pulley dia. 59.50
    Pulley dist. 26.00
    Radius 95.00
    D+ Size Plug
    Radius 2 95.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 8
    Voltage 14
    Width/holder arm 13.00
    Amp 100
  • Kjøretøymatching

    • OEM
      A002TJ0681, A2TJ0681, A2TJ0681A, F032116011, r2aa-18-300a, R2AA-18-300B, 2129

    • Konkurrentreferens
      A5121, CAL35310, DRA0866, LRA03638, 8EL011713-841, 27-6778, 145.558.100, 224.310.1002, 20394N, 20394N-OS, 554002RI, 12061042, 0986084480

    • NormaliseratArtNr
      a002tj0681, a2tj0681, a2tj0681a, a5121, cal35310, dra0866, f032116011, lra03638, r2aa18300a, r2aa18300b, 8el011713841, 2129, 20394n, 20394nos, 276778, 554002ri, 12061042, 145558100, 0986084480, 2243101002

    • Passar modeller
      Mazda Model: 3 Model series: 3 Model type: MZR-CD Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2AA Type description: BL From date: 01-01-2009 To date: 01-09-2014 Fuel: Diesel Approved: Yes
      Mazda Model: 3 Model series: 3 Model type: MZR-CD Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2AA Type description: BL From date: 01-06-2009 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      Mazda Model: 3 Model series: 3 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Type description: BL Body: Hatchback From date: 01-01-2009 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      Mazda Model: 3 Model series: 3 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Type description: BL Body: Hatchback From date: 01-01-2009 To date: 01-10-2013 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Model type: MZR Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2BF Type description: GH Body: Estate From date: 01-01-2010 To date: 01-07-2013 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Mazda Model: 6 Model series: 6 Model type: MZR Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2BF Type description: GH Body: Hatchback From date: 01-01-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Model type: Sport Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Type description: GH Body: Estate From date: 01-01-2010 To date: 01-07-2013 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2AA Type description: GH From date: 01-01-2010 To date: 01-07-2013 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2BF Type description: GH From date: 01-01-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Type description: GH Body: Estate From date: 01-08-2008 To date: 01-07-2013 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Mazda Model: 6 Model series: 6 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Type description: GH Body: Estate From date: 01-08-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Mazda Model: 6 Model series: 6 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Type description: GH Body: Hatchback From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Type description: GH From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2BF Type description: GH Body: Hatchback From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2BF Type description: GH From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Mazda Model: CX Model series: CX-7 Model type: AWD MZR-CD Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2AA Type description: ER From date: 01-01-2012 To date: 01-03-2013 Fuel: Diesel Approved: Yes
      Mazda Model: CX Model series: CX-7 Type of engine: MZR-CD Size of motor: 2.2 Brand of engine: R2AA Body: SUV From date: 01-07-2009 To date: 01-03-2013 Fuel: Diesel Approved: Yes
