HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114680

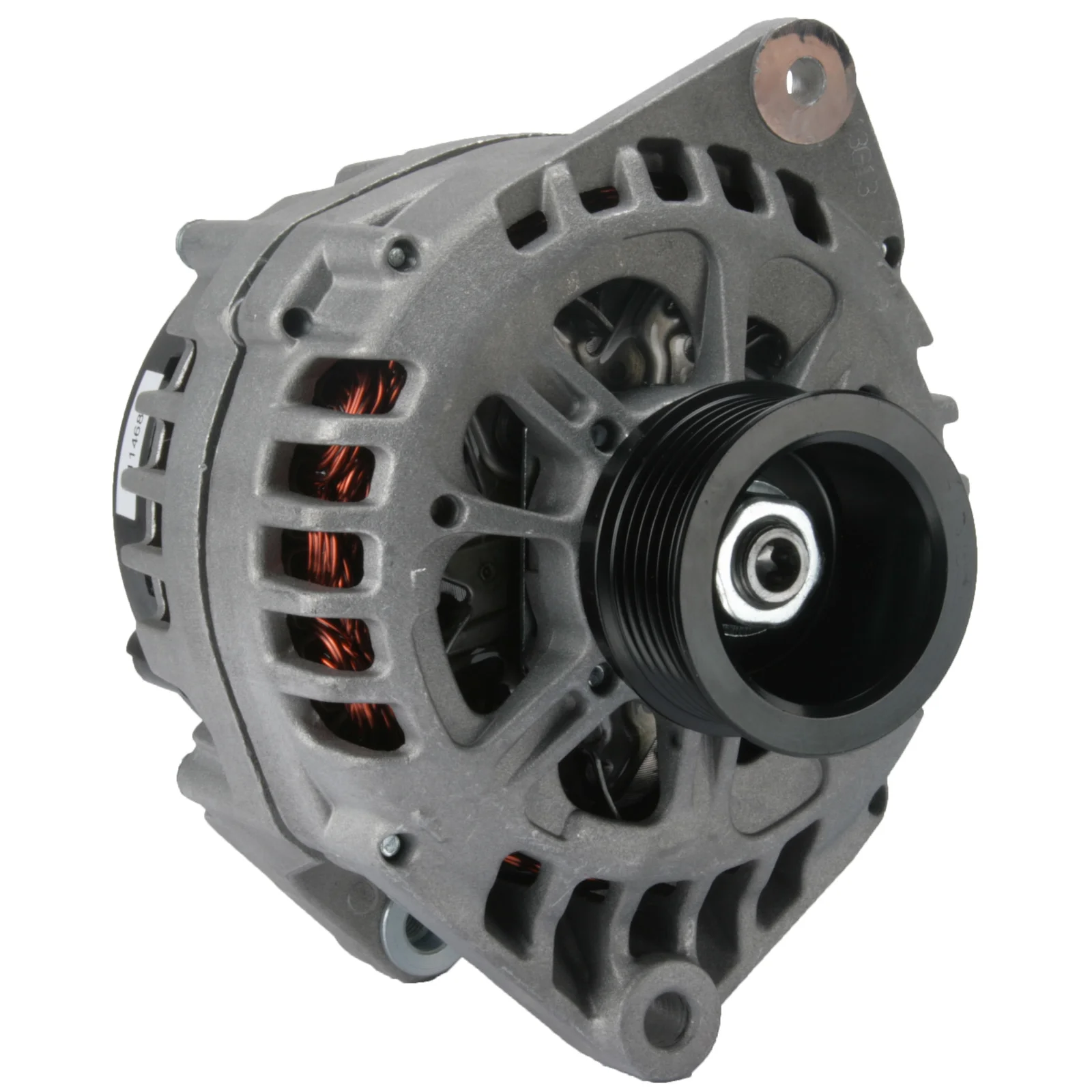

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 150, Rotasjon: CW, Monteringsbrakett avstand: 65,70

Beskrivelse

Spenning: 14
Amp: 150
Skive avstand: 53,20
Bredde/holderarm: 27,00
Festebrakett avstand: 65,70
Brakett hullmål: 10,50
Bånd justeringsbrakett hullposisjon: 3
Bånd justeringsbrakett hull 1: 8,60
Skivens diameter: 59,50
Groover/skive: 6
Radius: 90,00
Radius 2: 91,00
B+: M8
Posisjon/B+ i min.: 40
D+ størrelse: M5
Rotasjon: medur
Total lengde mm: 193,00
Skive: SP
Vifte: IF
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 65.70
Belt. adj. bracket hole 1 8.60
Belt. adj. brackethole pos. 3
Bracket hole 10.50
Position/B+ in min. 40
Pulley SP
Pulley dia. 59.50
Pulley dist. 53.20
Radius 90.00
D+ Size M5
Radius 2 91.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 193.00 mm
Width/holder arm 27.00
Amp 150

  • OEM
    A3093, CAL15257, DRA4257, F032114680, sg15s010, SG15S010, SG15S032, 8EL738213-271, 28-4984, 2037ir, 5702A8, 5702A9, 5705A8, 5705A9, 5705AE, 5705ET, 111184, 210668, 210668A, 302037RI, 437350, 839063, 2542312, 2542312A, 2542849, 12049310, 12090113, 32437350, 71724283, 500345767, 0986049311

  • Konkurrentreferens
    A3093, CAL15257, DRA4257, 8EL738213-271, 28-4984, 5702A8, 5702A9, 5705A8, 5705A9, 5705AE, 5705ET, 111184, 210668, 210668A, 302037RI, 437350, 839063, 12049310, 32437350, 0986049311

  • Bilmärken
    CITROËN, FIAT, PEUGEOT

  • NormaliseratArtNr
    a3093, cal15257, dra4257, f032114680, sg15s010, sg15s032, 8el738213271, 2037ir, 5702a8, 5702a9, 5705a8, 5705a9, 5705ae, 5705et, 111184, 210668, 210668a, 284984, 302037ri, 437350, 839063, 2542312, 2542312a, 2542849, 12049310, 12090113, 32437350, 71724283, 500345767, 0986049311

  • Passar modeller
    CITROËN JUMPER I Buss (230P) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 09.00-04.02
    CITROËN JUMPER I Buss (230P) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S Year: 09.00-04.02
    CITROËN JUMPER I Flak/chassi (230) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S Year: 09.00-04.02
    CITROËN JUMPER I Skåp (230L) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 09.00-04.02
    CITROËN JUMPER I Skåp (230L) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S Year: 09.00-04.02
    CITROËN JUMPER II Buss (244, Z_) 2.8 HDi Allhjulsdrift Engine volume: 2.8 Engine type: 8140.43S Year: 04.02-06.06
    CITROËN JUMPER II Buss (244, Z_) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S Year: 04.02-06.06
    CITROËN JUMPER II Flak/chassi (244) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 02.02-06.06
    CITROËN JUMPER II Flak/chassi (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43N Year: 05.04-06.06
    CITROËN JUMPER II Flak/chassi (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S Year: 04.02-06.06
    CITROËN JUMPER II Skåp (244) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 04.02-06.06
    CITROËN JUMPER II Skåp (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43N Year: 04.04-06.06
    CITROËN JUMPER II Skåp (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S Year: 04.02-06.06
    FIAT DUCATO Buss (230_) 2.8 JTD 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 11.00-04.02
    FIAT DUCATO Buss (230_) 2.8 JTD Engine volume: 2.8 Engine type: 8140.43S Year: 11.00-04.02
    FIAT DUCATO Buss (244_) 2.8 JTD 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 12.01-07.06
    FIAT DUCATO Buss (244_) 2.8 JTD Engine volume: 2.8 Engine type: 8140.43S Year: 12.01-
    FIAT DUCATO Buss (244_) 2.8 TD 4x4 Engine volume: 2.8 Engine type: 8140.43 Year: 11.03-07.06
    FIAT DUCATO Flak/chassi (230_) 2.8 JTD 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 10.01-04.02
    FIAT DUCATO Flak/chassi (230_) 2.8 JTD Engine volume: 2.8 Engine type: 8140.43S Year: 11.00-04.02
    FIAT DUCATO Flak/chassi (244_) 2.8 JTD 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 12.01-07.06
    FIAT DUCATO Flak/chassi (244_) 2.8 JTD Engine volume: 2.8 Engine type: 8140.43 Year: 11.03-07.06
    FIAT DUCATO Flak/chassi (244_) 2.8 JTD Engine volume: 2.8 Engine type: 8140.43S Year: 12.01-07.06
    FIAT DUCATO Flak/chassi (244_) 2.8 JTD Power Engine volume: 2.8 Engine type: 8140.43N Year: 04.04-07.06
    FIAT DUCATO Skåp (230_) 2.8 JTD 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 11.00-04.02
    FIAT DUCATO Skåp (230_) 2.8 JTD Engine volume: 2.8 Engine type: 8140.43S Year: 11.00-04.02
    FIAT DUCATO Skåp (244_) 2.8 JTD 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 12.01-07.06
    FIAT DUCATO Skåp (244_) 2.8 JTD Engine volume: 2.8 Engine type: 8140.43S Year: 12.01-12.11
    FIAT DUCATO Skåp (244_) 2.8 JTD Power Engine volume: 2.8 Engine type: 8140.43N Year: 04.04-07.06
    PEUGEOT BOXER Buss (230P) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 10.00-04.02
    PEUGEOT BOXER Buss (230P) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 10.00-11.01
    PEUGEOT BOXER Buss (230P) 2.8 HDI Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 11.00-04.02
    PEUGEOT BOXER Buss (244, Z_) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 12.01-06.06
    PEUGEOT BOXER Buss (244, Z_) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43N Year: 04.04-06.06
    PEUGEOT BOXER Buss (244, Z_) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 12.01-06.06
    PEUGEOT BOXER Flak/chassi (244) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 12.01-06.06
    PEUGEOT BOXER Flak/chassi (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43N Year: 04.04-06.06
    PEUGEOT BOXER Flak/chassi (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 12.01-06.06
    PEUGEOT BOXER Flak/chassi (ZCT_) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 10.00-11.01
    PEUGEOT BOXER Flak/chassi (ZCT_) 2.8 HDI Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 11.00-04.02
    PEUGEOT BOXER Skåp (230L) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 10.00-04.02
    PEUGEOT BOXER Skåp (230L) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 10.00-11.01
    PEUGEOT BOXER Skåp (230L) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 10.00-11.01
    PEUGEOT BOXER Skåp (230L) 2.8 HDI Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 11.00-04.02
    PEUGEOT BOXER Skåp (244) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 12.01-06.06
    PEUGEOT BOXER Skåp (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43N Year: 04.04-06.06
    PEUGEOT BOXER Skåp (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 12.01-06.06
    1 / 10
  • Beskrivelse
    Spenning: 14
    Amp: 150
    Skive avstand: 53,20
    Bredde/holderarm: 27,00
    Festebrakett avstand: 65,70
    Brakett hullmål: 10,50
    Bånd justeringsbrakett hullposisjon: 3
    Bånd justeringsbrakett hull 1: 8,60
    Skivens diameter: 59,50
    Groover/skive: 6
    Radius: 90,00
    Radius 2: 91,00
    B+: M8
    Posisjon/B+ i min.: 40
    D+ størrelse: M5
    Rotasjon: medur
    Total lengde mm: 193,00
    Skive: SP
    Vifte: IF
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 65.70
    Belt. adj. bracket hole 1 8.60
    Belt. adj. brackethole pos. 3
    Bracket hole 10.50
    Position/B+ in min. 40
    Pulley SP
    Pulley dia. 59.50
    Pulley dist. 53.20
    Radius 90.00
    D+ Size M5
    Radius 2 91.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 193.00 mm
    Width/holder arm 27.00
    Amp 150
  • Kjøretøymatching

    • OEM
      A3093, CAL15257, DRA4257, F032114680, sg15s010, SG15S010, SG15S032, 8EL738213-271, 28-4984, 2037ir, 5702A8, 5702A9, 5705A8, 5705A9, 5705AE, 5705ET, 111184, 210668, 210668A, 302037RI, 437350, 839063, 2542312, 2542312A, 2542849, 12049310, 12090113, 32437350, 71724283, 500345767, 0986049311

    • Konkurrentreferens
      A3093, CAL15257, DRA4257, 8EL738213-271, 28-4984, 5702A8, 5702A9, 5705A8, 5705A9, 5705AE, 5705ET, 111184, 210668, 210668A, 302037RI, 437350, 839063, 12049310, 32437350, 0986049311

    • Bilmärken
      CITROËN, FIAT, PEUGEOT

    • NormaliseratArtNr
      a3093, cal15257, dra4257, f032114680, sg15s010, sg15s032, 8el738213271, 2037ir, 5702a8, 5702a9, 5705a8, 5705a9, 5705ae, 5705et, 111184, 210668, 210668a, 284984, 302037ri, 437350, 839063, 2542312, 2542312a, 2542849, 12049310, 12090113, 32437350, 71724283, 500345767, 0986049311

    • Passar modeller
      CITROËN JUMPER I Buss (230P) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 09.00-04.02
      CITROËN JUMPER I Buss (230P) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S Year: 09.00-04.02
      CITROËN JUMPER I Flak/chassi (230) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S Year: 09.00-04.02
      CITROËN JUMPER I Skåp (230L) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 09.00-04.02
      CITROËN JUMPER I Skåp (230L) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S Year: 09.00-04.02
      CITROËN JUMPER II Buss (244, Z_) 2.8 HDi Allhjulsdrift Engine volume: 2.8 Engine type: 8140.43S Year: 04.02-06.06
      CITROËN JUMPER II Buss (244, Z_) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S Year: 04.02-06.06
      CITROËN JUMPER II Flak/chassi (244) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 02.02-06.06
      CITROËN JUMPER II Flak/chassi (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43N Year: 05.04-06.06
      CITROËN JUMPER II Flak/chassi (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S Year: 04.02-06.06
      CITROËN JUMPER II Skåp (244) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 04.02-06.06
      CITROËN JUMPER II Skåp (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43N Year: 04.04-06.06
      CITROËN JUMPER II Skåp (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S Year: 04.02-06.06
      FIAT DUCATO Buss (230_) 2.8 JTD 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 11.00-04.02
      FIAT DUCATO Buss (230_) 2.8 JTD Engine volume: 2.8 Engine type: 8140.43S Year: 11.00-04.02
      FIAT DUCATO Buss (244_) 2.8 JTD 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 12.01-07.06
      FIAT DUCATO Buss (244_) 2.8 JTD Engine volume: 2.8 Engine type: 8140.43S Year: 12.01-
      FIAT DUCATO Buss (244_) 2.8 TD 4x4 Engine volume: 2.8 Engine type: 8140.43 Year: 11.03-07.06
      FIAT DUCATO Flak/chassi (230_) 2.8 JTD 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 10.01-04.02
      FIAT DUCATO Flak/chassi (230_) 2.8 JTD Engine volume: 2.8 Engine type: 8140.43S Year: 11.00-04.02
      FIAT DUCATO Flak/chassi (244_) 2.8 JTD 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 12.01-07.06
      FIAT DUCATO Flak/chassi (244_) 2.8 JTD Engine volume: 2.8 Engine type: 8140.43 Year: 11.03-07.06
      FIAT DUCATO Flak/chassi (244_) 2.8 JTD Engine volume: 2.8 Engine type: 8140.43S Year: 12.01-07.06
      FIAT DUCATO Flak/chassi (244_) 2.8 JTD Power Engine volume: 2.8 Engine type: 8140.43N Year: 04.04-07.06
      FIAT DUCATO Skåp (230_) 2.8 JTD 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 11.00-04.02
      FIAT DUCATO Skåp (230_) 2.8 JTD Engine volume: 2.8 Engine type: 8140.43S Year: 11.00-04.02
      FIAT DUCATO Skåp (244_) 2.8 JTD 4x4 Engine volume: 2.8 Engine type: 8140.43S Year: 12.01-07.06
      FIAT DUCATO Skåp (244_) 2.8 JTD Engine volume: 2.8 Engine type: 8140.43S Year: 12.01-12.11
      FIAT DUCATO Skåp (244_) 2.8 JTD Power Engine volume: 2.8 Engine type: 8140.43N Year: 04.04-07.06
      PEUGEOT BOXER Buss (230P) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 10.00-04.02
      PEUGEOT BOXER Buss (230P) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 10.00-11.01
      PEUGEOT BOXER Buss (230P) 2.8 HDI Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 11.00-04.02
      PEUGEOT BOXER Buss (244, Z_) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 12.01-06.06
      PEUGEOT BOXER Buss (244, Z_) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43N Year: 04.04-06.06
      PEUGEOT BOXER Buss (244, Z_) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 12.01-06.06
      PEUGEOT BOXER Flak/chassi (244) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 12.01-06.06
      PEUGEOT BOXER Flak/chassi (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43N Year: 04.04-06.06
      PEUGEOT BOXER Flak/chassi (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 12.01-06.06
      PEUGEOT BOXER Flak/chassi (ZCT_) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 10.00-11.01
      PEUGEOT BOXER Flak/chassi (ZCT_) 2.8 HDI Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 11.00-04.02
      PEUGEOT BOXER Skåp (230L) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 10.00-04.02
      PEUGEOT BOXER Skåp (230L) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 10.00-11.01
      PEUGEOT BOXER Skåp (230L) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 10.00-11.01
      PEUGEOT BOXER Skåp (230L) 2.8 HDI Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 11.00-04.02
      PEUGEOT BOXER Skåp (244) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 12.01-06.06
      PEUGEOT BOXER Skåp (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43N Year: 04.04-06.06
      PEUGEOT BOXER Skåp (244) 2.8 HDi Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 12.01-06.06
