HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115910

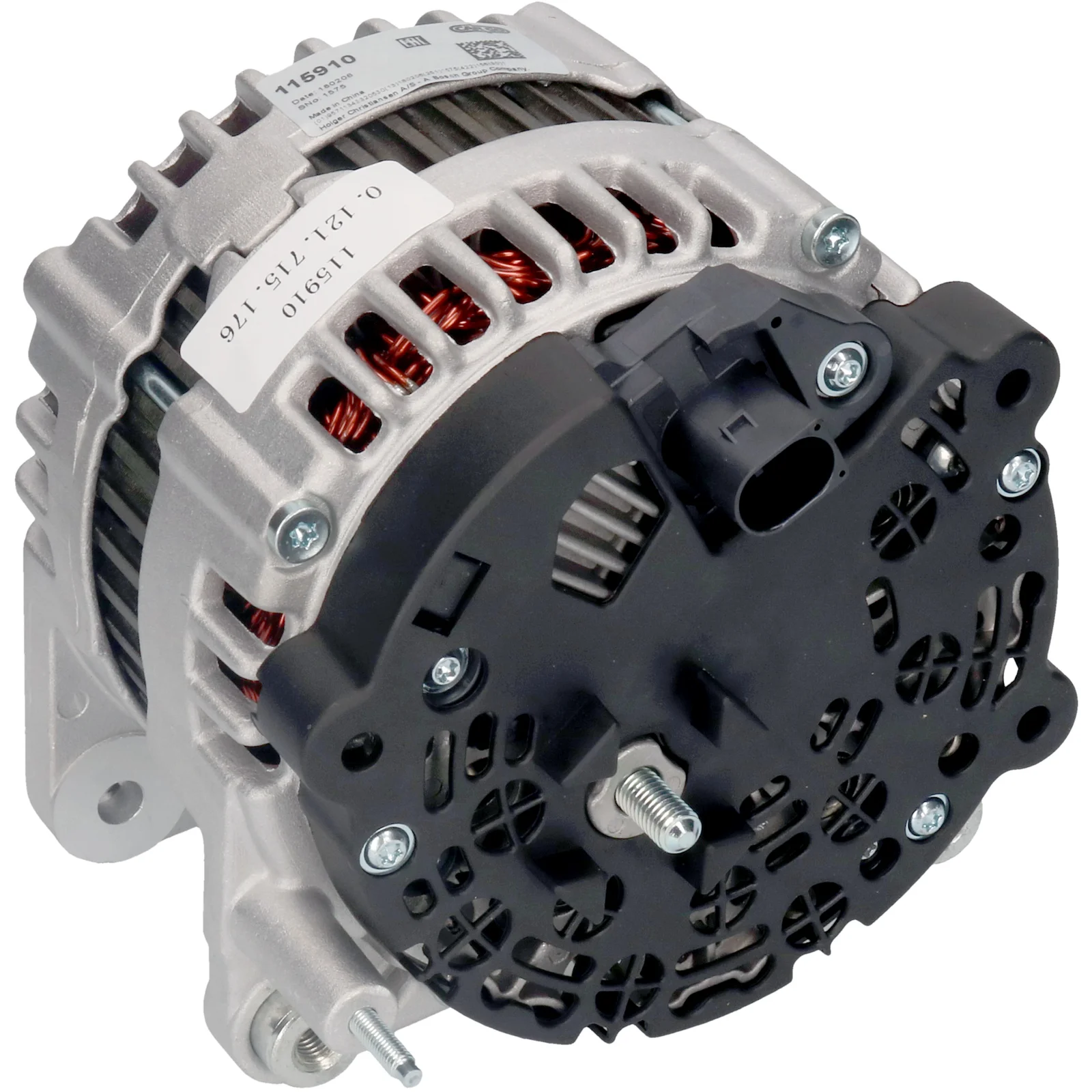

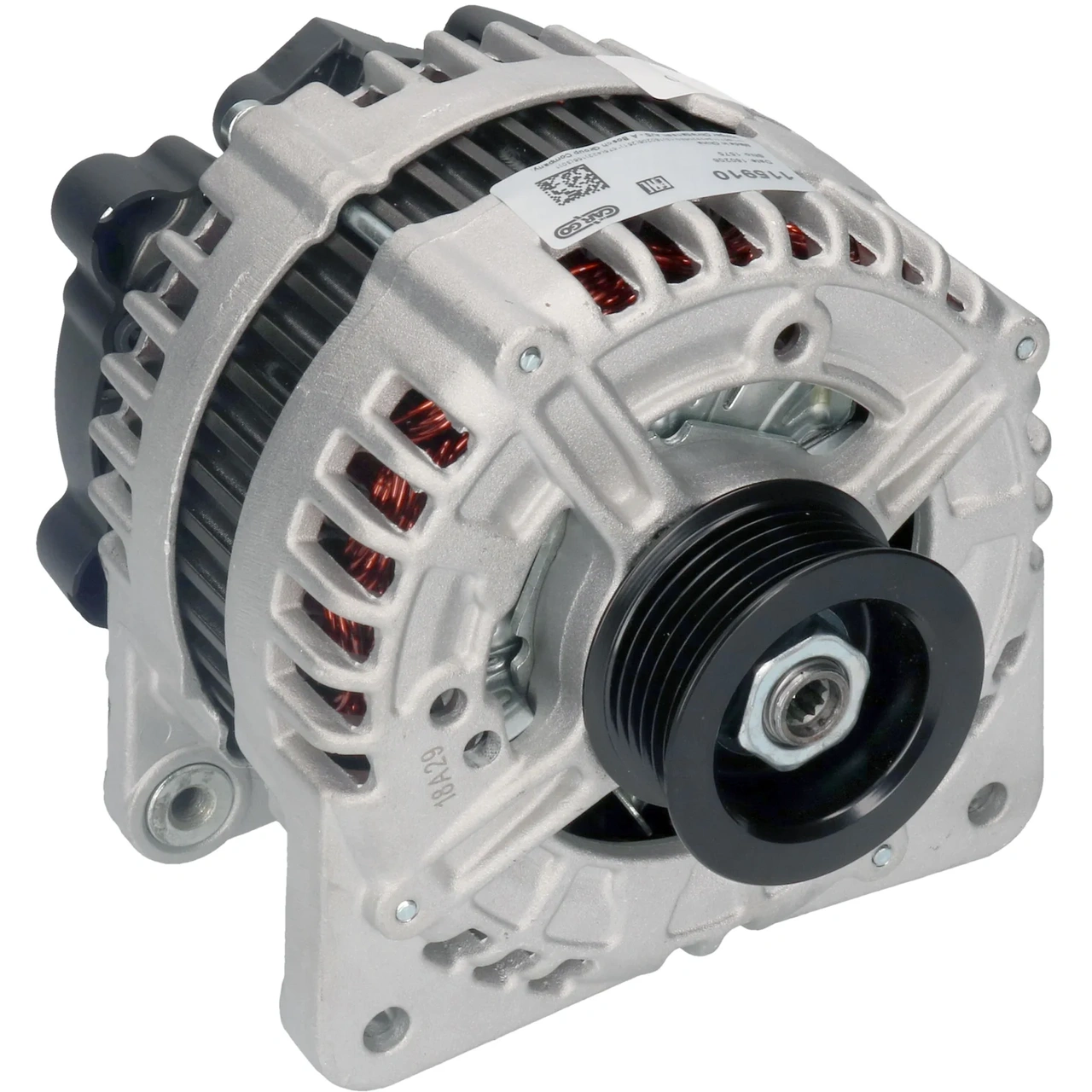

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 180, Rotasjon: CW, Montering. bøgler dist.: 62,30

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Ampere: 180
Lage på remskive: 30,00
Bredde/holderarm: 14,50
Innfestingsbrakett avstand: 62,30
Brakettshull: 8,50
Reimjusteringsbrakett hull posisjon: 45
Reimjusteringsbrakett hull 1: 8,50
Remskive diameter: 56,00
Groper/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min: 30
Rotasjon: med urviseren
Plugg nr.: PL181
Total lengde mm: 179,00
Terminaltype: COM
Kommunikasjon: LIN
Remskive: SP
Regulator type: IR
Prod. info: BN
Merknader: Denne Generator har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 62.30
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL181
Bracket hole 8.50
Position/B+ in min. 30
Prod. info BN
Pulley SP
Pulley dia. 56.00
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 179.00 mm
Width/holder arm 14.50
Amp 180

  • OEM
    F032115910, 1986A00768, 059903018e, 059903018EX, 059903018TX, 0121715076, 0121715176

  • Konkurrentreferens
    A0409, DRA0833, LRA03286, 28-5898, 205.578.180, 211.370.1802, 20138N, 20138R, 209186, 209186A, 443306, 444215, 9090608, 12090500, 32715180, 0986081930

  • NormaliseratArtNr
    a0409, dra0833, f032115910, lra03286, 1986a00768, 20138n, 20138r, 209186, 209186a, 285898, 443306, 444215, 9090608, 12090500, 32715180, 059903018e, 059903018ex, 059903018tx, 0121715076, 0121715176, 205578180, 0986081930, 2113701802

  • Passar modeller
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CANC Type description: 4FH Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CAND Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BNG Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYA Type description: 4FH Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYB Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYC Type description: 4FH Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 4F2 From date: 01-06-2005 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CANC Type description: 4F2 From date: 01-10-2008 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CANC Type description: 4F5 Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CAND Type description: 4F2 From date: 01-06-2005 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CAND Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BNG Type description: 4F2 From date: 01-05-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BNG Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYB Type description: 4F2 From date: 01-05-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYB Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: CANA Type description: 4F2 From date: 01-10-2008 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: CANA Type description: 4F5 Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: CANC Type description: 4F5 Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BUG Type description: 4LB Body: Box Body / Estate From date: 01-03-2006 To date: 01-05-2008 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CASB,BUN Type description: 4LB Body: Box Body / Estate From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA,CASA,CJGA Type description: 4LB Body: Box Body / Estate From date: 01-11-2007 To date: 01-05-2012 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4LB Body: Box Body / Estate From date: 01-11-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: BUG Body: SUV From date: 01-03-2006 To date: 01-05-2008 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: BUN Body: SUV From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CASA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CASB Body: SUV From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGC Type description: 4L From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4L From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CLZB Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CNRB Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
