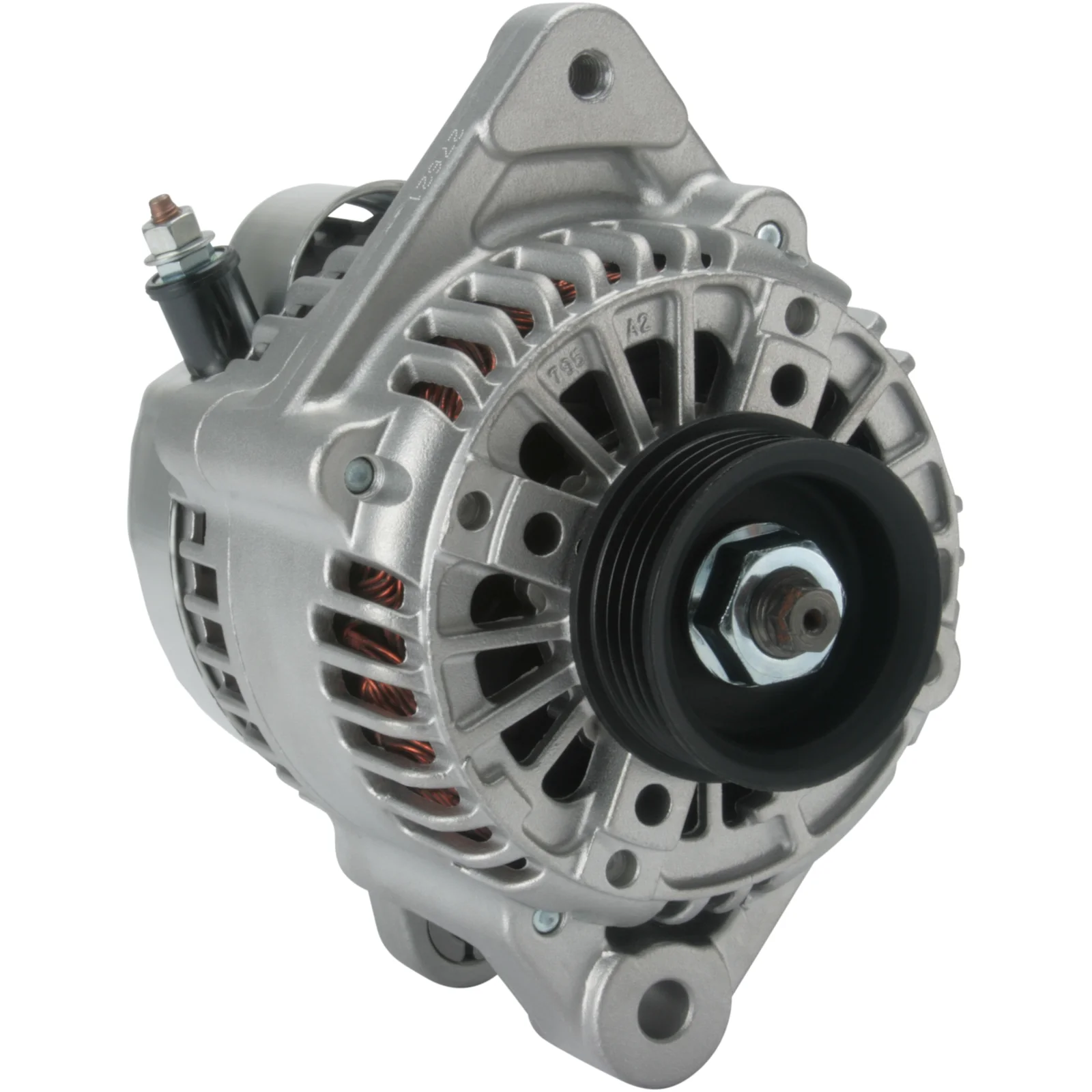

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115929

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 70, Rotasjon: CW, Monteringsbeslag avstand: 39,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Ampere: 70
Drevkugg: 48.00
Bredde/holderarm: 27.00
Monteringsbøssingsavstand: 39.50
Bøssingshull: 10.20
Båndjusterbøssingsposisjon: 60
Båndjusterbøssingshull 1: M8
Drevdiameter: 55.00
Ripper/ Drev: 4
Radius: 74.00
Radius 2: 82.00
B+: M6
Posisjon/B+ i min.: 7
D+ størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL58
Total lengde mm: 153.00
Terminaltype: L-IG
Dreven: SP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 39.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL58
Bracket hole 10.20
Position/B+ in min. 7
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 48.00
Radius 74.00
D+ Size Plug
Radius 2 82.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Terminal type L-IG
Voltage 14
Total length 153.00 mm
Width/holder arm 27.00
Amp 70

  • OEM
    A2TC0291, F032115929, 27060-97401, 27060-97401-000, 27060-97402, 27060-97402-000, 102211-5450, 102211-547, 102211-5470, 102211-5880

  • Konkurrentreferens
    A6057, A6057(DENSO), A6085, A6085(DENSO), CAL40182, CAL40295, DAN976, DAN977, DRA0348, DRA0709, J5116029, LRA02040, MAN7515, MAN7516, 28-3959, 28-5870, 115.509.070, 115.526.070, 217.117.702, 217.125.702, 23040R, 112832, 210843, 210843A, 9090515, 12060881, 12061155, 063377515010, 063377516010

  • NormaliseratArtNr
    a2tc0291, a6057, a6057denso, a6085, a6085denso, cal40182, cal40295, dan976, dan977, dra0348, dra0709, f032115929, j5116029, lra02040, man7515, man7516, 23040r, 112832, 210843, 210843a, 283959, 285870, 9090515, 12060881, 12061155, 102211547, 115509070, 115526070, 217117702, 217125702, 1022115450, 1022115470, 1022115880, 2706097401, 2706097402, 063377515010, 063377516010, 2706097401000, 2706097402000

  • Passar modeller
    Daihatsu Model: Sirion Model series: Sirion Model type: Sport Size of motor: 1.3 Brand of engine: K3-VE2 Type description: M1 Body: Hatchback From date: 01-08-2000 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Sirion Model series: Sirion Model type: Sport, 4WD Size of motor: 1.3 Brand of engine: K3-VE2 Type description: M1 Body: Hatchback From date: 01-08-2000 To date: 01-03-2005 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Terios Model series: Terios Model type: 4WD Size of motor: 1.3 Brand of engine: K3-VE Type description: J1 From date: 01-10-2000 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Terios Model series: Terios Size of motor: 1.3 Brand of engine: K3-VE Type description: J1 From date: 01-09-2001 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Daihatsu Model: YRV Model series: YRV Model type: 4WD Size of motor: 1.3 Brand of engine: K3-VE Type description: M2 Body: Estate From date: 01-02-2001 Fuel: Gasoline Approved: Yes
    Daihatsu Model: YRV Model series: YRV Size of motor: 1.3 Brand of engine: K3-VE Type description: M2 Body: Estate From date: 01-02-2001 Fuel: Gasoline Approved: Yes
    Daihatsu Model: YRV Model series: YRV Type of engine: Turbo Size of motor: 1.3 Brand of engine: K3-VET Type description: M2 Body: Estate From date: 01-07-2002 Fuel: Gasoline Approved: Yes
