Varenr.: F032112358

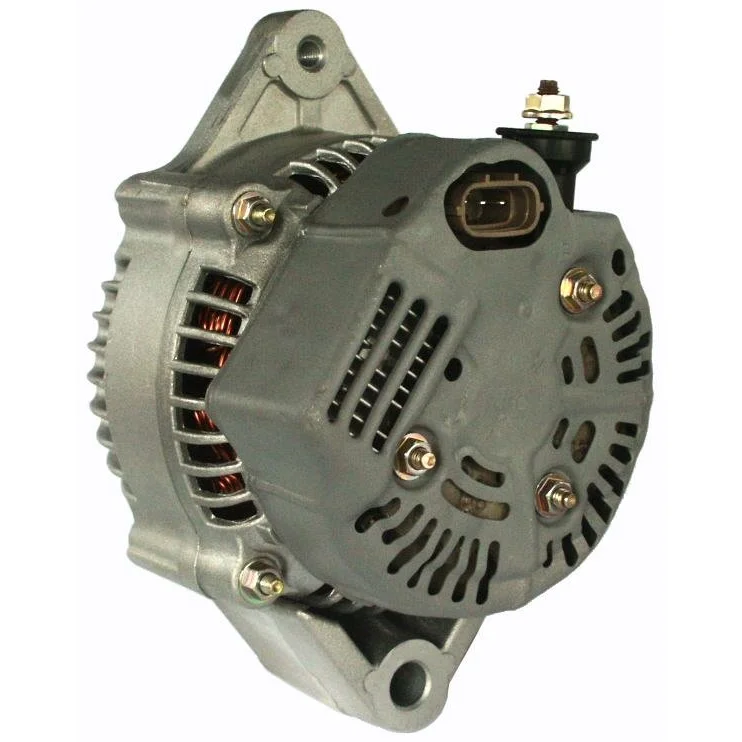

HC-Cargo Dynamo

Teknisk info:

Spenningsnivå: 14, Ampere: 55, Rotasjon: CW, Drevdiameter: 50,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 14
Amp: 55
Drevplassering: 89.50
Bredde/holderarm: 58.00
Bracket hull: 10.20
Reim. justering bracket hull pos.: 60
Reim. justering bracket hull 1: M8
Drevdiameter: 50.00
Spor / drev: 5
Radius: 80.00
Radius 2: 84.00
B+: M6
Posisjon/B+ i min.: 5
D+ Størrelse: Plugg
Rotasjon: Medurs
Plugg nr.: PL42
Total lengde mm: 157.00
Drev: SP
Regulator type: IR
Prod. info: Reman
Service: Toyota
Info: Denso 102211-5850

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL42
Bracket hole 10.20
Position/B+ in min. 5
Prod. info Reman
Pulley SP
Pulley dia. 50.00
Pulley dist. 89.50
Radius 80.00
D+ Size Plug
Radius 2 84.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 5
Info Denso 102211-5850
Voltage 14
Total length 157.00 mm
Width/holder arm 58.00
Amp 55

  • OEM
    F032112358, ja1536ir, 27060-75020, 27060-75030, 27060-75190, 27060-78154-71, 27060-78700, 27060-78700-71, 27060-78701, 101211-0540, 101211-0541, 101211-0542, 101211-0543, 101211-4370, 102211-5190, 102211-5200, 102211-5850

  • Konkurrentreferens
    A6204, A6215, CAL44101, DAN2014, J5112097, LRA01813, LRA02044, 28-3631, 28-3968, 235.157.552, 535.142.602, 12473N, 119950, 401536RI, 9051297, 12060421, 943354064010, 944390512970

  • NormaliseratArtNr
    a6204, a6215, cal44101, dan2014, f032112358, j5112097, ja1536ir, lra01813, lra02044, 12473n, 119950, 283631, 283968, 401536ri, 9051297, 12060421, 235157552, 535142602, 1012110540, 1012110541, 1012110542, 1012110543, 1012114370, 1022115190, 1022115200, 1022115850, 2706075020, 2706075030, 2706075190, 2706078700, 2706078701, 270607815471, 270607870071, 943354064010, 944390512970

  • Passar modeller
    Toyota Model: 7FD Model series: 7FD10 From date: 01-01-1998 Approved: Yes
    Toyota Model: 7FD Model series: 7FD14 From date: 01-01-1998 Approved: Yes
    Toyota Model: 7FD Model series: 7FD15 From date: 01-01-1998 Approved: Yes
    Toyota Model: 7FD Model series: 7FD18 From date: 01-01-1998 Approved: Yes
    Toyota Model: 7FD Model series: 7FD20 From date: 01-01-1998 Approved: Yes
    Toyota Model: 7FD Model series: 7FD23 From date: 01-01-1998 Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.4 Brand of engine: 2RZ-E Type description: H12, 22 Body: Van From date: 01-08-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.4 Brand of engine: 2RZ-E Type description: H18, 22 Body: Bus From date: 01-08-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Size of motor: 2.4 Brand of engine: 2RZ-E Body: Bus From date: 01-08-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Size of motor: 2.4 Brand of engine: 2RZ-E Body: Van From date: 01-08-1995 To date: 01-11-2003 Fuel: Gasoline Approved: Yes
