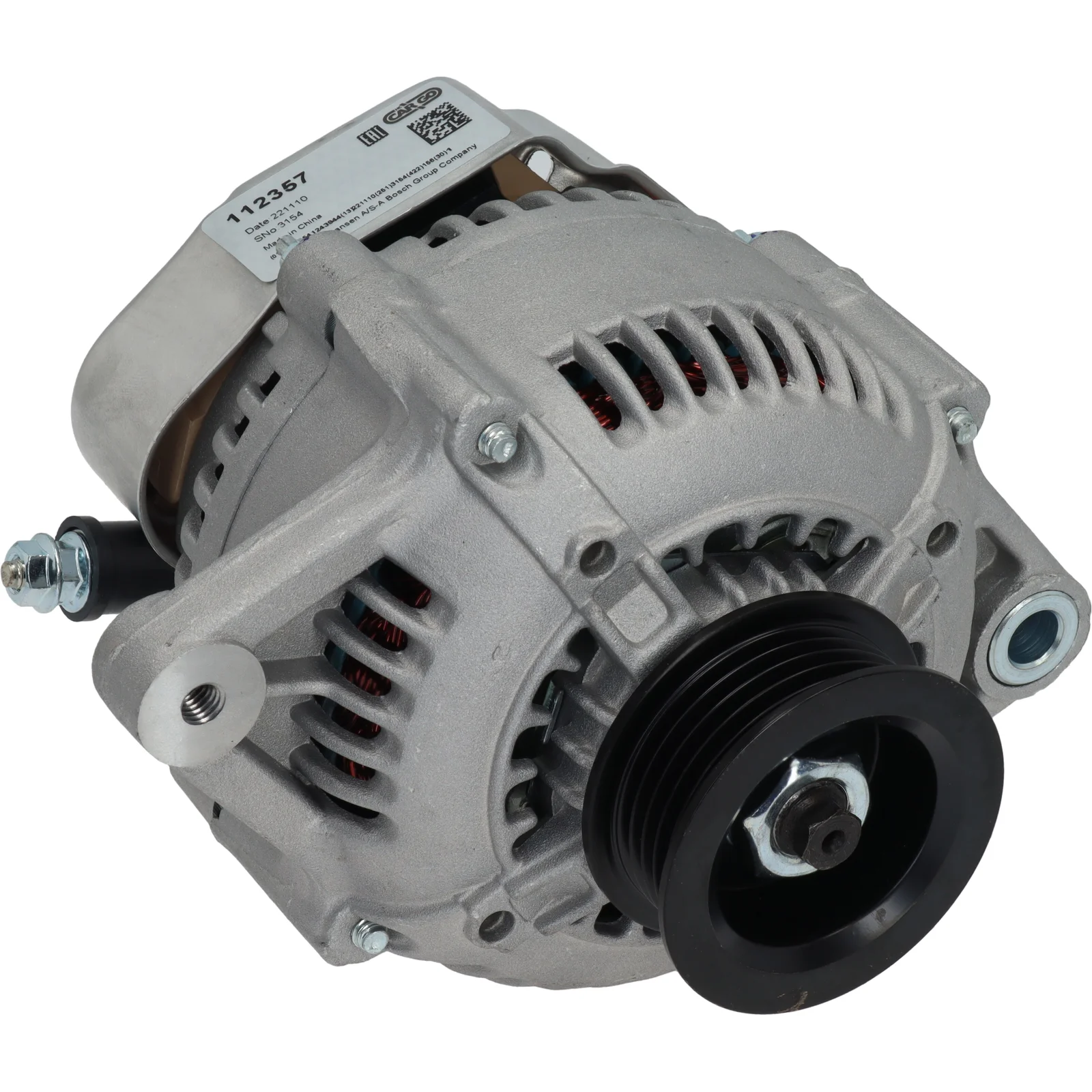

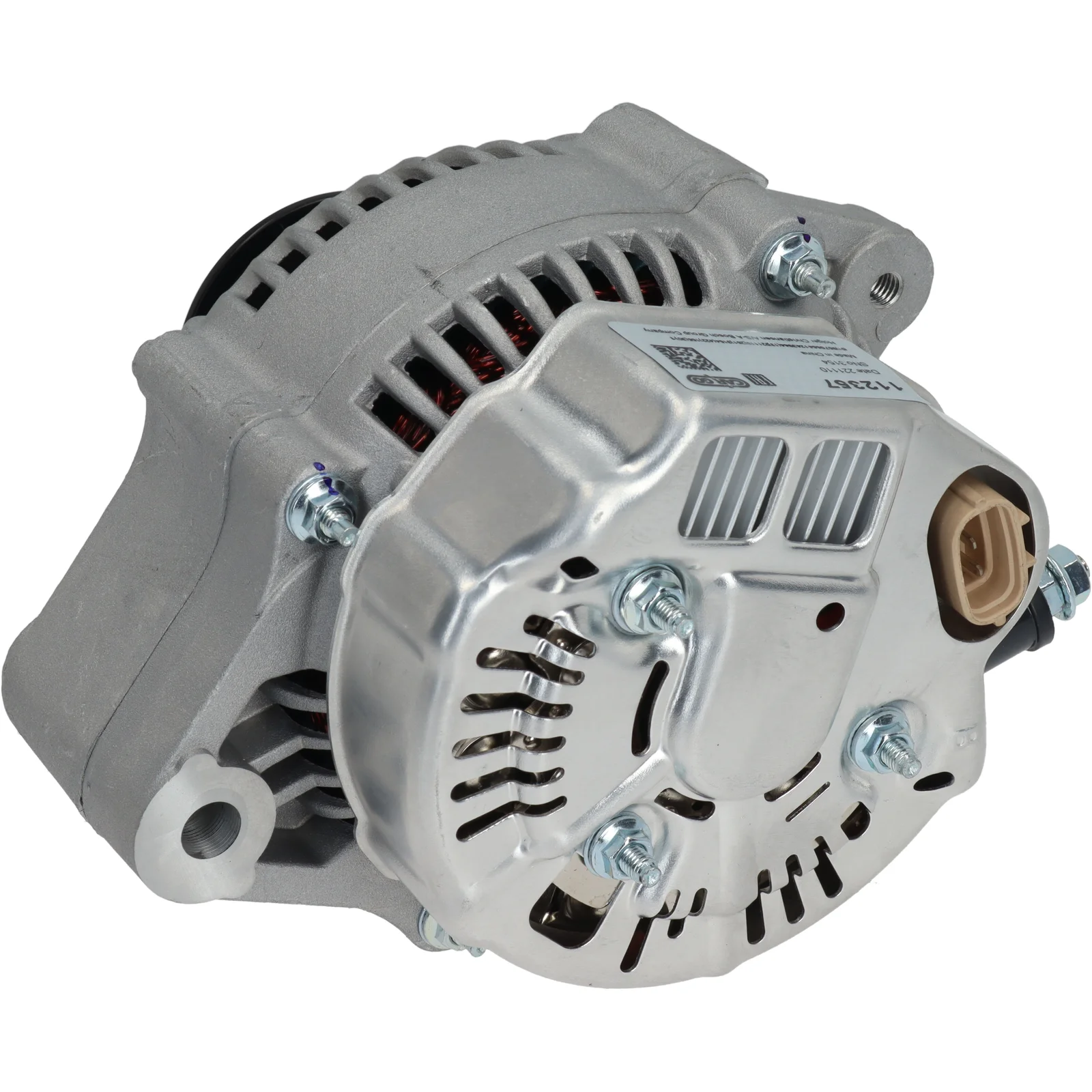

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032112357

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 70, Dreiing: CW, Remskive dia.: 55.00

Beskrivelse

Spenningsspenning: 14
Amp: 70
Drev: 90.00
Bredde/holderarm: 58.00
Støttehull: 10.50
Båndjustering. støttehull pos.: 59
Båndjustering. støttehull 1: M8
Drevkugg diameter: 55.00
Groover/drevkugg: 5
Radius: 78.00
Radius 2: 83.00
B+: M6
Posisjon/B+ i min.: 5
D+ størrelse: Plugg
Rotasjon: med urviseren
Plugg nr.: PL42
Total lengde mm: 167.00
Drev: SP
Regulator type: IR
Prod. info: BN
Service: Toyota

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 59
Plug no. PL42
Bracket hole 10.50
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 90.00
Radius 78.00
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 5
Voltage 14
Total length 167.00 mm
Width/holder arm 58.00
Amp 70

  • OEM
    F032112357, ja1535ir, 1986A01820, 27060-75100, 27060-75150, 101211-0520, 101211-0521, 101211-0522, 102211-5050, 102211-5051, 102211-5052

  • Konkurrentreferens
    A6350, ALT-H097, ALT30066, DRA0278, F042A0H097, J5112098, LRA01816, 8EL737838-001, 28-3635, 235.157.702, 13673N, 119949, 209141, 209141A, 401535RI, 9051298, 9213251, 12060422, 0986080010, 944390512980

  • NormaliseratArtNr
    a6350, alt30066, alth097, dra0278, f032112357, f042a0h097, j5112098, ja1535ir, lra01816, 8el737838001, 1986a01820, 13673n, 119949, 209141, 209141a, 283635, 401535ri, 9051298, 9213251, 12060422, 235157702, 0986080010, 1012110520, 1012110521, 1012110522, 1022115050, 1022115051, 1022115052, 2706075100, 2706075150, 944390512980

  • Passar modeller
    Toyota Model: 4 Runner Model series: 4 Runner Model type: 4WD Size of motor: 2.7 Brand of engine: 3RZ-FE Type description: _N18_ Body: SUV From date: 01-11-1995 To date: 01-08-2002 Fuel: Petrol Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.4 Brand of engine: 2RZ-E Type description: H12, 22 Body: Van From date: 01-08-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.4 Brand of engine: 2RZ-E Type description: H18, 22 Body: Bus From date: 01-08-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.7 Brand of engine: 3RZ-FE Body: Bus From date: 01-07-1998 To date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.7 Brand of engine: 3RZ-FE Type description: H19, 29 Body: Bus From date: 01-04-1998 To date: 01-08-2006 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.7 Brand of engine: 3RZ-FE Type description: H19, 29 Body: Van From date: 01-07-1998 To date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Size of motor: 2.4 Brand of engine: 2RZ-E Body: Bus From date: 01-08-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Size of motor: 2.4 Brand of engine: 2RZ-E Body: Van From date: 01-08-1995 To date: 01-11-2003 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Size of motor: 2.7 Brand of engine: 3RZ-FE Type description: H12 Body: Van From date: 01-04-1998 To date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Size of motor: 2.7 Brand of engine: 3RZ-FE Type description: H12G Body: Bus From date: 01-04-1998 To date: 01-11-2001 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Van From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    1 / 3
