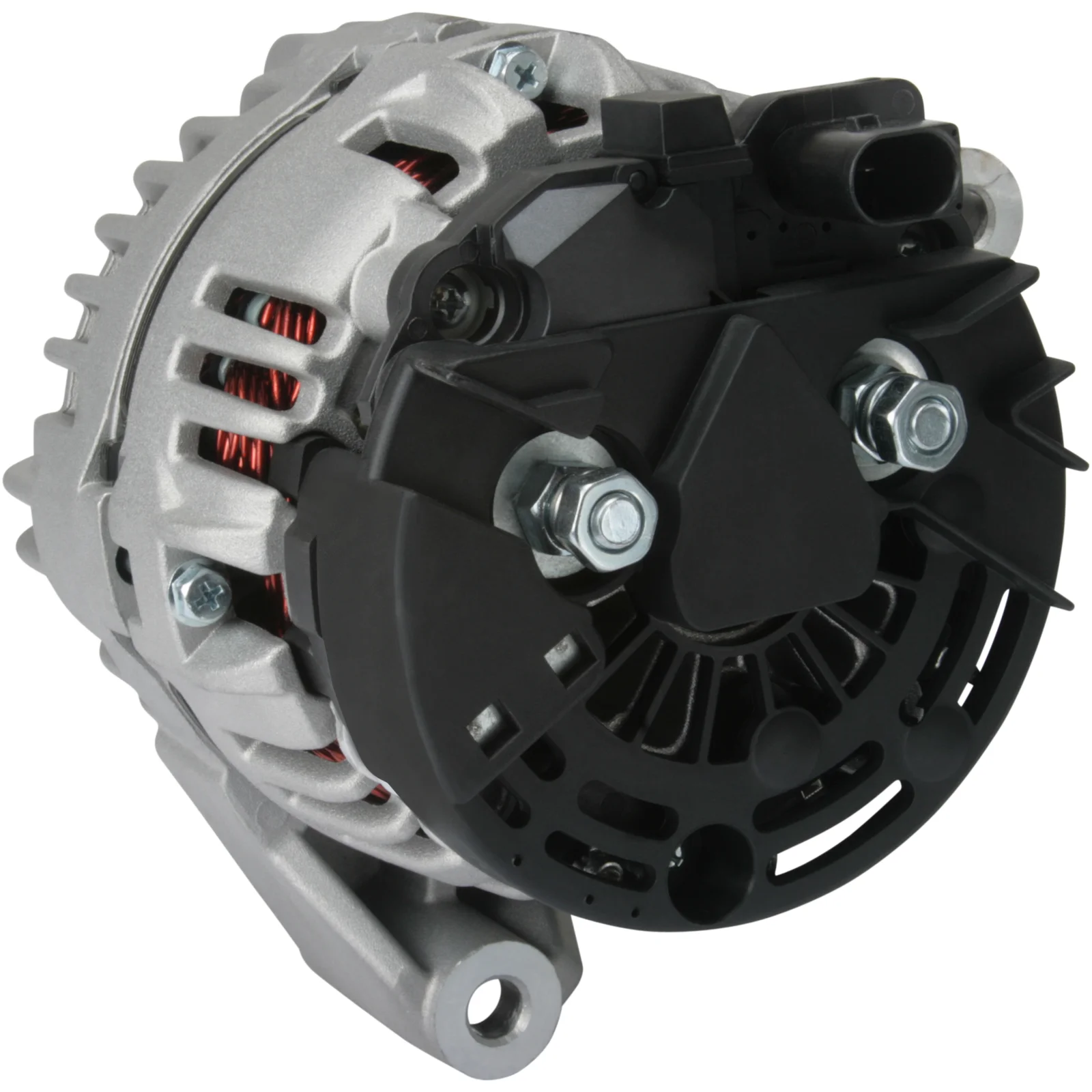

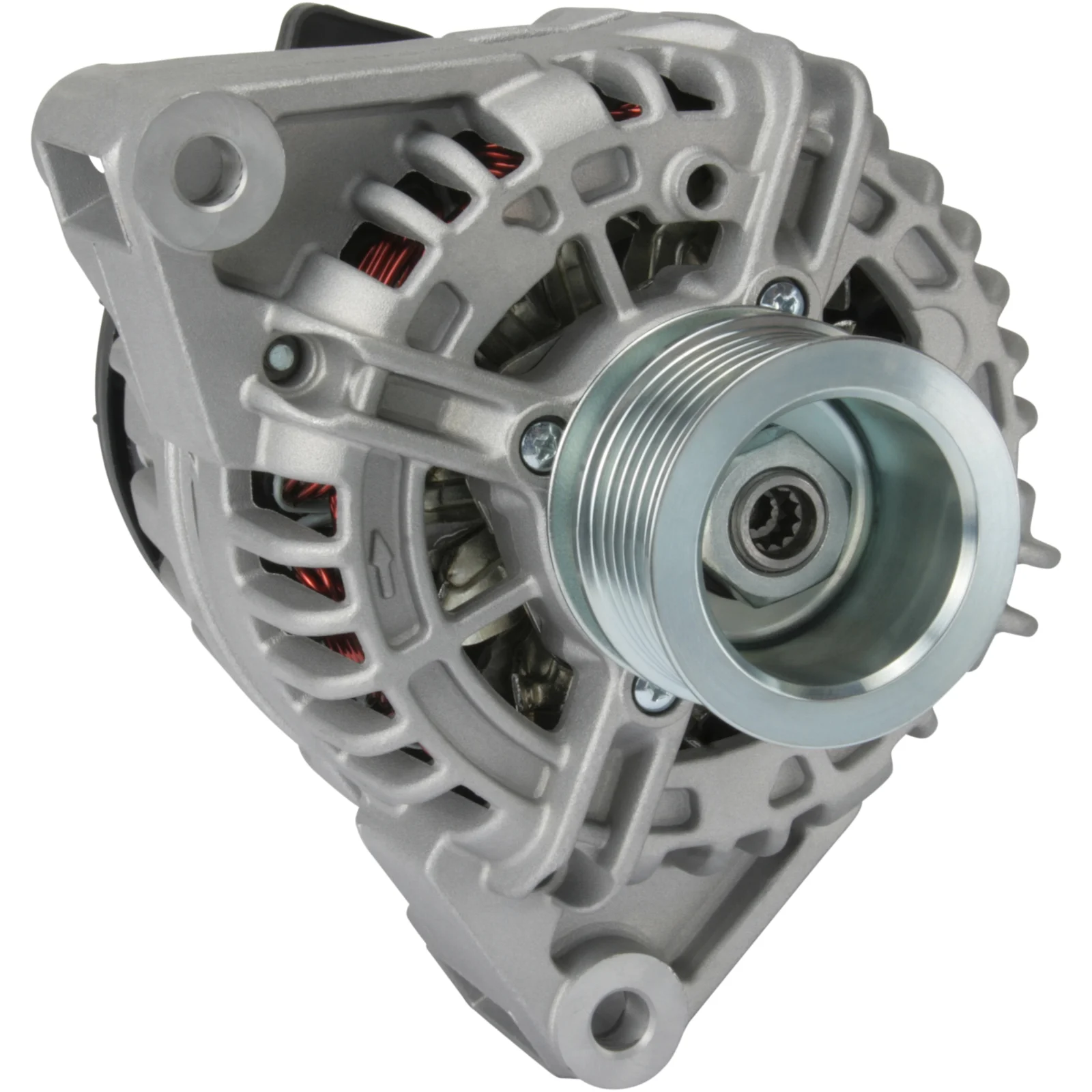

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032113301

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Ampere: 90, Rotasjon: Døgn, Reimskive diameter: 48.00

Beskrivelse

Spenningsverdi: 14
Ampere: 90
Drevkugg dist.: 91.50
Bredde/holderarm: 56.00
Bøssinghull: 10.30
Belt. justering. bøssinghull pos.: 50
Belt. justering. bøssinghull 1: 10.20
Drevkugg dia.: 48.00
Spor/drevkugg: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 45
D+ Størrelse: Plugg
Rotasjon: med urviseren
Plugg nr.: PL103
Total lengde mm: 187.00
Drevkugg: SP
Regulator type: IR
Prod. info: BN
Service: Mercedes-Benz

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 10.20
Belt. adj. brackethole pos. 50
Plug no. PL103
Bracket hole 10.30
Position/B+ in min. 45
Prod. info BN
Pulley SP
Pulley dia. 48.00
Pulley dist. 91.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing Mercedes-Benz
Grooves/pulley 6
Voltage 14
Total length 187.00 mm
Width/holder arm 56.00
Amp 90

  • OEM
    A0121540302, A0121540902, F032113301, 1732ir, 1986A00785, 0121540302, 0121540902, 0124325038, 0124325040, 0124325041, 0124325045, 0124325076

  • Konkurrentreferens
    A0269, CAL10271, DRB2730, 8EL738070-001, 555.936.090, 23095R, 209103, 209103A, 301732RI, 849140, 12042730, 12090106, 0986042730, 0986042733

  • NormaliseratArtNr
    a0121540302, a0121540902, a0269, cal10271, drb2730, f032113301, 8el738070001, 1732ir, 1986a00785, 23095r, 209103, 209103a, 301732ri, 849140, 12042730, 12090106, 0121540302, 0121540902, 0124325038, 0124325040, 0124325041, 0124325045, 0124325076, 555936090, 0986042730, 0986042733

  • Passar modeller
    Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 2.0 Brand of engine: M111.952 Type description: 202 Body: Estate From date: 01-09-2000 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: Kompressor Size of motor: 2.0 Brand of engine: M111.957 Type description: 210 Body: Estate From date: 01-08-2000 To date: 01-03-2003 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: Kompressor Size of motor: 2.0 Brand of engine: M111.957 Type description: 210 From date: 01-08-2000 To date: 01-03-2002 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 230 Model series: 230 Model type: Kompressor Size of motor: 2.3 Brand of engine: M111.982 Type description: 208 Body: Coupe From date: 01-06-2000 To date: 01-06-2002 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 230 Model series: CLK 230 Model type: Kompressor Size of motor: 2.3 Brand of engine: M111.982 Type description: 208 Body: Convertible From date: 01-06-2000 To date: 01-03-2002 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenningsverdi: 14
    Ampere: 90
    Drevkugg dist.: 91.50
    Bredde/holderarm: 56.00
    Bøssinghull: 10.30
    Belt. justering. bøssinghull pos.: 50
    Belt. justering. bøssinghull 1: 10.20
    Drevkugg dia.: 48.00
    Spor/drevkugg: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 45
    D+ Størrelse: Plugg
    Rotasjon: med urviseren
    Plugg nr.: PL103
    Total lengde mm: 187.00
    Drevkugg: SP
    Regulator type: IR
    Prod. info: BN
    Service: Mercedes-Benz

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 10.20
    Belt. adj. brackethole pos. 50
    Plug no. PL103
    Bracket hole 10.30
    Position/B+ in min. 45
    Prod. info BN
    Pulley SP
    Pulley dia. 48.00
    Pulley dist. 91.50
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Servicing Mercedes-Benz
    Grooves/pulley 6
    Voltage 14
    Total length 187.00 mm
    Width/holder arm 56.00
    Amp 90
  • Kjøretøymatching

    • OEM
      A0121540302, A0121540902, F032113301, 1732ir, 1986A00785, 0121540302, 0121540902, 0124325038, 0124325040, 0124325041, 0124325045, 0124325076

    • Konkurrentreferens
      A0269, CAL10271, DRB2730, 8EL738070-001, 555.936.090, 23095R, 209103, 209103A, 301732RI, 849140, 12042730, 12090106, 0986042730, 0986042733

    • NormaliseratArtNr
      a0121540302, a0121540902, a0269, cal10271, drb2730, f032113301, 8el738070001, 1732ir, 1986a00785, 23095r, 209103, 209103a, 301732ri, 849140, 12042730, 12090106, 0121540302, 0121540902, 0124325038, 0124325040, 0124325041, 0124325045, 0124325076, 555936090, 0986042730, 0986042733

    • Passar modeller
      Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 2.0 Brand of engine: M111.952 Type description: 202 Body: Estate From date: 01-09-2000 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: E 200 Model type: Kompressor Size of motor: 2.0 Brand of engine: M111.957 Type description: 210 Body: Estate From date: 01-08-2000 To date: 01-03-2003 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: E 200 Model type: Kompressor Size of motor: 2.0 Brand of engine: M111.957 Type description: 210 From date: 01-08-2000 To date: 01-03-2002 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 230 Model series: 230 Model type: Kompressor Size of motor: 2.3 Brand of engine: M111.982 Type description: 208 Body: Coupe From date: 01-06-2000 To date: 01-06-2002 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 230 Model series: CLK 230 Model type: Kompressor Size of motor: 2.3 Brand of engine: M111.982 Type description: 208 Body: Convertible From date: 01-06-2000 To date: 01-03-2002 Fuel: Gasoline Approved: Yes
