Varenr.: F032113792

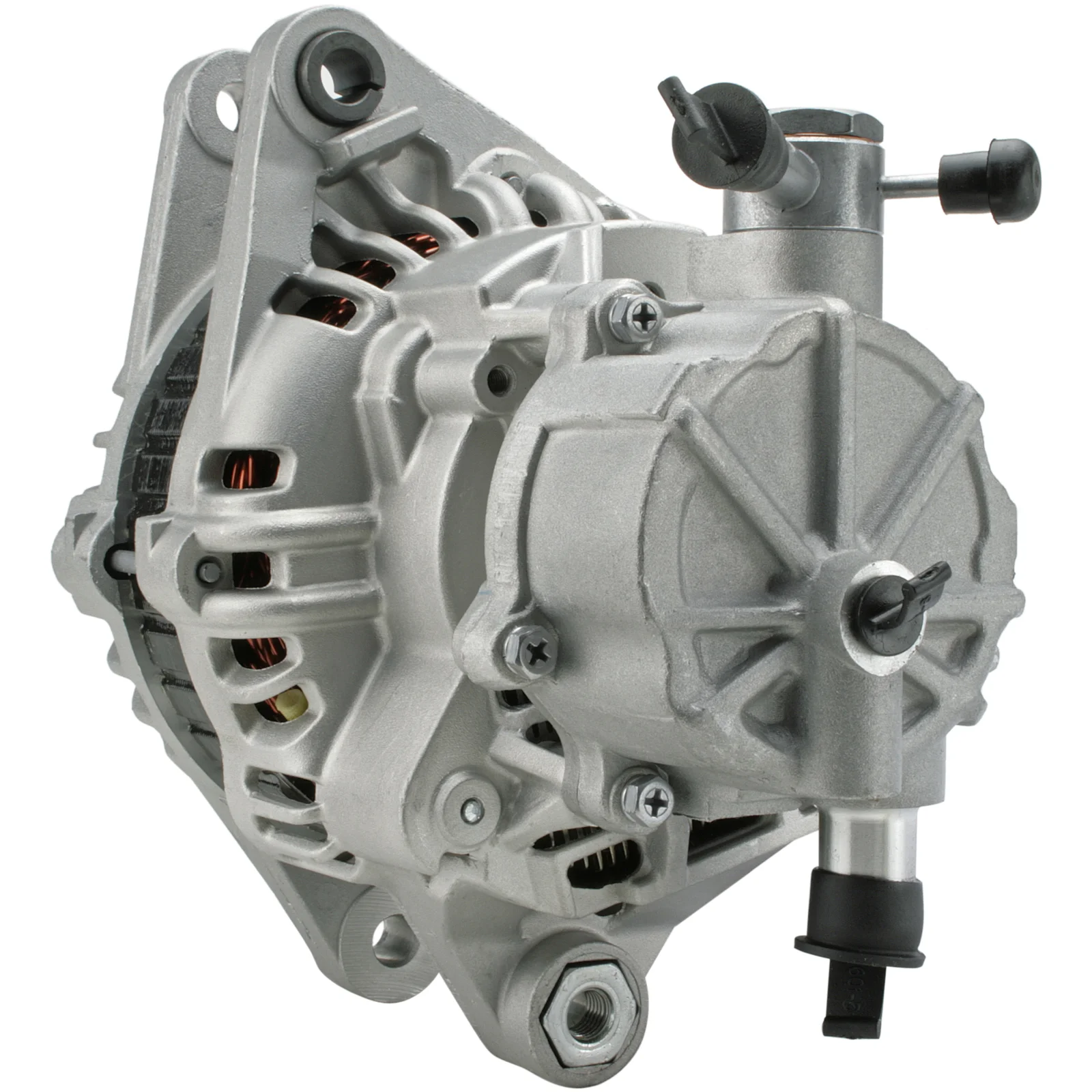

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 110, Rotasjon: CW, Montering. festeavstand.: 55.00

Beskrivelse

Spenningsverdi: 14
Ampere: 110
Drevskive avstand: 43.00
Bredde/holderarm: 16.00
Festebrakett avstand: 55.00
Brakett-hull: 10.30
Belt. justering av brakkethull pos.: 5
Belt. justering av brakethull 1: 10.50
Drevskivens diameter: 68.70
Riller/drevskive: 7
Radius: 89.50
Radius 2: 97.50
B+: M8
Posisjon/B+ i min.: 20
D+ størrelse: Plugg
Rotasjon: med urviseren
Plugg nr.: PL07
Total lengde mm: 238.00
Drevskive: SP/FW
Regulator type: IR
Vakuumpumpe: Ja
Produsentinfo: BN
Service: Kia

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 5
Plug no. PL07
Bracket hole 10.30
Position/B+ in min. 20
Prod. info BN
Pulley SP/FW
Pulley dia. 68.70
Pulley dist. 43.00
Radius 89.50
D+ Size Plug
Radius 2 97.50
Regulator type IR
Rotation CW
Servicing Kia
Grooves/pulley 7
Vac. pump Yes
Voltage 14
Total length 238.00 mm
Width/holder arm 16.00
Amp 110

  • OEM
    AF111382, AF111393, F032113792, ja1804ir, TA000A48201, TA000A62401, 1986A00751, 1986A01199, 37300-4A000, 37300-4A001, 37300-4A002, 37300-4A003, 37300-4A110, 37300-4A111, 37300-4A112, 37300-4a113

  • Konkurrentreferens
    A9019, ALT-H160, CAL32115, CAL32141, DRA0074, DRA0075, DRA0075N, F042A0H160, J5110520, lra02791, LRA02791WP, lra02838, 8EL011711-351, 8EL738211-291, 28-4908, 28-4908WP, 224.154.1102, 226.189.1102, 9407, 23791N, 112266, 210381, 210381A, 401804RI, 600046, 9090424, 9213356, 12060823, 12060916, 063532627, 0986080640, 063532627010, 944390904240

  • NormaliseratArtNr
    a9019, af111382, af111393, alth160, cal32115, cal32141, dra0074, dra0075, dra0075n, f032113792, f042a0h160, j5110520, ja1804ir, lra02791, lra02791wp, lra02838, ta000a48201, ta000a62401, 8el011711351, 8el738211291, 1986a00751, 1986a01199, 9407, 23791n, 112266, 210381, 210381a, 284908, 284908wp, 373004a000, 373004a001, 373004a002, 373004a003, 373004a110, 373004a111, 373004a112, 373004a113, 401804ri, 600046, 9090424, 9213356, 12060823, 12060916, 063532627, 0986080640, 2241541102, 2261891102, 063532627010, 944390904240

  • Passar modeller
    Hyundai Model: H-1 / Starex Model series: H-1 / Starex Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: MPV From date: 01-12-2002 To date: 01-04-2004 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-08-2003 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Model type: 4WD Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: JC Body: Box Body / Estate From date: 01-08-2005 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Model type: CRDi 4WD Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: JC Body: SUV Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: JC Body: SUV From date: 01-08-2002 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningsverdi: 14
    Ampere: 110
    Drevskive avstand: 43.00
    Bredde/holderarm: 16.00
    Festebrakett avstand: 55.00
    Brakett-hull: 10.30
    Belt. justering av brakkethull pos.: 5
    Belt. justering av brakethull 1: 10.50
    Drevskivens diameter: 68.70
    Riller/drevskive: 7
    Radius: 89.50
    Radius 2: 97.50
    B+: M8
    Posisjon/B+ i min.: 20
    D+ størrelse: Plugg
    Rotasjon: med urviseren
    Plugg nr.: PL07
    Total lengde mm: 238.00
    Drevskive: SP/FW
    Regulator type: IR
    Vakuumpumpe: Ja
    Produsentinfo: BN
    Service: Kia

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 55.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 5
    Plug no. PL07
    Bracket hole 10.30
    Position/B+ in min. 20
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 68.70
    Pulley dist. 43.00
    Radius 89.50
    D+ Size Plug
    Radius 2 97.50
    Regulator type IR
    Rotation CW
    Servicing Kia
    Grooves/pulley 7
    Vac. pump Yes
    Voltage 14
    Total length 238.00 mm
    Width/holder arm 16.00
    Amp 110
  • Kjøretøymatching

    • OEM
      AF111382, AF111393, F032113792, ja1804ir, TA000A48201, TA000A62401, 1986A00751, 1986A01199, 37300-4A000, 37300-4A001, 37300-4A002, 37300-4A003, 37300-4A110, 37300-4A111, 37300-4A112, 37300-4a113

    • Konkurrentreferens
      A9019, ALT-H160, CAL32115, CAL32141, DRA0074, DRA0075, DRA0075N, F042A0H160, J5110520, lra02791, LRA02791WP, lra02838, 8EL011711-351, 8EL738211-291, 28-4908, 28-4908WP, 224.154.1102, 226.189.1102, 9407, 23791N, 112266, 210381, 210381A, 401804RI, 600046, 9090424, 9213356, 12060823, 12060916, 063532627, 0986080640, 063532627010, 944390904240

    • NormaliseratArtNr
      a9019, af111382, af111393, alth160, cal32115, cal32141, dra0074, dra0075, dra0075n, f032113792, f042a0h160, j5110520, ja1804ir, lra02791, lra02791wp, lra02838, ta000a48201, ta000a62401, 8el011711351, 8el738211291, 1986a00751, 1986a01199, 9407, 23791n, 112266, 210381, 210381a, 284908, 284908wp, 373004a000, 373004a001, 373004a002, 373004a003, 373004a110, 373004a111, 373004a112, 373004a113, 401804ri, 600046, 9090424, 9213356, 12060823, 12060916, 063532627, 0986080640, 2241541102, 2261891102, 063532627010, 944390904240

    • Passar modeller
      Hyundai Model: H-1 / Starex Model series: H-1 / Starex Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: MPV From date: 01-12-2002 To date: 01-04-2004 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-08-2003 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento Model type: 4WD Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: JC Body: Box Body / Estate From date: 01-08-2005 To date: 01-10-2006 Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento Model type: CRDi 4WD Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: JC Body: SUV Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: JC Body: SUV From date: 01-08-2002 Fuel: Diesel Approved: Yes
