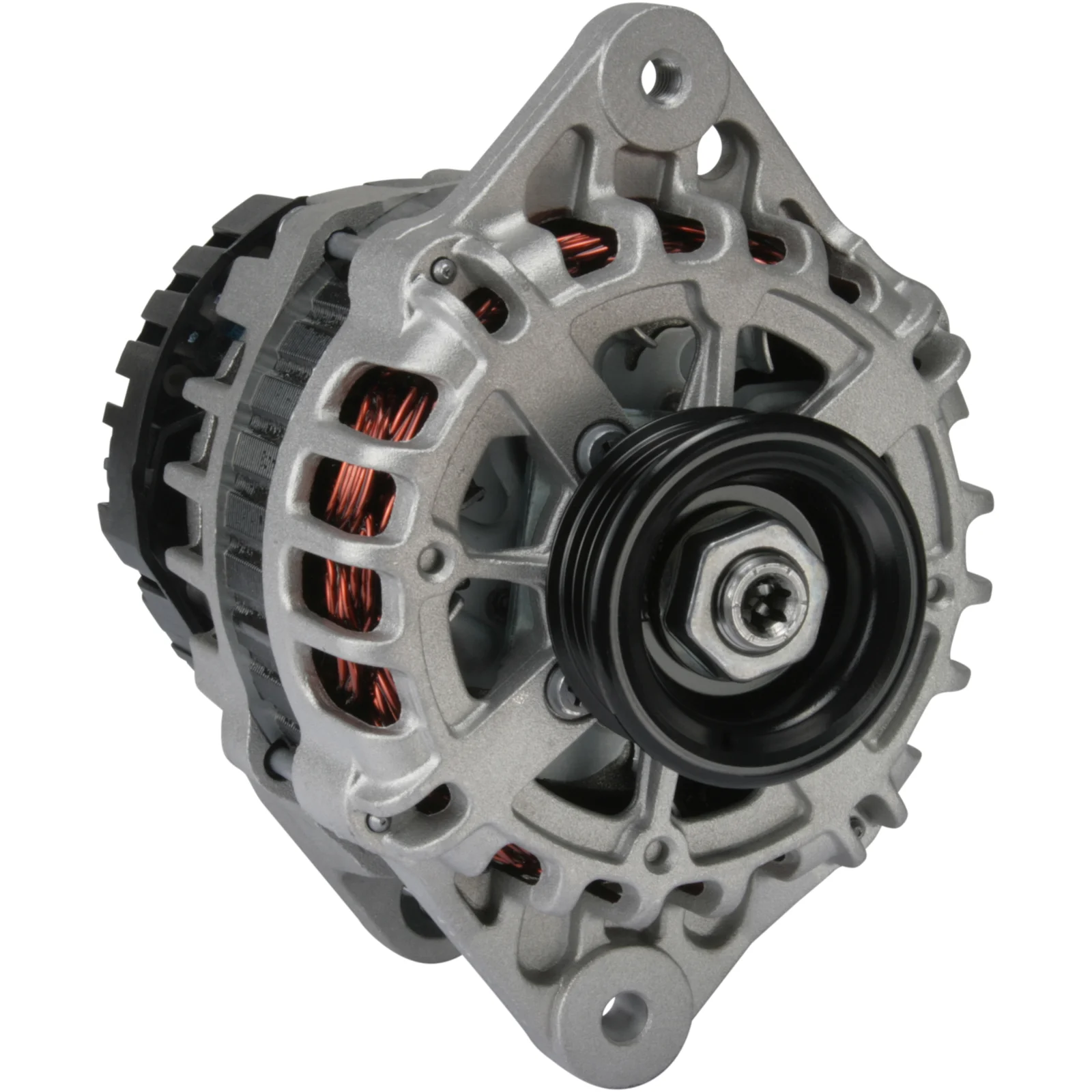

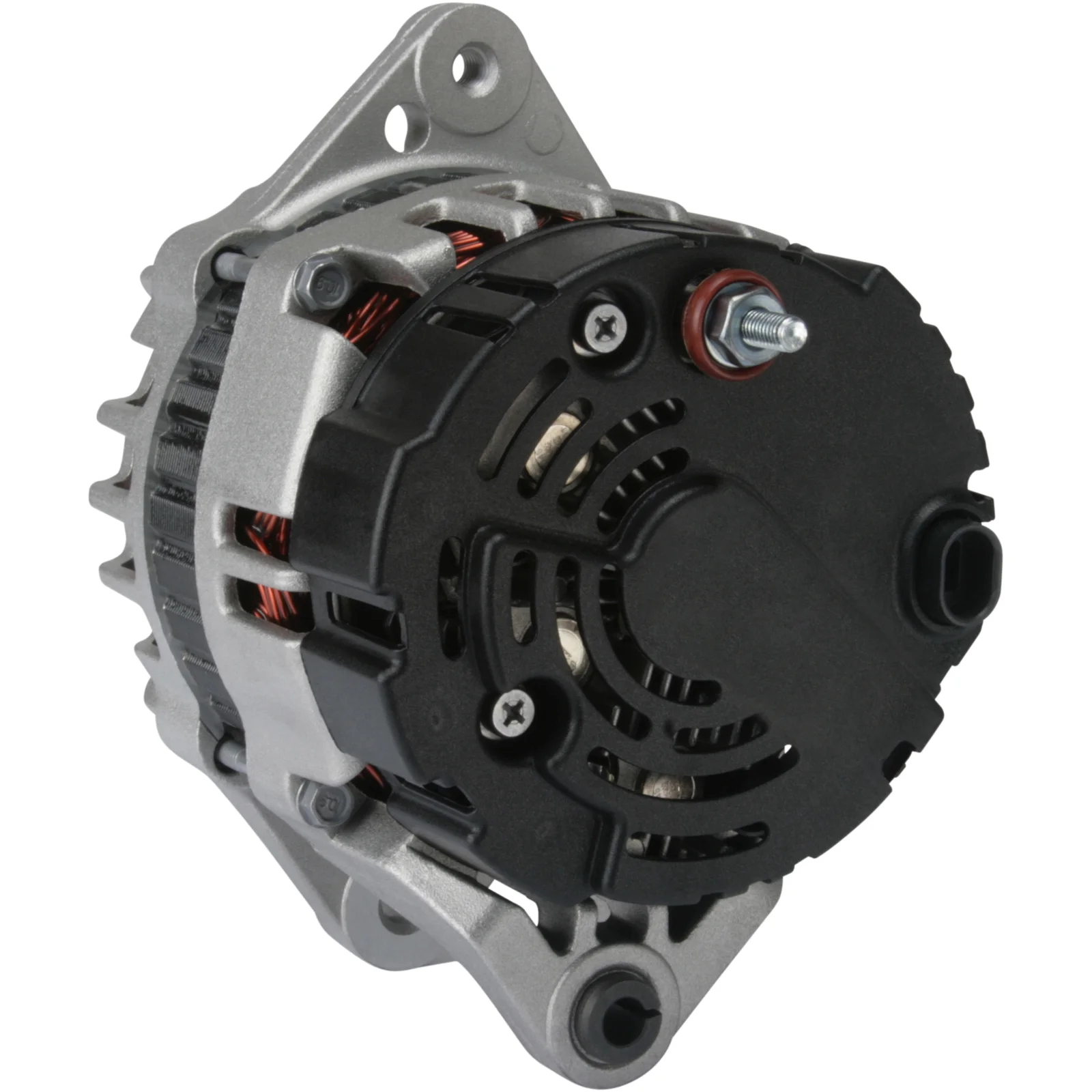

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115366

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 80, Rotasjon: med urviseren, Monteringsbrakett avstand: 64.50

Beskrivelse

Spenningskilde: 14
Amp: 80
Drevkugg. dist.: 40.00
Bredde/holderarm: 15.00
Monteringsbeslag dist.: 64.50
Beslagshull: 8.20
Belt. just. brackethull pos.: 60
Belt. just. brackethull 1: M8
Drevkugg. dia.: 52.00
Grooves/drevkugg.: 4
Radius: 77.00
Radius 2: 79.00
B+: M6
Posisjon/B+ i min.: 60
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL77
Drevkugg.: SP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 64.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL77
Bracket hole 8.20
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 52.00
Pulley dist. 40.00
Radius 77.00
D+ Size Plug
Radius 2 79.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Width/holder arm 15.00
Amp 80

  • OEM
    F032115366, 2023ir, 2655866, 96404263, 96652100

  • Konkurrentreferens
    A9036, CAL46114, DRA0641, DRA0641N, 8EL012426-541, 8EL738213-121, 28-5685, 20340R, 210800, 210800A, 302023RI, 444359, 600100, 12060893, 0986084370

  • NormaliseratArtNr
    a9036, cal46114, dra0641, dra0641n, f032115366, 8el012426541, 8el738213121, 2023ir, 20340r, 210800, 210800a, 285685, 302023ri, 444359, 600100, 2655866, 12060893, 96404263, 96652100, 0986084370

  • Passar modeller
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: B12D1 Type description: KL1S Body: Hatchback From date: 01-04-2008 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: F12S3 Type description: KL1S From date: 01-03-2005 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LMU Type description: KL1S Body: Hatchback From date: 01-04-2008 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LQ5 Type description: KL1S From date: 01-03-2005 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Daewoo Model: Kalos Model series: Kalos Size of motor: 1.2 Brand of engine: B12S1 Type description: KLAS Body: Hatchback From date: 01-04-2003 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Daewoo Model: Kalos Model series: Kalos Size of motor: 1.2 Brand of engine: F12S3 Type description: KLAS Body: Hatchback From date: 01-04-2003 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningskilde: 14
    Amp: 80
    Drevkugg. dist.: 40.00
    Bredde/holderarm: 15.00
    Monteringsbeslag dist.: 64.50
    Beslagshull: 8.20
    Belt. just. brackethull pos.: 60
    Belt. just. brackethull 1: M8
    Drevkugg. dia.: 52.00
    Grooves/drevkugg.: 4
    Radius: 77.00
    Radius 2: 79.00
    B+: M6
    Posisjon/B+ i min.: 60
    D+ Størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL77
    Drevkugg.: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 64.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL77
    Bracket hole 8.20
    Position/B+ in min. 60
    Prod. info BN
    Pulley SP
    Pulley dia. 52.00
    Pulley dist. 40.00
    Radius 77.00
    D+ Size Plug
    Radius 2 79.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Width/holder arm 15.00
    Amp 80
  • Kjøretøymatching

    • OEM
      F032115366, 2023ir, 2655866, 96404263, 96652100

    • Konkurrentreferens
      A9036, CAL46114, DRA0641, DRA0641N, 8EL012426-541, 8EL738213-121, 28-5685, 20340R, 210800, 210800A, 302023RI, 444359, 600100, 12060893, 0986084370

    • NormaliseratArtNr
      a9036, cal46114, dra0641, dra0641n, f032115366, 8el012426541, 8el738213121, 2023ir, 20340r, 210800, 210800a, 285685, 302023ri, 444359, 600100, 2655866, 12060893, 96404263, 96652100, 0986084370

    • Passar modeller
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: B12D1 Type description: KL1S Body: Hatchback From date: 01-04-2008 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: F12S3 Type description: KL1S From date: 01-03-2005 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LMU Type description: KL1S Body: Hatchback From date: 01-04-2008 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LQ5 Type description: KL1S From date: 01-03-2005 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Daewoo Model: Kalos Model series: Kalos Size of motor: 1.2 Brand of engine: B12S1 Type description: KLAS Body: Hatchback From date: 01-04-2003 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
      Daewoo Model: Kalos Model series: Kalos Size of motor: 1.2 Brand of engine: F12S3 Type description: KLAS Body: Hatchback From date: 01-04-2003 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
