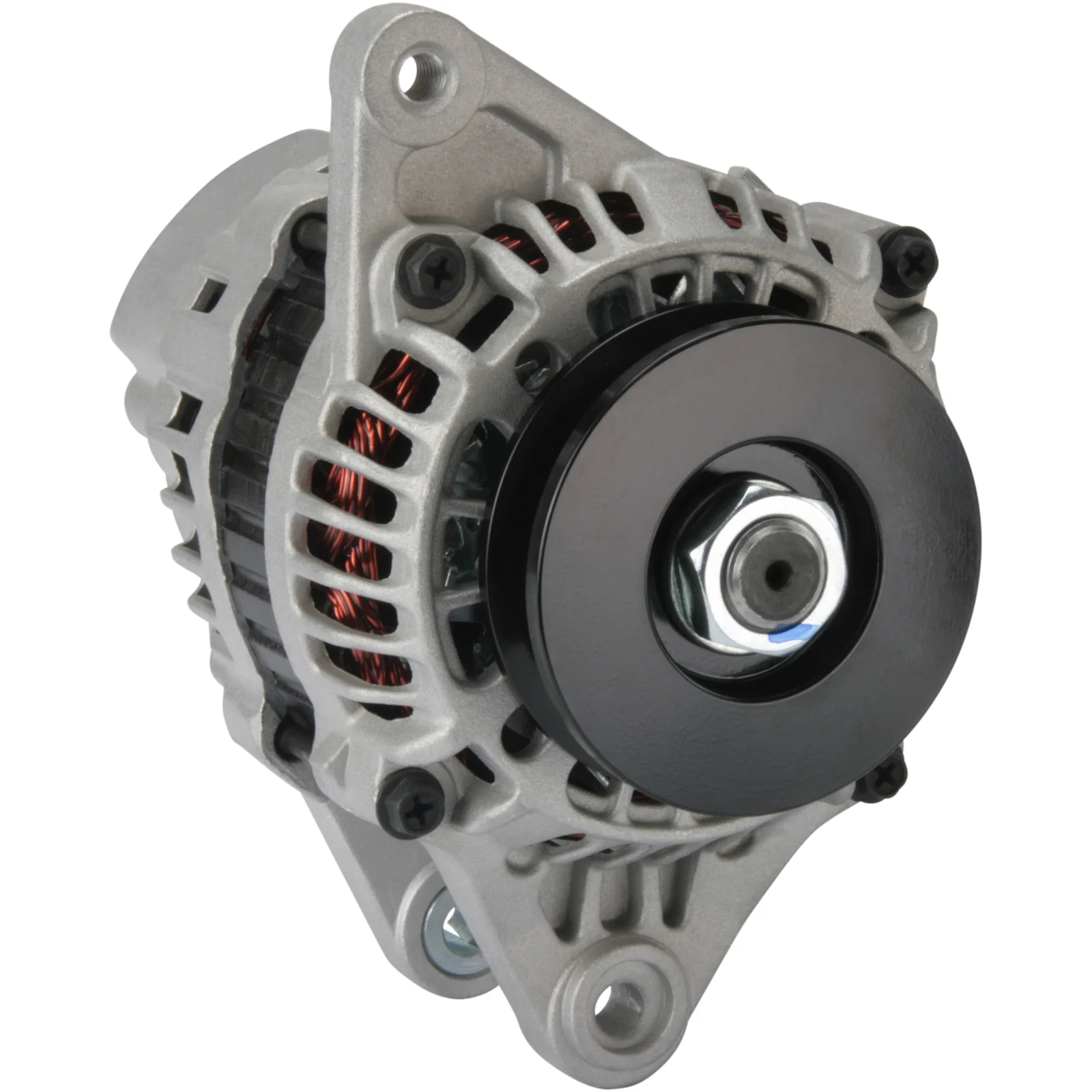

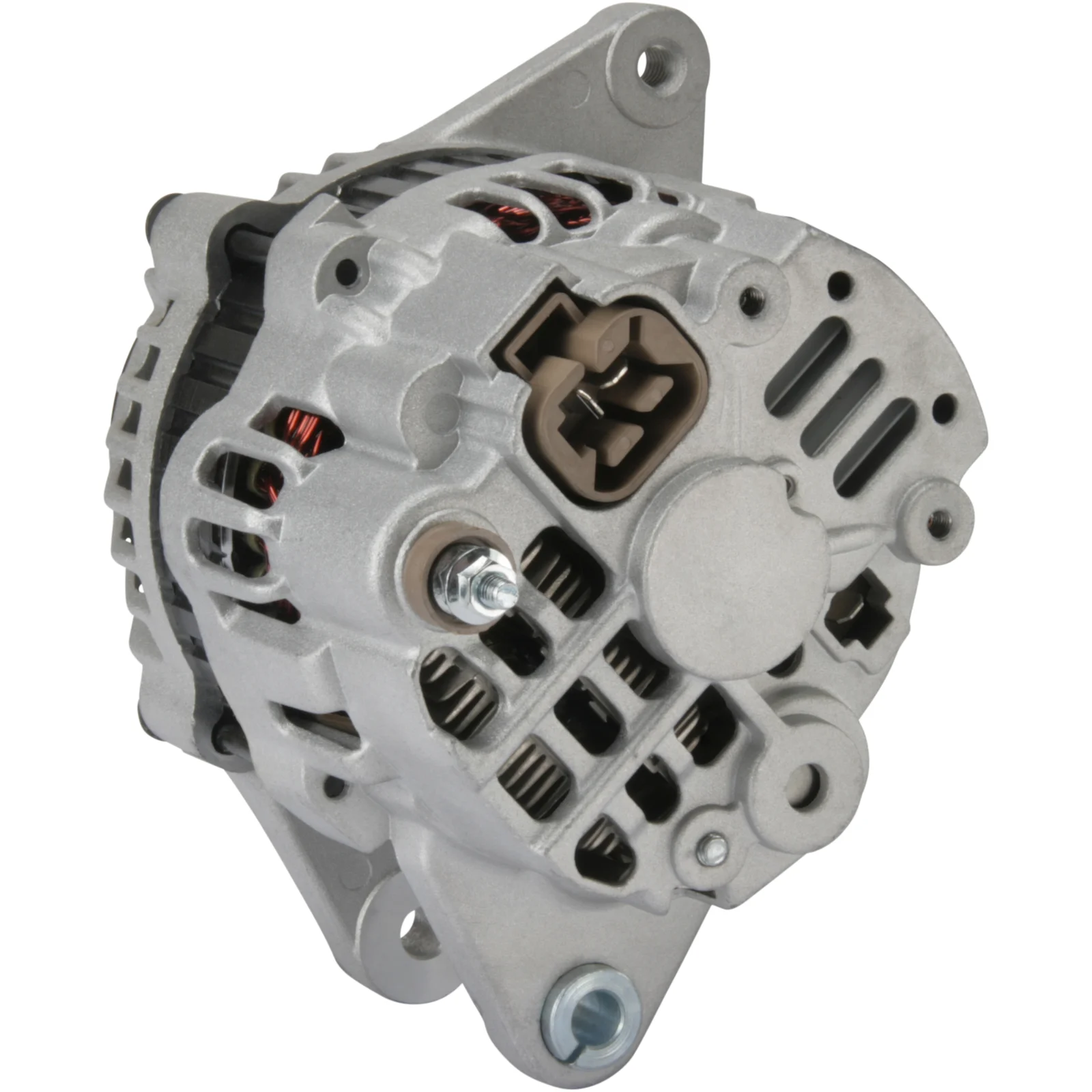

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114079

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 40, Rotasjon: medklokke, Monteringsbrakettavstand: 41,60

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Uteffekt: 14
Amp: 40
Terminal: W
Drevskive dist.: 43,00
Bredde/holderarm: 16,00
Monteringsbrakett dist.: 41,60
Brakettåpning: 8,50
Båndjusteringsbrakettåpning pos.: 55
Båndjusteringsbrakettåpning 1: M8
Drevskive dia.: 69,00
Riller/drevskive: 1
Radius: 79,00
Radius 2: 79,00
B+: M5
Posisjon/B+ i min.: 45
D+ Størrelse: Plugg
Rotasjon: medur
Plugg nr.: PL09
Total lengde mm: 160,00
Drevskive: P
Prod. info: BN

Filer

Spesifikasjon

B+ M5
Mount. bracket dist. 41.60
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 55
Plug no. PL09
Bracket hole 8.50
Position/B+ in min. 45
Prod. info BN
Pulley P
Pulley dia. 69.00
Pulley dist. 43.00
Radius 79.00
D+ Size Plug
Radius 2 79.00
Rotation CW
Grooves/pulley 1
Terminal W
Voltage 14
Total length 160.00 mm
Width/holder arm 16.00
Amp 40

  • OEM
    A007TA0171, A007TA0171B, a7ta0171, a7ta0171b, F032114079, 30A68-00800, 30A68-00801

  • Konkurrentreferens
    A5405S, CAL35198, DRA0406, LRA02080, 526.110.402, 12432, 12432N, 553117RI

  • NormaliseratArtNr
    a007ta0171, a007ta0171b, a5405s, a7ta0171, a7ta0171b, cal35198, dra0406, f032114079, lra02080, 30a6800800, 30a6800801, 12432, 12432n, 553117ri, 526110402

  • Passar modeller
    Case Model: CX17B Model series: CX17B Model type: Excavators Brand of engine: L3E Approved: Yes
    Case Model: Excavator Model series: CX17B Brand of engine: mitsubishi Equipped Approved: Yes
    Caterpillar Model: 301.6C Model series: 301.6C Model type: Excavators Brand of engine: L3E Approved: Yes
    Caterpillar Model: 301.8C Model series: 301.8C Model type: Excavators Brand of engine: L3E Approved: Yes
    Cub Cadet Model: 7000 Series Model series: 7305 Brand of engine: Mitsubishi Equipped Approved: Yes
    Doosan Model: LSC Model series: LSC Model type: Light Plants and Signal B Brand of engine: L3E Approved: Yes
    Doosan Model: SOLAR 015 PLUS Model series: SOLAR 015 PLUS Model type: Excavators Brand of engine: L3E Approved: Yes
    Hyundai Model: R16-9 Model series: R16-9 Model type: Excavators Brand of engine: L3E Approved: Yes
    Ingersoll-Rand Model: LSC Model series: LSC Model type: Light Plants and Signal B Brand of engine: L3E Approved: Yes
    Kobelco Model: SK17SR Model series: SK17SR Model type: Excavators Brand of engine: L3E Approved: Yes
    Mahindra Model: 1816 4WD HST Model series: 1816 4WD HST Model type: Ag Tractors Brand of engine: L3E Approved: Yes
    Mitsubishi Model: 7000 SERIES Model series: 7000 SERIES Model type: Ag Tractors Brand of engine: L3E Approved: Yes
    Mitsubishi Model: Marine Model series: Various Models Approved: Yes
    Mitsubishi Model: ME/MX SERIES Model series: ME/MX SERIES Model type: Excavators Brand of engine: L3E Approved: Yes
    Mitsubishi Model: MM15T Model series: MM15T Model type: Excavators Brand of engine: L3E Approved: Yes
    Mitsubishi Model: MM20T Model series: MM20T Model type: Excavators Brand of engine: L3E Approved: Yes
    Mitsubishi Model: MT1800 & MT1800 HST Model series: MT1800 & MT1800 HST Model type: Ag Tractors Brand of engine: L3E Approved: Yes
    Mitsubishi Model: VM218 Model series: VM218 Model type: Combines Brand of engine: L3E Approved: Yes
    Terex Model: TC15 Model series: TC15 Model type: Excavators Brand of engine: L3E Approved: Yes
    Terex Model: TC16 Model series: TC16 Model type: Excavators Brand of engine: L3E Approved: Yes
    Terex Model: TC20 Model series: TC20 Model type: Excavators Brand of engine: L3E Approved: Yes
    Vetus Model: GHS14SI Model series: GHS14SI Model type: Marine Auxiliary Brand of engine: L3E Approved: Yes
    Vetus Model: M2 Model series: M2.C5 Brand of engine: Mitsubishi Approved: Yes
    Vetus Model: M2 Model series: M2.D5 Brand of engine: Mitsubishi Approved: Yes
    Vetus Model: M3 Model series: M3.09 Brand of engine: Mitsubishi Approved: Yes
    Volvo Model: EB 150 SRS Model series: EB 150 SRS Model type: Excavators Brand of engine: L3E Approved: Yes
    Volvo Model: EB 200 SRS Model series: EB 200 SRS Model type: Excavators Brand of engine: L3E Approved: Yes
    Volvo Model: Excavator Model series: EC15r Brand of engine: mitsubishi Equipped Approved: Yes
    Volvo Model: SIRIUS PLUS Model series: SIRIUS PLUS Model type: Excavators Brand of engine: L3E Approved: Yes
    Volvo Model: VOLVO EC14 Model series: VOLVO EC14 Model type: Excavators Brand of engine: L3E Approved: Yes
    Volvo Model: VOLVO EC15 Model series: VOLVO EC15 Model type: Excavators Brand of engine: L3E Approved: Yes
    Volvo Model: VOLVO EC20 Model series: VOLVO EC20 Model type: Excavators Brand of engine: L3E Approved: Yes
