HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114085

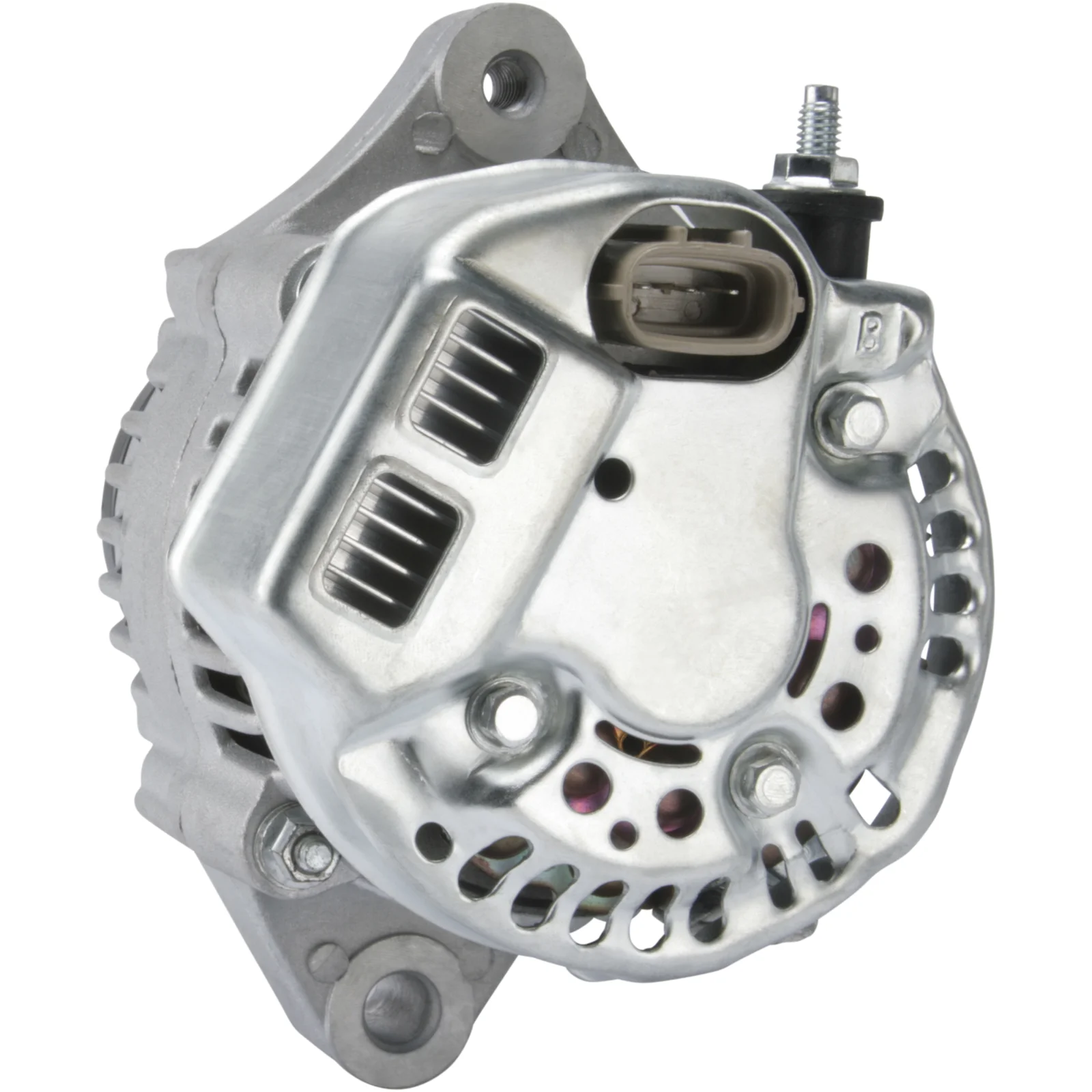

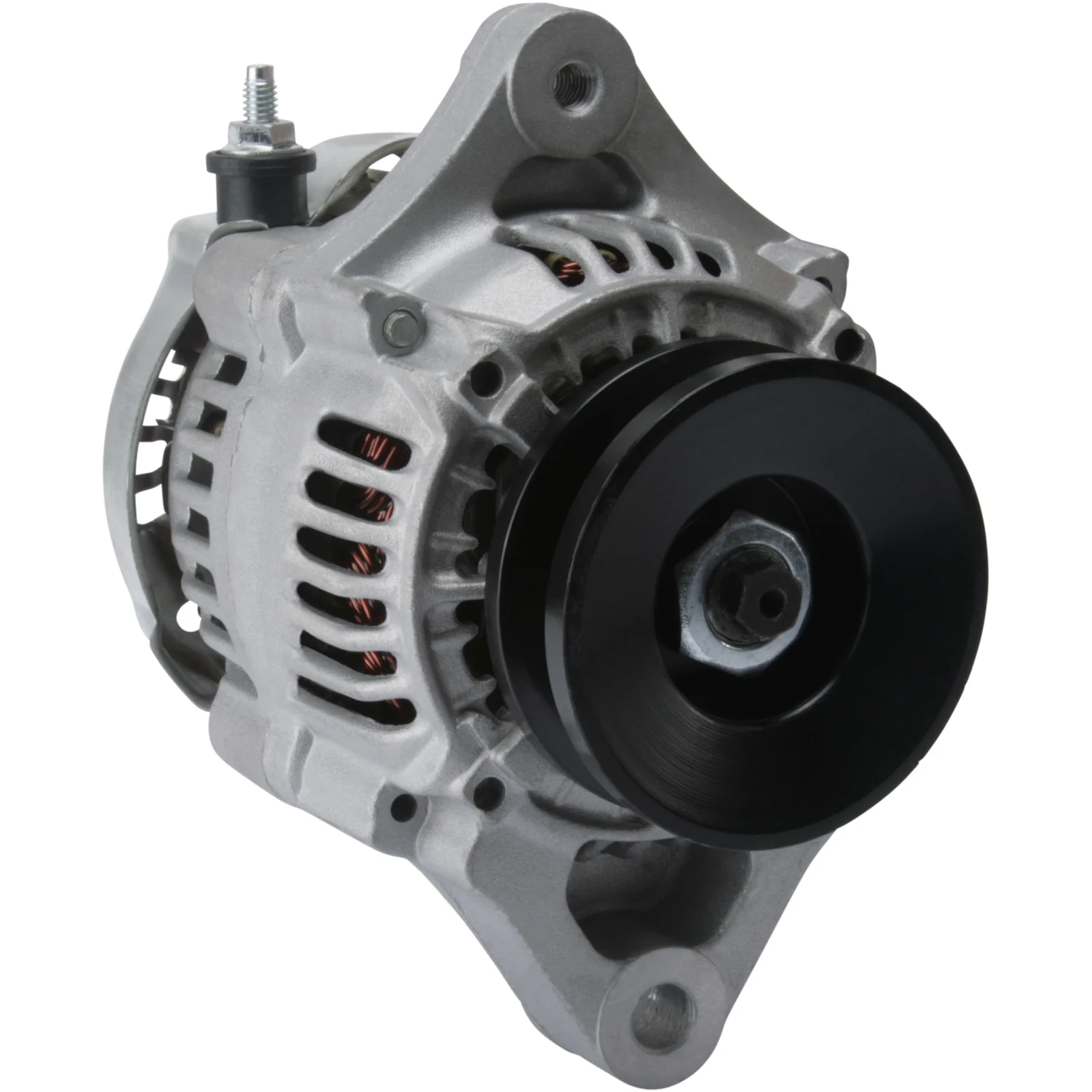

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 40, Rotasjon: CW, Reimhjul diameter: 69.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsverdi: 14
Ampere: 40
Drevkugg dist.: 44.00
Bredde/holderarm: 24.00
Utløpshull for gavl: 10.00
Båndjuster Lavalook: 60
Båndjuster justeringshull for gavl 1: M8
Drevkugg dia.: 69.00
Grove/rille: 1
Radius: 71.00
Radius 2: 68.00
B+: M6
Posisjon/B+ i min.: 3
D+ Størrelse: Skrue
Rotasjon: med klokka
Skrue nr.: PL128
Total lengde mm: 145.00
Drevkugg: P
Regulator type: IR

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL128
Bracket hole 10.00
Position/B+ in min. 3
Pulley P
Pulley dia. 69.00
Pulley dist. 44.00
Radius 71.00
D+ Size Plug
Radius 2 68.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Voltage 14
Total length 145.00 mm
Width/holder arm 24.00
Amp 40

  • OEM
    F032114085, 16404-64012, 101211-1030

  • Konkurrentreferens
    CAL40250, DAN2039, 28-6661, 12807, 12807N, 553409RI

  • NormaliseratArtNr
    cal40250, dan2039, f032114085, 12807, 12807n, 286661, 553409ri, 1012111030, 1640464012

  • Passar modeller
    Bobcat Model: E 32 Model series: E 32 Model type: Excavators Brand of engine: D1803-M-DI Approved: Yes
    Bobcat Model: E 35 Model series: E 35 Model type: Excavators Brand of engine: D1803-M-DI Approved: Yes
    Hitachi Model: ZW30 Model series: ZW30 Model type: Wheel Loaders and Dozers Brand of engine: D1803-M-DI Approved: Yes
    Kubota Model: AEROSTAR GP ARH430 Model series: AEROSTAR GP ARH430 Model type: Combines Brand of engine: D1803-M-DI Approved: Yes
    Kubota Model: Excavator Model series: RX502 Model type: Excavator Approved: Yes
    Kubota Model: KL31Z Model series: KL31Z Model type: Ag Tractors Brand of engine: D1803-M-DI Body: Tractor Approved: Yes
    Kubota Model: KL34Z Model series: KL34Z Model type: Ag Tractors Brand of engine: D1803-M-DI Body: Tractor Approved: Yes
    Kubota Model: R430E Model series: R430E Model type: Wheel Loaders and Dozers Brand of engine: D1803-M-DI Approved: Yes
    Kubota Model: R530E Model series: R530E Model type: Wheel Loaders and Dozers Brand of engine: D1803-M-DI Approved: Yes
    Kubota Model: R630E Model series: R630E Model type: Wheel Loaders and Dozers Brand of engine: D1803-M-DI Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsverdi: 14
    Ampere: 40
    Drevkugg dist.: 44.00
    Bredde/holderarm: 24.00
    Utløpshull for gavl: 10.00
    Båndjuster Lavalook: 60
    Båndjuster justeringshull for gavl 1: M8
    Drevkugg dia.: 69.00
    Grove/rille: 1
    Radius: 71.00
    Radius 2: 68.00
    B+: M6
    Posisjon/B+ i min.: 3
    D+ Størrelse: Skrue
    Rotasjon: med klokka
    Skrue nr.: PL128
    Total lengde mm: 145.00
    Drevkugg: P
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL128
    Bracket hole 10.00
    Position/B+ in min. 3
    Pulley P
    Pulley dia. 69.00
    Pulley dist. 44.00
    Radius 71.00
    D+ Size Plug
    Radius 2 68.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Voltage 14
    Total length 145.00 mm
    Width/holder arm 24.00
    Amp 40
  • Kjøretøymatching

    • OEM
      F032114085, 16404-64012, 101211-1030

    • Konkurrentreferens
      CAL40250, DAN2039, 28-6661, 12807, 12807N, 553409RI

    • NormaliseratArtNr
      cal40250, dan2039, f032114085, 12807, 12807n, 286661, 553409ri, 1012111030, 1640464012

    • Passar modeller
      Bobcat Model: E 32 Model series: E 32 Model type: Excavators Brand of engine: D1803-M-DI Approved: Yes
      Bobcat Model: E 35 Model series: E 35 Model type: Excavators Brand of engine: D1803-M-DI Approved: Yes
      Hitachi Model: ZW30 Model series: ZW30 Model type: Wheel Loaders and Dozers Brand of engine: D1803-M-DI Approved: Yes
      Kubota Model: AEROSTAR GP ARH430 Model series: AEROSTAR GP ARH430 Model type: Combines Brand of engine: D1803-M-DI Approved: Yes
      Kubota Model: Excavator Model series: RX502 Model type: Excavator Approved: Yes
      Kubota Model: KL31Z Model series: KL31Z Model type: Ag Tractors Brand of engine: D1803-M-DI Body: Tractor Approved: Yes
      Kubota Model: KL34Z Model series: KL34Z Model type: Ag Tractors Brand of engine: D1803-M-DI Body: Tractor Approved: Yes
      Kubota Model: R430E Model series: R430E Model type: Wheel Loaders and Dozers Brand of engine: D1803-M-DI Approved: Yes
      Kubota Model: R530E Model series: R530E Model type: Wheel Loaders and Dozers Brand of engine: D1803-M-DI Approved: Yes
      Kubota Model: R630E Model series: R630E Model type: Wheel Loaders and Dozers Brand of engine: D1803-M-DI Approved: Yes
      1 / 2
