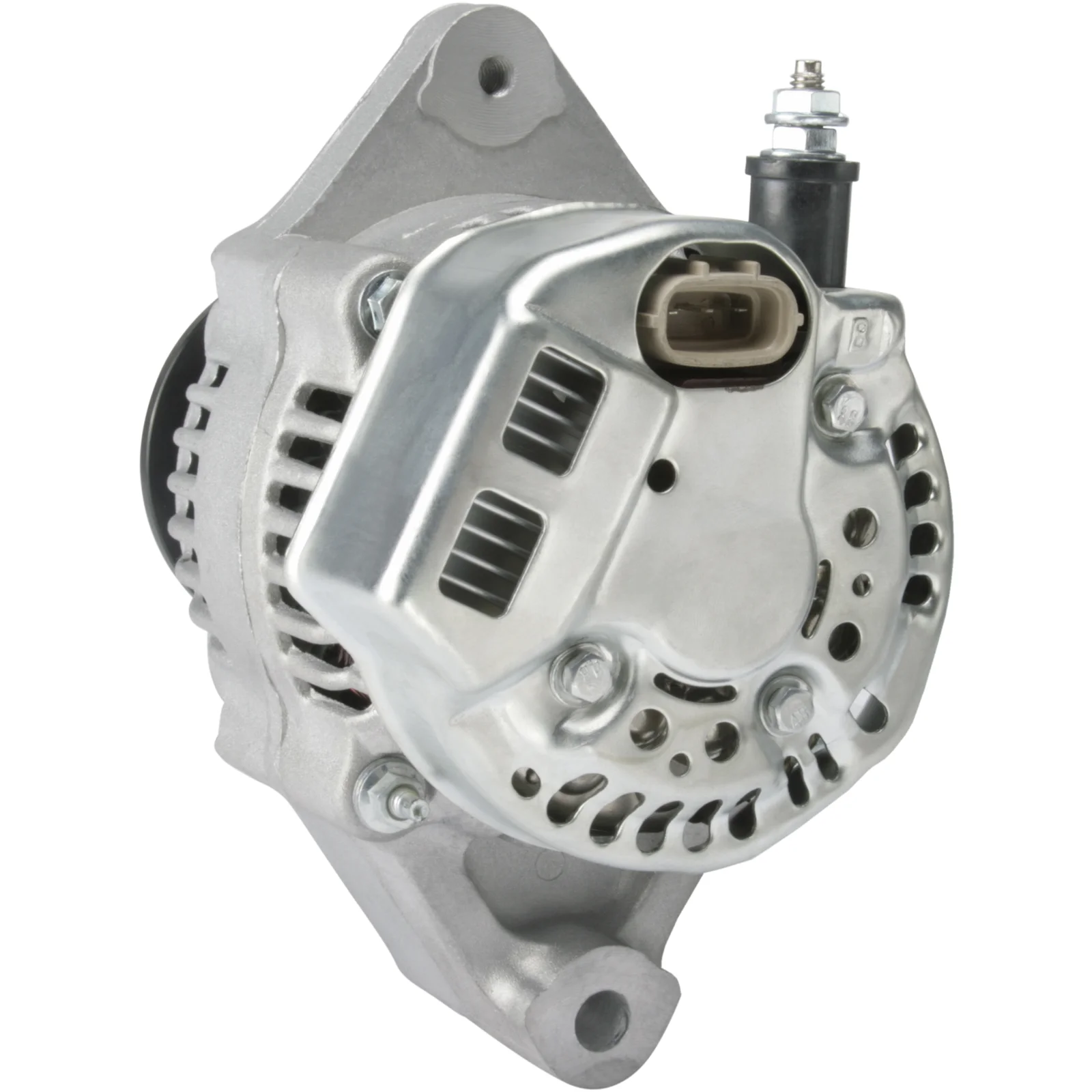

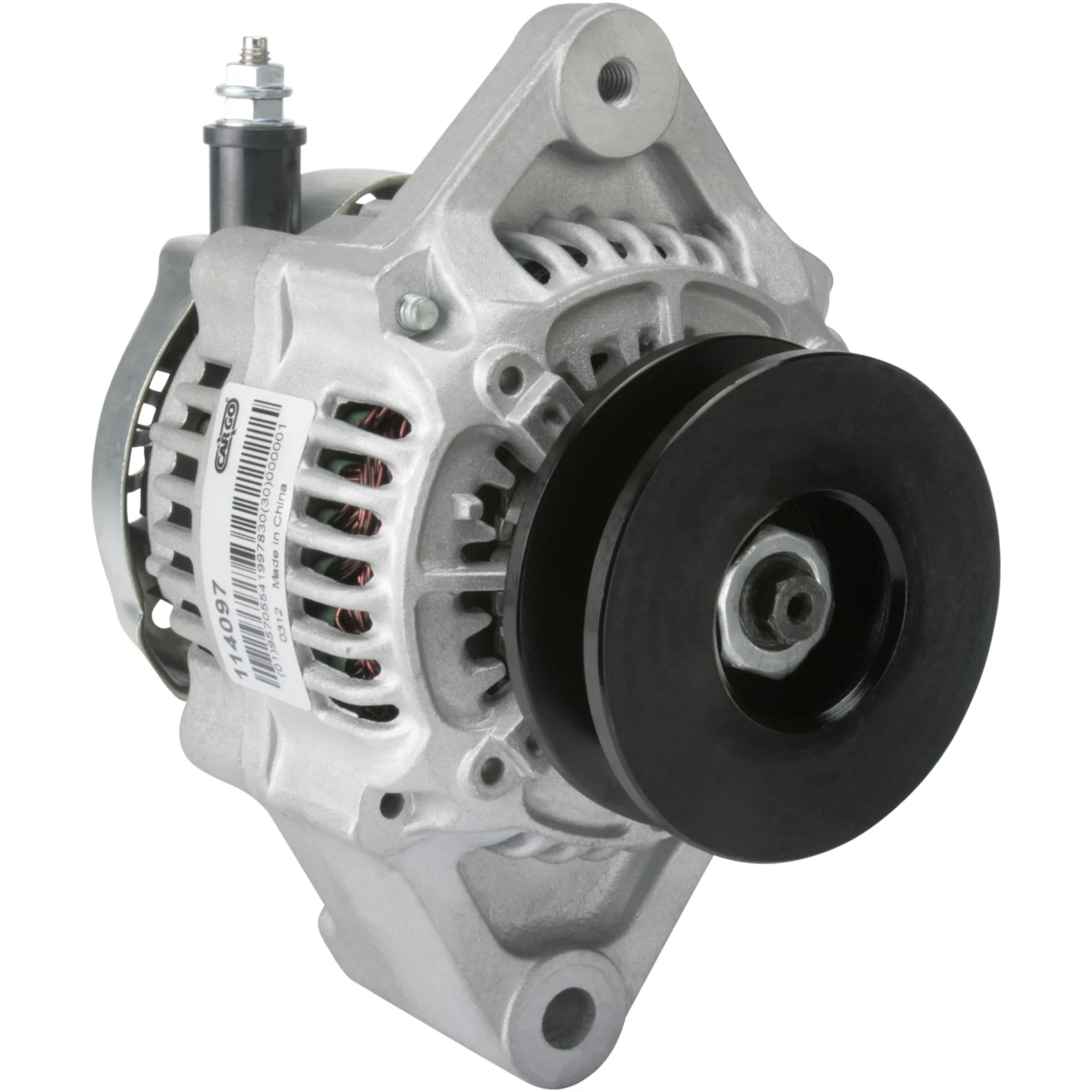

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114097

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 60, Roteringsretning: CW, Reimhjul diameter: 76.00

Beskrivelse

Spenningsnivå: 14
Amp: 60
Drevkugg dist.: 99.00
Bredde/holderarm: 57.00
Gavl hull: 10.60
Belte. justering gavl hull pos.: 60
Belte. justering gavl hull 1: M8
Drev dia.: 76.00
Grooves/drev: 1
Radius: 74.00
Radius 2: 79.00
B+: M6
Posisjon/B+ i min.: 4
Rotasjon: med urviseren
Plugg nr.: PL128
Total lengde mm: 152.00
Drev: P
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL128
Bracket hole 10.60
Position/B+ in min. 4
Prod. info BN
Pulley P
Pulley dia. 76.00
Pulley dist. 99.00
Radius 74.00
Radius 2 79.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Voltage 14
Total length 152.00 mm
Width/holder arm 57.00
Amp 60

  • OEM
    C6008611611, F032114097, 600-861-1611, 021080-0980, 101211-2940, 101211-2941

  • Konkurrentreferens
    A6675S, CAL40263, DAN2016, LRA03677, 28-6817, 543.147.060, 543.147.602, 645.511.060, 12771N, 12771N-TO

  • NormaliseratArtNr
    a6675s, c6008611611, cal40263, dan2016, f032114097, lra03677, 12771n, 12771nto, 286817, 0210800980, 543147060, 543147602, 645511060, 1012112940, 1012112941, 6008611611

  • Passar modeller
    Cummins Model: 4B Model series: 4B Size of motor: 3.3 Approved: Yes
    Komatsu Model: Various Models Model series: Various Models Brand of engine: Nippondenso equipped Approved: Yes
    Komatsu Model: Various Models Model series: Various Models From date: 01-01-1988 Approved: Yes
  • Beskrivelse
    Spenningsnivå: 14
    Amp: 60
    Drevkugg dist.: 99.00
    Bredde/holderarm: 57.00
    Gavl hull: 10.60
    Belte. justering gavl hull pos.: 60
    Belte. justering gavl hull 1: M8
    Drev dia.: 76.00
    Grooves/drev: 1
    Radius: 74.00
    Radius 2: 79.00
    B+: M6
    Posisjon/B+ i min.: 4
    Rotasjon: med urviseren
    Plugg nr.: PL128
    Total lengde mm: 152.00
    Drev: P
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL128
    Bracket hole 10.60
    Position/B+ in min. 4
    Prod. info BN
    Pulley P
    Pulley dia. 76.00
    Pulley dist. 99.00
    Radius 74.00
    Radius 2 79.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Voltage 14
    Total length 152.00 mm
    Width/holder arm 57.00
    Amp 60
  • Kjøretøymatching

    • OEM
      C6008611611, F032114097, 600-861-1611, 021080-0980, 101211-2940, 101211-2941

    • Konkurrentreferens
      A6675S, CAL40263, DAN2016, LRA03677, 28-6817, 543.147.060, 543.147.602, 645.511.060, 12771N, 12771N-TO

    • NormaliseratArtNr
      a6675s, c6008611611, cal40263, dan2016, f032114097, lra03677, 12771n, 12771nto, 286817, 0210800980, 543147060, 543147602, 645511060, 1012112940, 1012112941, 6008611611

    • Passar modeller
      Cummins Model: 4B Model series: 4B Size of motor: 3.3 Approved: Yes
      Komatsu Model: Various Models Model series: Various Models Brand of engine: Nippondenso equipped Approved: Yes
      Komatsu Model: Various Models Model series: Various Models From date: 01-01-1988 Approved: Yes
