HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032111498

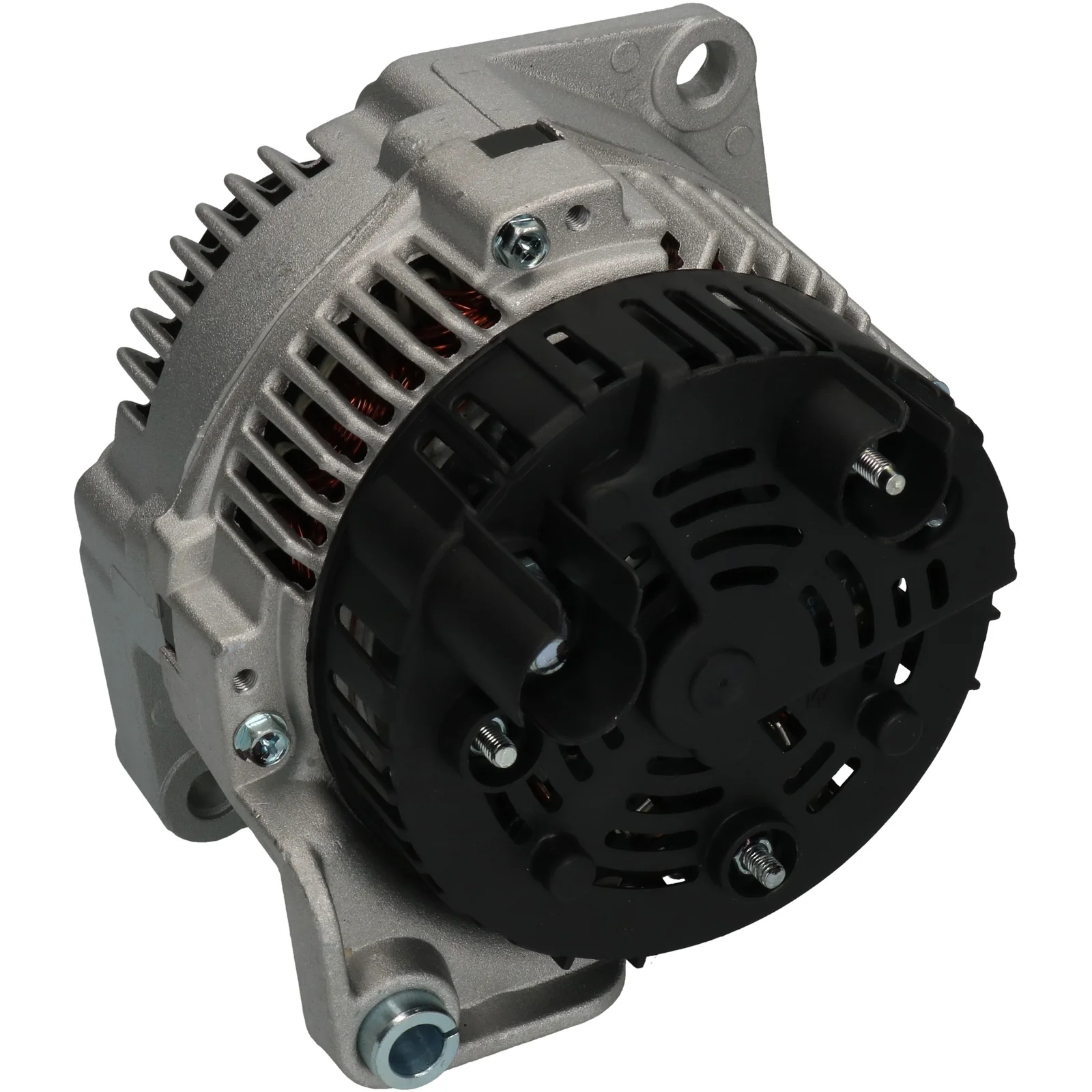

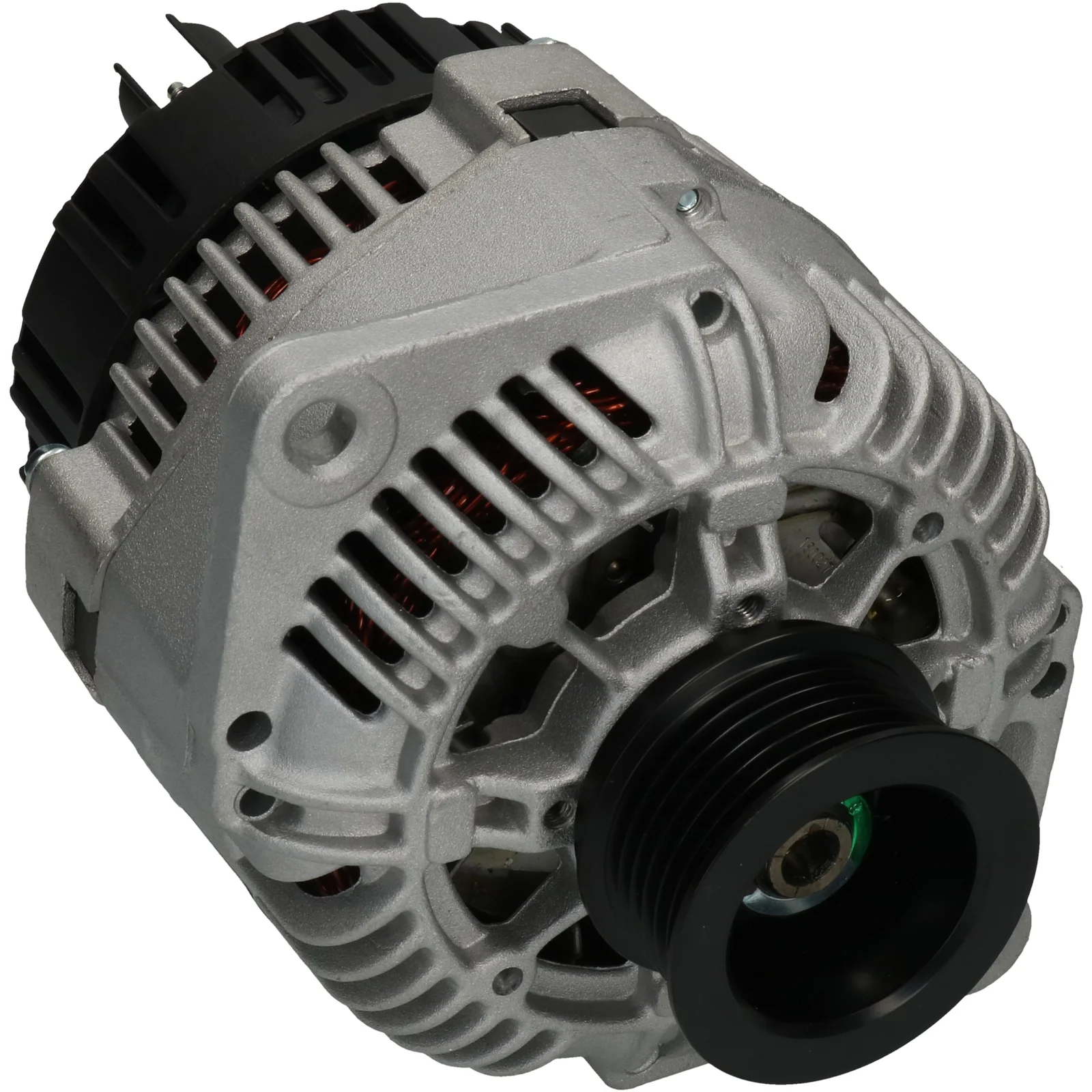

HC-Cargo Dynamo

Teknisk info:

Spenningsverdi: 14, Amp. : 110, Rotasjon: med urviseren, Monteringsbøssing avstand: 66.00

Beskrivelse

Fiat Dynamo 12V-110A 12V - 110A For Yourex produkt bestilling 90-165-0073

Spenning: 14
Ampere: 110
Skivens avstand: 53.00
Bredde/holderarm: 27.00
Festebrakett avstand: 66.00
Brakettgjennomføring: 10.20
Båndinnstilling brakettgjennomføring pos.: 60
Båndinnstilling brakettgjennomføring 1: 8.20
Skivens diameter: 54.00
Ribber/skive: 6
Radius: 85.00
Radius 2: 83.00
B+: M8
Posisjon/B+ i min.: 45
D+ Størrelse: M5
Rotasjon: Klokkeslett (CW)
Total lengde mm: 196.00
Skive: SP
Regulator-type: IR
Prod. info: BN
Vedlikehold: Fiat

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 66.00
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 60
Bracket hole 10.20
Position/B+ in min. 45
Prod. info BN
Pulley SP
Pulley dia. 54.00
Pulley dist. 53.00
Radius 85.00
D+ Size M5
Radius 2 83.00
Regulator type IR
Rotation CW
Servicing Fiat
Grooves/pulley 6
Voltage 14
Total length 196.00 mm
Width/holder arm 27.00
Amp 110

  • OEM
    A13VI 73, a13vi73, A3041, ALT14086, BAO3274, CAL15155, dra3764, DRA3764, F032111498, F042A0B042, lrb00298, LRB00298, NA467, QA2231, SA054, va308, VA308, 4 36 458, 4 36 637, 4 36 638, 4 36 639, 4 36 826, 4 36 827, 8EL012428-541, 8el737204-001, 8EL737204001, 28-2679, 218.145.1102, 0986 042 171, 1157ir, 4393, 5606, 5705 4E, 5705GY, 21298R, 57054e, 57057Y, 57057Z, 111498, 119026, 210271, 210271A, 301157RI, 436414, 436617, 436619, 436636, 436790, 436791, 436877, 436878, 436892, 436893, 436896, 436897, 436908, 436909, 439065, 2541679, 2541679C, 9042171, 9161247, 12042170, 13219187, 13234170, 13275731, 13329477, 35215345, 46231788, 98490186, 943356391, 0986042171, 943356391010, 944390421710

  • Konkurrentreferens
    A3041, ALT14086, BAO3274, CAL15155, dra3764, F042A0B042, lrb00298, NA467, QA2231, va308, 8EL012428-541, 8el737204-001, 28-2679, 218.145.1102, 4393, 5606, 21298R, 57054e, 119026, 210271, 210271A, 301157RI, 436636, 439065, 9042171, 12042170, 35215345, 943356391, 0986042171, 943356391010, 944390421710

  • Bilmärken
    CITROËN, FIAT, PEUGEOT

  • NormaliseratArtNr
    a13vi73, a3041, alt14086, bao3274, cal15155, dra3764, f032111498, f042a0b042, lrb00298, na467, qa2231, sa054, va308, 8el012428541, 8el737204001, 1157ir, 4393, 5606, 5705gy, 21298r, 57054e, 57057y, 57057z, 111498, 119026, 210271, 210271a, 282679, 301157ri, 436414, 436458, 436617, 436619, 436636, 436637, 436638, 436639, 436790, 436791, 436826, 436827, 436877, 436878, 436892, 436893, 436896, 436897, 436908, 436909, 439065, 2541679, 2541679c, 9042171, 9161247, 12042170, 13219187, 13234170, 13275731, 13329477, 35215345, 46231788, 98490186, 943356391, 0986042171, 2181451102, 943356391010, 944390421710

  • Passar modeller
    CITROËN JUMPER I Buss (230P) 2.8 D Engine volume: 2.8 Engine type: 8140.63 (F28D) Year: 01.99-02.02
    CITROËN JUMPER I Flak/chassi (230) 2.8 D Engine volume: 2.8 Engine type: 8140.63 (F28D) Year: 01.99-02.02
    FIAT DUCATO Buss (230_) 2.5 D Combinato Engine volume: 2.5 Engine type: 8140.67 Year: 08.94-04.02
    FIAT DUCATO Buss (230_) 2.5 TD 4x4 Engine volume: 2.5 Engine type: 8140.47 Year: 06.94-09.01
    FIAT DUCATO Buss (230_) 2.5 TD 4x4 Engine volume: 2.5 Engine type: 8140.47 Year: 11.94-04.98
    FIAT DUCATO Buss (230_) 2.5 TDI 4x4 Engine volume: 2.5 Engine type: 8140.47 Year: 04.97-04.02
    FIAT DUCATO Buss (230_) 2.5 TDI Panorama/Combinato Engine volume: 2.5 Engine type: 8140.47 Year: 03.94-04.02
    FIAT DUCATO Buss (230_) 2.5 TDI Panorama/Combinato Engine volume: 2.5 Engine type: 8140.47R Year: 07.94-04.02
    FIAT DUCATO Buss (230_) 2.8 D Engine volume: 2.8 Engine type: 8140.63 Year: 02.98-04.02
    FIAT DUCATO Buss (230_) 2.8 TDI 4x4 Engine volume: 2.8 Engine type: 8140.43 Year: 07.99-04.02
    FIAT DUCATO Buss (230_) 2.8 TDI Engine volume: 2.8 Engine type: 8140.43 Year: 10.97-04.02
    FIAT DUCATO Flak/chassi (230_) 2.5 D 4x4 Engine volume: 2.5 Engine type: 8140.67 Year: 03.94-04.02
    FIAT DUCATO Flak/chassi (230_) 2.5 D Engine volume: 2.5 Engine type: 8140.67 Year: 03.94-04.02
    FIAT DUCATO Flak/chassi (230_) 2.5 TD 4x4 Engine volume: 2.5 Engine type: 8140.47 Year: 11.94-04.98
    FIAT DUCATO Flak/chassi (230_) 2.5 TD Engine volume: 2.5 Engine type: 8140.47 Year: 06.94-04.98
    FIAT DUCATO Flak/chassi (230_) 2.5 TD Engine volume: 2.5 Engine type: 8140.47 Year: 06.94-08.98
    FIAT DUCATO Flak/chassi (230_) 2.5 TDI 4x4 Engine volume: 2.5 Engine type: 8140.47 Year: 06.98-04.02
    FIAT DUCATO Flak/chassi (230_) 2.5 TDI Engine volume: 2.5 Engine type: 8140.47R Year: 03.94-04.02
    FIAT DUCATO Flak/chassi (230_) 2.8 D Engine volume: 2.8 Engine type: 8140.63 Year: 02.98-04.02
    FIAT DUCATO Flak/chassi (230_) 2.8 iDTD 4x4 Engine volume: 2.8 Engine type: 8140.43 Year: 05.98-09.01
    FIAT DUCATO Flak/chassi (230_) 2.8 TDI Engine volume: 2.8 Engine type: 8140.43 Year: 12.98-04.02
    FIAT DUCATO Panorama (290_) 2.5 TD 4x4 Engine volume: 2.5 Engine type: 8140.27 Year: 01.91-03.94
    FIAT DUCATO Panorama (290_) 2.5 TD 4x4 Engine volume: 2.5 Engine type: 8140.27 Year: 06.90-05.94
    FIAT DUCATO Panorama (290_) 2.5 TD Engine volume: 2.5 Engine type: 8140.27 Year: 06.90-05.94
    FIAT DUCATO Skåp (230_) 2.5 D 4x4 Engine volume: 2.5 Engine type: 8140.67 Year: 03.94-04.02
    FIAT DUCATO Skåp (230_) 2.5 D Engine volume: 2.5 Engine type: 8140.67 Year: 03.94-04.02
    FIAT DUCATO Skåp (230_) 2.5 TD 4x4 Engine volume: 2.5 Engine type: 8140.47 Year: 11.94-04.98
    FIAT DUCATO Skåp (230_) 2.5 TD Engine volume: 2.5 Engine type: 8140.47 Year: 06.94-08.98
    FIAT DUCATO Skåp (230_) 2.5 TDI 4x4 Engine volume: 2.5 Engine type: 8140.47 Year: 05.98-04.02
    FIAT DUCATO Skåp (230_) 2.5 TDI Engine volume: 2.5 Engine type: 8140.47 Year: 03.94-04.02
    FIAT DUCATO Skåp (230_) 2.5 TDI Engine volume: 2.5 Engine type: 8140.47R Year: 03.94-04.02
    FIAT DUCATO Skåp (230_) 2.8 D 4x4 Engine volume: 2.8 Engine type: 8140.63 Year: 08.98-04.02
    FIAT DUCATO Skåp (230_) 2.8 D Engine volume: 2.8 Engine type: 8140.63 Year: 05.98-04.02
    FIAT DUCATO Skåp (230_) 2.8 TD 4x4 Engine volume: 2.8 Engine type: 8140.43 Year: 05.98-09.01
    FIAT DUCATO Skåp (230_) 2.8 TDI 4x4 Engine volume: 2.8 Engine type: 8140.43 Year: 06.99-04.02
    FIAT DUCATO Skåp (230_) 2.8 TDI Engine volume: 2.8 Engine type: 8140.43 Year: 10.97-04.02
    FIAT DUCATO Skåp (290_) 2.5 TD 4x4 Engine volume: 2.5 Engine type: 8140.27 Year: 07.90-03.94
    FIAT DUCATO Skåp (290_) 2.5 TD Engine volume: 2.5 Engine type: 8140.27 Year: 07.90-03.94
    PEUGEOT BOXER Buss (230P) 2.5 DT Engine volume: 2.5 Engine type: 8140.67 Year: 10.97-11.01
    PEUGEOT BOXER Buss (230P) 2.8 D Engine volume: 2.8 Engine type: 8140.63 (F28D) Year: 01.99-02.02
    PEUGEOT BOXER Flak/chassi (ZCT_) 2.8 D Engine volume: 2.8 Engine type: 8140.63 (F28D) Year: 01.99-02.02
    PEUGEOT BOXER Skåp (230L) 2.5 DT Engine volume: 2.5 Engine type: 8140.67 Year: 10.97-11.01
    PEUGEOT BOXER Skåp (230L) 2.8 D Engine volume: 2.8 Engine type: 8140.63 (F28D) Year: 01.99-02.02
    PEUGEOT BOXER Skåp (230L) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 10.00-11.01
    1 / 9
  • Beskrivelse
    Fiat Dynamo 12V-110A 12V - 110A For Yourex produkt bestilling 90-165-0073

    Spenning: 14
    Ampere: 110
    Skivens avstand: 53.00
    Bredde/holderarm: 27.00
    Festebrakett avstand: 66.00
    Brakettgjennomføring: 10.20
    Båndinnstilling brakettgjennomføring pos.: 60
    Båndinnstilling brakettgjennomføring 1: 8.20
    Skivens diameter: 54.00
    Ribber/skive: 6
    Radius: 85.00
    Radius 2: 83.00
    B+: M8
    Posisjon/B+ i min.: 45
    D+ Størrelse: M5
    Rotasjon: Klokkeslett (CW)
    Total lengde mm: 196.00
    Skive: SP
    Regulator-type: IR
    Prod. info: BN
    Vedlikehold: Fiat

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 66.00
    Belt. adj. bracket hole 1 8.20
    Belt. adj. brackethole pos. 60
    Bracket hole 10.20
    Position/B+ in min. 45
    Prod. info BN
    Pulley SP
    Pulley dia. 54.00
    Pulley dist. 53.00
    Radius 85.00
    D+ Size M5
    Radius 2 83.00
    Regulator type IR
    Rotation CW
    Servicing Fiat
    Grooves/pulley 6
    Voltage 14
    Total length 196.00 mm
    Width/holder arm 27.00
    Amp 110
  • Kjøretøymatching

    • OEM
      A13VI 73, a13vi73, A3041, ALT14086, BAO3274, CAL15155, dra3764, DRA3764, F032111498, F042A0B042, lrb00298, LRB00298, NA467, QA2231, SA054, va308, VA308, 4 36 458, 4 36 637, 4 36 638, 4 36 639, 4 36 826, 4 36 827, 8EL012428-541, 8el737204-001, 8EL737204001, 28-2679, 218.145.1102, 0986 042 171, 1157ir, 4393, 5606, 5705 4E, 5705GY, 21298R, 57054e, 57057Y, 57057Z, 111498, 119026, 210271, 210271A, 301157RI, 436414, 436617, 436619, 436636, 436790, 436791, 436877, 436878, 436892, 436893, 436896, 436897, 436908, 436909, 439065, 2541679, 2541679C, 9042171, 9161247, 12042170, 13219187, 13234170, 13275731, 13329477, 35215345, 46231788, 98490186, 943356391, 0986042171, 943356391010, 944390421710

    • Konkurrentreferens
      A3041, ALT14086, BAO3274, CAL15155, dra3764, F042A0B042, lrb00298, NA467, QA2231, va308, 8EL012428-541, 8el737204-001, 28-2679, 218.145.1102, 4393, 5606, 21298R, 57054e, 119026, 210271, 210271A, 301157RI, 436636, 439065, 9042171, 12042170, 35215345, 943356391, 0986042171, 943356391010, 944390421710

    • Bilmärken
      CITROËN, FIAT, PEUGEOT

    • NormaliseratArtNr
      a13vi73, a3041, alt14086, bao3274, cal15155, dra3764, f032111498, f042a0b042, lrb00298, na467, qa2231, sa054, va308, 8el012428541, 8el737204001, 1157ir, 4393, 5606, 5705gy, 21298r, 57054e, 57057y, 57057z, 111498, 119026, 210271, 210271a, 282679, 301157ri, 436414, 436458, 436617, 436619, 436636, 436637, 436638, 436639, 436790, 436791, 436826, 436827, 436877, 436878, 436892, 436893, 436896, 436897, 436908, 436909, 439065, 2541679, 2541679c, 9042171, 9161247, 12042170, 13219187, 13234170, 13275731, 13329477, 35215345, 46231788, 98490186, 943356391, 0986042171, 2181451102, 943356391010, 944390421710

    • Passar modeller
      CITROËN JUMPER I Buss (230P) 2.8 D Engine volume: 2.8 Engine type: 8140.63 (F28D) Year: 01.99-02.02
      CITROËN JUMPER I Flak/chassi (230) 2.8 D Engine volume: 2.8 Engine type: 8140.63 (F28D) Year: 01.99-02.02
      FIAT DUCATO Buss (230_) 2.5 D Combinato Engine volume: 2.5 Engine type: 8140.67 Year: 08.94-04.02
      FIAT DUCATO Buss (230_) 2.5 TD 4x4 Engine volume: 2.5 Engine type: 8140.47 Year: 06.94-09.01
      FIAT DUCATO Buss (230_) 2.5 TD 4x4 Engine volume: 2.5 Engine type: 8140.47 Year: 11.94-04.98
      FIAT DUCATO Buss (230_) 2.5 TDI 4x4 Engine volume: 2.5 Engine type: 8140.47 Year: 04.97-04.02
      FIAT DUCATO Buss (230_) 2.5 TDI Panorama/Combinato Engine volume: 2.5 Engine type: 8140.47 Year: 03.94-04.02
      FIAT DUCATO Buss (230_) 2.5 TDI Panorama/Combinato Engine volume: 2.5 Engine type: 8140.47R Year: 07.94-04.02
      FIAT DUCATO Buss (230_) 2.8 D Engine volume: 2.8 Engine type: 8140.63 Year: 02.98-04.02
      FIAT DUCATO Buss (230_) 2.8 TDI 4x4 Engine volume: 2.8 Engine type: 8140.43 Year: 07.99-04.02
      FIAT DUCATO Buss (230_) 2.8 TDI Engine volume: 2.8 Engine type: 8140.43 Year: 10.97-04.02
      FIAT DUCATO Flak/chassi (230_) 2.5 D 4x4 Engine volume: 2.5 Engine type: 8140.67 Year: 03.94-04.02
      FIAT DUCATO Flak/chassi (230_) 2.5 D Engine volume: 2.5 Engine type: 8140.67 Year: 03.94-04.02
      FIAT DUCATO Flak/chassi (230_) 2.5 TD 4x4 Engine volume: 2.5 Engine type: 8140.47 Year: 11.94-04.98
      FIAT DUCATO Flak/chassi (230_) 2.5 TD Engine volume: 2.5 Engine type: 8140.47 Year: 06.94-04.98
      FIAT DUCATO Flak/chassi (230_) 2.5 TD Engine volume: 2.5 Engine type: 8140.47 Year: 06.94-08.98
      FIAT DUCATO Flak/chassi (230_) 2.5 TDI 4x4 Engine volume: 2.5 Engine type: 8140.47 Year: 06.98-04.02
      FIAT DUCATO Flak/chassi (230_) 2.5 TDI Engine volume: 2.5 Engine type: 8140.47R Year: 03.94-04.02
      FIAT DUCATO Flak/chassi (230_) 2.8 D Engine volume: 2.8 Engine type: 8140.63 Year: 02.98-04.02
      FIAT DUCATO Flak/chassi (230_) 2.8 iDTD 4x4 Engine volume: 2.8 Engine type: 8140.43 Year: 05.98-09.01
      FIAT DUCATO Flak/chassi (230_) 2.8 TDI Engine volume: 2.8 Engine type: 8140.43 Year: 12.98-04.02
      FIAT DUCATO Panorama (290_) 2.5 TD 4x4 Engine volume: 2.5 Engine type: 8140.27 Year: 01.91-03.94
      FIAT DUCATO Panorama (290_) 2.5 TD 4x4 Engine volume: 2.5 Engine type: 8140.27 Year: 06.90-05.94
      FIAT DUCATO Panorama (290_) 2.5 TD Engine volume: 2.5 Engine type: 8140.27 Year: 06.90-05.94
      FIAT DUCATO Skåp (230_) 2.5 D 4x4 Engine volume: 2.5 Engine type: 8140.67 Year: 03.94-04.02
      FIAT DUCATO Skåp (230_) 2.5 D Engine volume: 2.5 Engine type: 8140.67 Year: 03.94-04.02
      FIAT DUCATO Skåp (230_) 2.5 TD 4x4 Engine volume: 2.5 Engine type: 8140.47 Year: 11.94-04.98
      FIAT DUCATO Skåp (230_) 2.5 TD Engine volume: 2.5 Engine type: 8140.47 Year: 06.94-08.98
      FIAT DUCATO Skåp (230_) 2.5 TDI 4x4 Engine volume: 2.5 Engine type: 8140.47 Year: 05.98-04.02
      FIAT DUCATO Skåp (230_) 2.5 TDI Engine volume: 2.5 Engine type: 8140.47 Year: 03.94-04.02
      FIAT DUCATO Skåp (230_) 2.5 TDI Engine volume: 2.5 Engine type: 8140.47R Year: 03.94-04.02
      FIAT DUCATO Skåp (230_) 2.8 D 4x4 Engine volume: 2.8 Engine type: 8140.63 Year: 08.98-04.02
      FIAT DUCATO Skåp (230_) 2.8 D Engine volume: 2.8 Engine type: 8140.63 Year: 05.98-04.02
      FIAT DUCATO Skåp (230_) 2.8 TD 4x4 Engine volume: 2.8 Engine type: 8140.43 Year: 05.98-09.01
      FIAT DUCATO Skåp (230_) 2.8 TDI 4x4 Engine volume: 2.8 Engine type: 8140.43 Year: 06.99-04.02
      FIAT DUCATO Skåp (230_) 2.8 TDI Engine volume: 2.8 Engine type: 8140.43 Year: 10.97-04.02
      FIAT DUCATO Skåp (290_) 2.5 TD 4x4 Engine volume: 2.5 Engine type: 8140.27 Year: 07.90-03.94
      FIAT DUCATO Skåp (290_) 2.5 TD Engine volume: 2.5 Engine type: 8140.27 Year: 07.90-03.94
      PEUGEOT BOXER Buss (230P) 2.5 DT Engine volume: 2.5 Engine type: 8140.67 Year: 10.97-11.01
      PEUGEOT BOXER Buss (230P) 2.8 D Engine volume: 2.8 Engine type: 8140.63 (F28D) Year: 01.99-02.02
      PEUGEOT BOXER Flak/chassi (ZCT_) 2.8 D Engine volume: 2.8 Engine type: 8140.63 (F28D) Year: 01.99-02.02
      PEUGEOT BOXER Skåp (230L) 2.5 DT Engine volume: 2.5 Engine type: 8140.67 Year: 10.97-11.01
      PEUGEOT BOXER Skåp (230L) 2.8 D Engine volume: 2.8 Engine type: 8140.63 (F28D) Year: 01.99-02.02
      PEUGEOT BOXER Skåp (230L) 2.8 HDi 4x4 Engine volume: 2.8 Engine type: 8140.43S (F28DTCR) Year: 10.00-11.01
