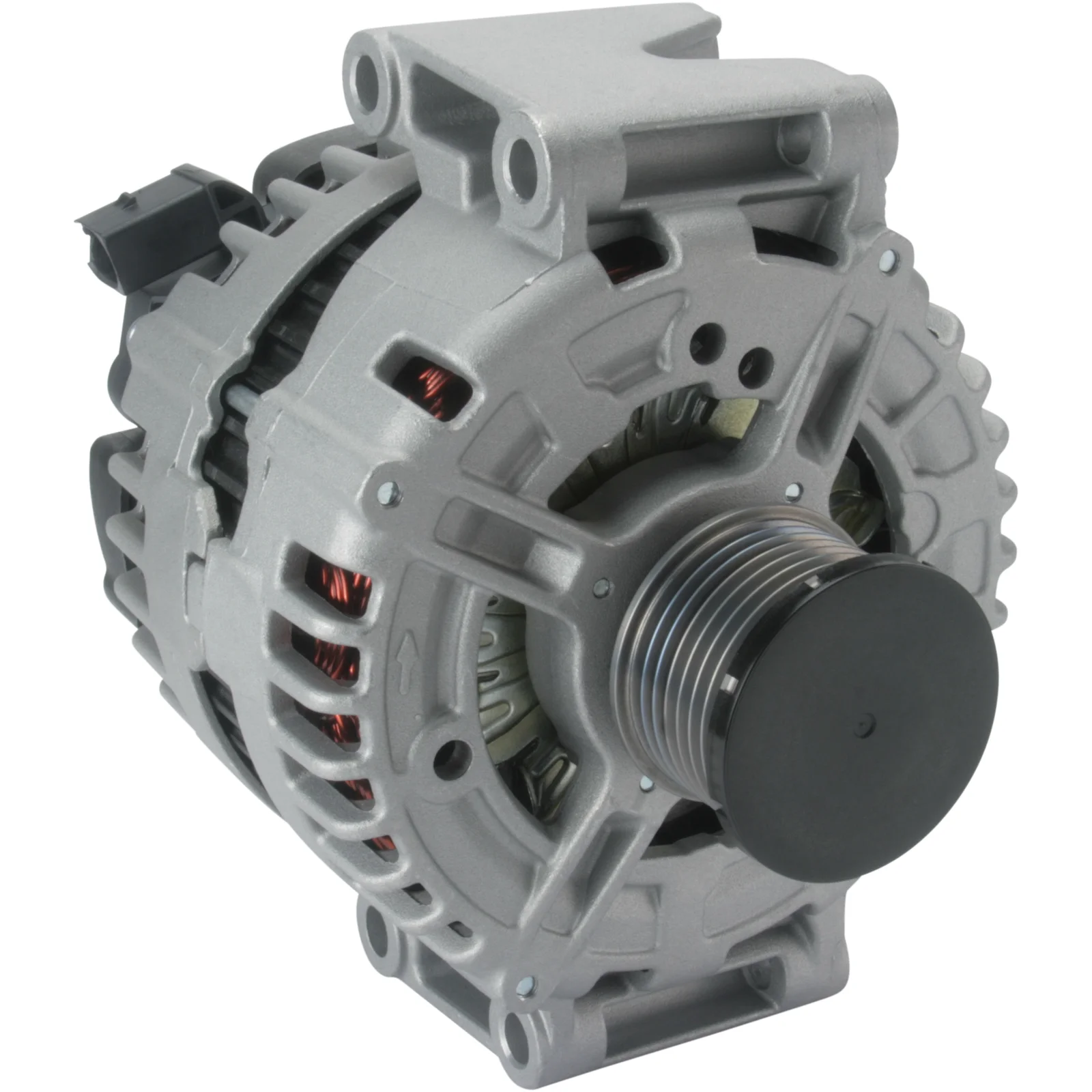

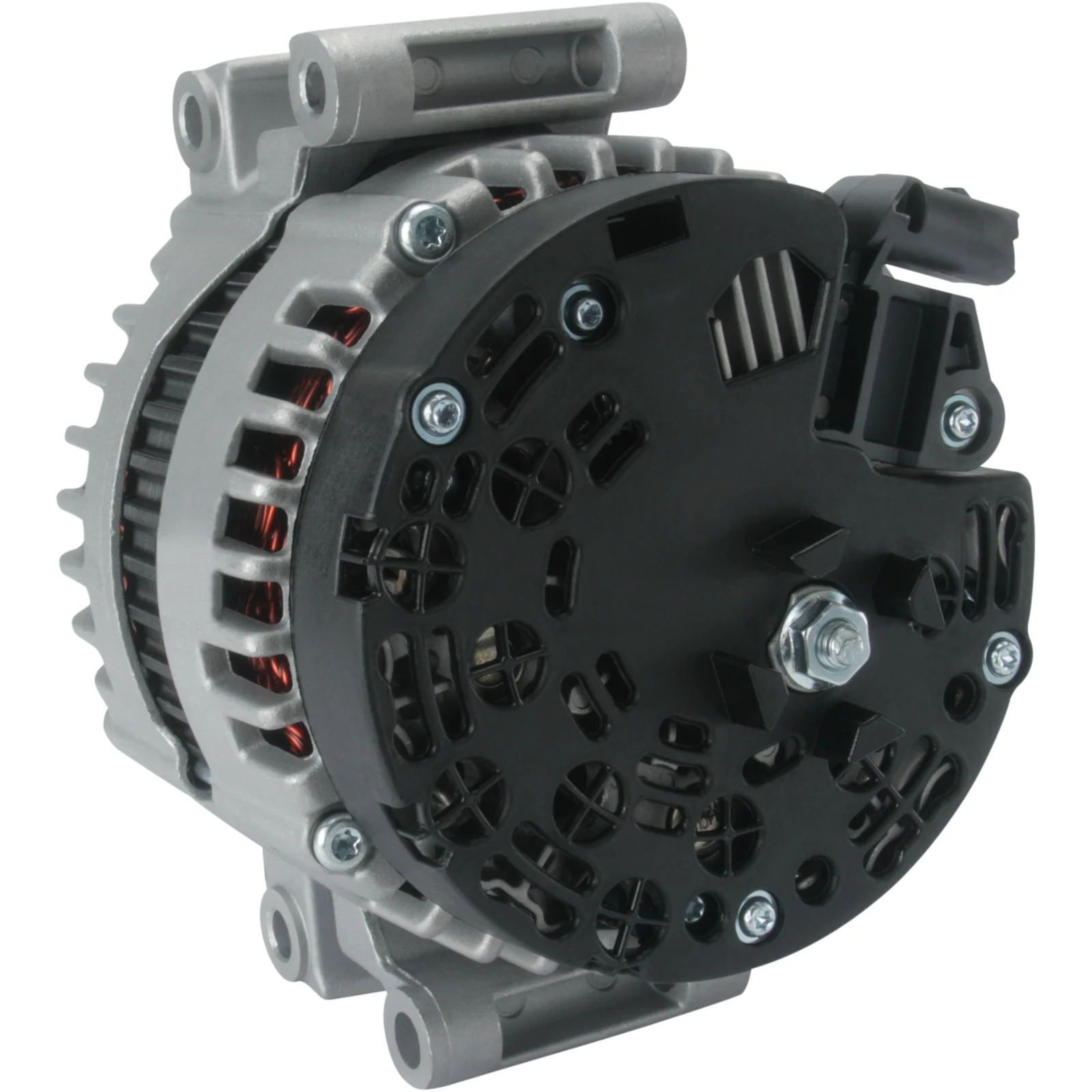

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116060

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 180, Rotasjon: CW, Monteringsbrakett avstand: 56,00

Beskrivelse

Spenning: 14
Amp: 180
Remskives avstand: 31.00
Bredde/beslag arm: 70.00
Monteringsbrakettavstand: 56.00
Brakettets hull: 9.20
Bältejusteringsbrakett hull pos.: 60
Bältejusteringsbrakett hull 1: 9.30
Remskivediameter: 49.60
Riller/remskive: 7
B+: M8
Posisjon/B+ i min.: 20
Rotasjon: CW
Dønn nr.: PL86
Total lengde mm: 183.00
Klemme-type: COM
Kommunikasjon: LIN
Remskive: SP/FW
Regulator type: IR
Prod. info: BN
Merknader: Denne generatoren har en COM-klemme på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.30
Belt. adj. brackethole pos. 60
Plug no. PL86
Bracket hole 9.20
Position/B+ in min. 20
Prod. info BN
Pulley SP/FW
Pulley dia. 49.60
Pulley dist. 31.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 183.00 mm
Width/holder arm 70.00
Amp 180

  • OEM
    A000906270080, A000906270083, a0131546402, A013154640280, a0131547002, A013154700280, A642154020280, F00E100661, F032116060, 4801250AC, 4801250AD, 05175765AA, 05175765AB, 5175765AA, 5175765AB, 0121715011, 0121715015, 0121715115, 0131546402, 0131547002, 000906270080, 000906270083, 013154640280, 013154700280, 642154020280

  • Konkurrentreferens
    A0291, A0291(BOSCH), CAL10376, DRB7690, 28-5754, 11307N, 210960, 210960A, 440926, 443273, 0986047690, 0986047693, 0986047697

  • NormaliseratArtNr
    a000906270080, a000906270083, a0131546402, a013154640280, a0131547002, a013154700280, a0291, a0291bosch, a642154020280, cal10376, drb7690, f00e100661, f032116060, 11307n, 210960, 210960a, 285754, 440926, 443273, 4801250ac, 4801250ad, 05175765aa, 05175765ab, 5175765aa, 5175765ab, 0121715011, 0121715015, 0121715115, 0131546402, 0131547002, 000906270080, 000906270083, 0986047690, 0986047693, 0986047697, 013154640280, 013154700280, 642154020280

  • Passar modeller
    Jeep Model: Commander Model series: Commander Model type: 4X4 Type of engine: CRD Size of motor: 3.0 Brand of engine: EXL Type description: XH Body: Box Body / Estate From date: 01-09-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Jeep Model: Commander Model series: Commander Model type: 4x4 Type of engine: CRD Size of motor: 3.0 Brand of engine: EXL Type description: XK, XH Body: Closed Off-Road Vehicle From date: 01-09-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: 4x4 Type of engine: CRD Size of motor: 3.0 Brand of engine: EXL Type description: WH, WK Body: Closed Off-Road Vehicle From date: 01-03-2005 To date: 01-10-2011 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: CRD Size of motor: 3.0 Brand of engine: EXL Type description: WH From date: 01-05-2006 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 280 Model series: E 280 Model type: 4 Matic Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.921 Type description: 211 Body: Estate From date: 01-03-2005 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 280 Model series: E 280 Model type: 4 Matic Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.921 Type description: 211 From date: 01-03-2005 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 280 Model series: E 280 Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.920 Type description: 211 Body: Estate From date: 01-03-2005 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 280 Model series: E 280 Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.920 Type description: VF211 Body: Platform / Chassis From date: 01-08-2005 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: 320 Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.920 Type description: C219 Body: Coupe From date: 01-01-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: CLS 320 Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.920 Type description: 219 Body: Coupe From date: 01-01-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: E 320 Model type: E320 CDI (211.022) Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.920 Type description: W211 Body: Saloon From date: 01-09-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: E 320 Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.920 Type description: 211 Body: Estate From date: 01-03-2005 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: E 320 Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.920 Type description: 211 From date: 01-03-2005 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.920 Type description: S211 Body: Estate From date: 01-11-2007 To date: 01-07-2009 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    1 / 3
  • Beskrivelse
    Spenning: 14
    Amp: 180
    Remskives avstand: 31.00
    Bredde/beslag arm: 70.00
    Monteringsbrakettavstand: 56.00
    Brakettets hull: 9.20
    Bältejusteringsbrakett hull pos.: 60
    Bältejusteringsbrakett hull 1: 9.30
    Remskivediameter: 49.60
    Riller/remskive: 7
    B+: M8
    Posisjon/B+ i min.: 20
    Rotasjon: CW
    Dønn nr.: PL86
    Total lengde mm: 183.00
    Klemme-type: COM
    Kommunikasjon: LIN
    Remskive: SP/FW
    Regulator type: IR
    Prod. info: BN
    Merknader: Denne generatoren har en COM-klemme på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.30
    Belt. adj. brackethole pos. 60
    Plug no. PL86
    Bracket hole 9.20
    Position/B+ in min. 20
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 49.60
    Pulley dist. 31.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 183.00 mm
    Width/holder arm 70.00
    Amp 180
  • Kjøretøymatching

    • OEM
      A000906270080, A000906270083, a0131546402, A013154640280, a0131547002, A013154700280, A642154020280, F00E100661, F032116060, 4801250AC, 4801250AD, 05175765AA, 05175765AB, 5175765AA, 5175765AB, 0121715011, 0121715015, 0121715115, 0131546402, 0131547002, 000906270080, 000906270083, 013154640280, 013154700280, 642154020280

    • Konkurrentreferens
      A0291, A0291(BOSCH), CAL10376, DRB7690, 28-5754, 11307N, 210960, 210960A, 440926, 443273, 0986047690, 0986047693, 0986047697

    • NormaliseratArtNr
      a000906270080, a000906270083, a0131546402, a013154640280, a0131547002, a013154700280, a0291, a0291bosch, a642154020280, cal10376, drb7690, f00e100661, f032116060, 11307n, 210960, 210960a, 285754, 440926, 443273, 4801250ac, 4801250ad, 05175765aa, 05175765ab, 5175765aa, 5175765ab, 0121715011, 0121715015, 0121715115, 0131546402, 0131547002, 000906270080, 000906270083, 0986047690, 0986047693, 0986047697, 013154640280, 013154700280, 642154020280

    • Passar modeller
      Jeep Model: Commander Model series: Commander Model type: 4X4 Type of engine: CRD Size of motor: 3.0 Brand of engine: EXL Type description: XH Body: Box Body / Estate From date: 01-09-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Jeep Model: Commander Model series: Commander Model type: 4x4 Type of engine: CRD Size of motor: 3.0 Brand of engine: EXL Type description: XK, XH Body: Closed Off-Road Vehicle From date: 01-09-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: 4x4 Type of engine: CRD Size of motor: 3.0 Brand of engine: EXL Type description: WH, WK Body: Closed Off-Road Vehicle From date: 01-03-2005 To date: 01-10-2011 Fuel: Diesel Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: CRD Size of motor: 3.0 Brand of engine: EXL Type description: WH From date: 01-05-2006 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 280 Model series: E 280 Model type: 4 Matic Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.921 Type description: 211 Body: Estate From date: 01-03-2005 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 280 Model series: E 280 Model type: 4 Matic Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.921 Type description: 211 From date: 01-03-2005 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 280 Model series: E 280 Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.920 Type description: 211 Body: Estate From date: 01-03-2005 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 280 Model series: E 280 Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.920 Type description: VF211 Body: Platform / Chassis From date: 01-08-2005 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: 320 Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.920 Type description: C219 Body: Coupe From date: 01-01-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: CLS 320 Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.920 Type description: 219 Body: Coupe From date: 01-01-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: E 320 Model type: E320 CDI (211.022) Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.920 Type description: W211 Body: Saloon From date: 01-09-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: E 320 Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.920 Type description: 211 Body: Estate From date: 01-03-2005 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: E 320 Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.920 Type description: 211 From date: 01-03-2005 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.920 Type description: S211 Body: Estate From date: 01-11-2007 To date: 01-07-2009 Fuel: Diesel Approved: Yes Manufacture type: T-Model
