Varenr.: F032111280

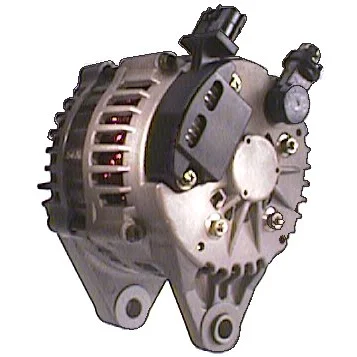

HC-Cargo Dynamo

Teknisk info:

Spenningsgiver: 14, Amp: 65, Rotasjon: med klokka, Monteringsbrakett avstand: 66,80

Beskrivelse

Nissan Micra 93> Dynamo 12V - 65A For Yourex produktbestilling 90-400-3846

Spenning: 14
Ampere: 65
Skivemål: 38,20
Bredde/bærestang: 24,80
Festebrakettavstand: 66,80
Brakettshull: 10,60
Båndjusteringsbrakettposisjon: 53
Båndjusteringsbrakettshull 1: 10,50
Skivemål: 50,00
Grooves/skive: 6
Radius: 84,00
Radius 2: 95,00
B+: M6
Posisjon/B+ i min.: 6
Rotasjon: med urviseren
Stikkontakt nr.: PL39
Total lengde mm: 156,50
Skive: SP
Regulator type: IR
Prod. info: BN
Vedlikehold: Nissan

Spesifikasjon

B+ M6
Mount. bracket dist. 66.80
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 53
Plug no. PL39
Bracket hole 10.60
Position/B+ in min. 6
Prod. info BN
Pulley SP
Pulley dia. 50.00
Pulley dist. 38.20
Radius 84.00
Radius 2 95.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 6
Voltage 14
Total length 156.50 mm
Width/holder arm 24.80
Amp 65
  • OEM

    F032111280, ja868ir, 0120 335 008, 0123 115 010, 0986 038 460, 23100-0u060, 23100-10s00, 23100-54B61, 23100-54b61, 23100-54B62, 23100-54b62, 23100-68280, 23100-OF600, 111280, 0120335008, 0123115008, 0123115010
  • Konkurrentreferens

    ALT-H031, ALT10134, CAL45104, dra3229, F042A0H031, FRA792, J5111054, LEA0164, lrb00170, QA1909, 8el731755-001, 28-1836, 28-51.154, 227.141.652, 2647, 12495R, 40868RI, 56289, 118439, 210112, 210112A, 437747, 746853, 839086, 9051154, 12060278, 20110170, 0986038460, 944390511540
  • Bilmärken

    Nissan
  • NormaliseratArtNr

    alt10134, alth031, cal45104, dra3229, f032111280, f042a0h031, fra792, j5111054, ja868ir, lea0164, lrb00170, qa1909, 8el731755001, 2647, 12495r, 23100of600, 40868ri, 56289, 111280, 118439, 210112, 210112a, 231000u060, 281836, 437747, 746853, 839086, 2310010s00, 2310054b61, 2310054b62, 2851154, 9051154, 12060278, 20110170, 0120335008, 0123115008, 0123115010, 227141652, 0986038460, 2310068280, 944390511540
  • Passar modeller

    Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K11 Body: Hatchback From date: 01-08-1992 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.3 Brand of engine: CG13DE Type description: K11E Body: Hatchback From date: 01-08-1992 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    Nissan Series: Micra (K11) Model: 1.0i 16V Engine volume: 1.0 Engine type: CG 10 DE Year: 08.92-05.96
    Nissan Series: Micra (K11) Model: 1.0i 16V Engine volume: 1.0 Engine type: CG 10 DE Year: 09.93-05.96
    Nissan Series: Micra (K11) Model: 1.3i 16V Engine volume: 1.3 Engine type: CG 13 DE Year: 08.92-05.96
    Nissan Series: Micra (K11) Year: 10.92-
