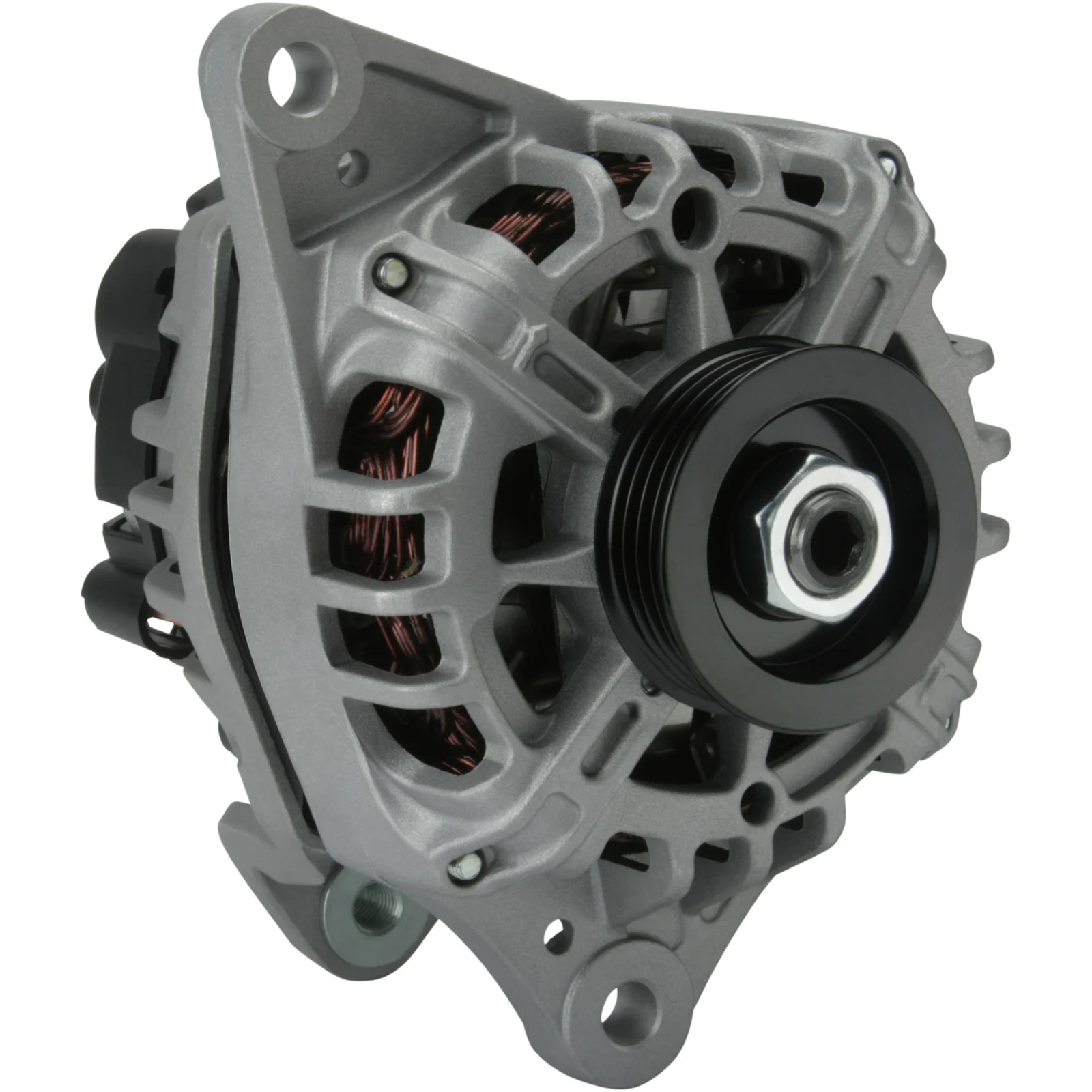

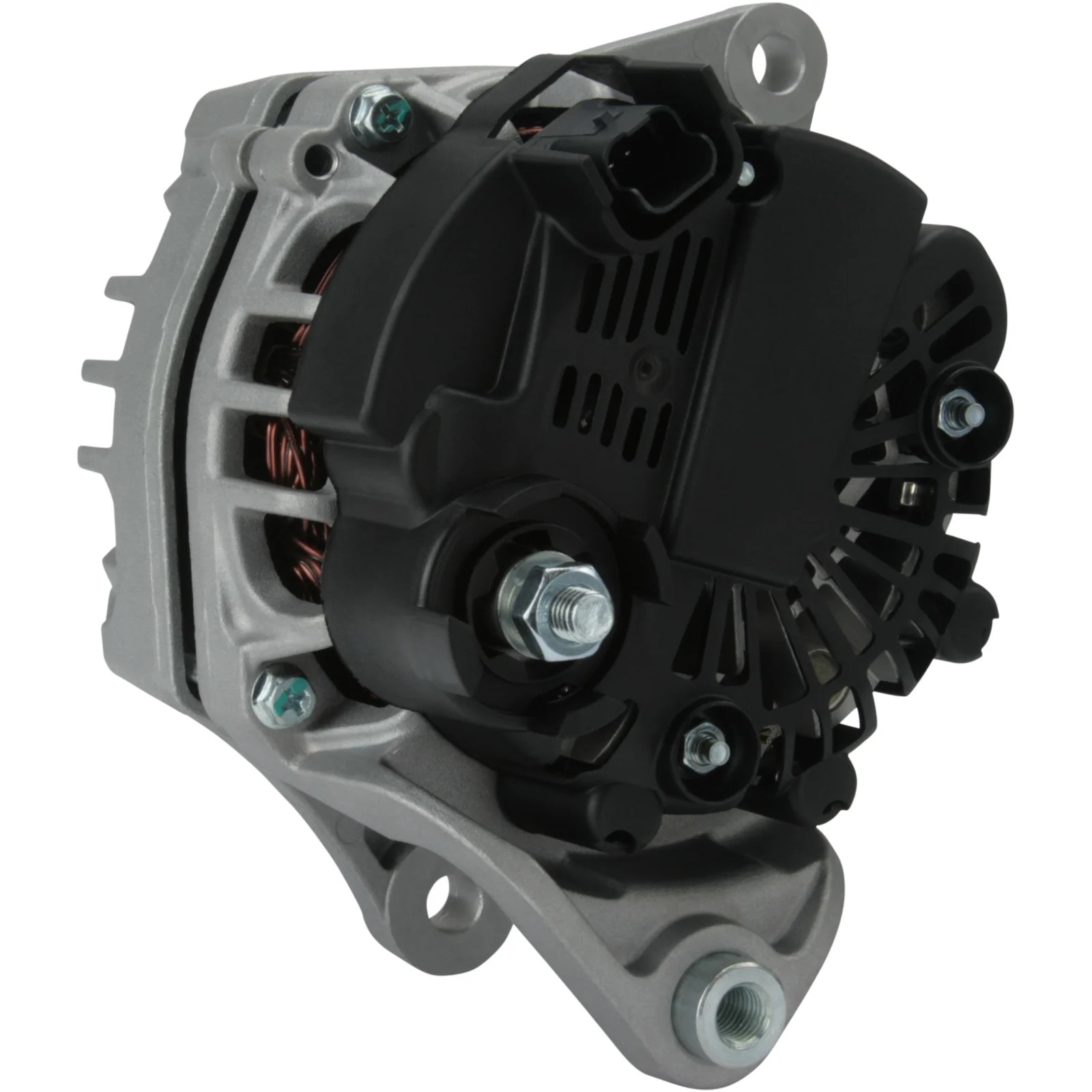

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115531

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Ampere: 80, Rotasjon: CW, Monteringsbrakett avstand: 67.50

Beskrivelse

Spenningsnivå: 14
Ampere: 80
Drevavstand: 44,50
Bredde/holderarm: 13,00
Festebrakettavstand: 67,50
Braketthull: 10,00
Belt. justeringsbrakettposisjon: 53
Belt. justeringsbrakett hull 1: 10,00
Drevdiameter: 55,00
Utskårede spor/drev: 4
Radius: 83,00
Radius 2: 93,00
B+: M8
Posisjon/B+ i min.: 40
Rotasjon: CW
Plugg nr.: PL55
Total lengde mm: 170,00
Drev: SP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 67.50
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 53
Plug no. PL55
Bracket hole 10.00
Position/B+ in min. 40
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 44.50
Radius 83.00
Radius 2 93.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 170.00 mm
Width/holder arm 13.00
Amp 80

  • OEM
    F032115531, TG8C018, TG8S019, 1963ir, 23100-AX610, 23100-ax62a, 2542926, 2542926A, 2542927, 2542927A

  • Konkurrentreferens
    A3220, A3220PR, A3331, CAL15318, DRA0206, 8EL012430-031, 8EL738211-941, 28-4903, 165.502.080, 23559N, 23560N, 209143, 209143A, 301963RI, 437543, 439550, 747136, 12060836, 0986080680

  • NormaliseratArtNr
    a3220, a3220pr, a3331, cal15318, dra0206, f032115531, tg8c018, tg8s019, 8el012430031, 8el738211941, 1963ir, 23100ax610, 23100ax62a, 23559n, 23560n, 209143, 209143a, 284903, 301963ri, 437543, 439550, 747136, 2542926, 2542926a, 2542927, 2542927a, 12060836, 165502080, 0986080680

  • Passar modeller
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CG12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CR12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.4 Brand of engine: CR14DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.4 Brand of engine: CR14DE Type description: K12E Body: Convertible From date: 01-08-2005 Fuel: Gasoline Approved: Yes Manufacture type: C+C
    Nissan Model: Note Model series: Note Model type: LPG Type of engine: LPG Size of motor: 1.4 Brand of engine: CR14DE Type description: E11, NE11 Body: MPV From date: 01-01-2006 To date: 01-08-2013 Fuel: Petrol/Electro Approved: Yes
    Nissan Model: Note Model series: Note Size of motor: 1.4 Brand of engine: CR14DE Type description: E11 Body: MPV From date: 01-03-2006 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsnivå: 14
    Ampere: 80
    Drevavstand: 44,50
    Bredde/holderarm: 13,00
    Festebrakettavstand: 67,50
    Braketthull: 10,00
    Belt. justeringsbrakettposisjon: 53
    Belt. justeringsbrakett hull 1: 10,00
    Drevdiameter: 55,00
    Utskårede spor/drev: 4
    Radius: 83,00
    Radius 2: 93,00
    B+: M8
    Posisjon/B+ i min.: 40
    Rotasjon: CW
    Plugg nr.: PL55
    Total lengde mm: 170,00
    Drev: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 67.50
    Belt. adj. bracket hole 1 10.00
    Belt. adj. brackethole pos. 53
    Plug no. PL55
    Bracket hole 10.00
    Position/B+ in min. 40
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 44.50
    Radius 83.00
    Radius 2 93.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 13.00
    Amp 80
  • Kjøretøymatching

    • OEM
      F032115531, TG8C018, TG8S019, 1963ir, 23100-AX610, 23100-ax62a, 2542926, 2542926A, 2542927, 2542927A

    • Konkurrentreferens
      A3220, A3220PR, A3331, CAL15318, DRA0206, 8EL012430-031, 8EL738211-941, 28-4903, 165.502.080, 23559N, 23560N, 209143, 209143A, 301963RI, 437543, 439550, 747136, 12060836, 0986080680

    • NormaliseratArtNr
      a3220, a3220pr, a3331, cal15318, dra0206, f032115531, tg8c018, tg8s019, 8el012430031, 8el738211941, 1963ir, 23100ax610, 23100ax62a, 23559n, 23560n, 209143, 209143a, 284903, 301963ri, 437543, 439550, 747136, 2542926, 2542926a, 2542927, 2542927a, 12060836, 165502080, 0986080680

    • Passar modeller
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CG12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CR12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.4 Brand of engine: CR14DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.4 Brand of engine: CR14DE Type description: K12E Body: Convertible From date: 01-08-2005 Fuel: Gasoline Approved: Yes Manufacture type: C+C
      Nissan Model: Note Model series: Note Model type: LPG Type of engine: LPG Size of motor: 1.4 Brand of engine: CR14DE Type description: E11, NE11 Body: MPV From date: 01-01-2006 To date: 01-08-2013 Fuel: Petrol/Electro Approved: Yes
      Nissan Model: Note Model series: Note Size of motor: 1.4 Brand of engine: CR14DE Type description: E11 Body: MPV From date: 01-03-2006 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
      1 / 2
