Varenr.: F032113697

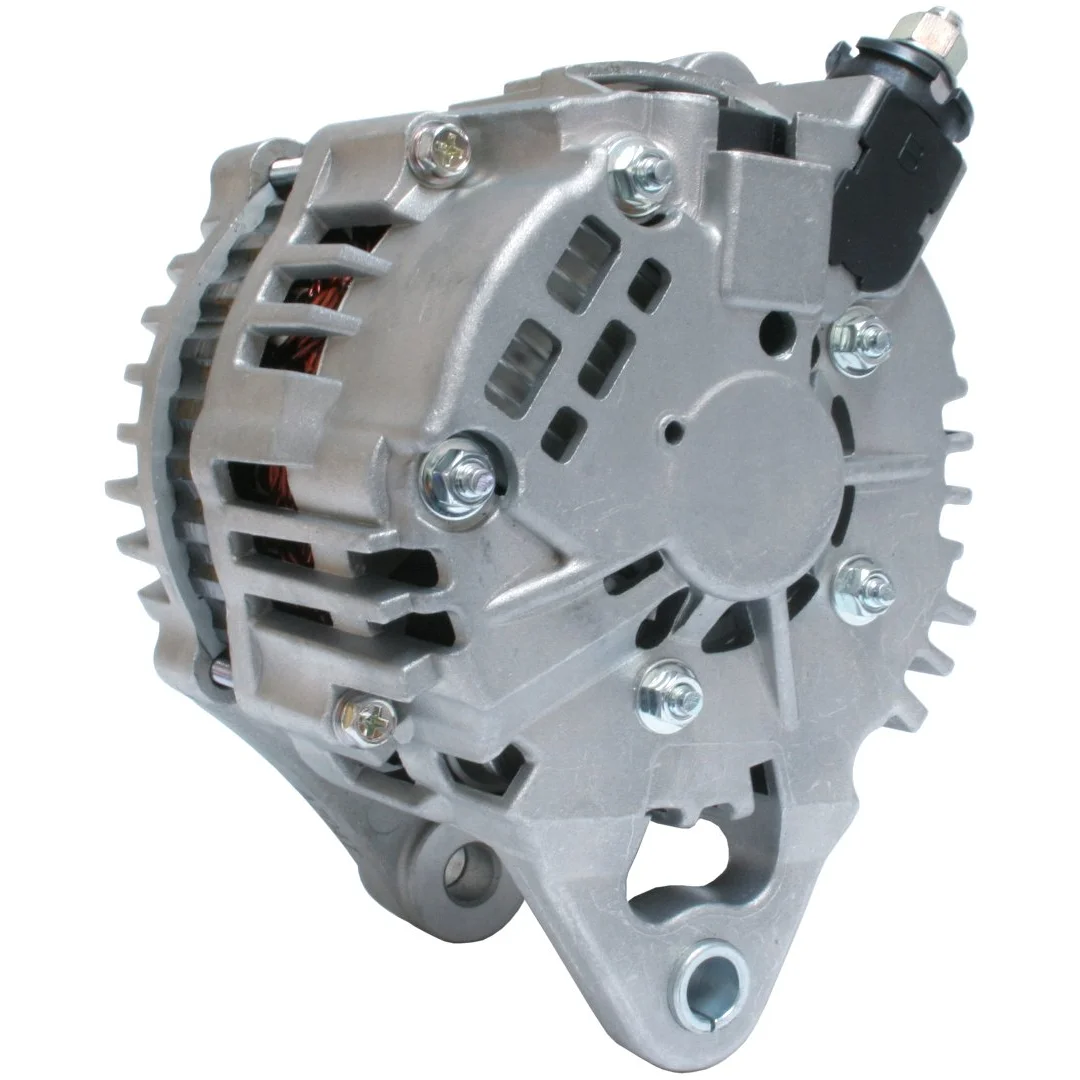

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 65, Rotasjon: Mot klokka, Montering. bøssing avstand: 66,50

Beskrivelse

Spenning: 14
Amp: 65
Reimskive avstand: 38.00
Bredde/holderarm: 24.50
Monteringsbrakett avstand: 66.50
Brackethull: 10.40
Reimjusteringsbraketthull pos.: 55
Reimjusteringsbrakett hull 1: 10.00
Reimskivens diameter: 50.00
Furer/reimskive: 6
Radius: 83.50
Radius 2: 91.50
B+: M8
Posisjon/B+ i min.: 10
Rotasjon: Mot klokka
Kontakt nr.: PL07
Total lengde mm: 158.00
Reimskive: SP
Regulator type: IR
Prod. info: BN
Service: Nissan

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 66.50
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 55
Plug no. PL07
Bracket hole 10.40
Position/B+ in min. 10
Prod. info BN
Pulley SP
Pulley dia. 50.00
Pulley dist. 38.00
Radius 83.50
Radius 2 91.50
Regulator type IR
Rotation CCW
Servicing Nissan
Grooves/pulley 6
Voltage 14
Total length 158.00 mm
Width/holder arm 24.50
Amp 65

  • OEM
    F032113697, ja1790ir, lr165-714, lr170-768, 23100-AN000, 23100-ap000, 23100-AP00A

  • Konkurrentreferens
    A2030, ALT-3729, CAL20116, DRA3947, DRA3947X, F042208015, F042A05063, J5111096, LRA02152, 8EL011711-321, 28-4602, 227.180.702, 23155N, 23155R, 111712, 401790RI, 440116, 9212794, 12060821, 0986080210, 944390903760

  • NormaliseratArtNr
    a2030, alt3729, cal20116, dra3947, dra3947x, f032113697, f042208015, f042a05063, j5111096, ja1790ir, lr165714, lr170768, lra02152, 8el011711321, 23100an000, 23100ap000, 23100ap00a, 23155n, 23155r, 111712, 284602, 401790ri, 440116, 9212794, 12060821, 227180702, 0986080210, 944390903760

  • Passar modeller
    Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K11 Body: Hatchback From date: 01-08-1992 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K11 Body: Hatchback From date: 01-09-2000 To date: 01-02-2003 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.4 Brand of engine: CGA3DE Type description: K11 Body: Hatchback From date: 01-09-2000 To date: 01-02-2003 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenning: 14
    Amp: 65
    Reimskive avstand: 38.00
    Bredde/holderarm: 24.50
    Monteringsbrakett avstand: 66.50
    Brackethull: 10.40
    Reimjusteringsbraketthull pos.: 55
    Reimjusteringsbrakett hull 1: 10.00
    Reimskivens diameter: 50.00
    Furer/reimskive: 6
    Radius: 83.50
    Radius 2: 91.50
    B+: M8
    Posisjon/B+ i min.: 10
    Rotasjon: Mot klokka
    Kontakt nr.: PL07
    Total lengde mm: 158.00
    Reimskive: SP
    Regulator type: IR
    Prod. info: BN
    Service: Nissan

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 66.50
    Belt. adj. bracket hole 1 10.00
    Belt. adj. brackethole pos. 55
    Plug no. PL07
    Bracket hole 10.40
    Position/B+ in min. 10
    Prod. info BN
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 38.00
    Radius 83.50
    Radius 2 91.50
    Regulator type IR
    Rotation CCW
    Servicing Nissan
    Grooves/pulley 6
    Voltage 14
    Total length 158.00 mm
    Width/holder arm 24.50
    Amp 65
  • Kjøretøymatching

    • OEM
      F032113697, ja1790ir, lr165-714, lr170-768, 23100-AN000, 23100-ap000, 23100-AP00A

    • Konkurrentreferens
      A2030, ALT-3729, CAL20116, DRA3947, DRA3947X, F042208015, F042A05063, J5111096, LRA02152, 8EL011711-321, 28-4602, 227.180.702, 23155N, 23155R, 111712, 401790RI, 440116, 9212794, 12060821, 0986080210, 944390903760

    • NormaliseratArtNr
      a2030, alt3729, cal20116, dra3947, dra3947x, f032113697, f042208015, f042a05063, j5111096, ja1790ir, lr165714, lr170768, lra02152, 8el011711321, 23100an000, 23100ap000, 23100ap00a, 23155n, 23155r, 111712, 284602, 401790ri, 440116, 9212794, 12060821, 227180702, 0986080210, 944390903760

    • Passar modeller
      Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K11 Body: Hatchback From date: 01-08-1992 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K11 Body: Hatchback From date: 01-09-2000 To date: 01-02-2003 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.4 Brand of engine: CGA3DE Type description: K11 Body: Hatchback From date: 01-09-2000 To date: 01-02-2003 Fuel: Gasoline Approved: Yes
