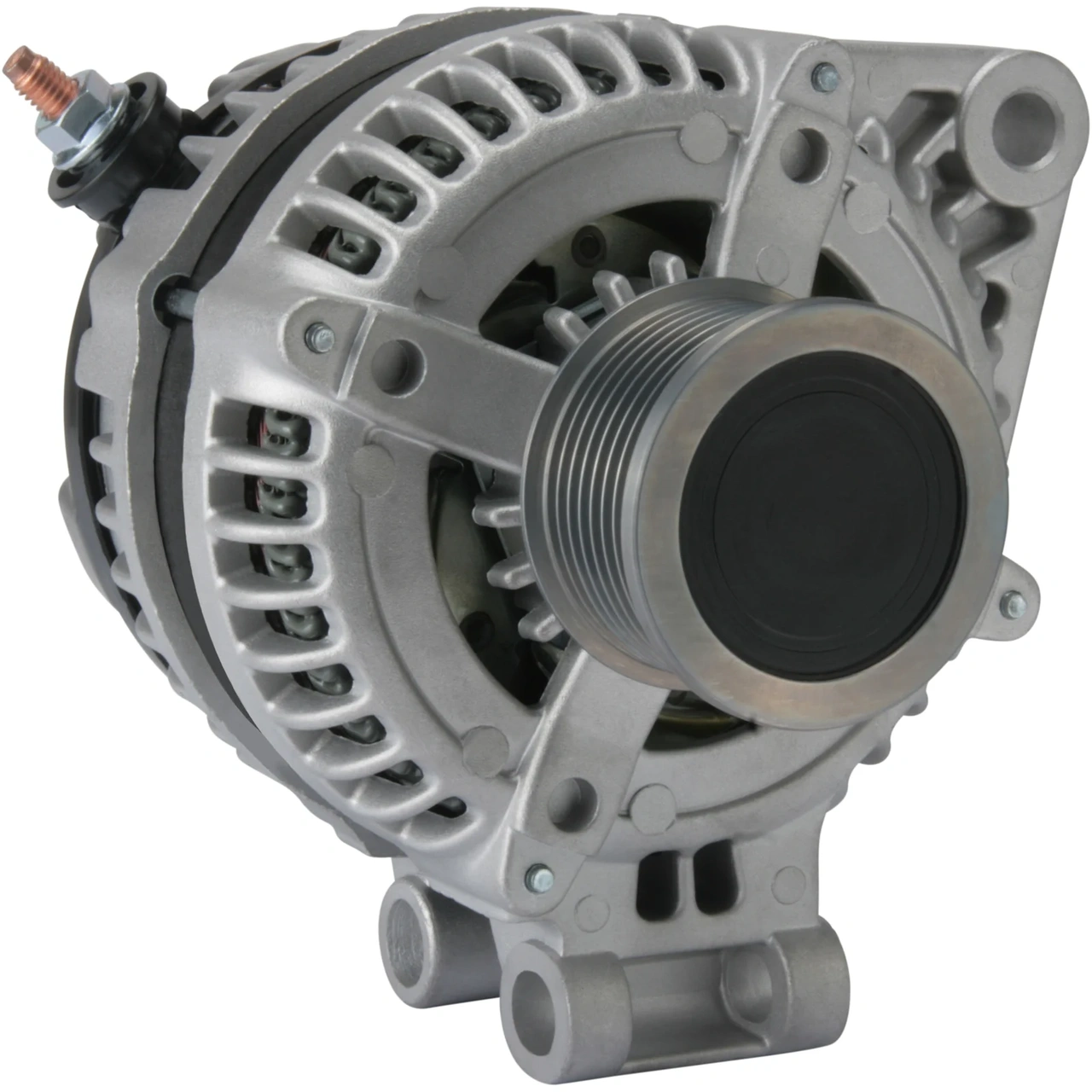

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114704

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 150, Rotasjon: medClokke, Festebraktdistanse: 47.00

Beskrivelse

Spenning: 14
Amp: 150
Drevkugg: 22.00
Bredde/holderarm: 50.00
Festebrakett avstand: 47.00
Brakettshull: 12.00x14.00
Bånd. inkl. brakkets hull pos.: 10
Bånd. inkl. brakkets hull 1: 11.00
Bånd. inkl. brakkets hull 2: 11.40
Drevkugg dia.: 57.30
Groper/drevkugg: 8
Radius: 84.50
Radius 2: 86.00
B+: M8
Posisjon/B+ i min.: 7
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL136
Totallengde mm: 173.00
Terminaltype: LI-RC-BVS
Lysrørtype: Inaktiv
Drevkugg: SP/FW
Vifte: IF
Regul. type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 47.00
Belt. adj. bracket hole 1 11.00
Belt. adj. bracket hole 2 11.40
Belt. adj. brackethole pos. 10
Plug no. PL136
Bracket hole 12.00x14.00
Position/B+ in min. 7
Pulley SP/FW
Pulley dia. 57.30
Pulley dist. 22.00
Radius 84.50
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 8
Lamp type Inactive
Terminal type LI-RC-BVS
Voltage 14
Total length 173.00 mm
Width/holder arm 50.00
Amp 150

  • OEM
    F032114704, yle500200, YLE500400, 1958ir, 1986A01346, 104210-3710, 104210-3711

  • Konkurrentreferens
    A6080, A6080(DENSO), CAL40254, CAL40308, DAN987, DENDAN987, dra0342, F042205268, lea0700, LRA03028, 8EL012426-021, 8EL738212-901, 28-5640, 214.162.1502, 9454, 24028CT-WB, 24028R, 112684, 210902, 210902A, 301958RI, 439984, 440765, 12090357, 32082400, 0986082400, 063377525010

  • NormaliseratArtNr
    a6080, a6080denso, cal40254, cal40308, dan987, dendan987, dra0342, f032114704, f042205268, lea0700, lra03028, yle500200, yle500400, 8el012426021, 8el738212901, 1958ir, 1986a01346, 9454, 24028ctwb, 24028r, 112684, 210902, 210902a, 285640, 301958ri, 439984, 440765, 12090357, 32082400, 0986082400, 1042103710, 1042103711, 2141621502, 063377525010

  • Passar modeller
    Land Rover Model: Discovery Model series: Discovery Model type: 4x4 Type of engine: TDI Size of motor: 2.7 Brand of engine: 276DT Type description: L319 Body: Van From date: 01-01-2007 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Model type: TD 4x4 Type of engine: TD Size of motor: 2.7 Brand of engine: 276DT Type description: L319 Body: Closed Off-Road Vehicle From date: 01-09-2004 To date: 01-08-2009 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Type of engine: TD Size of motor: 2.7 Brand of engine: 276DT Type description: TAA From date: 01-07-2004 To date: 01-09-2009 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Model type: Sport Type of engine: TDVM Size of motor: 2.7 Brand of engine: 276DT Type description: LS From date: 01-02-2005 To date: 01-03-2013 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 14
    Amp: 150
    Drevkugg: 22.00
    Bredde/holderarm: 50.00
    Festebrakett avstand: 47.00
    Brakettshull: 12.00x14.00
    Bånd. inkl. brakkets hull pos.: 10
    Bånd. inkl. brakkets hull 1: 11.00
    Bånd. inkl. brakkets hull 2: 11.40
    Drevkugg dia.: 57.30
    Groper/drevkugg: 8
    Radius: 84.50
    Radius 2: 86.00
    B+: M8
    Posisjon/B+ i min.: 7
    D+ Størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL136
    Totallengde mm: 173.00
    Terminaltype: LI-RC-BVS
    Lysrørtype: Inaktiv
    Drevkugg: SP/FW
    Vifte: IF
    Regul. type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 47.00
    Belt. adj. bracket hole 1 11.00
    Belt. adj. bracket hole 2 11.40
    Belt. adj. brackethole pos. 10
    Plug no. PL136
    Bracket hole 12.00x14.00
    Position/B+ in min. 7
    Pulley SP/FW
    Pulley dia. 57.30
    Pulley dist. 22.00
    Radius 84.50
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 8
    Lamp type Inactive
    Terminal type LI-RC-BVS
    Voltage 14
    Total length 173.00 mm
    Width/holder arm 50.00
    Amp 150
  • Kjøretøymatching

    • OEM
      F032114704, yle500200, YLE500400, 1958ir, 1986A01346, 104210-3710, 104210-3711

    • Konkurrentreferens
      A6080, A6080(DENSO), CAL40254, CAL40308, DAN987, DENDAN987, dra0342, F042205268, lea0700, LRA03028, 8EL012426-021, 8EL738212-901, 28-5640, 214.162.1502, 9454, 24028CT-WB, 24028R, 112684, 210902, 210902A, 301958RI, 439984, 440765, 12090357, 32082400, 0986082400, 063377525010

    • NormaliseratArtNr
      a6080, a6080denso, cal40254, cal40308, dan987, dendan987, dra0342, f032114704, f042205268, lea0700, lra03028, yle500200, yle500400, 8el012426021, 8el738212901, 1958ir, 1986a01346, 9454, 24028ctwb, 24028r, 112684, 210902, 210902a, 285640, 301958ri, 439984, 440765, 12090357, 32082400, 0986082400, 1042103710, 1042103711, 2141621502, 063377525010

    • Passar modeller
      Land Rover Model: Discovery Model series: Discovery Model type: 4x4 Type of engine: TDI Size of motor: 2.7 Brand of engine: 276DT Type description: L319 Body: Van From date: 01-01-2007 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Model type: TD 4x4 Type of engine: TD Size of motor: 2.7 Brand of engine: 276DT Type description: L319 Body: Closed Off-Road Vehicle From date: 01-09-2004 To date: 01-08-2009 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Type of engine: TD Size of motor: 2.7 Brand of engine: 276DT Type description: TAA From date: 01-07-2004 To date: 01-09-2009 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Model type: Sport Type of engine: TDVM Size of motor: 2.7 Brand of engine: 276DT Type description: LS From date: 01-02-2005 To date: 01-03-2013 Fuel: Diesel Approved: Yes
