HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114291

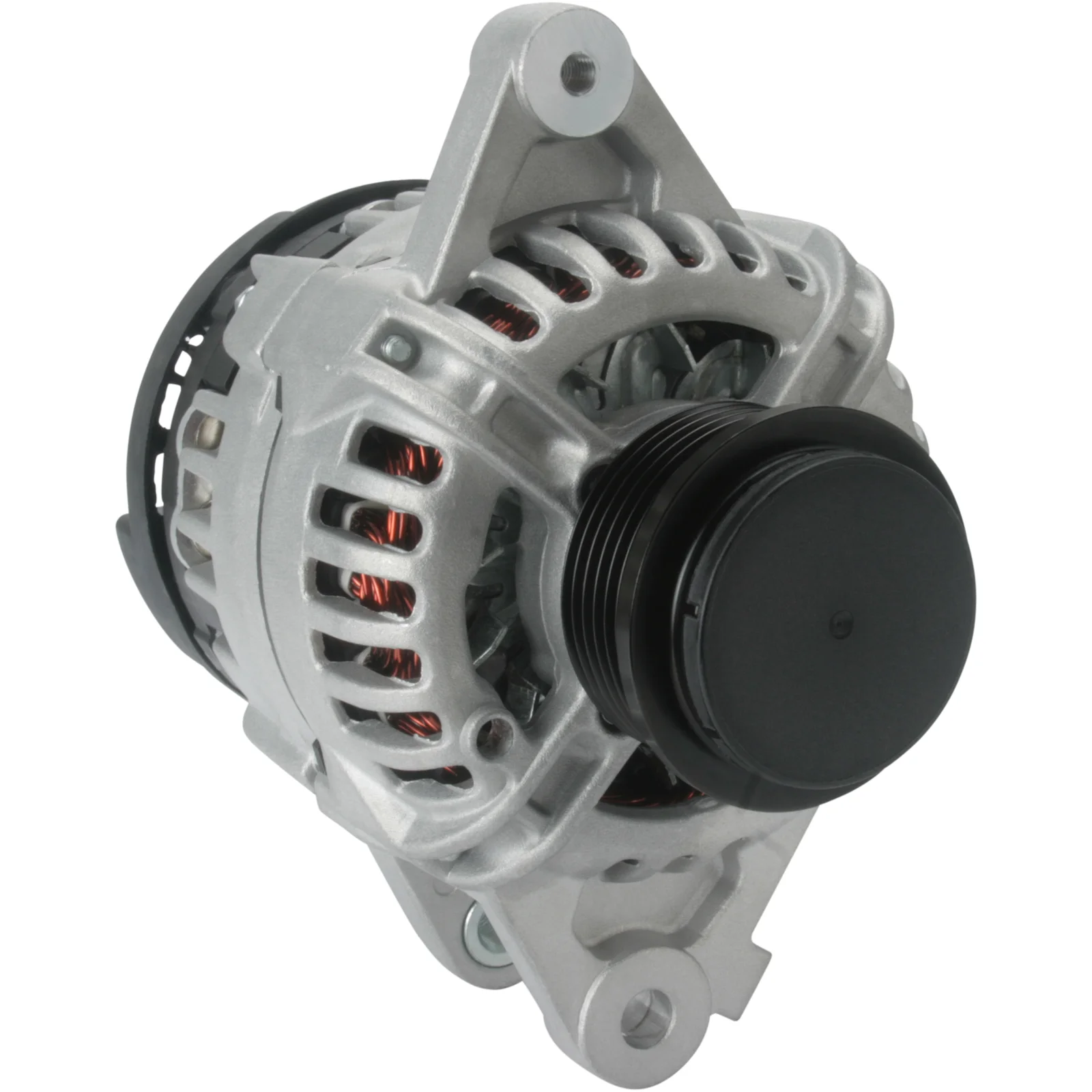

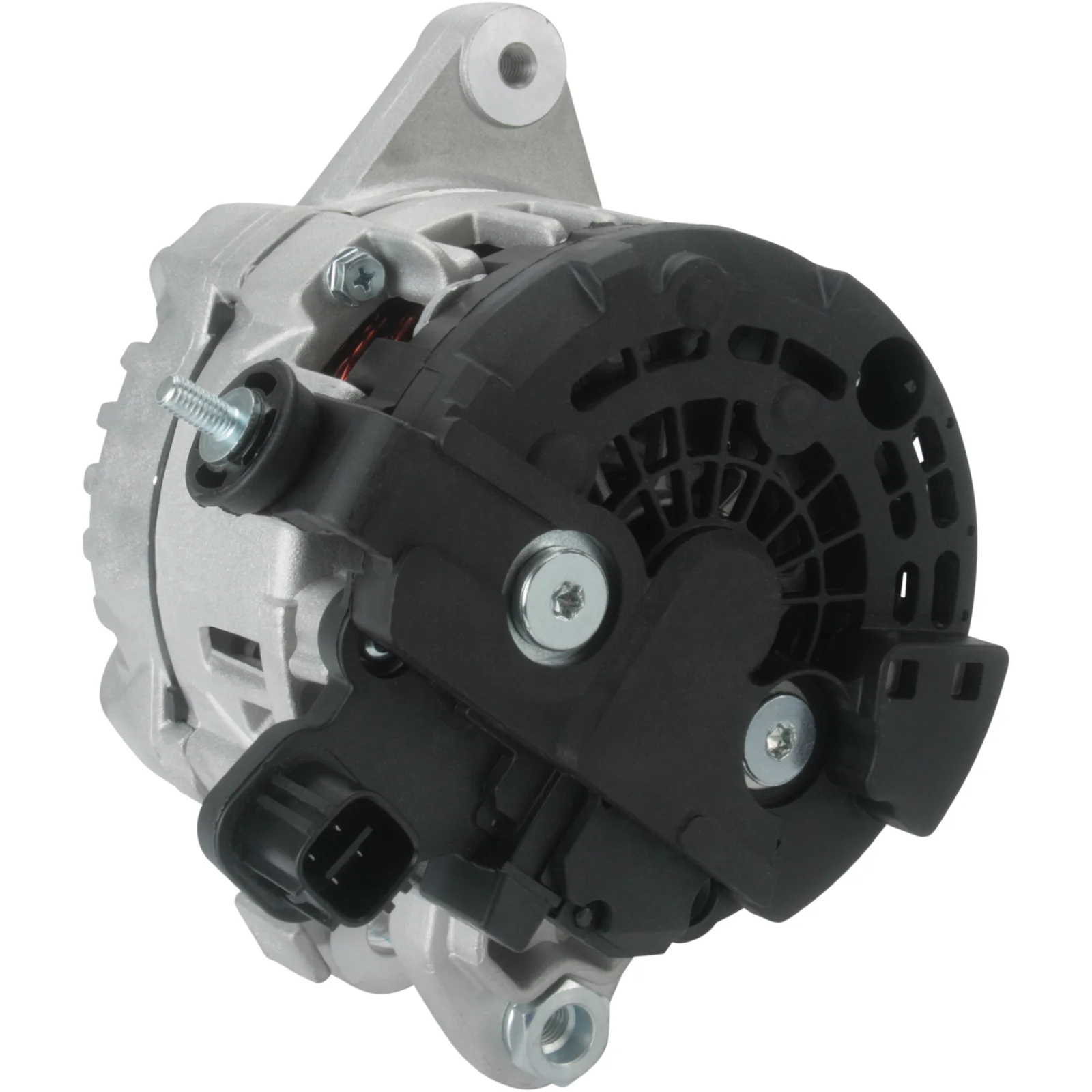

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp.: 90, Rotasjon: CW, Monteringsbøssing avstand.: 41,20

Beskrivelse

Toyota Gen. Yaris 1.4D 12V-90A 12V - 90A, 6rg.frg, (S, IG, L, DFM) För Yourex produkt order 90-555-5055

Voltage: 14
Amp: 90
Pulley dist.: 30.50
Width/holder arm: 16.40
Mount. bracket dist.: 41.20
Bracket hole: 11.50
Belt. adj. brackethole pos.: 58
Belt. adj. bracket hole 1: M8
Pulley dia.: 62.00
Grooves/pulley: 6
Radius: 87.00
Radius 2: 87.00
B+: M6
Position/B+ in min.: 48
Rotation: CW
Plug no.: PL78
Total length mm: 160.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Servicing: Toyota

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 41.20
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 58
Plug no. PL78
Bracket hole 11.50
Position/B+ in min. 48
Prod. info BN
Pulley SP/FW
Pulley dia. 62.00
Pulley dist. 30.50
Radius 87.00
Radius 2 87.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 6
Voltage 14
Total length 160.00 mm
Width/holder arm 16.40
Amp 90

  • OEM
    F032114291, 0124 225 055, 0986 080 470, 1930ir, 27060-0N011, 27060-0n011, 114291, 0124225055

  • Konkurrentreferens
    A0241, ALT-H211, CAL10405, DRA0615, F042A0H211, 8EL015630-571, 28-5733, 195.582.090, 235.323.902, 9321, 24121N, 210896, 210896A, 301930RI, 440837, 12060887, 0986080470

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    a0241, alth211, cal10405, dra0615, f032114291, f042a0h211, 8el015630571, 1930ir, 9321, 24121n, 114291, 210896, 210896a, 270600n011, 285733, 301930ri, 440837, 12060887, 0124225055, 195582090, 235323902, 0986080470

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP90 Body: Hatchback From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Toyota Series: Yaris (_P9_) Model: 1.4 D-4D Engine volume: 1.4 Engine type: 1ND-TV Year: 08.05-11.08
  • Beskrivelse
    Toyota Gen. Yaris 1.4D 12V-90A 12V - 90A, 6rg.frg, (S, IG, L, DFM) För Yourex produkt order 90-555-5055

    Voltage: 14
    Amp: 90
    Pulley dist.: 30.50
    Width/holder arm: 16.40
    Mount. bracket dist.: 41.20
    Bracket hole: 11.50
    Belt. adj. brackethole pos.: 58
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 62.00
    Grooves/pulley: 6
    Radius: 87.00
    Radius 2: 87.00
    B+: M6
    Position/B+ in min.: 48
    Rotation: CW
    Plug no.: PL78
    Total length mm: 160.00
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Servicing: Toyota

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 41.20
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 58
    Plug no. PL78
    Bracket hole 11.50
    Position/B+ in min. 48
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 62.00
    Pulley dist. 30.50
    Radius 87.00
    Radius 2 87.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 6
    Voltage 14
    Total length 160.00 mm
    Width/holder arm 16.40
    Amp 90
  • Kjøretøymatching

    • OEM
      F032114291, 0124 225 055, 0986 080 470, 1930ir, 27060-0N011, 27060-0n011, 114291, 0124225055

    • Konkurrentreferens
      A0241, ALT-H211, CAL10405, DRA0615, F042A0H211, 8EL015630-571, 28-5733, 195.582.090, 235.323.902, 9321, 24121N, 210896, 210896A, 301930RI, 440837, 12060887, 0986080470

    • Bilmärken
      Toyota

    • NormaliseratArtNr
      a0241, alth211, cal10405, dra0615, f032114291, f042a0h211, 8el015630571, 1930ir, 9321, 24121n, 114291, 210896, 210896a, 270600n011, 285733, 301930ri, 440837, 12060887, 0124225055, 195582090, 235323902, 0986080470

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP90 Body: Hatchback From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Toyota Series: Yaris (_P9_) Model: 1.4 D-4D Engine volume: 1.4 Engine type: 1ND-TV Year: 08.05-11.08
