HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032113486

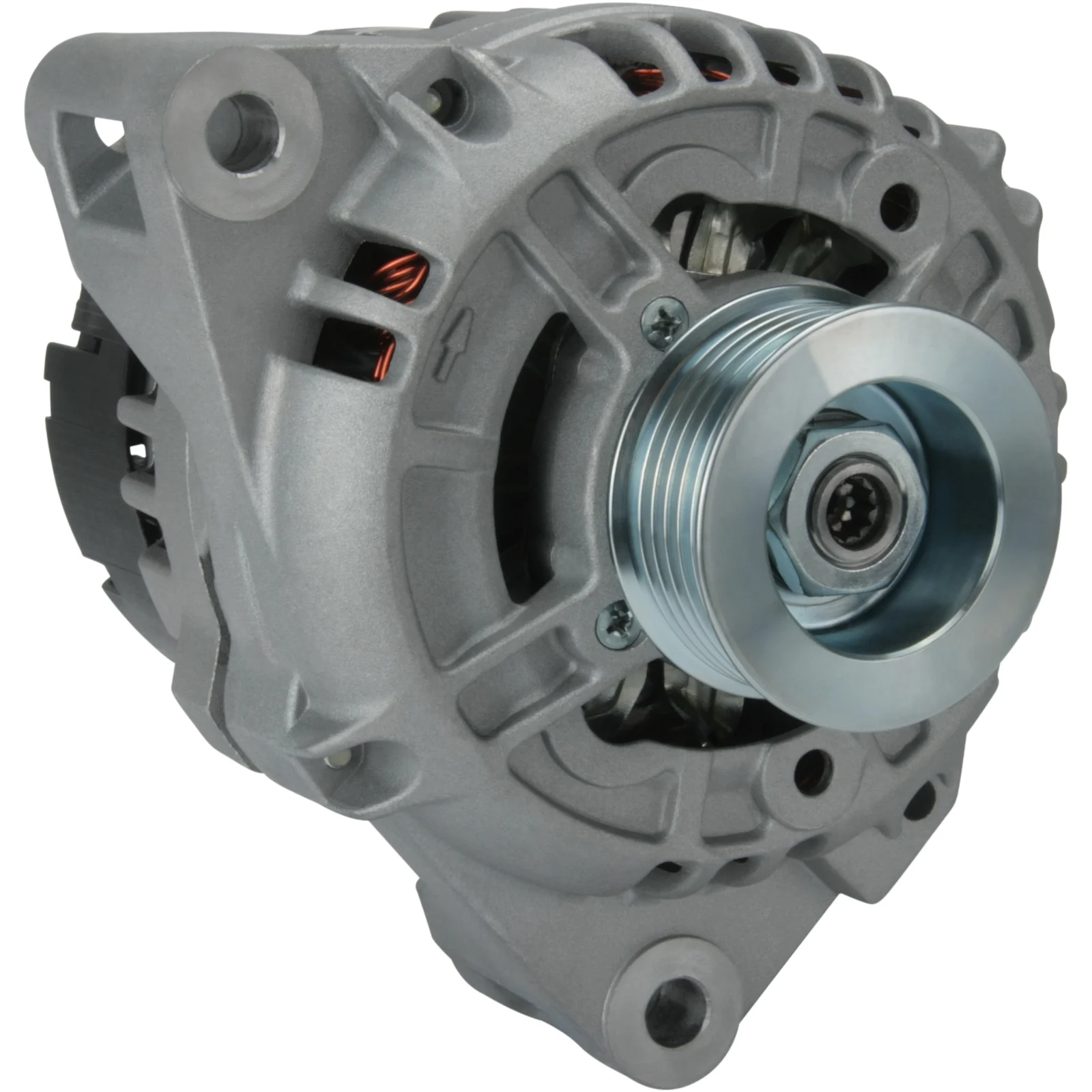

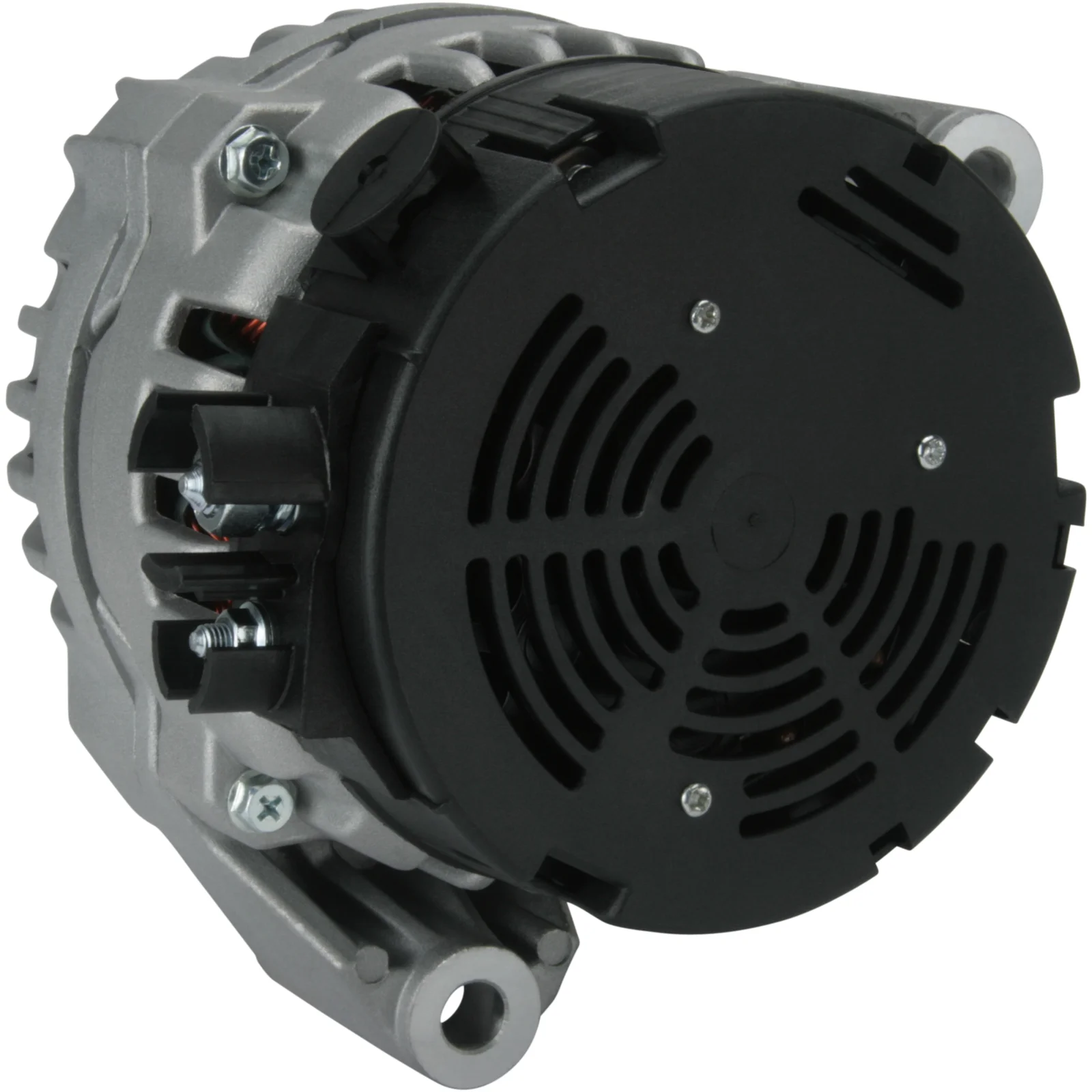

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 90, Rotasjon: CW, Reimskive diameter: 56.00

Beskrivelse

Spenningsspenning: 14
Amp: 90
Drevkugg dist.: 91.80
Bredde/holder arm: 56.00
Gavl hull: 10.50
Belt. juster. gavl hull pos.: 50
Belt. juster. gavl hull 1: 11.00
Drevkugg dia.: 56.00
Grooves/drevkugg: 6
Radius: 84.00
Radius 2: 85.00
B+: M8
Posisjon/B+ i min.: 45
D+ Størrelse: M5
Rotasjon: CW
Total lengde mm: 168.50
Lystemperatur: Aktive
Drevkugg: SP
Vifte: IF
Regulator type: IR
Prod. info: BN
Service: Mercedes-Benz

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 50
Bracket hole 10.50
Position/B+ in min. 45
Prod. info BN
Pulley SP
Pulley dia. 56.00
Pulley dist. 91.80
Radius 84.00
D+ Size M5
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Mercedes-Benz
Fan IF
Grooves/pulley 6
Lamp type Active
Voltage 14
Total length 168.50 mm
Width/holder arm 56.00
Amp 90

  • OEM
    A0091547602, A009154760280, A0101549802, A010154980280, aak5309, F032113486, 11.203.008, 1500ir, 0091547602, 0101549802, 0123320035, 0123320058, 009154760280, 010154980280

  • Konkurrentreferens
    A0187, al0761x, ALT10351, CAL10211, DRA4119, DRA9660, DRA9860, IA1036, lrb00349, MG47, 1-2251-01BO, 8EL012430-111, 8EL737750-001, 28-3668, 28-4507, 225.134.902, 225.172.902, 4452, 5824, 13798, 13798N, 13798R, 111404, 119783, 209063, 209063A, 301500RI, 437636, 9039860, 12039860, 12044370, 32039860, 0986039860, 0986039863, 0986039864, 0986039867, 0986044370, 944390443700

  • NormaliseratArtNr
    a0091547602, a009154760280, a0101549802, a010154980280, a0187, aak5309, al0761x, alt10351, cal10211, dra4119, dra9660, dra9860, f032113486, ia1036, lrb00349, mg47, 8el012430111, 8el737750001, 1500ir, 4452, 5824, 13798, 13798n, 13798r, 111404, 119783, 209063, 209063a, 283668, 284507, 301500ri, 437636, 1225101bo, 9039860, 11203008, 12039860, 12044370, 32039860, 0091547602, 0101549802, 0123320035, 0123320058, 225134902, 225172902, 0986039860, 0986039863, 0986039864, 0986039867, 0986044370, 009154760280, 010154980280, 944390443700

  • Passar modeller
    Mercedes-Benz Model: 200 Model series: E 200 Model type: Kompressor Size of motor: 2.0 Brand of engine: M111.947 Type description: 210 Body: Estate From date: 01-06-1997 To date: 01-03-2003 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: Kompressor Size of motor: 2.0 Brand of engine: M111.947 Type description: 210 From date: 01-06-1997 To date: 01-03-2002 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: SLK 200 Model type: Kompressor Size of motor: 2.0 Brand of engine: M111.943 Type description: 170 Body: Convertible From date: 01-10-1996 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: SLK 200 Model type: Kompressor Size of motor: 2.0 Brand of engine: M111.958 Type description: 170 Body: Convertible From date: 01-03-2000 To date: 01-04-2004 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 230 Model series: CLK 230 Model type: Kompressor Size of motor: 2.3 Brand of engine: M111.973 Type description: 208 Body: Convertible From date: 01-03-1998 To date: 01-06-2000 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 230 Model series: CLK 230 Model type: Kompressor Size of motor: 2.3 Brand of engine: M111.973 Type description: 208 Body: Coupe From date: 01-06-1997 To date: 01-06-2000 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 230 Model series: SLK 230 Model type: 230 (170.449) Size of motor: 2.3 Brand of engine: M111.983 Type description: R170 Body: Convertible From date: 01-09-2000 To date: 01-04-2004 Fuel: Petrol Approved: Yes
    Mercedes-Benz Model: 230 Model series: SLK 230 Model type: Kompressor Size of motor: 2.3 Brand of engine: M111.973 Type description: 170 Body: Convertible From date: 01-09-1996 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 230 Model series: SLK 230 Model type: Kompressor Size of motor: 2.3 Brand of engine: M111.983 Type description: 170 Body: Convertible From date: 01-03-2000 To date: 01-04-2004 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsspenning: 14
    Amp: 90
    Drevkugg dist.: 91.80
    Bredde/holder arm: 56.00
    Gavl hull: 10.50
    Belt. juster. gavl hull pos.: 50
    Belt. juster. gavl hull 1: 11.00
    Drevkugg dia.: 56.00
    Grooves/drevkugg: 6
    Radius: 84.00
    Radius 2: 85.00
    B+: M8
    Posisjon/B+ i min.: 45
    D+ Størrelse: M5
    Rotasjon: CW
    Total lengde mm: 168.50
    Lystemperatur: Aktive
    Drevkugg: SP
    Vifte: IF
    Regulator type: IR
    Prod. info: BN
    Service: Mercedes-Benz

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 11.00
    Belt. adj. brackethole pos. 50
    Bracket hole 10.50
    Position/B+ in min. 45
    Prod. info BN
    Pulley SP
    Pulley dia. 56.00
    Pulley dist. 91.80
    Radius 84.00
    D+ Size M5
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Mercedes-Benz
    Fan IF
    Grooves/pulley 6
    Lamp type Active
    Voltage 14
    Total length 168.50 mm
    Width/holder arm 56.00
    Amp 90
  • Kjøretøymatching

    • OEM
      A0091547602, A009154760280, A0101549802, A010154980280, aak5309, F032113486, 11.203.008, 1500ir, 0091547602, 0101549802, 0123320035, 0123320058, 009154760280, 010154980280

    • Konkurrentreferens
      A0187, al0761x, ALT10351, CAL10211, DRA4119, DRA9660, DRA9860, IA1036, lrb00349, MG47, 1-2251-01BO, 8EL012430-111, 8EL737750-001, 28-3668, 28-4507, 225.134.902, 225.172.902, 4452, 5824, 13798, 13798N, 13798R, 111404, 119783, 209063, 209063A, 301500RI, 437636, 9039860, 12039860, 12044370, 32039860, 0986039860, 0986039863, 0986039864, 0986039867, 0986044370, 944390443700

    • NormaliseratArtNr
      a0091547602, a009154760280, a0101549802, a010154980280, a0187, aak5309, al0761x, alt10351, cal10211, dra4119, dra9660, dra9860, f032113486, ia1036, lrb00349, mg47, 8el012430111, 8el737750001, 1500ir, 4452, 5824, 13798, 13798n, 13798r, 111404, 119783, 209063, 209063a, 283668, 284507, 301500ri, 437636, 1225101bo, 9039860, 11203008, 12039860, 12044370, 32039860, 0091547602, 0101549802, 0123320035, 0123320058, 225134902, 225172902, 0986039860, 0986039863, 0986039864, 0986039867, 0986044370, 009154760280, 010154980280, 944390443700

    • Passar modeller
      Mercedes-Benz Model: 200 Model series: E 200 Model type: Kompressor Size of motor: 2.0 Brand of engine: M111.947 Type description: 210 Body: Estate From date: 01-06-1997 To date: 01-03-2003 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: E 200 Model type: Kompressor Size of motor: 2.0 Brand of engine: M111.947 Type description: 210 From date: 01-06-1997 To date: 01-03-2002 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: SLK 200 Model type: Kompressor Size of motor: 2.0 Brand of engine: M111.943 Type description: 170 Body: Convertible From date: 01-10-1996 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: SLK 200 Model type: Kompressor Size of motor: 2.0 Brand of engine: M111.958 Type description: 170 Body: Convertible From date: 01-03-2000 To date: 01-04-2004 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 230 Model series: CLK 230 Model type: Kompressor Size of motor: 2.3 Brand of engine: M111.973 Type description: 208 Body: Convertible From date: 01-03-1998 To date: 01-06-2000 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 230 Model series: CLK 230 Model type: Kompressor Size of motor: 2.3 Brand of engine: M111.973 Type description: 208 Body: Coupe From date: 01-06-1997 To date: 01-06-2000 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 230 Model series: SLK 230 Model type: 230 (170.449) Size of motor: 2.3 Brand of engine: M111.983 Type description: R170 Body: Convertible From date: 01-09-2000 To date: 01-04-2004 Fuel: Petrol Approved: Yes
      Mercedes-Benz Model: 230 Model series: SLK 230 Model type: Kompressor Size of motor: 2.3 Brand of engine: M111.973 Type description: 170 Body: Convertible From date: 01-09-1996 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 230 Model series: SLK 230 Model type: Kompressor Size of motor: 2.3 Brand of engine: M111.983 Type description: 170 Body: Convertible From date: 01-03-2000 To date: 01-04-2004 Fuel: Gasoline Approved: Yes
