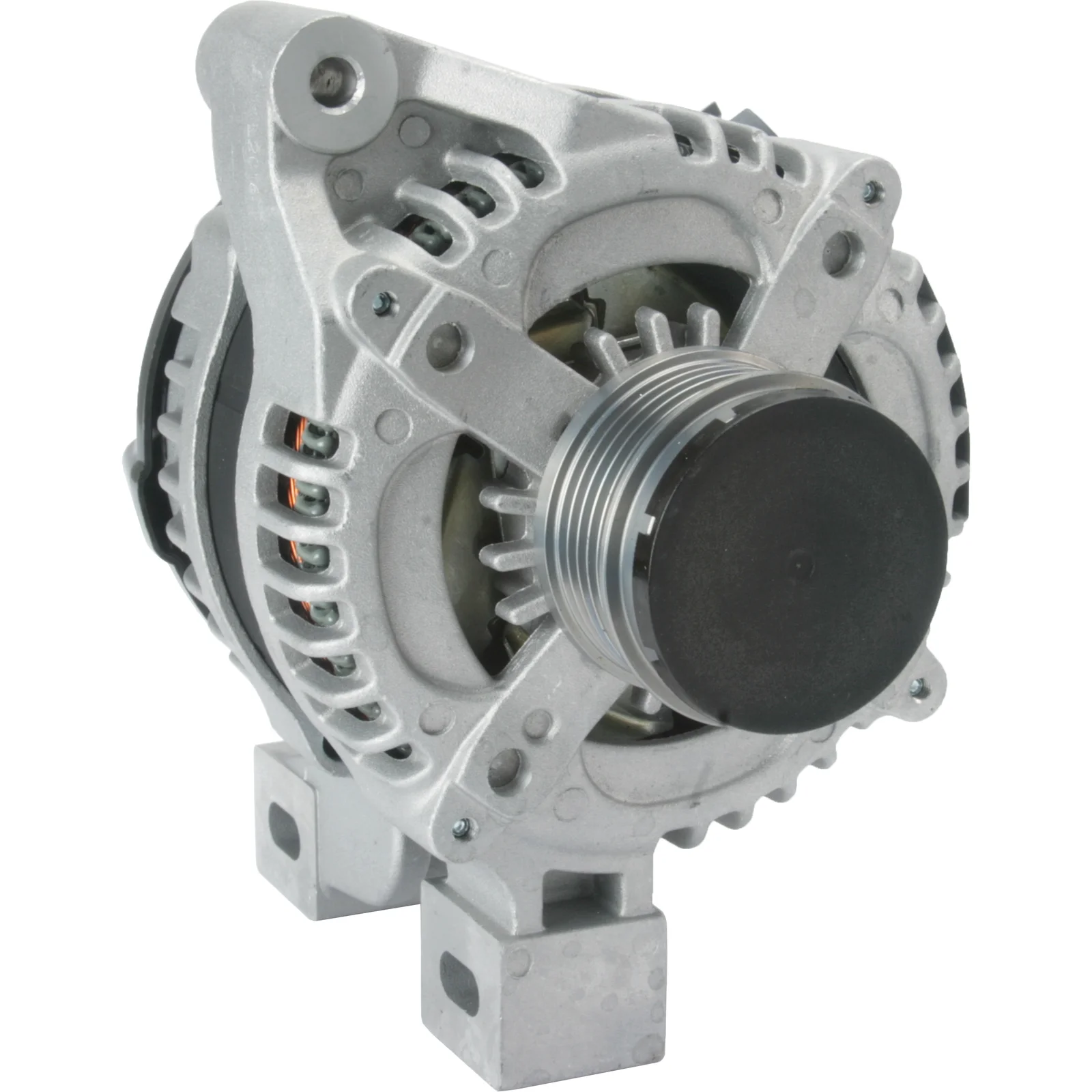

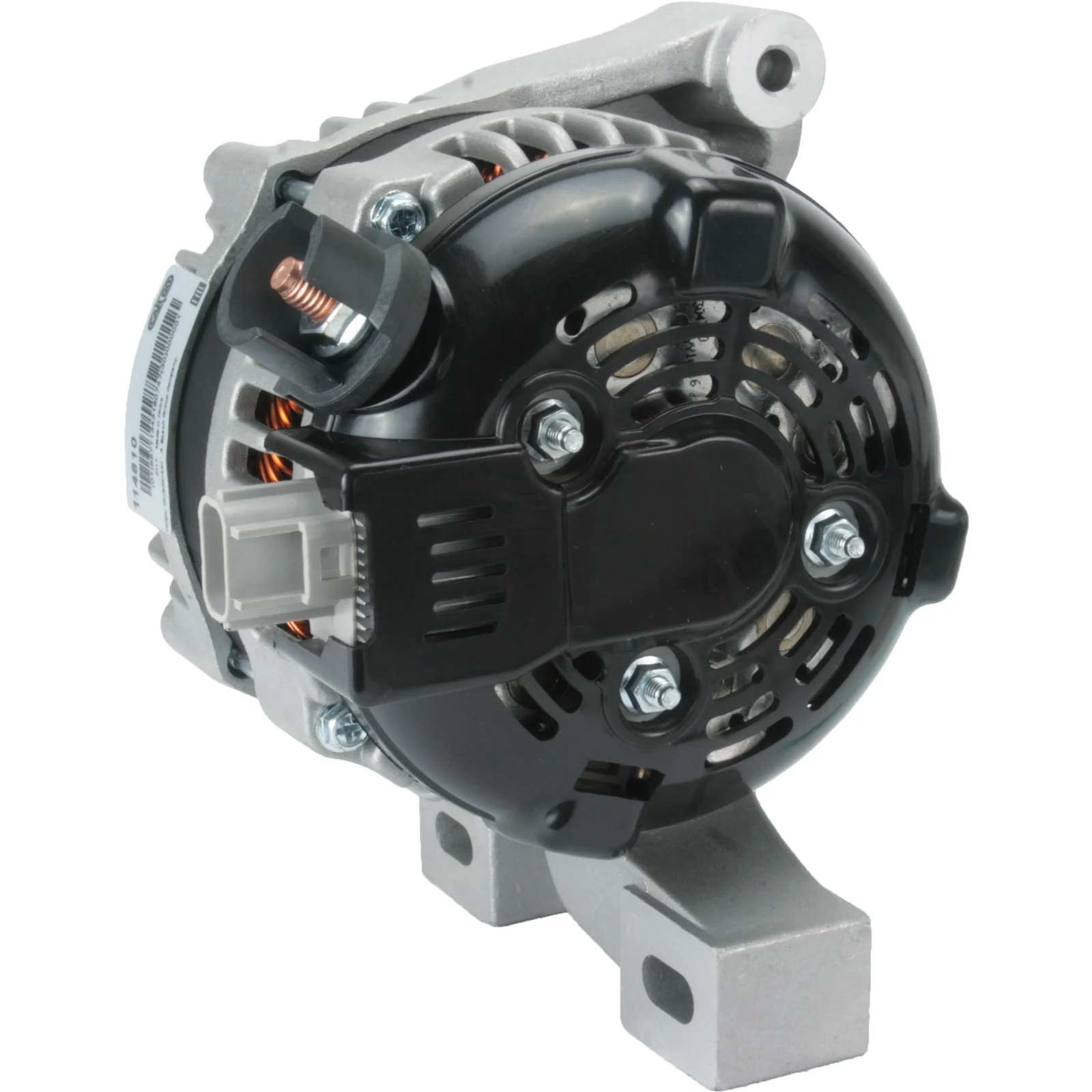

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114810

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 150, Festebrakett avstand: 91.50, Reimskive diameter: 55.50

Beskrivelse

Gen. 12V-150A passer for Volvo 12V - 150A, 5gr.frg, ( -, LIN, -) ID-60 OBS! chassinummer! S40 , V50 Chassinr. 45204-250052. Kontaktstykke/Reparasjonsledning : 54-101-0111 For Yourex produktordre 90-600-5150

Spenning: 14
Ampere: 150
Pulley avstand: 33.50
Bredde/holder arm: 33.00
Festebrakett avstand: 91.50
Brakett hull: 8.50
Belt. justering avstand til brakettposisjon: 54
Belt. justering av stand til brakett hull 1: 8.00
Pulley diameter: 55.50
Furer/pulley: 5
B+: M8
Posisjon/B+ i min.: 50
Plugg nr.: PL154
Terminaltype: COM
Kommunikasjon: LIN
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Merknader: Denne Generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 91.50
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 54
Plug no. PL154
Bracket hole 8.50
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 55.50
Pulley dist. 33.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Grooves/pulley 5
Terminal type COM
Voltage 14
Width/holder arm 33.00
Amp 150

  • OEM
    F032114810, 3M5T-10300SC, 3M5T-10300SD, 3M5T10300SC, 3m5t10300sd, 1966ir, 104210-3560, 104210-4640, 114810, 8603496, 12090376, 30667103, 30737529, 36001463

  • Konkurrentreferens
    A6133, A6133(DENSO), CAL40274, DAN1059, DRA0391, 8EL011713-251, 8EL738212-951, 28-5548, 11054N, 11054R, 113030, 209396, 209396A, 301966RI, 12090376, 0986083070

  • Bilmärken
    Volvo

  • NormaliseratArtNr
    a6133, a6133denso, cal40274, dan1059, dra0391, f032114810, 3m5t10300sc, 3m5t10300sd, 8el011713251, 8el738212951, 1966ir, 11054n, 11054r, 113030, 114810, 209396, 209396a, 285548, 301966ri, 8603496, 12090376, 30667103, 30737529, 36001463, 0986083070, 1042103560, 1042104640

  • Passar modeller
    Volvo Model: C70 Model series: C70 Model type: T5 Size of motor: 2.5 Brand of engine: D5254T3 Body: Convertible From date: 01-03-2006 To date: 01-02-2007 Fuel: Gasoline Approved: Yes
    Volvo Model: C70 Model series: C70 Size of motor: 2.4 Brand of engine: B5244S5 Body: Convertible From date: 01-03-2006 To date: 01-10-2009 Fuel: Gasoline Approved: Yes
    Volvo Model: C70 Model series: C70 Type of engine: i Size of motor: 2.4 Brand of engine: B5244S4 Body: Convertible From date: 01-03-2006 To date: 01-10-2009 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Model type: T5 AWD Size of motor: 2.5 Brand of engine: B5254T3 Type description: MS From date: 01-04-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Model type: T5 Size of motor: 2.5 Brand of engine: B5254T3 Type description: MS From date: 01-01-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Size of motor: 2.4 Brand of engine: B5244S4 Type description: MS From date: 01-01-2004 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Size of motor: 2.4 Brand of engine: B5244S5 Type description: MS From date: 01-01-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Type of engine: CDi Size of motor: 2.4 Brand of engine: D5244T9 Type description: MS From date: 01-03-2007 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Volvo Model: S40 Model series: S40 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T13 Type description: MS From date: 01-03-2006 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Volvo Model: S40 Model series: S40 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T8 Type description: MS From date: 01-03-2006 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Volvo Model: V50 Model series: V50 Model type: T5 AWD Size of motor: 2.5 Brand of engine: B5254T3 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Model type: T5 Size of motor: 2.5 Brand of engine: B5254T3 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Size of motor: 2.4 Brand of engine: B5244S4 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Size of motor: 2.4 Brand of engine: B5244S5 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T13 Type description: MW Body: Estate From date: 01-03-2006 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Volvo Model: V50 Model series: V50 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T8 Type description: MW Body: Estate From date: 01-03-2006 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Volvo Model: V50 Model series: V50 Type of engine: TDi Size of motor: 2.4 Brand of engine: D5244T9 Type description: MW Body: Estate From date: 01-05-2007 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Volvo Series: C30 Model: 2.4 i Engine volume: 2.4 Engine type: B 5244 S4 Year: 10.06-
    Volvo Series: C70 II Cabriolet Model: T5 Engine volume: 2.5 Engine type: B 5254 T3 Year: 03.06-
    Volvo Series: S40 II Model: 2.4 Ch.nr 045204>250052 Engine volume: 2.4 Engine type: B 5244 S4 Year: 01.04-
    Volvo Series: S40 II Model: 2.4 Ch.nr 045204>250052 Engine volume: 2.4 Engine type: B 5244 S5 Year: 01.04-
    Volvo Series: S40 II Model: 2.4 D5 Engine volume: 2.4 Engine type: D 5244 T Year: 01.04-12.06
    Volvo Series: S40 II Model: T5 Ch.nr 045204>250052 Engine volume: 2.5 Engine type: B 5254 T3 Year: 01.04-
    Volvo Series: S40 II Model: T5 AWD Engine volume: 2.5 Engine type: B 5254 T3 Year: 01.05-12.06
    Volvo Series: S40 II Model: T5 Ch.nr 045204-250052 Engine volume: 2.5 Engine type: B 5254 T3 Year: 01.05-12.06
    Volvo Series: V50 Model: 2.0 D Engine volume: 2.0 Engine type: D 4204 T4 Year: 04.04-
    Volvo Series: V50 Model: 2.4 Ch.nr:40123>270049 Engine volume: 2.4 Engine type: B 5244 S4 Year: 04.04-07.06
    Volvo Series: V50 Model: 2.4 Ch.nr:40123>270049 Engine volume: 2.4 Engine type: B 5244 S5 Year: 04.04-07.06
    Volvo Series: V50 Model: 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 04.07-12.10
    Volvo Series: V50 Model: 2.4 Engine volume: 2.4 Engine type: B 5244 S4 Year: 04.04-12.06
    Volvo Series: V50 Model: 2.4 Engine volume: 2.4 Engine type: B 5244 S7 Year: 04.04-12.06
    Volvo Series: V50 Model: D4 Engine volume: 2.0 Engine type: D 5204 T Year: 10.10-
    Volvo Series: V50 Model: T5 Ch.nr:40123>270049 Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-12.06
    Volvo Series: V50 Model: T5 AWD Ch.nr 040123-270049 Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-12.06
    1 / 7
  • Beskrivelse
    Gen. 12V-150A passer for Volvo 12V - 150A, 5gr.frg, ( -, LIN, -) ID-60 OBS! chassinummer! S40 , V50 Chassinr. 45204-250052. Kontaktstykke/Reparasjonsledning : 54-101-0111 For Yourex produktordre 90-600-5150

    Spenning: 14
    Ampere: 150
    Pulley avstand: 33.50
    Bredde/holder arm: 33.00
    Festebrakett avstand: 91.50
    Brakett hull: 8.50
    Belt. justering avstand til brakettposisjon: 54
    Belt. justering av stand til brakett hull 1: 8.00
    Pulley diameter: 55.50
    Furer/pulley: 5
    B+: M8
    Posisjon/B+ i min.: 50
    Plugg nr.: PL154
    Terminaltype: COM
    Kommunikasjon: LIN
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Merknader: Denne Generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 91.50
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 54
    Plug no. PL154
    Bracket hole 8.50
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 55.50
    Pulley dist. 33.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Grooves/pulley 5
    Terminal type COM
    Voltage 14
    Width/holder arm 33.00
    Amp 150
  • Kjøretøymatching

    • OEM
      F032114810, 3M5T-10300SC, 3M5T-10300SD, 3M5T10300SC, 3m5t10300sd, 1966ir, 104210-3560, 104210-4640, 114810, 8603496, 12090376, 30667103, 30737529, 36001463

    • Konkurrentreferens
      A6133, A6133(DENSO), CAL40274, DAN1059, DRA0391, 8EL011713-251, 8EL738212-951, 28-5548, 11054N, 11054R, 113030, 209396, 209396A, 301966RI, 12090376, 0986083070

    • Bilmärken
      Volvo

    • NormaliseratArtNr
      a6133, a6133denso, cal40274, dan1059, dra0391, f032114810, 3m5t10300sc, 3m5t10300sd, 8el011713251, 8el738212951, 1966ir, 11054n, 11054r, 113030, 114810, 209396, 209396a, 285548, 301966ri, 8603496, 12090376, 30667103, 30737529, 36001463, 0986083070, 1042103560, 1042104640

    • Passar modeller
      Volvo Model: C70 Model series: C70 Model type: T5 Size of motor: 2.5 Brand of engine: D5254T3 Body: Convertible From date: 01-03-2006 To date: 01-02-2007 Fuel: Gasoline Approved: Yes
      Volvo Model: C70 Model series: C70 Size of motor: 2.4 Brand of engine: B5244S5 Body: Convertible From date: 01-03-2006 To date: 01-10-2009 Fuel: Gasoline Approved: Yes
      Volvo Model: C70 Model series: C70 Type of engine: i Size of motor: 2.4 Brand of engine: B5244S4 Body: Convertible From date: 01-03-2006 To date: 01-10-2009 Fuel: Gasoline Approved: Yes
      Volvo Model: S40 Model series: S40 Model type: T5 AWD Size of motor: 2.5 Brand of engine: B5254T3 Type description: MS From date: 01-04-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Volvo Model: S40 Model series: S40 Model type: T5 Size of motor: 2.5 Brand of engine: B5254T3 Type description: MS From date: 01-01-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Volvo Model: S40 Model series: S40 Size of motor: 2.4 Brand of engine: B5244S4 Type description: MS From date: 01-01-2004 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Volvo Model: S40 Model series: S40 Size of motor: 2.4 Brand of engine: B5244S5 Type description: MS From date: 01-01-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: S40 Model series: S40 Type of engine: CDi Size of motor: 2.4 Brand of engine: D5244T9 Type description: MS From date: 01-03-2007 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Volvo Model: S40 Model series: S40 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T13 Type description: MS From date: 01-03-2006 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Volvo Model: S40 Model series: S40 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T8 Type description: MS From date: 01-03-2006 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Volvo Model: V50 Model series: V50 Model type: T5 AWD Size of motor: 2.5 Brand of engine: B5254T3 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Volvo Model: V50 Model series: V50 Model type: T5 Size of motor: 2.5 Brand of engine: B5254T3 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Volvo Model: V50 Model series: V50 Size of motor: 2.4 Brand of engine: B5244S4 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: V50 Model series: V50 Size of motor: 2.4 Brand of engine: B5244S5 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: V50 Model series: V50 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T13 Type description: MW Body: Estate From date: 01-03-2006 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Volvo Model: V50 Model series: V50 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T8 Type description: MW Body: Estate From date: 01-03-2006 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Volvo Model: V50 Model series: V50 Type of engine: TDi Size of motor: 2.4 Brand of engine: D5244T9 Type description: MW Body: Estate From date: 01-05-2007 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Volvo Series: C30 Model: 2.4 i Engine volume: 2.4 Engine type: B 5244 S4 Year: 10.06-
      Volvo Series: C70 II Cabriolet Model: T5 Engine volume: 2.5 Engine type: B 5254 T3 Year: 03.06-
      Volvo Series: S40 II Model: 2.4 Ch.nr 045204>250052 Engine volume: 2.4 Engine type: B 5244 S4 Year: 01.04-
      Volvo Series: S40 II Model: 2.4 Ch.nr 045204>250052 Engine volume: 2.4 Engine type: B 5244 S5 Year: 01.04-
      Volvo Series: S40 II Model: 2.4 D5 Engine volume: 2.4 Engine type: D 5244 T Year: 01.04-12.06
      Volvo Series: S40 II Model: T5 Ch.nr 045204>250052 Engine volume: 2.5 Engine type: B 5254 T3 Year: 01.04-
      Volvo Series: S40 II Model: T5 AWD Engine volume: 2.5 Engine type: B 5254 T3 Year: 01.05-12.06
      Volvo Series: S40 II Model: T5 Ch.nr 045204-250052 Engine volume: 2.5 Engine type: B 5254 T3 Year: 01.05-12.06
      Volvo Series: V50 Model: 2.0 D Engine volume: 2.0 Engine type: D 4204 T4 Year: 04.04-
      Volvo Series: V50 Model: 2.4 Ch.nr:40123>270049 Engine volume: 2.4 Engine type: B 5244 S4 Year: 04.04-07.06
      Volvo Series: V50 Model: 2.4 Ch.nr:40123>270049 Engine volume: 2.4 Engine type: B 5244 S5 Year: 04.04-07.06
      Volvo Series: V50 Model: 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 04.07-12.10
      Volvo Series: V50 Model: 2.4 Engine volume: 2.4 Engine type: B 5244 S4 Year: 04.04-12.06
      Volvo Series: V50 Model: 2.4 Engine volume: 2.4 Engine type: B 5244 S7 Year: 04.04-12.06
      Volvo Series: V50 Model: D4 Engine volume: 2.0 Engine type: D 5204 T Year: 10.10-
      Volvo Series: V50 Model: T5 Ch.nr:40123>270049 Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-12.06
      Volvo Series: V50 Model: T5 AWD Ch.nr 040123-270049 Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-12.06
      1 / 7
