HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116463

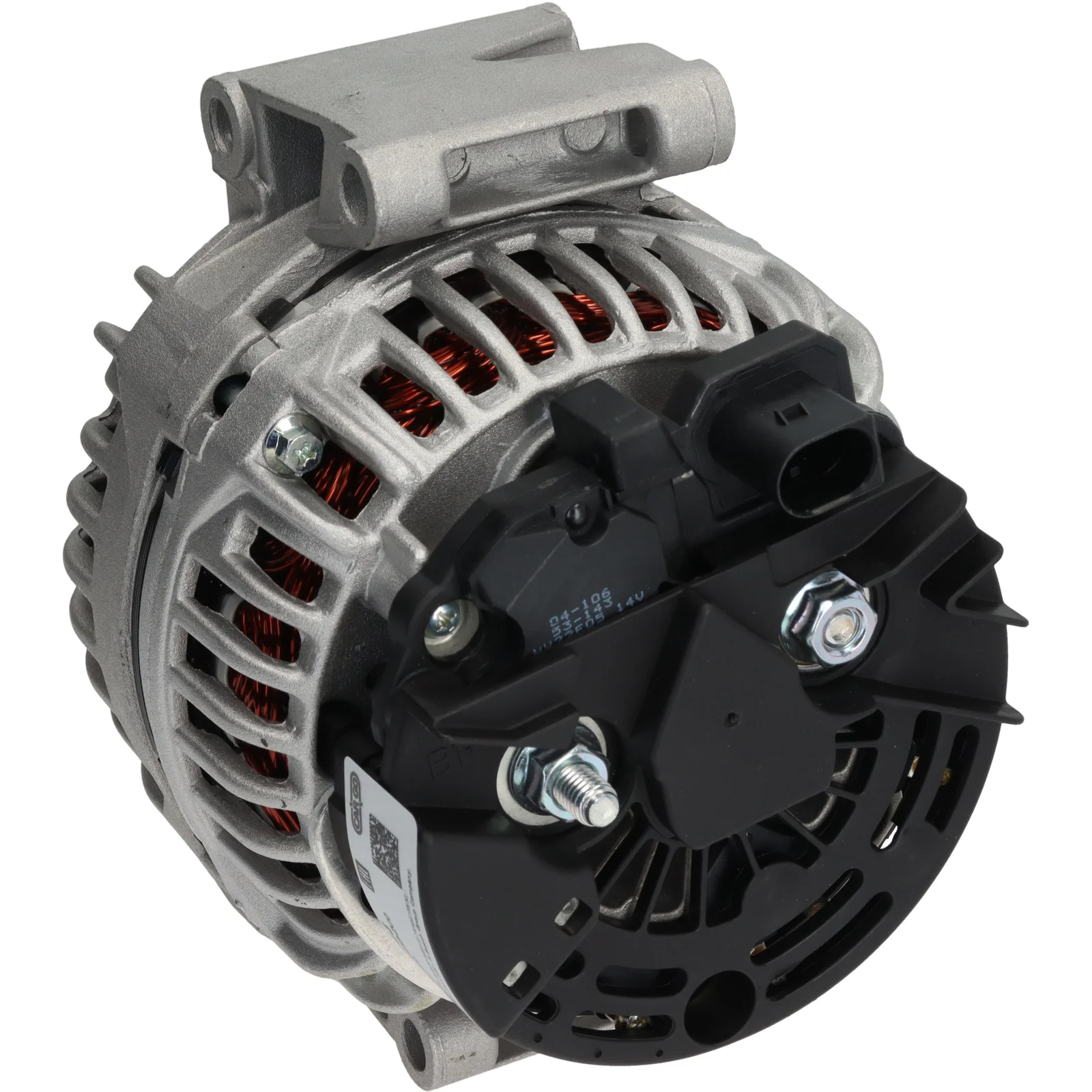

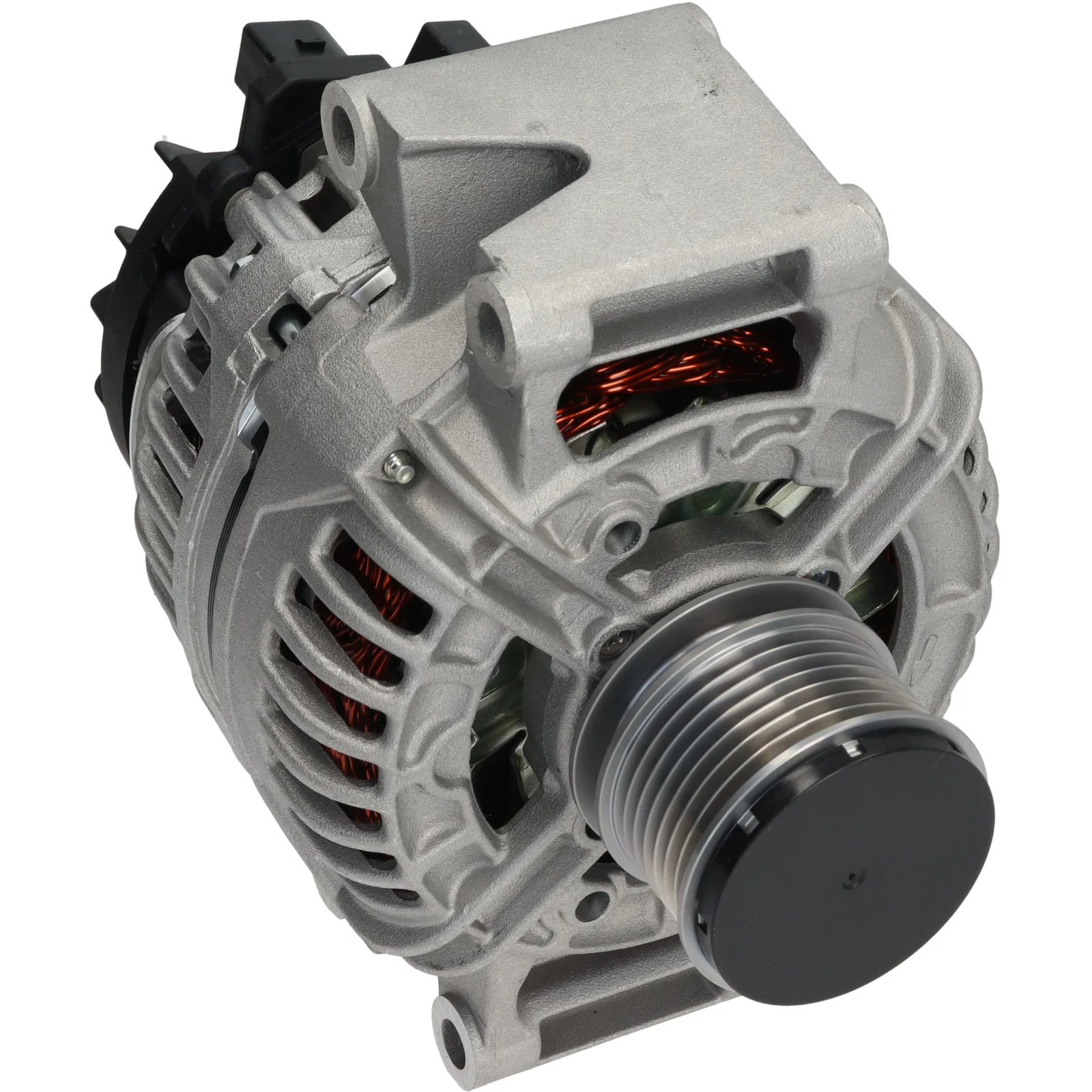

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amper: 150, Rotasjon: CW, Monteringsbeslag avstand: 56.00

Beskrivelse

Mercedes Dynamo 12V-150A 12V-150A, 7gr.frg (BSS, DFM) ID-kode: 12 For Yourex produktordre 90-365-4630

Spenning: 14
Ampere: 150
Remskive avstand: 31,40
Bredde/holderarm: 70,00
Festebraktestand: 56,00
Hanketreff: 8,80
Bånd. justering brakketreff 1: 8,80
Bånd. justering brakketreff 2: 8,00
Drevets diameter: 55,40
Groover/drev: 7
Radius: 81,50
Radius 2: 81,50
Radius 3: 86,00
Radius 4: 86,00
B+: M8
Posisjon/B+ i min.: 16
Rotasjon: CW
Kontakt nr.: PL114
Total lengde mm: 196,00
Terminaltype: COM-DFM
Kommunikasjon: BSS
Drev: SP/FW
Vifte: IF
Regulatortype: IR
Merkninger: Denne alternatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication BSS
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 8.80
Belt. adj. bracket hole 2 8.00
Plug no. PL114
Bracket hole 8.80
Position/B+ in min. 16
Pulley SP/FW
Pulley dia. 55.40
Pulley dist. 31.40
Radius 81.50
Radius 2 81.50
Radius 3 86.00
Radius 4 86.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type COM-DFM
Voltage 14
Total length 196.00 mm
Width/holder arm 70.00
Amp 150

  • OEM
    A2711541002, A271154100280, F032116463, 0124 615 028, 271 154 1002, 0986 046 300, 1775IR, 1986A00938, 116463, 0121540602, 0124615022, 0124615028, 0124615068, 2711541002, 271154100280

  • Konkurrentreferens
    A0208, A0208S, A3437S, CAL10397, DRB6300, LRA02249, 8EL011712-281, 8EL738185-001, 28-4727, 225.145.1502, 225.160.1502, 555.561.150, 111572, 209086, 209086A, 301775RI, 440833, 9046300, 12046300, 32046300, 944390463, 0986046300, 0986046303, 944390463000

  • Bilmärken
    Mercedes Benz

  • NormaliseratArtNr
    a0208, a0208s, a2711541002, a271154100280, a3437s, cal10397, drb6300, f032116463, lra02249, 8el011712281, 8el738185001, 1775ir, 1986a00938, 111572, 116463, 209086, 209086a, 284727, 301775ri, 440833, 9046300, 12046300, 32046300, 0121540602, 0124615022, 0124615028, 0124615068, 555561150, 944390463, 0986046300, 0986046303, 2251451502, 2251601502, 2711541002, 271154100280, 944390463000

  • Passar modeller
    Mercedes Benz Series: E (S211) Kombi Model: 200 Kompressor Engine volume: 1.8 Engine type: M 271.956 Year: 04.06-
    Mercedes Benz Series: E (S211) Kombi Model: 200 T Kompressor Engine volume: 1.8 Engine type: M 271.941 Year: 03.03-03.06
    Mercedes Benz Series: E (W211) Model: 200 Kompressor Engine volume: 1.8 Engine type: M 271.941 Year: 11.02-03.06
    Mercedes Benz Series: E (W211) Model: 200 Kompressor Engine volume: 1.8 Engine type: M 271.956 Year: 04.06-12.08
    Mercedes Benz Series: E (W211) Model: 200 NGT Engine volume: 1.8 Engine type: M 271.941 Year: 04.04-
    Mercedes Benz Trucks & Buses Series: SPRINTER 3,5-t Skåp Model: 316 NGT Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-
    Mercedes-Benz Model: 200 Model series: E 200 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.941 Body: Estate From date: 01-03-2003 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.941 From date: 01-11-2002 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.956 Type description: 211 Body: Estate From date: 01-04-2006 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.956 Type description: 211 From date: 01-04-2006 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: NGT Size of motor: 1.8 Brand of engine: M271.941 Type description: 211 From date: 01-03-2004 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 216 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Bus From date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 216 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Platform / Chassis From date: 01-09-2008 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 216 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Van From date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 316 LGT Model type: LGT Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Bus From date: 01-09-2008 Fuel: Bi-Fuel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 316 Model type: NGT Type of engine: Diesel Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Platform / Chassis From date: 01-09-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 316 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Bus From date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 316 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Platform / Chassis From date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 316 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Van From date: 01-09-2008 Fuel: Gas Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 316 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Van From date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 516 Model type: 516 Size of motor: 1.8 Brand of engine: M271.951 Type description: B906 Body: Van From date: 01-03-2009 Fuel: Petrol/Compressed Na Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 516 Model type: NGT Type of engine: Diesel Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Platform / Chassis From date: 01-09-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 516 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Platform / Chassis From date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter Model type: 316 NGT Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Bus From date: 01-03-2009 Fuel: CNG Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter Model type: 516 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Box From date: 01-03-2009 Fuel: Gasoline Approved: Yes
