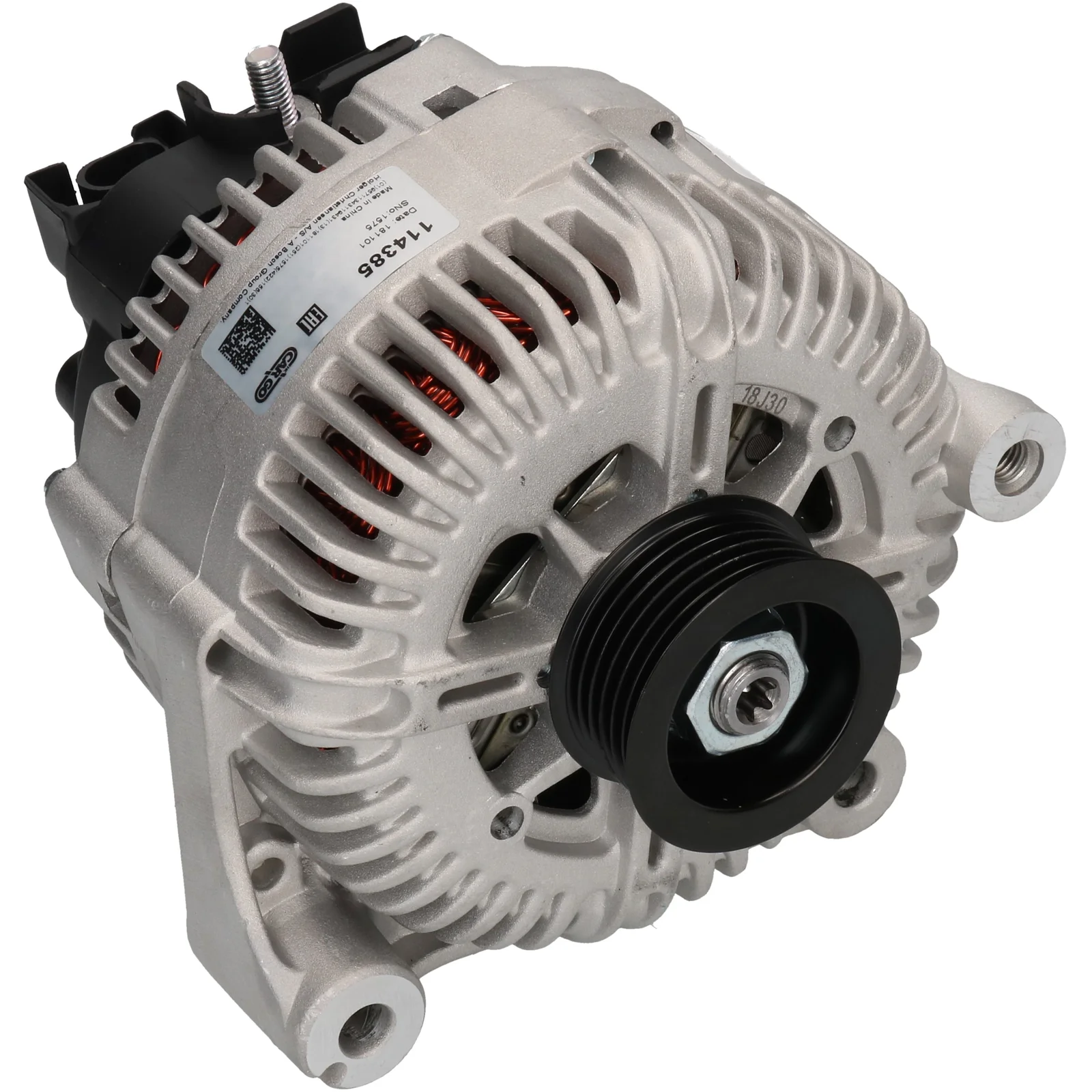

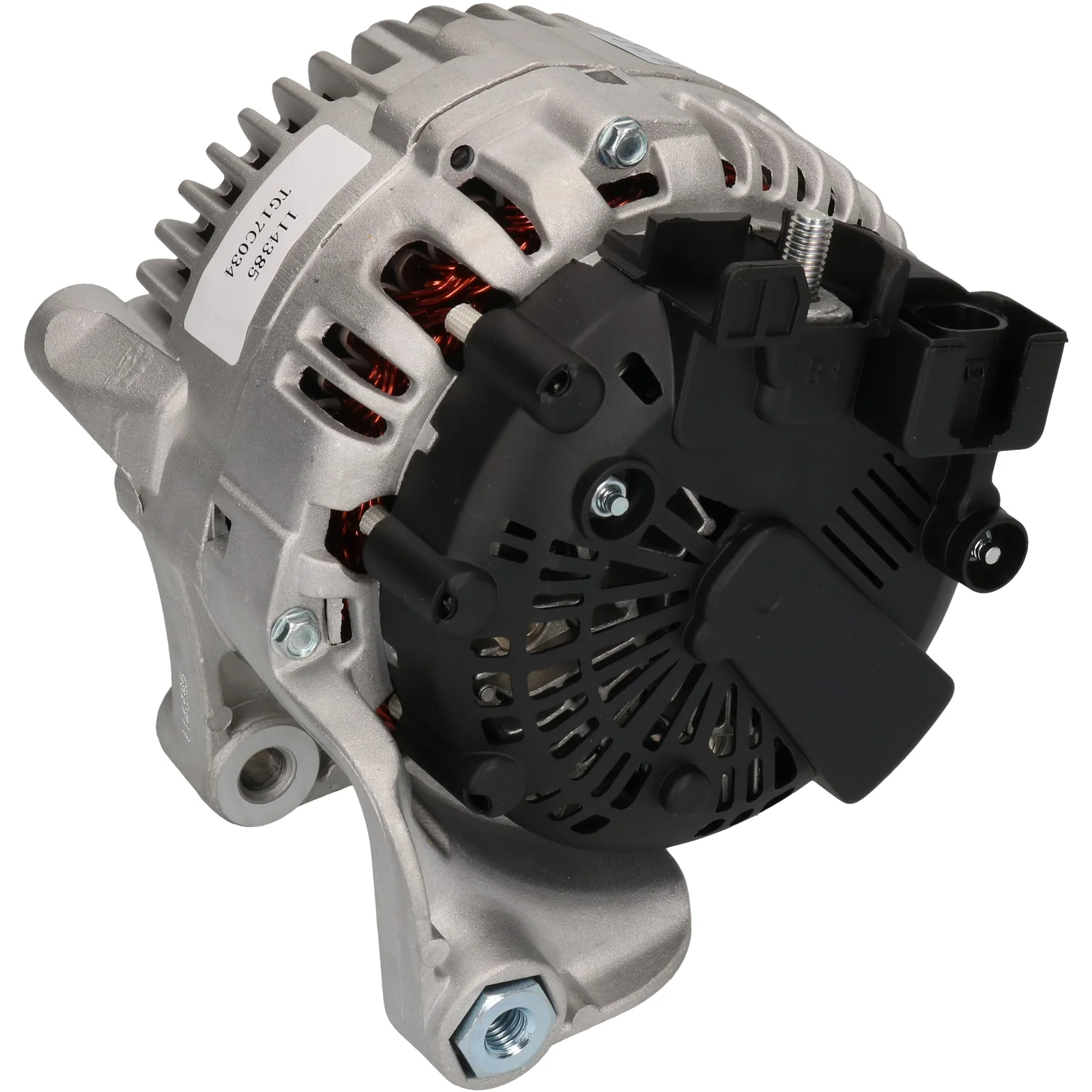

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114385

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14 V, Amp: 170, Rotasjon: Høyre (CW), Monteringsfeste avstand: 75,50

Beskrivelse

BMW Dynamo 12V-170A, 6gr 12V - 170A, 6gr For kjøretøy med klimaanlegg. For Yourex produktbestilling 90-040-0108

Spenning: 14
Amp: 170
Rulleavstand: 55.50
Bredde/holderarm: 27.20
Festebrakett avstand: 75.50
Brakettshull: 10.50
Beltet justerbart brakettshull posisjon: 45
Beltet justerbart brakettshull 1: 10.50
Rulle diameter: 53.50
Grove/rulle: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Posisjon/B+ i min.: 55
Rotasjon: CW
Kontakt nr.: PL137
Total lengde mm: 185.00
Klemme type: COM
Kommunikasjon: BSS
Rulle: SP
Regulator type: IR
Servicenummer: BMW
Merknader: Denne generatoren har en COM-klemme på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication BSS
Mount. bracket dist. 75.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL137
Bracket hole 10.50
Position/B+ in min. 55
Pulley SP
Pulley dia. 53.50
Pulley dist. 55.50
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Servicing BMW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 185.00 mm
Width/holder arm 27.20
Amp 170

  • OEM
    F032114385, TG17C 034, TG17C034, 1231 7796125, 1231 7801173, 1986A01283, 2095ir, 114385, 440108, 2543222, 2543222A, 2543222B, 7796125, 7801173, 12317796125, 12317801173, 12318510090

  • Konkurrentreferens
    A3268, CAL15382, dra0591, 28-5881, 215.170.1702, 215.557.170, 20879N-OE, 200237, 210735, 210735A, 439605, 440108, 553318RI, 747119, 12090398, 32083470, 0986083470

  • Bilmärken
    BMW

  • NormaliseratArtNr
    a3268, cal15382, dra0591, f032114385, tg17c034, 1986a01283, 2095ir, 20879noe, 114385, 200237, 210735, 210735a, 285881, 439605, 440108, 553318ri, 747119, 2543222, 2543222a, 2543222b, 7796125, 7801173, 12090398, 32083470, 215557170, 0986083470, 2151701702, 12317796125, 12317801173, 12318510090

  • Passar modeller
    BMW Model: X5 Model series: X5 Model type: 4x4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D3) Type description: E70 From date: 01-02-2007 To date: 01-09-2008 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: Sdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D5) Type description: E70 From date: 01-10-2007 To date: 01-09-2008 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N306D5 Type description: E70 From date: 01-10-2008 To date: 01-07-2013 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E70 From date: 01-10-2008 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57306D3 Type description: E70 From date: 01-12-2006 To date: 01-09-2008 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D3) Type description: E70 From date: 01-12-2006 To date: 01-09-2008 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D5) Type description: E71 Body: MPV From date: 01-01-2008 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E71 Body: MPV From date: 01-04-2008 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    BMW Series: X5 (E70) Model: xDrive 30 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.08-
    BMW Series: X6 (E71) Model: xDrive 30 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.08-
    BMW Series: X6 (E71) Model: xDrive 35 d Engine volume: 3.0 Engine type: N57 D30 (306D5) Year: 09.08-
