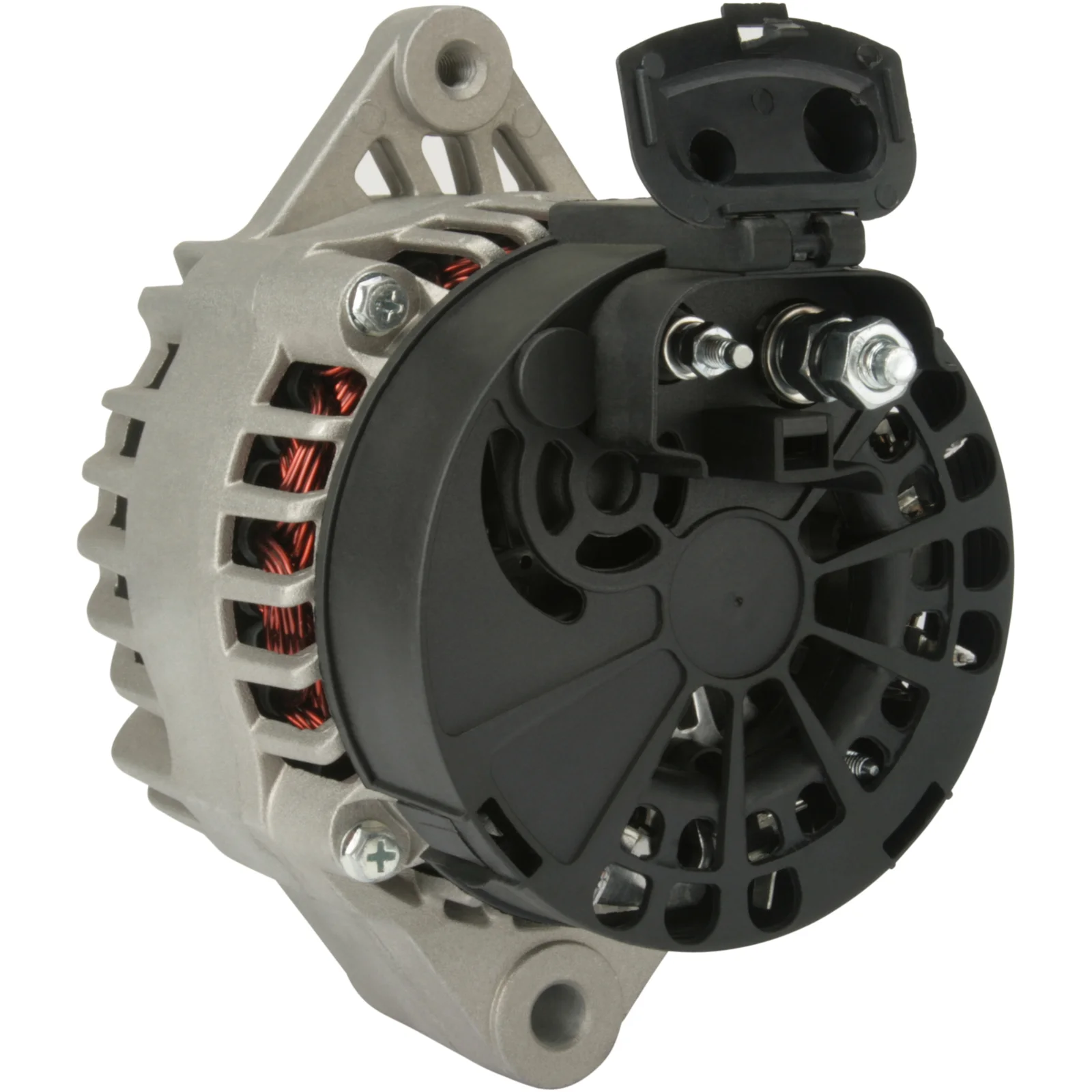

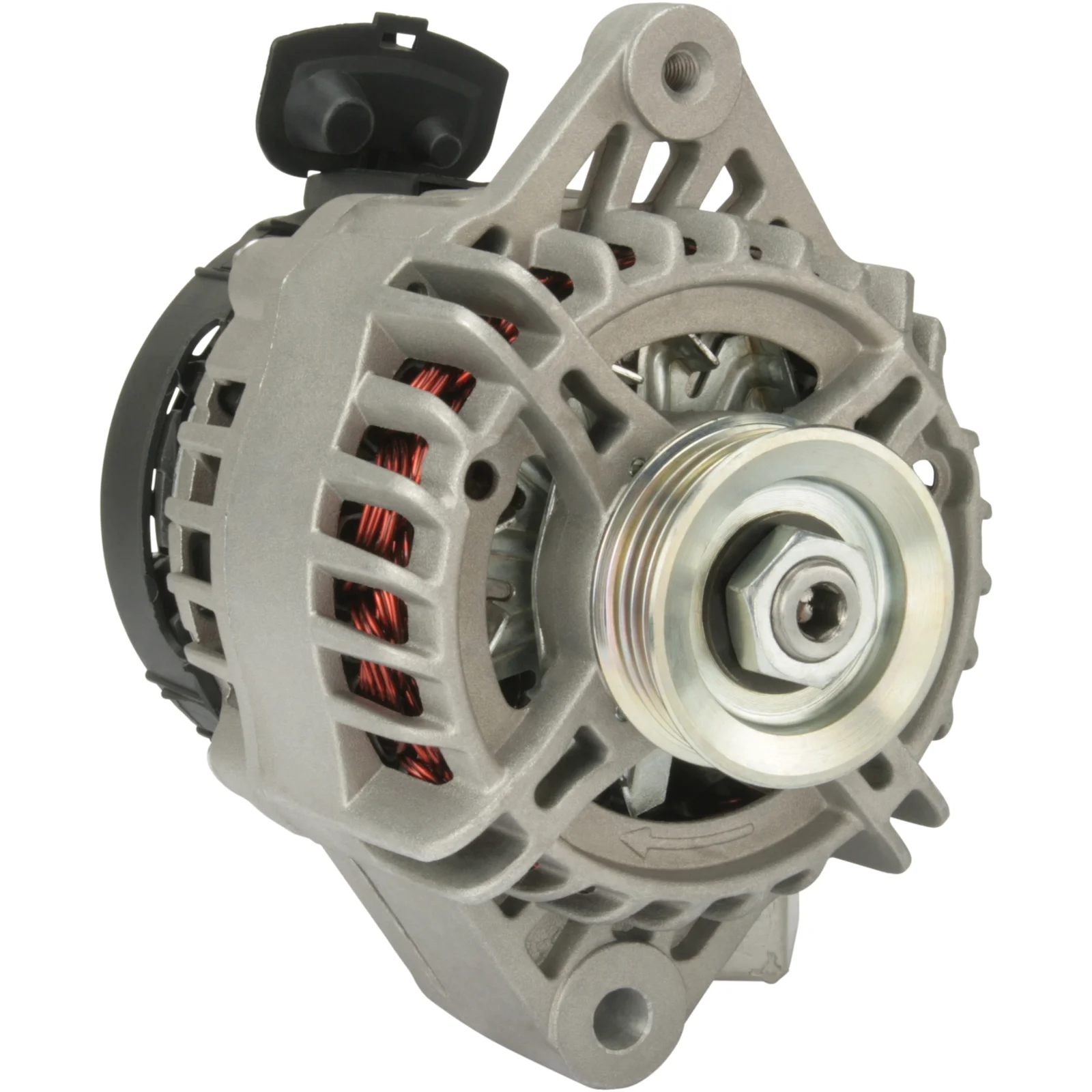

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114023

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 70, Dreiing: CW, Remskive dia.: 55.00

Beskrivelse

Spenningsspenning: 14
Amp: 70
Drevkugg. dist.: 90,50
Bredde/husker arm: 57,20
Bøssinghull: 10,20
Belt. justering. bøssinghull pos.: 60
Belt. justering. bøssinghull 1: M8
Drevkugg. dia.: 55,00
Grovn.nr./drevkugg.: 4
B+: M8
Posisjon/B+ i min.: 60
D+ Størrelse: M5
Rotasjon: CW
Total lengde mm: 183,00
Drevkugg.: SP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Bracket hole 10.20
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 90.50
D+ Size M5
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 183.00 mm
Width/holder arm 57.20
Amp 70

  • OEM
    F032114023, 1986A01776, 2077ir, 31400-86G00, 102211-8560, 63377480

  • Konkurrentreferens
    A6109, CAL30197, DRA0387, J5118027, LRA02933, MAN7480, 28-5547, 185.513.070, 245.118.702, 23933N, 113208, 446544, 553084RI, 9090722, 12060918, 063377480, 0986082860, 0986086690

  • NormaliseratArtNr
    a6109, cal30197, dra0387, f032114023, j5118027, lra02933, man7480, 1986a01776, 2077ir, 23933n, 113208, 285547, 446544, 553084ri, 3140086g00, 9090722, 12060918, 063377480, 63377480, 185513070, 245118702, 0986082860, 0986086690, 1022118560

  • Passar modeller
    Subaru Model: Justy Model series: Justy Size of motor: 1.3 Brand of engine: M13A Type description: G3X Body: Hatchback From date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Subaru Model: Justy Model series: Justy Size of motor: 1.5 Brand of engine: M15A Type description: G3X Body: Hatchback From date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Ignis Model series: Ignis Model type: 4WD Size of motor: 1.5 Brand of engine: M15A From date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Ignis Model series: Ignis Model type: 4x4 Size of motor: 1.3 Brand of engine: M13A From date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Ignis Model series: Ignis Size of motor: 1.3 Brand of engine: M13A From date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Ignis Model series: Ignis Size of motor: 1.5 Brand of engine: M15A From date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Liana Model series: Liana Size of motor: 1.3 Brand of engine: M13A From date: 01-03-2002 Fuel: Gasoline Approved: Yes
