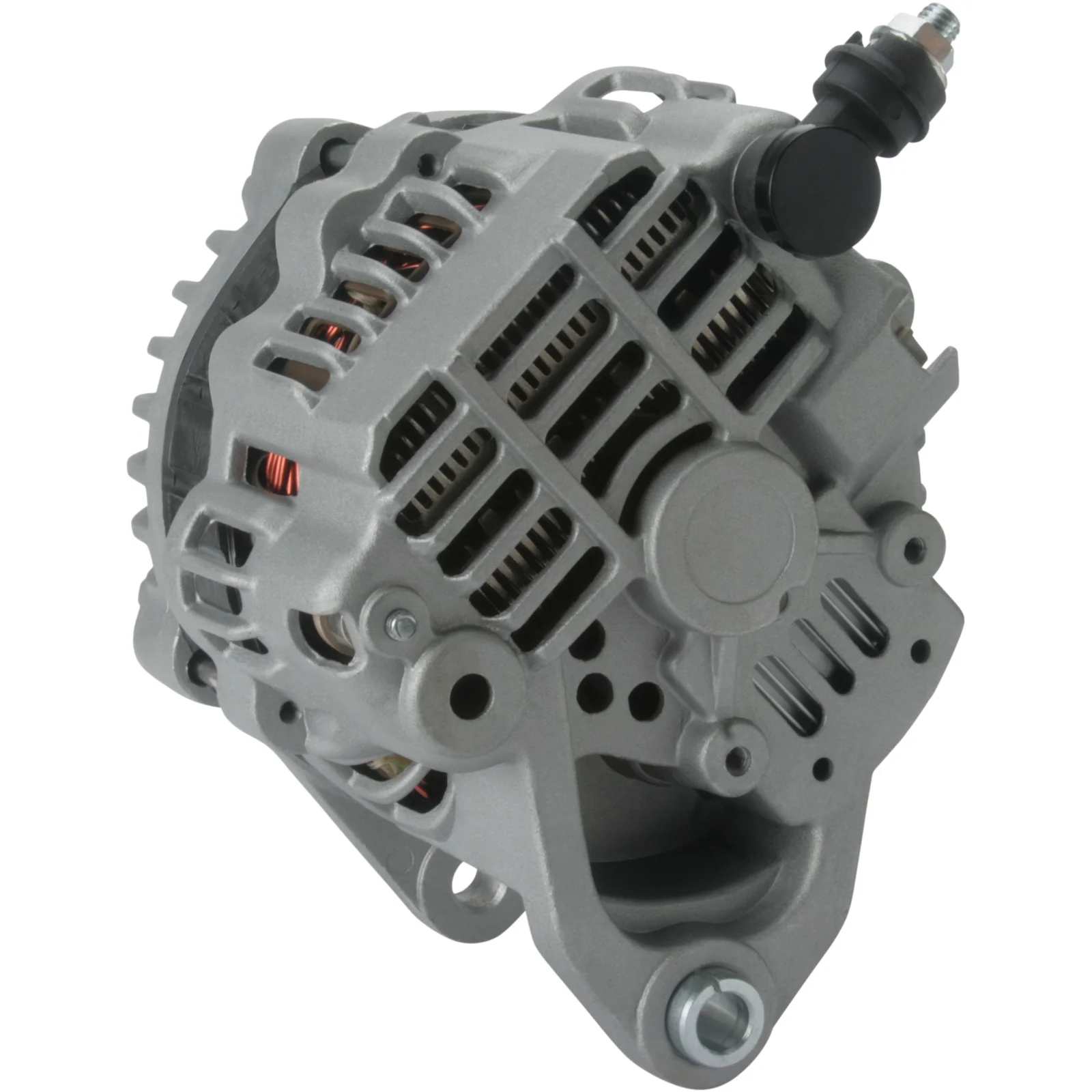

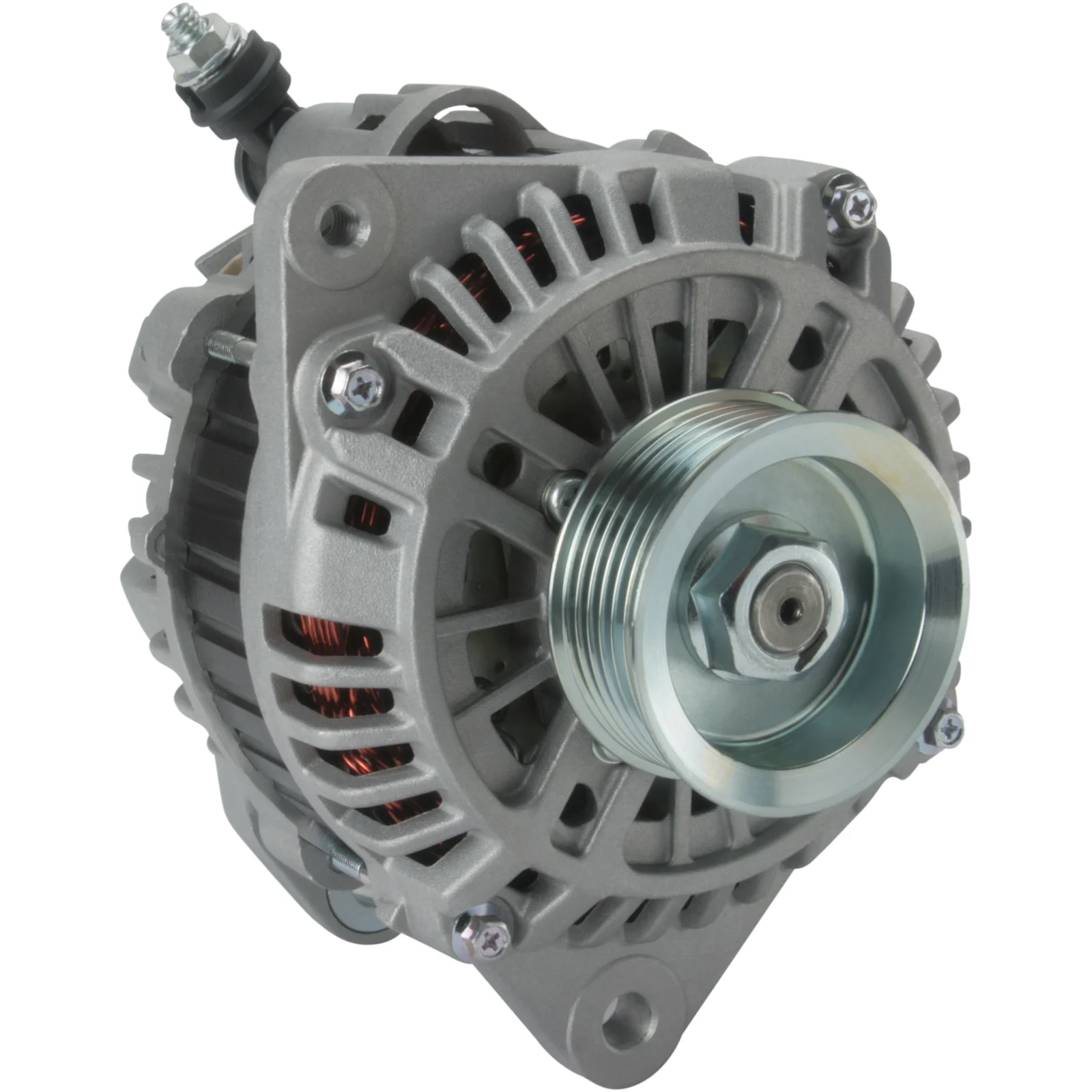

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032111381

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 110, Rotasjon: med urviseren, Monteringsbeslag avstand: 80,50

Beskrivelse

Nissan Maxima Dyn. 12V-110A 12V - 110A, 6gr. (S, L) For Yourex produktordre 90-400-1705

Spenning: 14
Ampere: 110
Drivskive avstand: 38.40
Bredde/holderarm: 13.20
Monteringsbeslag avstand: 80.50
BESLAGHULL: 10.30
Belt. justering. beslaghull pos.: 53
Belt. justering. beslaghull 1: M8
Drivskivediameter: 62.70
Groover/drivskive: 6
Radius: 84.50
Radius 2: 85.00
B+: M8
Posisjon/B+ i min.: 60
Rotasjon: CW
Stikkontakt nummer: PL39
Total lengde mm: 183.50
Drivskive: SP
Regulator type: IR
Prod. info: BN
Service: Nissan

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 80.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 53
Plug no. PL39
Bracket hole 10.30
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 62.70
Pulley dist. 38.40
Radius 84.50
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 6
Voltage 14
Total length 183.50 mm
Width/holder arm 13.20
Amp 110

  • OEM
    F032111381, ja990ir, lr1100-703, lr1100-703b, lr1100-711, lr1100-711b, lr1100-725, lr1100-725b, lr1100-725c, LR1110-705, lr1110-705, lr1110-705b, LR1110-705C, LR1110-705E, LR1110-705F, lr1110-709, LR1110-709B, lr1110-709b, LR1110-710, lr1110-710b, lr1110-710c, lr1110-710e, LR1110-710F, lr1110-720, LR1110-723, LR1110-723B, LR1110-723C, lr1110-723e, 1986A01894, 23100-0l700, 23100-0L701, 23100-0l701, 23100-2y000, 23100-2Y005, 23100-2y006, 23100-2y900, 23100-31u00, 23100-31U01, 23100-31u01, 23100-5y700, 23100-9y500, 23100-cn100, 23100-CN10C, 111381

  • Konkurrentreferens
    a-8567, A2008, ad-00151r, ad-00152r, ahi0028, ALT-3209, ALT-3212, ALT-3511, ALT3511, CAL20141, CAL20143, DRA0576, DRB5621, F042205097, F042305022, F042305024, F042A05022, F042A05024, J5111076, LRA01643, 1-2098-01HI, 1-2231-01HI, 1-2828-01HI, 8el737065-001, 8el737525-001, 28-2839, 28-3547, 227.155.1102, 5480, 5995, 13639, 13657, 13657N, 13657R, 13826N, 13901, 13901N, 13901R, 40990RI, 56497, 119479, 119691, 401357RI, 437683, 12060663, 12060664, 12060736, 12060782, 12060783, 12060854, 0986045621, 0986045661, 0986081440

  • Bilmärken
    Nissan

  • NormaliseratArtNr
    a2008, a8567, ad00151r, ad00152r, ahi0028, alt3209, alt3212, alt3511, cal20141, cal20143, dra0576, drb5621, f032111381, f042205097, f042305022, f042305024, f042a05022, f042a05024, j5111076, ja990ir, lr1100703, lr1100703b, lr1100711, lr1100711b, lr1100725, lr1100725b, lr1100725c, lr1110705, lr1110705b, lr1110705c, lr1110705e, lr1110705f, lr1110709, lr1110709b, lr1110710, lr1110710b, lr1110710c, lr1110710e, lr1110710f, lr1110720, lr1110723, lr1110723b, lr1110723c, lr1110723e, lra01643, 8el737065001, 8el737525001, 1986a01894, 5480, 5995, 13639, 13657, 13657n, 13657r, 13826n, 13901, 13901n, 13901r, 23100cn100, 23100cn10c, 40990ri, 56497, 111381, 119479, 119691, 231000l700, 231000l701, 231002y000, 231002y005, 231002y006, 231002y900, 231005y700, 231009y500, 282839, 283547, 401357ri, 437683, 1209801hi, 1223101hi, 1282801hi, 2310031u00, 2310031u01, 12060663, 12060664, 12060736, 12060782, 12060783, 12060854, 0986045621, 0986045661, 0986081440, 2271551102

  • Passar modeller
    Infiniti Model: I 30 Model series: I 30 Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Infiniti Model: I 30 Model series: I 30 Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Infiniti Model: I 30 Model series: I 30 Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima Model type: GLE Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1995 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima Model type: GXE Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1995 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima Model type: SE Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1995 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima Model type: SE Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima QX Size of motor: 2.0 Brand of engine: VQ20DE Type description: A32 Body: Estate From date: 01-10-1997 To date: 01-12-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima QX Size of motor: 3.0 Brand of engine: VQ30DE Type description: A32 Body: Estate From date: 01-10-1997 To date: 01-12-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima QX Size of motor: 3.0 Brand of engine: VQ30DE Type description: A32 From date: 01-01-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima Size of motor: 2.0 Brand of engine: VQ20DE Type description: A32 From date: 01-02-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Nissan Model: Murano Model series: Murano Model type: 4WD Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z50 Body: SUV From date: 01-08-2003 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Nissan Model: Murano Model series: Murano Model type: 4X4 Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z50 Body: SUV From date: 01-01-2006 To date: 01-09-2008 Fuel: Petrol Approved: Yes
    Nissan Series: Maxima QX (A32) Model: 2.0 AC Engine volume: 2.0 Engine type: VQ 20 DE Year: 02.95-08.00
    Nissan Series: Maxima QX (A32) Model: 3.0 Engine volume: 3.0 Engine type: VQ 30 DE Year: 01.95-08.00
    Nissan Series: Murano Model: 3.5 V6 Engine volume: 3.5 Engine type: VQ35DE Year: 01.03-
    Toyota Model: Supra Model series: Supra Type of engine: i Size of motor: 2.8 Brand of engine: 5M-GE Type description: MA61 Body: Coupe From date: 01-08-1981 To date: 01-12-1985 Fuel: Gasoline Approved: Yes
