HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114147

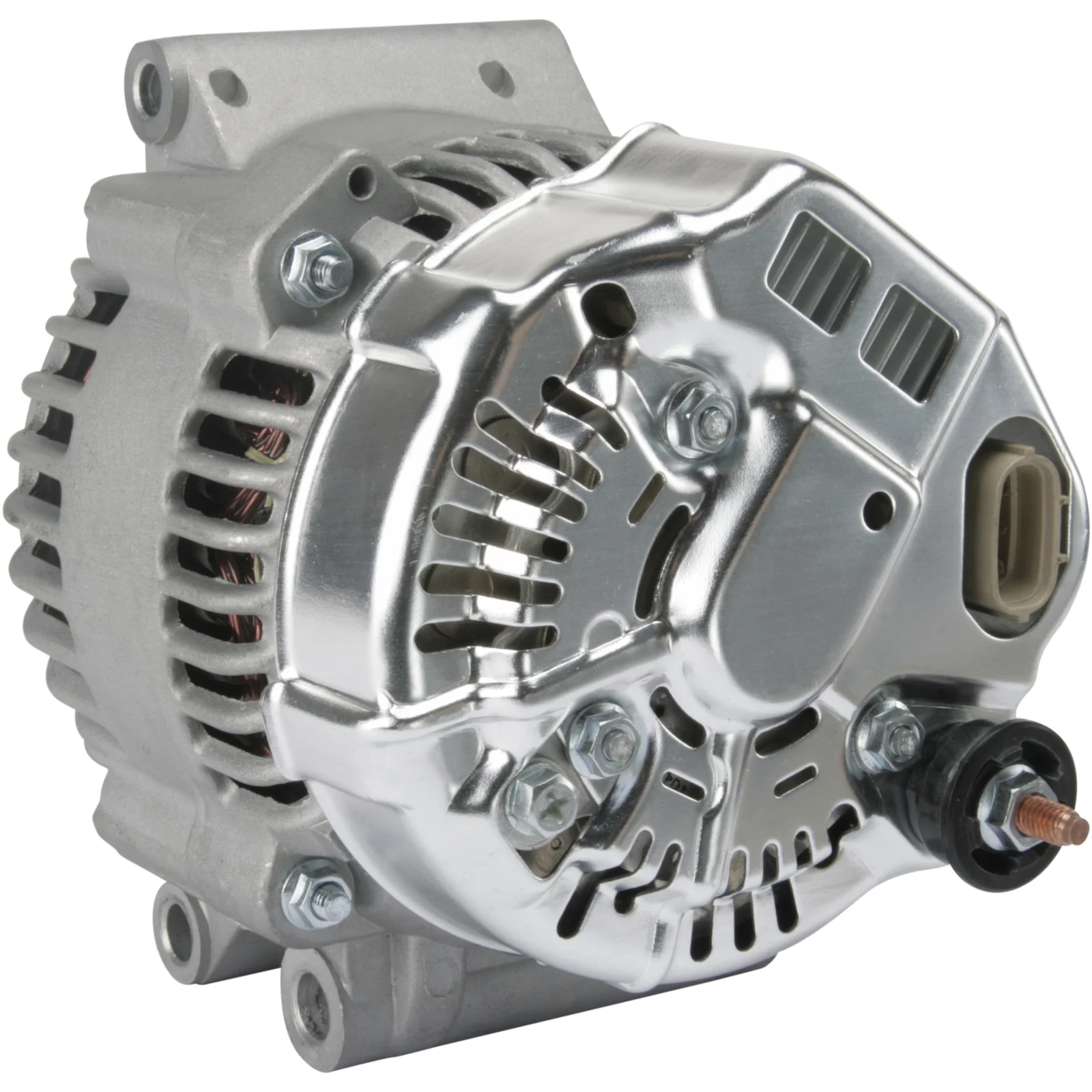

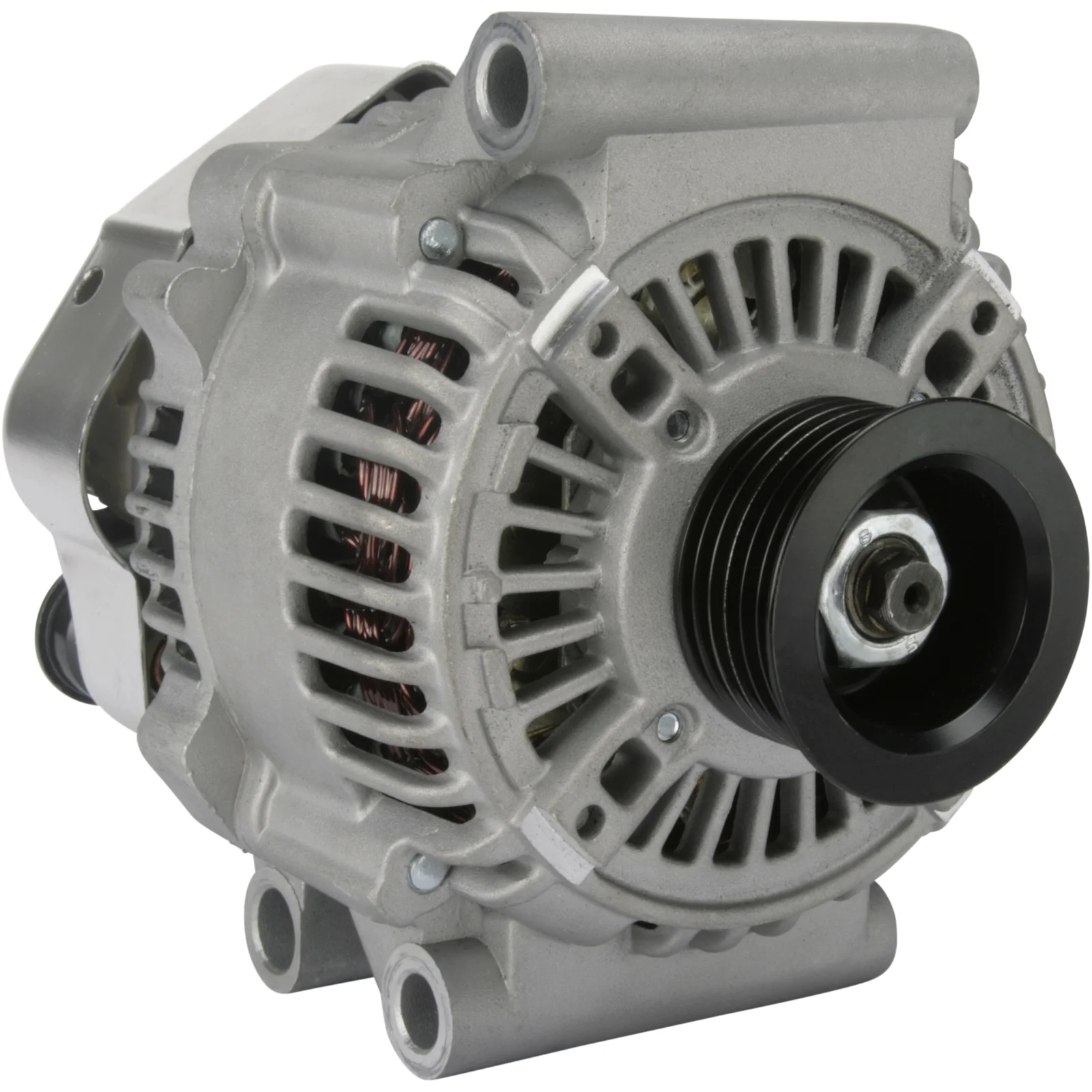

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Ampere: 105, Roterer: med klokken, Monteringsbeslag avstand: 43,50

Beskrivelse

Spenningsnett: 14
Ampere: 105
Drevavstand: 38.00
Bredde/holderarm: 83.00
Festebrakett avstand: 43.50
Brakettåpning: 9.00
Belt. justeringsbrakettposisjon: 60
Belt. justeringsbrakettåpning 1: 8.50
Drevdiameter: 49.00
Groove/drev: 6
B+: M6
Posisjon/B+ i min.: 20
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL74
Total lengde mm: 182.00
Drev: SP

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 43.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 60
Plug no. PL74
Bracket hole 9.00
Position/B+ in min. 20
Pulley SP
Pulley dia. 49.00
Pulley dist. 38.00
D+ Size Plug
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 182.00 mm
Width/holder arm 83.00
Amp 105

  • OEM
    F032114147, YLE102400, 1676ir, 1986A01856, 102211-2220, 102211-2221, 102211-2222, 102211-2223, 7509342, 7515029, 12317509342, 12317515029

  • Konkurrentreferens
    A6036, ALT-H199, CAL40161, DRA4169, F042A0H199, 8EL011710-671, 28-4780, 215.142.1052, 4789, 23297N, 111748, 210895, 210895A, 301676RI, 440865, 440909, 443179, 12090085, 32118822, 0986084240

  • NormaliseratArtNr
    a6036, alth199, cal40161, dra4169, f032114147, f042a0h199, yle102400, 8el011710671, 1676ir, 1986a01856, 4789, 23297n, 111748, 210895, 210895a, 284780, 301676ri, 440865, 440909, 443179, 7509342, 7515029, 12090085, 32118822, 0986084240, 1022112220, 1022112221, 1022112222, 1022112223, 2151421052, 12317509342, 12317515029

  • Passar modeller
    Mini Model: Cooper Model series: Cooper Size of motor: 1.6 Brand of engine: W10B16A Type description: R50, R53 Body: Hatchback From date: 01-06-2001 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Mini Model: Cooper Model series: Cooper Size of motor: 1.6 Brand of engine: W10B16A Type description: R52 Body: Convertible From date: 01-04-2004 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
    Mini Model: Mini Model series: One Type of engine: i Size of motor: 1.4 Brand of engine: B14A Type description: R50, R53 Body: Hatchback From date: 01-04-2003 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Mini Model: One Model series: One Size of motor: 1.6 Brand of engine: W10B16A Type description: R50, R53 Body: Hatchback From date: 01-06-2001 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Mini Model: One Model series: One Size of motor: 1.6 Brand of engine: W10B16A Type description: R52 Body: Convertible From date: 01-07-2004 To date: 01-11-2007 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenningsnett: 14
    Ampere: 105
    Drevavstand: 38.00
    Bredde/holderarm: 83.00
    Festebrakett avstand: 43.50
    Brakettåpning: 9.00
    Belt. justeringsbrakettposisjon: 60
    Belt. justeringsbrakettåpning 1: 8.50
    Drevdiameter: 49.00
    Groove/drev: 6
    B+: M6
    Posisjon/B+ i min.: 20
    D+ Størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL74
    Total lengde mm: 182.00
    Drev: SP

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 43.50
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 60
    Plug no. PL74
    Bracket hole 9.00
    Position/B+ in min. 20
    Pulley SP
    Pulley dia. 49.00
    Pulley dist. 38.00
    D+ Size Plug
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 182.00 mm
    Width/holder arm 83.00
    Amp 105
  • Kjøretøymatching

    • OEM
      F032114147, YLE102400, 1676ir, 1986A01856, 102211-2220, 102211-2221, 102211-2222, 102211-2223, 7509342, 7515029, 12317509342, 12317515029

    • Konkurrentreferens
      A6036, ALT-H199, CAL40161, DRA4169, F042A0H199, 8EL011710-671, 28-4780, 215.142.1052, 4789, 23297N, 111748, 210895, 210895A, 301676RI, 440865, 440909, 443179, 12090085, 32118822, 0986084240

    • NormaliseratArtNr
      a6036, alth199, cal40161, dra4169, f032114147, f042a0h199, yle102400, 8el011710671, 1676ir, 1986a01856, 4789, 23297n, 111748, 210895, 210895a, 284780, 301676ri, 440865, 440909, 443179, 7509342, 7515029, 12090085, 32118822, 0986084240, 1022112220, 1022112221, 1022112222, 1022112223, 2151421052, 12317509342, 12317515029

    • Passar modeller
      Mini Model: Cooper Model series: Cooper Size of motor: 1.6 Brand of engine: W10B16A Type description: R50, R53 Body: Hatchback From date: 01-06-2001 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Mini Model: Cooper Model series: Cooper Size of motor: 1.6 Brand of engine: W10B16A Type description: R52 Body: Convertible From date: 01-04-2004 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
      Mini Model: Mini Model series: One Type of engine: i Size of motor: 1.4 Brand of engine: B14A Type description: R50, R53 Body: Hatchback From date: 01-04-2003 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Mini Model: One Model series: One Size of motor: 1.6 Brand of engine: W10B16A Type description: R50, R53 Body: Hatchback From date: 01-06-2001 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Mini Model: One Model series: One Size of motor: 1.6 Brand of engine: W10B16A Type description: R52 Body: Convertible From date: 01-07-2004 To date: 01-11-2007 Fuel: Gasoline Approved: Yes
