Varenr.: F032114457

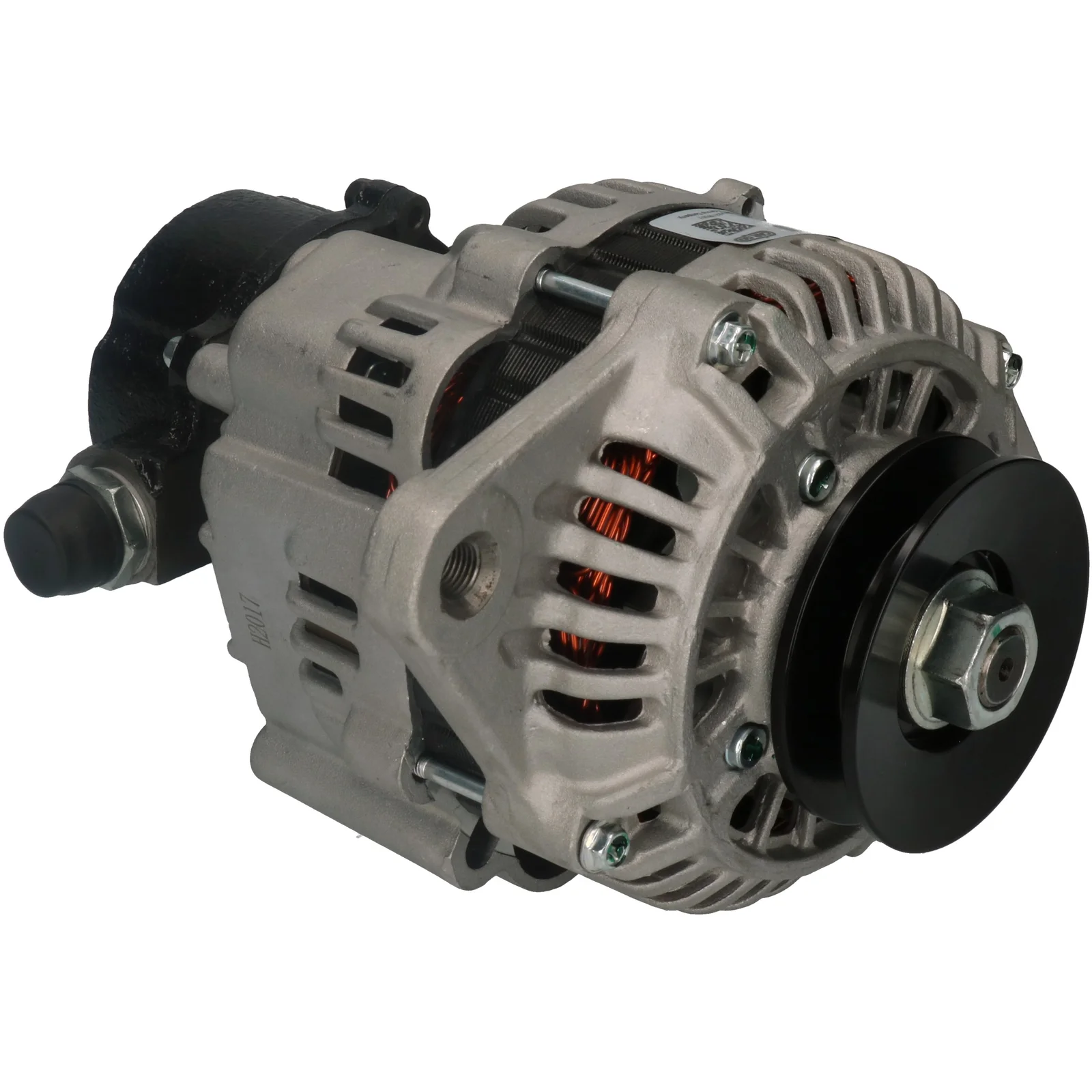

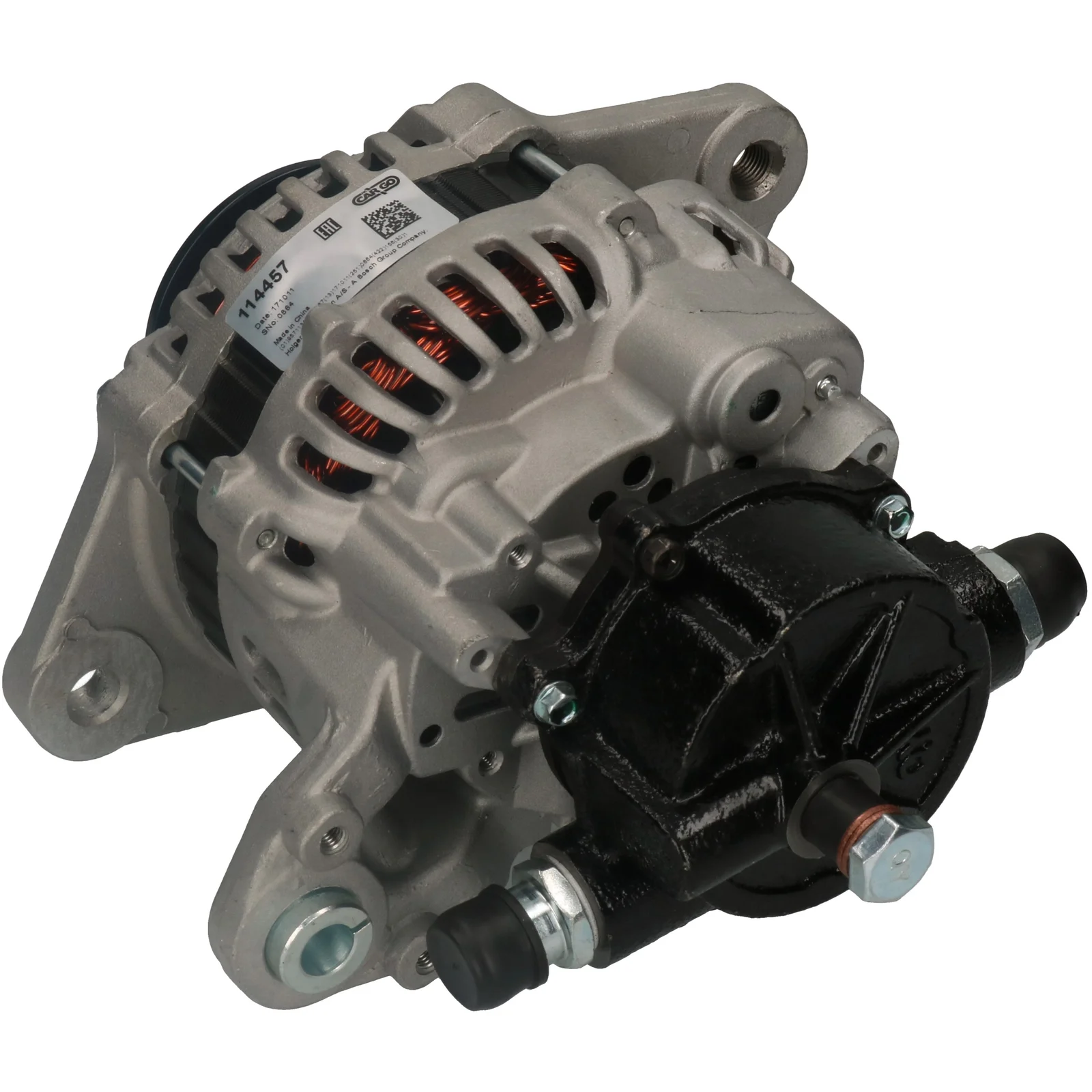

HC-Cargo Dynamo

Teknisk info:

Spenning: 28, Amp: 35, Rotasjon: CW, Feste. brakett avstand: 81,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningskilde: 28
Ampere: 35
Bøssing av remskive: 44,50
Bredde/holderarm: 13,70
Festebrakett avstand: 81,00
Brakettåpning: 12,30
Justeringsposisjon remskivebrakettåpning: 60
Justeringsbrakettåpning 1: M12
Bøssingdiameter: 84,00
Riller/bøssing: 1
Radius: 94,00
Radius 2: 95,00
B+: M8
Posisjon/B+ i min.: 15
D+ størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL89
Total lengde mm: 237,00
Terminaltype: L-R
Lykttype: Aktiv
Bøssing: P
Vakuumpumpe: Ja
Prod. info: BN

Spesifikasjon

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M12
Belt. adj. brackethole pos. 60
Plug no. PL89
Bracket hole 12.30
Position/B+ in min. 15
Prod. info BN
Pulley P
Pulley dia. 84.00
Pulley dist. 44.50
Radius 94.00
D+ Size Plug
Radius 2 95.00
Rotation CW
Grooves/pulley 1
Lamp type Active
Terminal type L-R
Vac. pump Yes
Voltage 28
Total length 237.00 mm
Width/holder arm 13.70
Amp 35
  • OEM

    A003TN5883, a3tn5883, F032114457, 32B68-00200
  • Konkurrentreferens

    A5345, CAL35608, DRA0465, LRA04257, 48-7866, 12435N
  • NormaliseratArtNr

    a003tn5883, a3tn5883, a5345, cal35608, dra0465, f032114457, lra04257, 32b6800200, 12435n, 487866
  • Passar modeller

    Mitsubishi Model: FD Model series: FD35D Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD35D2 Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD40D Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD45D Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD50C Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD50D Brand of engine: S6E/S6S Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningskilde: 28
    Ampere: 35
    Bøssing av remskive: 44,50
    Bredde/holderarm: 13,70
    Festebrakett avstand: 81,00
    Brakettåpning: 12,30
    Justeringsposisjon remskivebrakettåpning: 60
    Justeringsbrakettåpning 1: M12
    Bøssingdiameter: 84,00
    Riller/bøssing: 1
    Radius: 94,00
    Radius 2: 95,00
    B+: M8
    Posisjon/B+ i min.: 15
    D+ størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL89
    Total lengde mm: 237,00
    Terminaltype: L-R
    Lykttype: Aktiv
    Bøssing: P
    Vakuumpumpe: Ja
    Prod. info: BN
  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 M12
    Belt. adj. brackethole pos. 60
    Plug no. PL89
    Bracket hole 12.30
    Position/B+ in min. 15
    Prod. info BN
    Pulley P
    Pulley dia. 84.00
    Pulley dist. 44.50
    Radius 94.00
    D+ Size Plug
    Radius 2 95.00
    Rotation CW
    Grooves/pulley 1
    Lamp type Active
    Terminal type L-R
    Vac. pump Yes
    Voltage 28
    Total length 237.00 mm
    Width/holder arm 13.70
    Amp 35
  • Kjøretøymatching
    • OEM

      A003TN5883, a3tn5883, F032114457, 32B68-00200
    • Konkurrentreferens

      A5345, CAL35608, DRA0465, LRA04257, 48-7866, 12435N
    • NormaliseratArtNr

      a003tn5883, a3tn5883, a5345, cal35608, dra0465, f032114457, lra04257, 32b6800200, 12435n, 487866
    • Passar modeller

      Mitsubishi Model: FD Model series: FD35D Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD35D2 Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD40D Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD45D Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD50C Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD50D Brand of engine: S6E/S6S Approved: Yes
      1 / 2
