Varenr.: F032112799

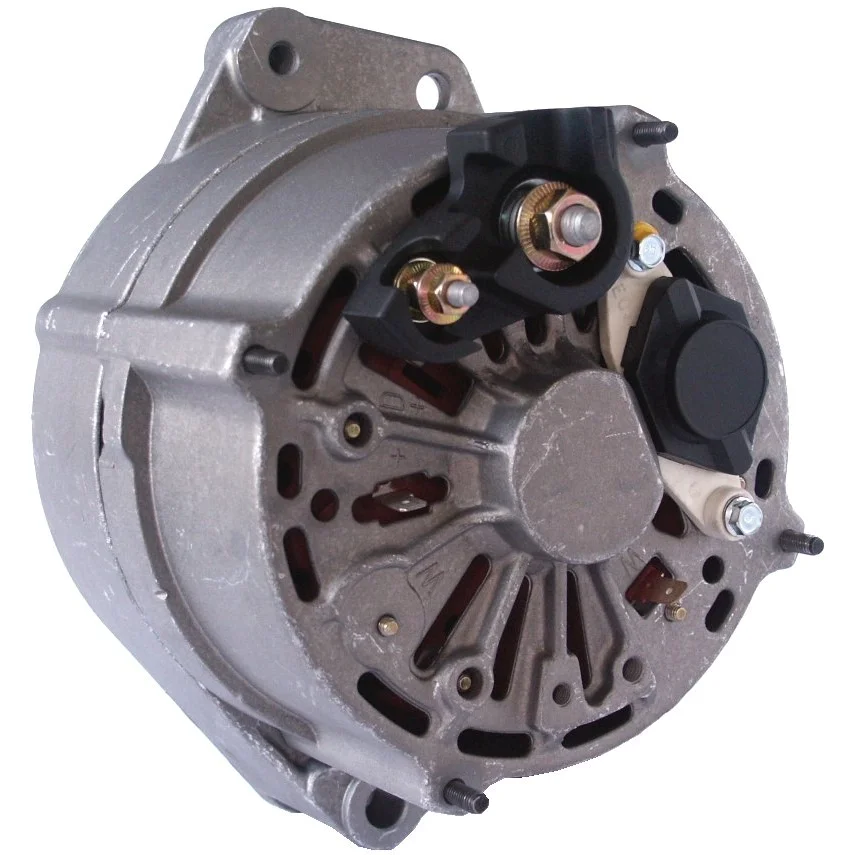

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 100, Rotasjon: CW, Reimhjul diameter: 72.20

Beskrivelse

VW Generator 12V-100A 12V-100A, enkel skive, W Enkel skive, W For Yourrex produktbestilling 90-620-3945

Spenning: 14
Ampère: 100
Terminal: W
Skive avstand: 100.00
Bredde/holderarm: 56.00
Festeb-eske hull: 10.30
Belt. justeringsbrakethull pos.: 5
Belt. justeringsbrakethull pos. 2: 55
Belt. justeringsbrakethull 1: M8
Belt. justeringsbrakethull 2: 10.20
Skive dia.: 72.20
Groovr / skive: 1
Radius: 90.00
Radius 2: 90.00
Radius 3: 88.00
B+: M8
Posisjon / B+ i min.: 28
D+ Størrelse: M5
Rotasjon: med urviseren
W kontakt-type: 6.30
Skive: P
Regulator type: IR
Prod. info: BN
Service: VW

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. bracket hole 2 10.20
Belt. adj. brackethole pos. 5
Belt. adj. brackethole pos. 2 55
Bracket hole 10.30
Position/B+ in min. 28
Prod. info BN
Pulley P
Pulley dia. 72.20
Pulley dist. 100.00
Radius 90.00
D+ Size M5
Radius 2 90.00
Radius 3 88.00
Regulator type IR
Rotation CW
Servicing VW
Grooves/pulley 1
Terminal W
Voltage 14
W plug type 6.30
Width/holder arm 56.00
Amp 100

  • OEM
    F032112799, 0120 468 084, 844ir, 0986 039 450, 1986A01308, 112799, 1516635R, 068903031q, 073903023K, 074903023K, 074903025b, 074903025BX, 0120468084, 0120468085, 0120468119

  • Konkurrentreferens
    AL0719X, CAL10521, dra9450, lra01553, lrb00176, 8EL012427-791, 8el731705-001, 28-2660, 211.111.1002, 211.138.1002, 211.166.1002, 4461, 5261, 30844RI, 118693, 9039450, 12039450, 12039540, 32039450, 0986039450, 0986039457, 944390394500

  • Bilmärken
    VW Trucks & Vans

  • NormaliseratArtNr
    al0719x, cal10521, dra9450, f032112799, lra01553, lrb00176, 8el012427791, 8el731705001, 844ir, 1986a01308, 4461, 5261, 30844ri, 112799, 118693, 282660, 1516635r, 9039450, 12039450, 12039540, 32039450, 068903031q, 073903023k, 074903023k, 074903025b, 074903025bx, 0120468084, 0120468085, 0120468119, 0986039450, 0986039457, 2111111002, 2111381002, 2111661002, 944390394500

  • Passar modeller
    VW Model: Eurovan Model series: Eurovan Model type: CL Size of motor: 2.4 Brand of engine: AAB From date: 01-01-1993 Fuel: Diesel Approved: Yes
    VW Model: Eurovan Model series: Eurovan Size of motor: 2.4 Brand of engine: AAB From date: 01-01-1993 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Bus From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Platform / Chassis From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Van From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1X Body: Bus From date: 01-09-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1X Body: Platform / Chassis From date: 01-07-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1X Body: Van From date: 01-07-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Bus From date: 01-09-1990 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Platform / Chassis From date: 01-09-1990 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Van From date: 01-07-1990 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    VW Trucks & Vans Series: Transporter IV Model: 2.4 D Engine volume: 2.4 Engine type: AAB Year: 10.92-01.95
    VW Trucks & Vans Series: Transporter IV Flak Model: 2.4 D Engine volume: 2.4 Engine type: AAB Year: 09.90-04.98
