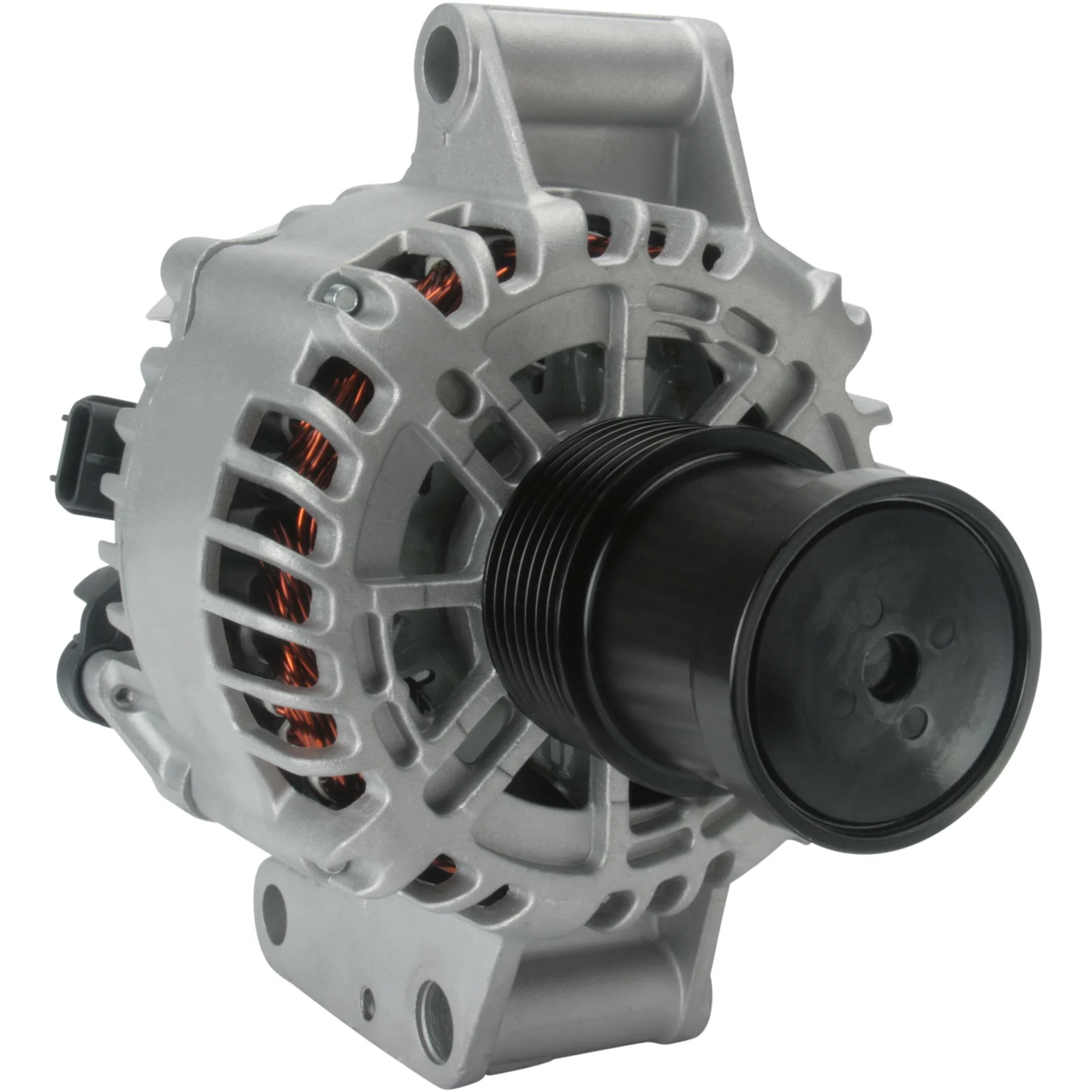

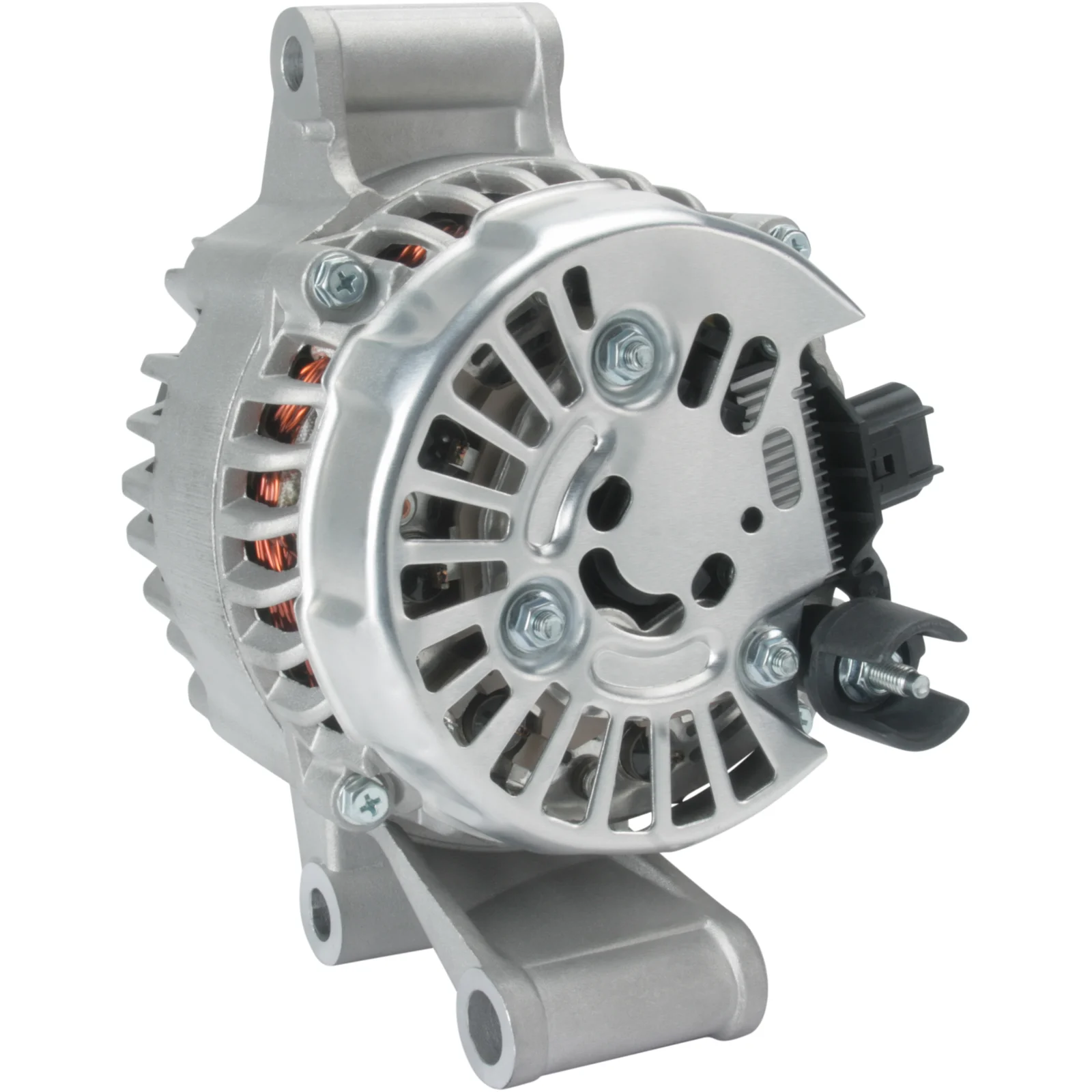

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032113913

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 110, Rotasjon: CW, Monteringsbrakett avstand: 74,00

Beskrivelse

Spenning: 14
Amp: 110
Drevskive avstand: 40.00
Bredde/holder arm: 55.00
Monteringsbeslag avstand: 74.00
Beslagshull: 14.80
Båndjustering beslagshull posisjon: 60
Båndjustering beslagshull 1: 13.50
Drevskivediameter: 59.00
Skårer/drevskive: 7
Radius: 88.00
Radius 2: 88.00
B+: M6
Posisjon/B+ i min.: 20
D+ Størrelse: Plugg
Rotasjon: medurs
Plugg nr.: PL81
Total lengde mm: 196.50
Drevskive: SP/FW
Vifte: IF
Regulators type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 74.00
Belt. adj. bracket hole 1 13.50
Belt. adj. brackethole pos. 60
Plug no. PL81
Bracket hole 14.80
Position/B+ in min. 20
Prod. info BN
Pulley SP/FW
Pulley dia. 59.00
Pulley dist. 40.00
Radius 88.00
D+ Size Plug
Radius 2 88.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Voltage 14
Total length 196.50 mm
Width/holder arm 55.00
Amp 110

  • OEM
    F032113913, YC1U10300BC, yc1u10300ea, YC1U10300EB, yc1u10300ec, 2C1T10300BA, 2c1t10300bb, 20-150-01007, 1779ir, 1986A00676, 4362258, 4461712, 0124325100, 0124325248

  • Konkurrentreferens
    A0676S, A9021, A9021(P), A9021(P2), A9021(P3), A9021PR, A9021SR, ALT-F010, CAL10134, CAL14108, DRB5370, DRB5370N, F032UA0076, F042A04091, LRA01928, LRB00444, MAN2028, 8EL011710-781, 28-4645, 219.150.1052, 219.173.1002, 4720, 8529N, 8529R, 21891N-7G, 21891R-0G, 21891R-7G, 111296, 112650, 200088, 210399, 210399A, 301779RI, 443438, 443439, 746180, 746196, 746980, 746996, 9045370, 12045370, 32045370, 063380007, 063533251, 0986045370, 063380007010, 063533251000, 944390453700

  • NormaliseratArtNr
    a0676s, a9021, a9021p, a9021p2, a9021p3, a9021pr, a9021sr, altf010, cal10134, cal14108, drb5370, drb5370n, f032113913, f032ua0076, f042a04091, lra01928, lrb00444, man2028, yc1u10300bc, yc1u10300ea, yc1u10300eb, yc1u10300ec, 2c1t10300ba, 2c1t10300bb, 8el011710781, 1779ir, 1986a00676, 4720, 8529n, 8529r, 21891n7g, 21891r0g, 21891r7g, 111296, 112650, 200088, 210399, 210399a, 284645, 301779ri, 443438, 443439, 746180, 746196, 746980, 746996, 4362258, 4461712, 9045370, 12045370, 32045370, 063380007, 063533251, 0124325100, 0124325248, 0986045370, 2015001007, 2191501052, 2191731002, 063380007010, 063533251000, 944390453700

  • Passar modeller
    Ford Model: Transit Model series: Transit Size of motor: 2.4 Brand of engine: D2FE Type description: FA_ Body: Van From date: 01-10-2000 To date: 01-03-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FA Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FA Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FA Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,CY,AY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FB Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FB Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FB Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,CY,AY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FE Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FE Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FE Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,CY,AY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D4FA Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D4FA Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D4FA Type description: FD_Y,FB_Y,FS_,FZ_,F_BY,F_CY,AY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: F4FA Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: F4FA Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: F4FA Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,F_CY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDDi Size of motor: 2.4 Brand of engine: D4FA Type description: FA_ Body: Van From date: 01-08-2000 To date: 01-08-2003 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: DOFA Body: Bus From date: 01-07-2001 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: DOFA Body: Platform / Chassis From date: 01-07-2001 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: DOFA Body: Van From date: 01-07-2001 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenning: 14
    Amp: 110
    Drevskive avstand: 40.00
    Bredde/holder arm: 55.00
    Monteringsbeslag avstand: 74.00
    Beslagshull: 14.80
    Båndjustering beslagshull posisjon: 60
    Båndjustering beslagshull 1: 13.50
    Drevskivediameter: 59.00
    Skårer/drevskive: 7
    Radius: 88.00
    Radius 2: 88.00
    B+: M6
    Posisjon/B+ i min.: 20
    D+ Størrelse: Plugg
    Rotasjon: medurs
    Plugg nr.: PL81
    Total lengde mm: 196.50
    Drevskive: SP/FW
    Vifte: IF
    Regulators type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 74.00
    Belt. adj. bracket hole 1 13.50
    Belt. adj. brackethole pos. 60
    Plug no. PL81
    Bracket hole 14.80
    Position/B+ in min. 20
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 59.00
    Pulley dist. 40.00
    Radius 88.00
    D+ Size Plug
    Radius 2 88.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Voltage 14
    Total length 196.50 mm
    Width/holder arm 55.00
    Amp 110
  • Kjøretøymatching

    • OEM
      F032113913, YC1U10300BC, yc1u10300ea, YC1U10300EB, yc1u10300ec, 2C1T10300BA, 2c1t10300bb, 20-150-01007, 1779ir, 1986A00676, 4362258, 4461712, 0124325100, 0124325248

    • Konkurrentreferens
      A0676S, A9021, A9021(P), A9021(P2), A9021(P3), A9021PR, A9021SR, ALT-F010, CAL10134, CAL14108, DRB5370, DRB5370N, F032UA0076, F042A04091, LRA01928, LRB00444, MAN2028, 8EL011710-781, 28-4645, 219.150.1052, 219.173.1002, 4720, 8529N, 8529R, 21891N-7G, 21891R-0G, 21891R-7G, 111296, 112650, 200088, 210399, 210399A, 301779RI, 443438, 443439, 746180, 746196, 746980, 746996, 9045370, 12045370, 32045370, 063380007, 063533251, 0986045370, 063380007010, 063533251000, 944390453700

    • NormaliseratArtNr
      a0676s, a9021, a9021p, a9021p2, a9021p3, a9021pr, a9021sr, altf010, cal10134, cal14108, drb5370, drb5370n, f032113913, f032ua0076, f042a04091, lra01928, lrb00444, man2028, yc1u10300bc, yc1u10300ea, yc1u10300eb, yc1u10300ec, 2c1t10300ba, 2c1t10300bb, 8el011710781, 1779ir, 1986a00676, 4720, 8529n, 8529r, 21891n7g, 21891r0g, 21891r7g, 111296, 112650, 200088, 210399, 210399a, 284645, 301779ri, 443438, 443439, 746180, 746196, 746980, 746996, 4362258, 4461712, 9045370, 12045370, 32045370, 063380007, 063533251, 0124325100, 0124325248, 0986045370, 2015001007, 2191501052, 2191731002, 063380007010, 063533251000, 944390453700

    • Passar modeller
      Ford Model: Transit Model series: Transit Size of motor: 2.4 Brand of engine: D2FE Type description: FA_ Body: Van From date: 01-10-2000 To date: 01-03-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FA Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FA Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FA Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,CY,AY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FB Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FB Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FB Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,CY,AY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FE Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FE Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FE Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,CY,AY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D4FA Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D4FA Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D4FA Type description: FD_Y,FB_Y,FS_,FZ_,F_BY,F_CY,AY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: F4FA Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: F4FA Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: F4FA Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,F_CY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDDi Size of motor: 2.4 Brand of engine: D4FA Type description: FA_ Body: Van From date: 01-08-2000 To date: 01-08-2003 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: DOFA Body: Bus From date: 01-07-2001 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: DOFA Body: Platform / Chassis From date: 01-07-2001 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: DOFA Body: Van From date: 01-07-2001 To date: 01-05-2006 Fuel: Diesel Approved: Yes
