HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116643

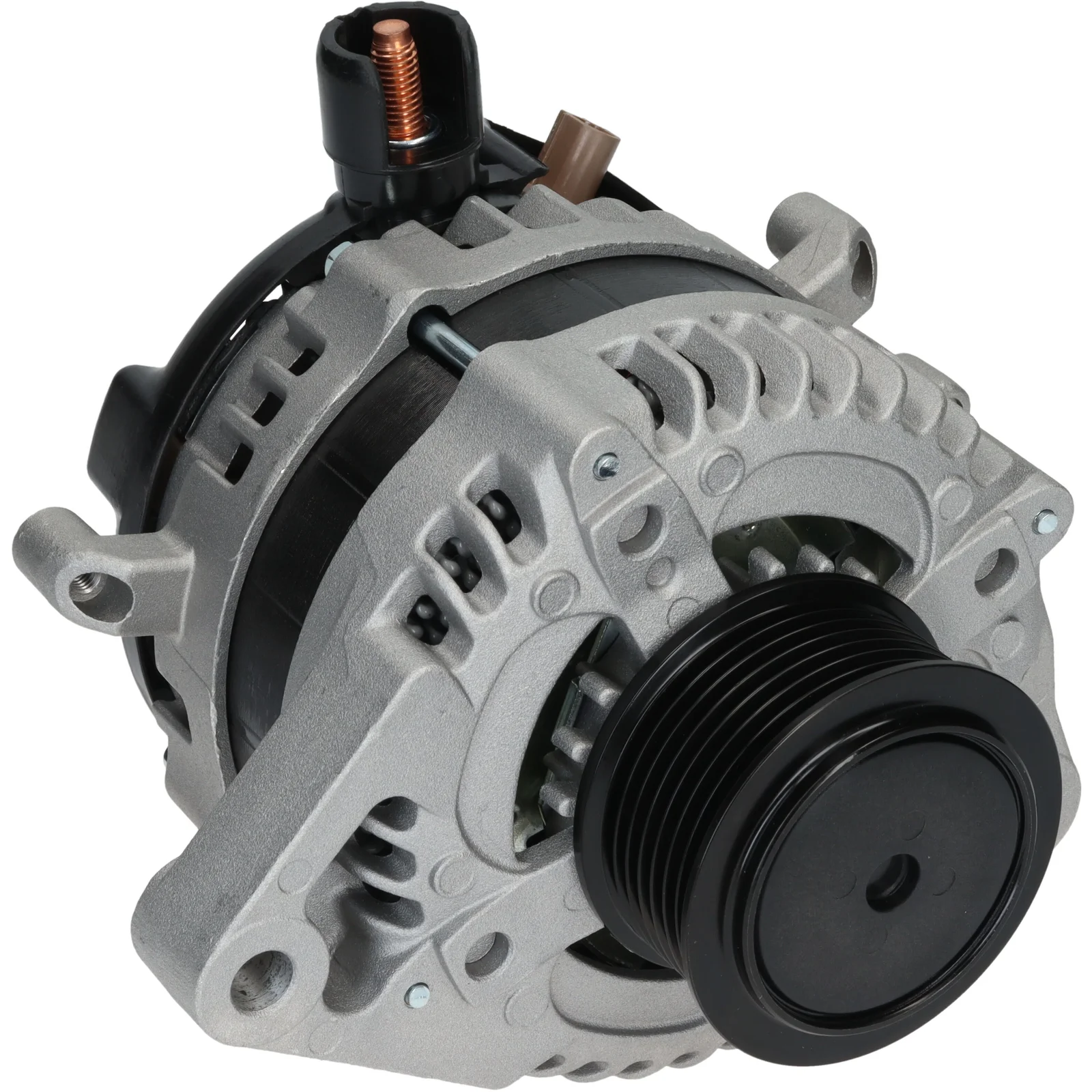

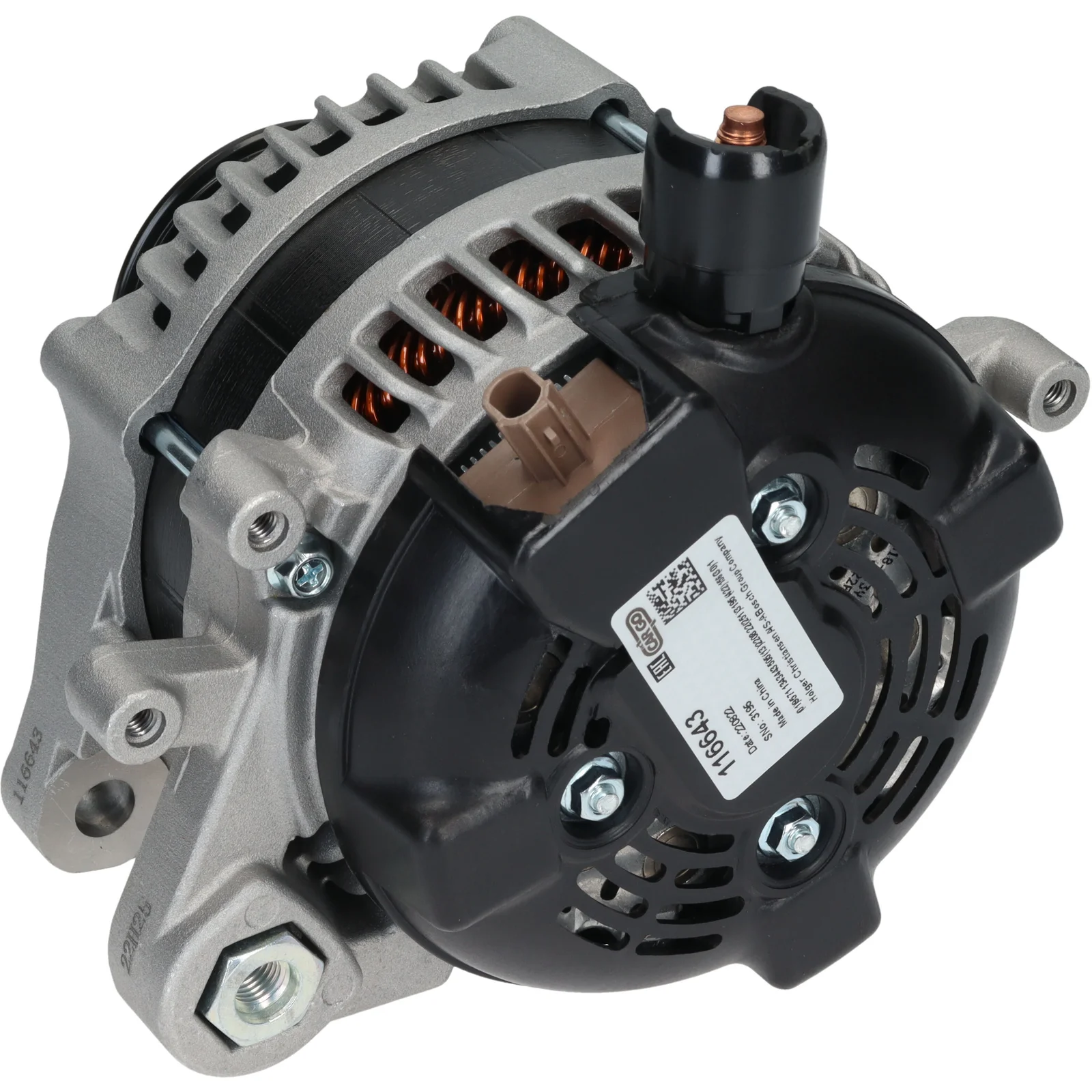

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 150, Rotasjon: CW, Monteringsbrakett avstand: 35.00

Beskrivelse

Dynamo 12V-150A 12V - 150A, 7gr.frg, (LIN) ID-kode 244 For Yourex produktordre 90-222-4828

Volt: 14
Amp.: 150
Reimens diameter: 42.50
Bredde/mount. arm: 15.00
Festebraketts avstand: 35.00
Brammediameter: 11.00
Reimjustering brakett hull pos.: 53
Reimjustering brakett hull 1: 10.50
Reimens diameter: 65.00
Groper/reim: 7
Radius: 86.00
Radius 2: 87.50
B+: M8
Posisjon/B+ i min.: 50
Rotasjon: med urviseren
Støpsel nr.: PL205
Total lengde mm: 165.00
Terminaltype: COM
Kommunikasjon: LIN
Vifte: IF
Regulator type: IR
Merk: Denne Alternatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 35.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 53
Plug no. PL205
Bracket hole 11.00
Position/B+ in min. 50
Pulley dia. 65.00
Pulley dist. 42.50
Radius 86.00
Radius 2 87.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 165.00 mm
Width/holder arm 15.00
Amp 150

  • OEM
    CSK 04, CSK 28, CSK04, CSK28, F032116643, MAN 7587, 31100-59N-G01, 31100-RSX-G01, 31100-RSXG01, 31100-RZ0-G01, 31100-RZ0G01, 104211-8040, 104211-8280, 116643, 19084020, 63377587

  • Konkurrentreferens
    A6667S, CAL40401, CAL40401GS, CAL40438, DAN1122, DAN1326, DRA1352, DRA1483, LRA03992, 8EL015630-821, 28-7602, 125.568.150, 222.168.1502, 209300, 209300A, 554201RI, 554201RID, 554464RI, 12061214, 0986085000

  • Bilmärken
    Honda

  • NormaliseratArtNr
    a6667s, cal40401, cal40401gs, cal40438, csk04, csk28, dan1122, dan1326, dra1352, dra1483, f032116643, lra03992, man7587, 8el015630821, 31100rsxg01, 31100rz0g01, 116643, 209300, 209300a, 287602, 554201ri, 554201rid, 554464ri, 3110059ng01, 12061214, 19084020, 63377587, 125568150, 0986085000, 1042118040, 1042118280, 2221681502

  • Passar modeller
    Honda Model: Civic Model series: Civic Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A1 Type description: FK Body: Estate From date: 01-01-2014 Fuel: Diesel Approved: Yes Manufacture type: Tourer
    Honda Model: Civic Model series: Civic Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A1 Type description: FK, FB, FG Body: Hatchback From date: 01-02-2013 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Model type: 4WD Type of engine: Diesel Size of motor: 1.6 Brand of engine: N16A4 Type description: RE From date: 01-02-2015 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A1 Type description: RE, RM_ Body: SUV From date: 01-10-2013 Fuel: Diesel Approved: Yes
    Honda Model: HR-V Model series: HR-V Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A3 Type description: RU From date: 01-08-2015 Fuel: Diesel Approved: Yes
    Honda Series: Civic IX Model: 1.6 i-DTEC Engine volume: 1.6 Engine type: N 16 A 1 Year: 02.13-
    Honda Series: Civic IX Tourer Model: 1.6 i-DTEC Engine volume: 1.6 Engine type: N 16 A 1 Year: 01.14-
    Honda Series: CR-V IV Model: 1.6 i-DTEC Engine volume: 1.6 Engine type: N 16 A 1 Year: 10.13-
    Honda Series: CR-V IV Model: 1.6i-DTEC 4WD Engine volume: 1.6 Engine type: N16A4 Year: 02.15-
    Honda Series: HR-V (RU) Model: 1.6 i-DTEC (RU8) Engine volume: 1.6 Engine type: N16A3 Year: 8.15-
    1 / 2
  • Beskrivelse
    Dynamo 12V-150A 12V - 150A, 7gr.frg, (LIN) ID-kode 244 For Yourex produktordre 90-222-4828

    Volt: 14
    Amp.: 150
    Reimens diameter: 42.50
    Bredde/mount. arm: 15.00
    Festebraketts avstand: 35.00
    Brammediameter: 11.00
    Reimjustering brakett hull pos.: 53
    Reimjustering brakett hull 1: 10.50
    Reimens diameter: 65.00
    Groper/reim: 7
    Radius: 86.00
    Radius 2: 87.50
    B+: M8
    Posisjon/B+ i min.: 50
    Rotasjon: med urviseren
    Støpsel nr.: PL205
    Total lengde mm: 165.00
    Terminaltype: COM
    Kommunikasjon: LIN
    Vifte: IF
    Regulator type: IR
    Merk: Denne Alternatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 35.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 53
    Plug no. PL205
    Bracket hole 11.00
    Position/B+ in min. 50
    Pulley dia. 65.00
    Pulley dist. 42.50
    Radius 86.00
    Radius 2 87.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 165.00 mm
    Width/holder arm 15.00
    Amp 150
  • Kjøretøymatching

    • OEM
      CSK 04, CSK 28, CSK04, CSK28, F032116643, MAN 7587, 31100-59N-G01, 31100-RSX-G01, 31100-RSXG01, 31100-RZ0-G01, 31100-RZ0G01, 104211-8040, 104211-8280, 116643, 19084020, 63377587

    • Konkurrentreferens
      A6667S, CAL40401, CAL40401GS, CAL40438, DAN1122, DAN1326, DRA1352, DRA1483, LRA03992, 8EL015630-821, 28-7602, 125.568.150, 222.168.1502, 209300, 209300A, 554201RI, 554201RID, 554464RI, 12061214, 0986085000

    • Bilmärken
      Honda

    • NormaliseratArtNr
      a6667s, cal40401, cal40401gs, cal40438, csk04, csk28, dan1122, dan1326, dra1352, dra1483, f032116643, lra03992, man7587, 8el015630821, 31100rsxg01, 31100rz0g01, 116643, 209300, 209300a, 287602, 554201ri, 554201rid, 554464ri, 3110059ng01, 12061214, 19084020, 63377587, 125568150, 0986085000, 1042118040, 1042118280, 2221681502

    • Passar modeller
      Honda Model: Civic Model series: Civic Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A1 Type description: FK Body: Estate From date: 01-01-2014 Fuel: Diesel Approved: Yes Manufacture type: Tourer
      Honda Model: Civic Model series: Civic Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A1 Type description: FK, FB, FG Body: Hatchback From date: 01-02-2013 Fuel: Diesel Approved: Yes
      Honda Model: CR-V Model series: CR-V Model type: 4WD Type of engine: Diesel Size of motor: 1.6 Brand of engine: N16A4 Type description: RE From date: 01-02-2015 Fuel: Diesel Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A1 Type description: RE, RM_ Body: SUV From date: 01-10-2013 Fuel: Diesel Approved: Yes
      Honda Model: HR-V Model series: HR-V Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A3 Type description: RU From date: 01-08-2015 Fuel: Diesel Approved: Yes
      Honda Series: Civic IX Model: 1.6 i-DTEC Engine volume: 1.6 Engine type: N 16 A 1 Year: 02.13-
      Honda Series: Civic IX Tourer Model: 1.6 i-DTEC Engine volume: 1.6 Engine type: N 16 A 1 Year: 01.14-
      Honda Series: CR-V IV Model: 1.6 i-DTEC Engine volume: 1.6 Engine type: N 16 A 1 Year: 10.13-
      Honda Series: CR-V IV Model: 1.6i-DTEC 4WD Engine volume: 1.6 Engine type: N16A4 Year: 02.15-
      Honda Series: HR-V (RU) Model: 1.6 i-DTEC (RU8) Engine volume: 1.6 Engine type: N16A3 Year: 8.15-
