HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116293

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 150, Rotasjon: medClokke, Festebraktdistanse: 47.00

Beskrivelse

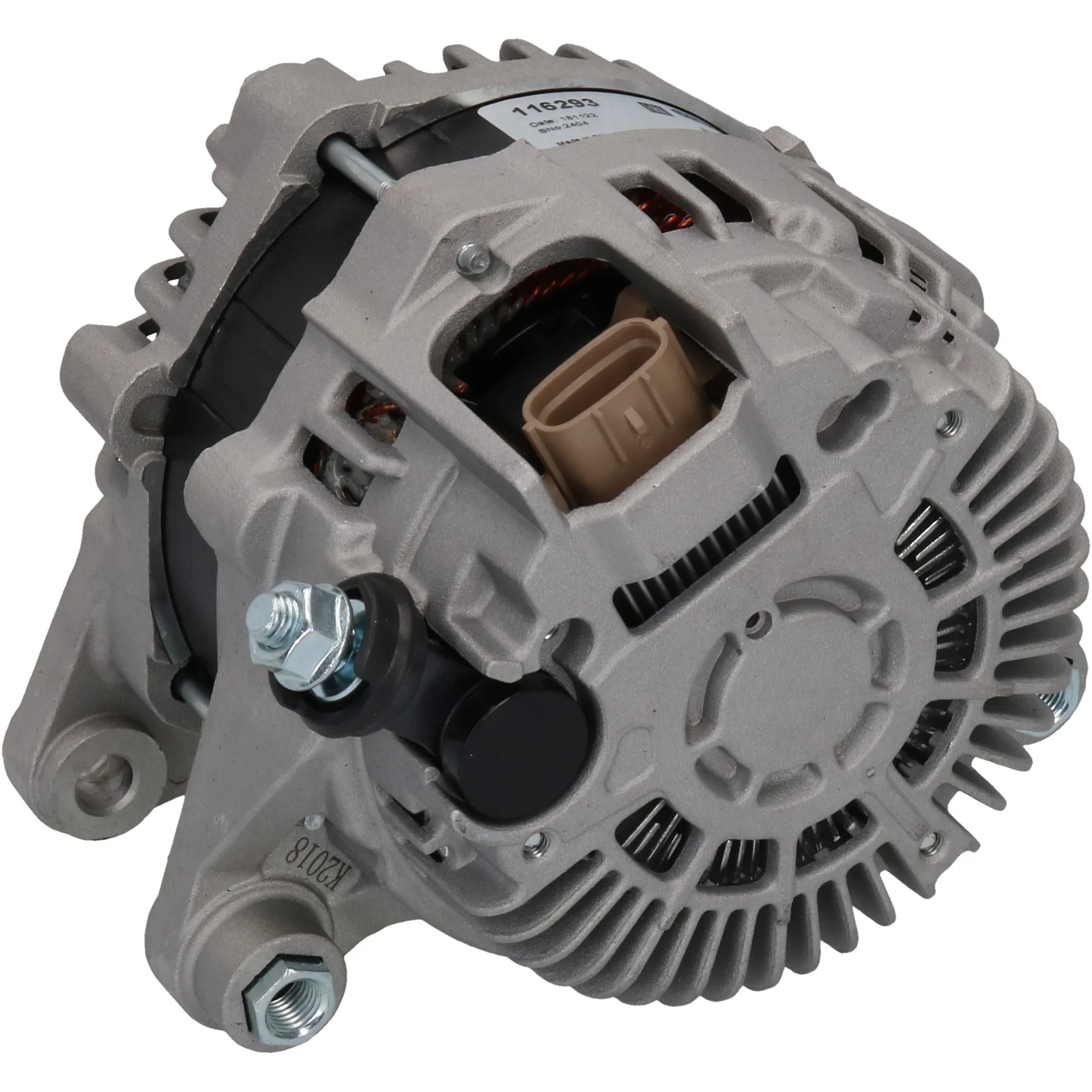

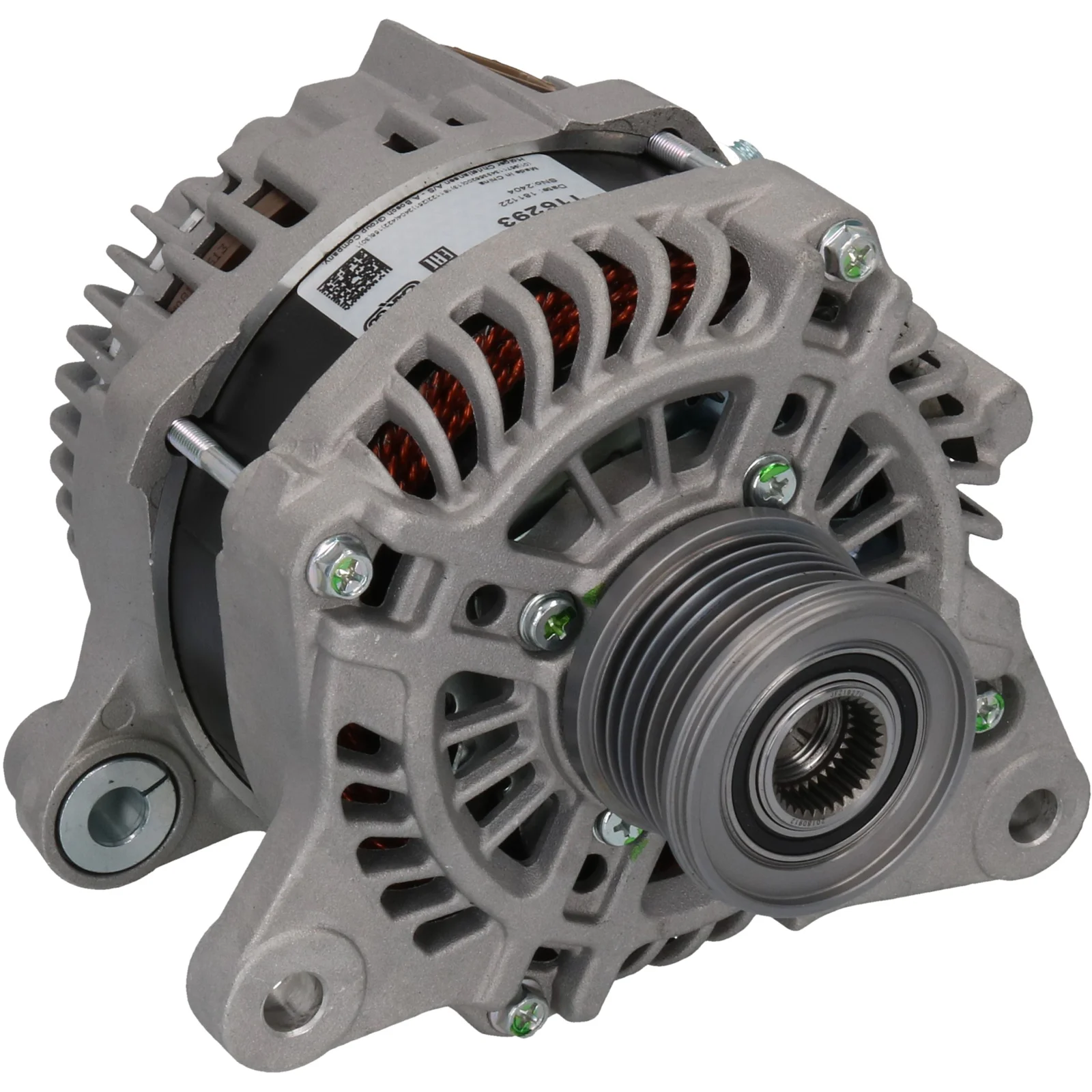

Mazda CX-5 Diesel Dynamo 12V - 150A, 6-r. fgr., (- , D, P) For Yourex produktordre 90-360-2130

Volt: 14
Ampere: 150
Drevhjul avstand: 30.00
Bredde/holderarm: 18.00
Festebrakett avstand: 47.00
Brakettåpning: 10.50
Belt. innstilling brakettåpning pos.: 50
Belt. innstilling brakettåpning 1: 10.50
Drevskive dia.: 51.00
Groper/drevskive: 6
Radius: 89.50
Radius 2: 84.00
B+: M8
Posisjon/B+ i min.: 40
D+: Stikk → Kona
Rotasjon: med uret
Stikkontakt nr.: PL139
Terminaltype: P-D
Drevskive: SP/FW
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 47.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 50
Plug no. PL139
Bracket hole 10.50
Position/B+ in min. 40
Pulley SP/FW
Pulley dia. 51.00
Pulley dist. 30.00
Radius 89.50
D+ Size Plug
Radius 2 84.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Terminal type P-D
Voltage 14
Width/holder arm 18.00
Amp 150

  • OEM
    A002TX3081, A2T-X3081, A2TX3081, A2TX6781, A2TX7381, F032116293, SH01-18-300, SH01-18-300A, SHDG-18-300, 116293

  • Konkurrentreferens
    A5145, CAL35372, DRA1321, LRA03862, 8EL011713-811, 27-6972, 145.562.150, 224.317.1502, 20891-OS, 20891N, 444292, 554587RI, 12061228

  • Bilmärken
    Mazda

  • NormaliseratArtNr
    a002tx3081, a2tx3081, a2tx6781, a2tx7381, a5145, cal35372, dra1321, f032116293, lra03862, sh0118300, sh0118300a, shdg18300, 8el011713811, 20891n, 20891os, 116293, 276972, 444292, 554587ri, 12061228, 145562150, 2243171502

  • Passar modeller
    Mazda Model: 3 Model series: 3 Model type: Skyaktiv-D 150 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY1 Body: Hatchback From date: 01-09-2013 Fuel: Diesel Approved: Yes
    Mazda Model: 3 Model series: 3 Model type: Skyaktiv-D 150 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY1 From date: 01-09-2013 Fuel: Diesel Approved: Yes
    Mazda Model: 3 Model series: 3 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: BM Body: Box Body / Hatchback From date: 01-04-2015 To date: 01-05-2016 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Estate Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SH-VPTR Type description: GJ, GL Body: Estate From date: 01-07-2014 Fuel: Diesel Approved: Yes Manufacture type: Estate
    Mazda Model: 6 Model series: 6 Estate Model type: D (GJ2FW) Type of engine: Diesel Size of motor: 2.2 Brand of engine: SH-VPTR Type description: GJ, GL Body: Estate From date: 01-07-2014 Fuel: Diesel Approved: Yes Manufacture type: Estate
    Mazda Model: 6 Model series: 6 Model type: AWD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: GJ Body: Box Body / Estate From date: 01-01-2013 To date: 01-05-2016 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Model type: AWD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: GJ Body: Box Body / Estate From date: 01-04-2015 To date: 01-05-2016 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Model type: AWD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: GJ, GH Body: Estate From date: 01-02-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Mazda Model: 6 Model series: 6 Model type: AWD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: GJ, GH Body: Estate From date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Mazda Model: 6 Model series: 6 Saloon Model type: D (GJ2FP) Type of engine: Diesel Size of motor: 2.2 Brand of engine: SH-VPTR Type description: GJ, GL Body: Saloon From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY1 Type description: GJ Body: Estate From date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY1 Type description: GJ From date: 01-12-2012 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: GJ Body: Box Body / Estate From date: 01-04-2015 To date: 01-05-2016 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: GJ Body: Estate From date: 01-08-2012 To date: 01-02-2018 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Mazda Model: CX Model series: CX-5 Model type: AWD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY1 Type description: KE From date: 01-04-2012 To date: 01-02-2017 Fuel: Diesel Approved: Yes
    Mazda Model: CX Model series: CX-5 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY1 Type description: KE From date: 01-04-2012 To date: 01-02-2017 Fuel: Diesel Approved: Yes
    Mazda Model: CX-5 Model series: CX-5 Model type: AWD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY6 Type description: KF Body: SUV From date: 01-05-2017 Fuel: Diesel Approved: Yes
    Mazda Model: CX-5 Model series: CX-5 Model type: SKYACTIV-D AWD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: KE_ Body: Box Body / Estate From date: 01-04-2015 To date: 01-02-2017 Fuel: Diesel Approved: Yes
    Mazda Model: CX-5 Model series: CX-5 Model type: SKYACTIV-D Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: KE_ Body: Box Body / Estate From date: 01-04-2015 To date: 01-02-2017 Fuel: Diesel Approved: Yes
    Mazda Model: CX-5 Model series: CX-5 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY1 Type description: KE, GH Body: SUV From date: 01-04-2012 To date: 01-02-2017 Fuel: Diesel Approved: Yes
    Mazda Model: CX-5 Model series: CX-5 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY6 Type description: KF Body: SUV From date: 01-05-2017 Fuel: Diesel Approved: Yes
    Mazda Series: CX-5 (KE) Model: 2.2 D AWD Engine volume: 2.2 Engine type: SHY1 Year: 04.12-
    Mazda Series: CX-5 (KE) Model: 2.2 D AWD Engine volume: 2.2 Year: 04.12-
    Mazda Series: CX-5 (KE) Model: 2.2 D Engine volume: 2.2 Year: 04.12-
    1 / 5
  • Beskrivelse
    Mazda CX-5 Diesel Dynamo 12V - 150A, 6-r. fgr., (- , D, P) For Yourex produktordre 90-360-2130

    Volt: 14
    Ampere: 150
    Drevhjul avstand: 30.00
    Bredde/holderarm: 18.00
    Festebrakett avstand: 47.00
    Brakettåpning: 10.50
    Belt. innstilling brakettåpning pos.: 50
    Belt. innstilling brakettåpning 1: 10.50
    Drevskive dia.: 51.00
    Groper/drevskive: 6
    Radius: 89.50
    Radius 2: 84.00
    B+: M8
    Posisjon/B+ i min.: 40
    D+: Stikk → Kona
    Rotasjon: med uret
    Stikkontakt nr.: PL139
    Terminaltype: P-D
    Drevskive: SP/FW
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 47.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 50
    Plug no. PL139
    Bracket hole 10.50
    Position/B+ in min. 40
    Pulley SP/FW
    Pulley dia. 51.00
    Pulley dist. 30.00
    Radius 89.50
    D+ Size Plug
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Terminal type P-D
    Voltage 14
    Width/holder arm 18.00
    Amp 150
  • Kjøretøymatching

    • OEM
      A002TX3081, A2T-X3081, A2TX3081, A2TX6781, A2TX7381, F032116293, SH01-18-300, SH01-18-300A, SHDG-18-300, 116293

    • Konkurrentreferens
      A5145, CAL35372, DRA1321, LRA03862, 8EL011713-811, 27-6972, 145.562.150, 224.317.1502, 20891-OS, 20891N, 444292, 554587RI, 12061228

    • Bilmärken
      Mazda

    • NormaliseratArtNr
      a002tx3081, a2tx3081, a2tx6781, a2tx7381, a5145, cal35372, dra1321, f032116293, lra03862, sh0118300, sh0118300a, shdg18300, 8el011713811, 20891n, 20891os, 116293, 276972, 444292, 554587ri, 12061228, 145562150, 2243171502

    • Passar modeller
      Mazda Model: 3 Model series: 3 Model type: Skyaktiv-D 150 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY1 Body: Hatchback From date: 01-09-2013 Fuel: Diesel Approved: Yes
      Mazda Model: 3 Model series: 3 Model type: Skyaktiv-D 150 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY1 From date: 01-09-2013 Fuel: Diesel Approved: Yes
      Mazda Model: 3 Model series: 3 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: BM Body: Box Body / Hatchback From date: 01-04-2015 To date: 01-05-2016 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Estate Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SH-VPTR Type description: GJ, GL Body: Estate From date: 01-07-2014 Fuel: Diesel Approved: Yes Manufacture type: Estate
      Mazda Model: 6 Model series: 6 Estate Model type: D (GJ2FW) Type of engine: Diesel Size of motor: 2.2 Brand of engine: SH-VPTR Type description: GJ, GL Body: Estate From date: 01-07-2014 Fuel: Diesel Approved: Yes Manufacture type: Estate
      Mazda Model: 6 Model series: 6 Model type: AWD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: GJ Body: Box Body / Estate From date: 01-01-2013 To date: 01-05-2016 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Model type: AWD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: GJ Body: Box Body / Estate From date: 01-04-2015 To date: 01-05-2016 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Model type: AWD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: GJ, GH Body: Estate From date: 01-02-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Mazda Model: 6 Model series: 6 Model type: AWD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: GJ, GH Body: Estate From date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Mazda Model: 6 Model series: 6 Saloon Model type: D (GJ2FP) Type of engine: Diesel Size of motor: 2.2 Brand of engine: SH-VPTR Type description: GJ, GL Body: Saloon From date: 01-07-2014 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY1 Type description: GJ Body: Estate From date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY1 Type description: GJ From date: 01-12-2012 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: GJ Body: Box Body / Estate From date: 01-04-2015 To date: 01-05-2016 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: GJ Body: Estate From date: 01-08-2012 To date: 01-02-2018 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Mazda Model: CX Model series: CX-5 Model type: AWD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY1 Type description: KE From date: 01-04-2012 To date: 01-02-2017 Fuel: Diesel Approved: Yes
      Mazda Model: CX Model series: CX-5 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY1 Type description: KE From date: 01-04-2012 To date: 01-02-2017 Fuel: Diesel Approved: Yes
      Mazda Model: CX-5 Model series: CX-5 Model type: AWD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY6 Type description: KF Body: SUV From date: 01-05-2017 Fuel: Diesel Approved: Yes
      Mazda Model: CX-5 Model series: CX-5 Model type: SKYACTIV-D AWD Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: KE_ Body: Box Body / Estate From date: 01-04-2015 To date: 01-02-2017 Fuel: Diesel Approved: Yes
      Mazda Model: CX-5 Model series: CX-5 Model type: SKYACTIV-D Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY4 Type description: KE_ Body: Box Body / Estate From date: 01-04-2015 To date: 01-02-2017 Fuel: Diesel Approved: Yes
      Mazda Model: CX-5 Model series: CX-5 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY1 Type description: KE, GH Body: SUV From date: 01-04-2012 To date: 01-02-2017 Fuel: Diesel Approved: Yes
      Mazda Model: CX-5 Model series: CX-5 Type of engine: Diesel Size of motor: 2.2 Brand of engine: SHY6 Type description: KF Body: SUV From date: 01-05-2017 Fuel: Diesel Approved: Yes
      Mazda Series: CX-5 (KE) Model: 2.2 D AWD Engine volume: 2.2 Engine type: SHY1 Year: 04.12-
      Mazda Series: CX-5 (KE) Model: 2.2 D AWD Engine volume: 2.2 Year: 04.12-
      Mazda Series: CX-5 (KE) Model: 2.2 D Engine volume: 2.2 Year: 04.12-
