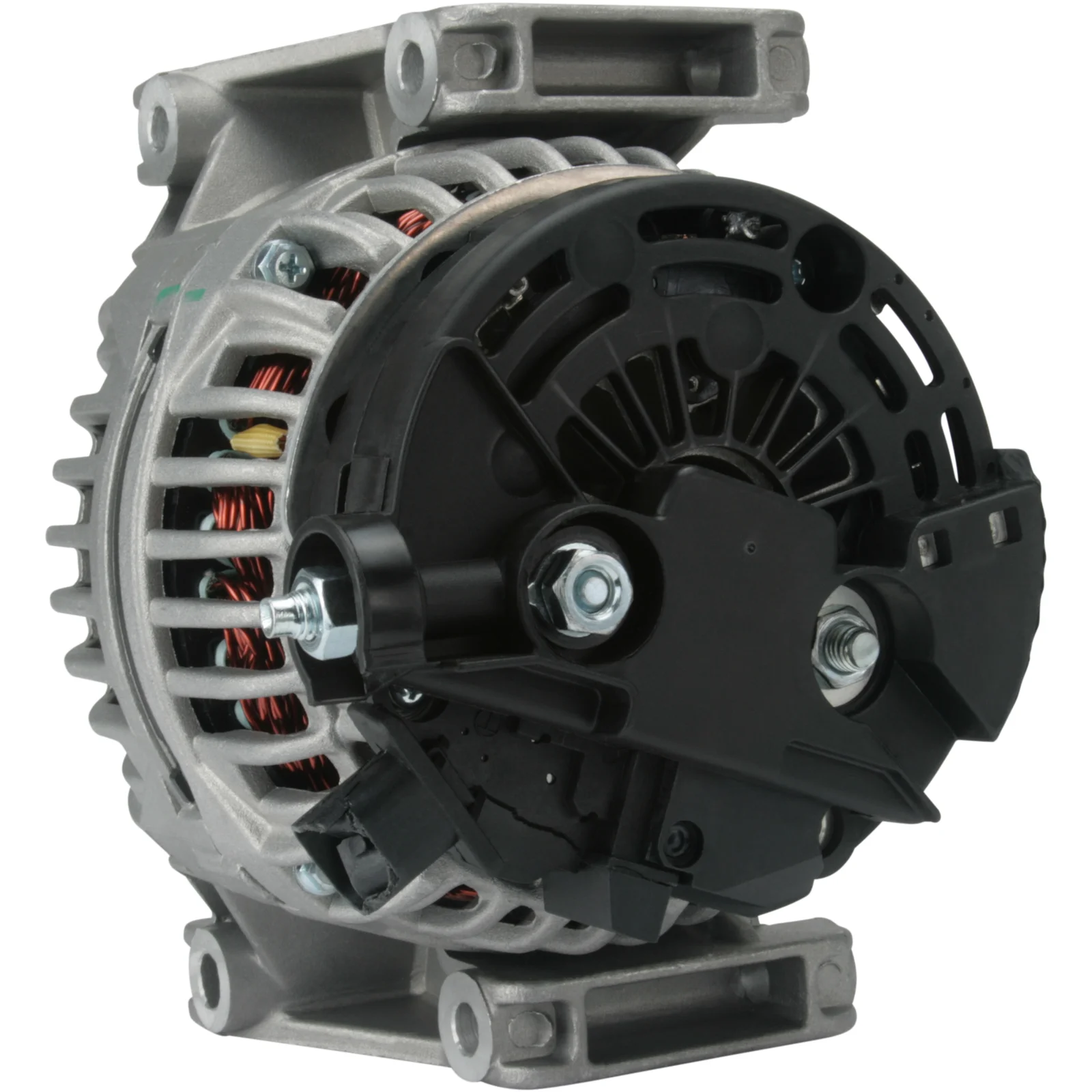

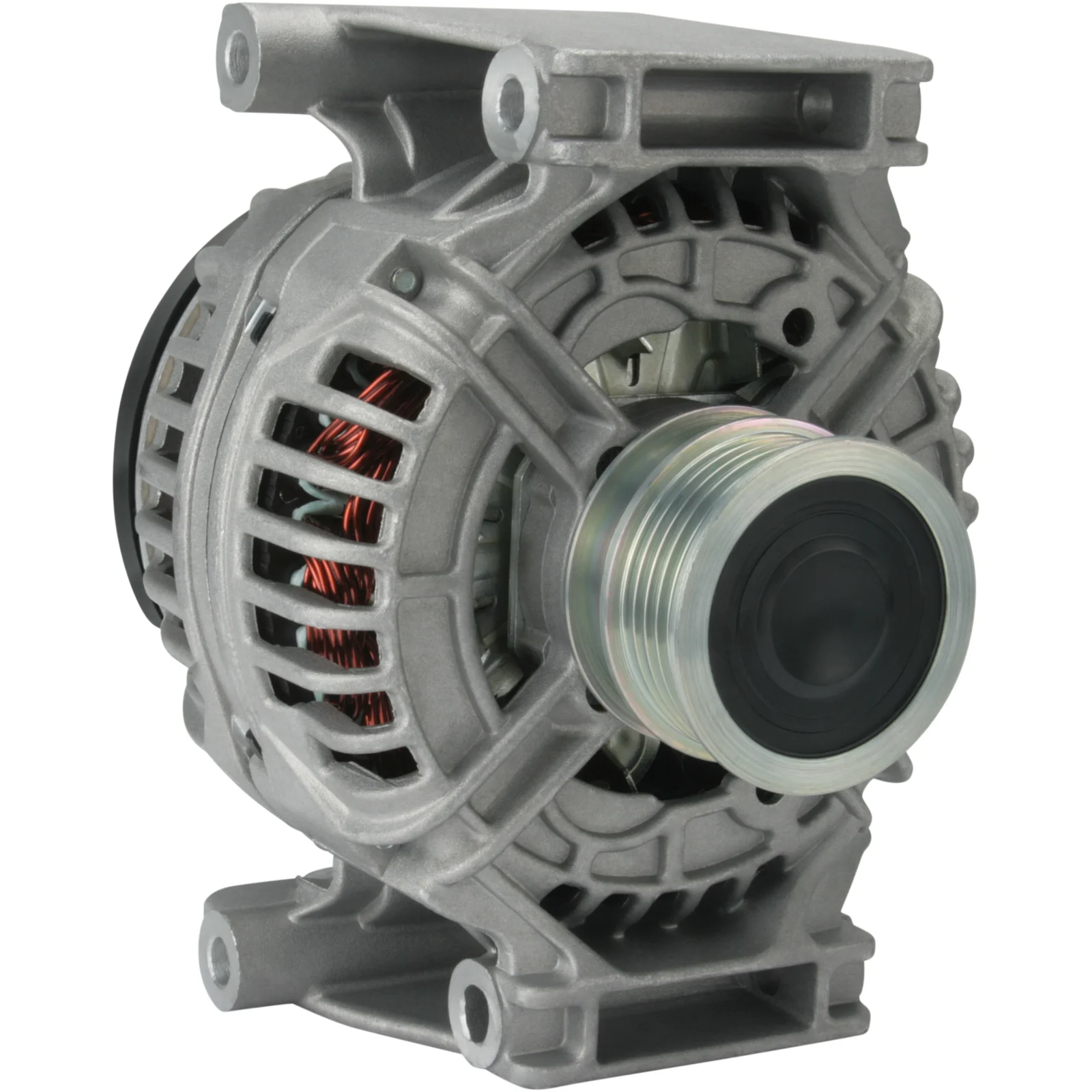

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114257

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 140, Rotasjon: CW, Festebrakett avstand.: 55,00

Beskrivelse

SAAB 9-3 Dynamo 12V-140A 12V - 140A, 5gr. fw reim 140A Utgått i henhold til Bosch TecDoc. 5gr. fw reim. For Yourex produkt bestilling 90-485-4620

Spenning: 14
Ampere: 140
Reim dist.: 31.50
Bredde/feste arm: 79.00
Monteringsbrakett dist.: 55.00
Brakett hull: 8.50
Brakett hull 2: 9.00
Reim diameter: 57.00
Utspringer/reim: 5
B+: M8
Posisjon/B+ i min.: 15
Rotasjon: CW
Kontakt nr.: PL75
Total lengde mm: 180.00
Reim: SP/FW
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 55.00
Plug no. PL75
Bracket hole 8.50
Bracket hole 2 9.00
Position/B+ in min. 15
Pulley SP/FW
Pulley dia. 57.00
Pulley dist. 31.50
Regulator type IR
Rotation CW
Grooves/pulley 5
Voltage 14
Total length 180.00 mm
Width/holder arm 79.00
Amp 140

  • OEM
    F032114257, SAAB12785604, 0124 425 033, 0124 525 017, 0986 046 200, 2123ir, 114257, 12785604, 12803492, 93184952, 93184953, 0124525017

  • Konkurrentreferens
    A0297, CAL10374, DRB6200, LRA02854, 28-4970, 475.511.140, 11043N, 11043R, 111564, 554037RI, 9046200, 12046200, 0986046200, 0986046207

  • Bilmärken
    Saab

  • NormaliseratArtNr
    a0297, cal10374, drb6200, f032114257, lra02854, saab12785604, 2123ir, 11043n, 11043r, 111564, 114257, 284970, 554037ri, 9046200, 12046200, 12785604, 12803492, 93184952, 93184953, 0124425033, 0124525017, 475511140, 0986046200, 0986046207

  • Passar modeller
    Saab Model: 9-3 Model series: 9-3 Model type: BioPower Type of engine: Biopower Size of motor: 2.0 Brand of engine: B207L Type description: YS3F Body: Convertible From date: 01-01-2007 To date: 01-02-2015 Fuel: Bi-Fuel Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Size of motor: 2.0 Brand of engine: B207L Type description: YS3F Body: Convertible From date: 01-09-2004 To date: 01-12-2005 Fuel: Petrol Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Size of motor: 2.0 Brand of engine: B207R Type description: YS3F From date: 01-01-2008 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 1.8 Brand of engine: B207E Type description: YS3F Body: Convertible From date: 01-08-2003 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 1.8 Brand of engine: B207E Type description: YS3F From date: 01-09-2002 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B207L From date: 01-09-2002 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B207L Type description: YS3F Body: Convertible From date: 01-08-2003 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B207R Type description: YS3F Body: Convertible From date: 01-08-2003 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B207R Type description: YS3F From date: 01-09-2002 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    Saab Series: 9-3 (YS3F) Model: 1.8t BioPower Engine volume: 1.8 Engine type: B 207 E Year: 01.07-
    Saab Series: 9-3 (YS3F) Model: 1.8t Engine volume: 2.0 Engine type: B 207 E Year: 09.02-
    Saab Series: 9-3 (YS3F) Model: 2.0 t BioPower Engine volume: 2.0 Engine type: B 207 L Year: 01.07-
    Saab Series: 9-3 (YS3F) Model: 2.0 t Engine volume: 2.0 Engine type: B 207 L Year: 09.02-08.06
    Saab Series: 9-3 (YS3F) Model: 2.0 T Engine volume: 2.0 Engine type: B 207 T Year: 09.02-
    Saab Series: 9-3 (YS3F) Model: 2.0 T Obs! Ch.nr.! Engine volume: 2.0 Engine type: B 207 R Year: 02.03-
    Saab Series: 9-3 Kombi Model: 1.8 t BioPower Engine volume: 1.8 Engine type: B 207 E Year: 01.07-
    Saab Series: 9-3 Kombi Model: 1.8 t Obs! Ch.nr: 41035598--> Engine volume: 1.8 Year: 03.05-
    Saab Series: 9-3 Kombi Model: 2.0 t BioPower XWD Engine volume: 2.0 Engine type: B 207 H Year: 01.11-02.15
    1 / 4
  • Beskrivelse
    SAAB 9-3 Dynamo 12V-140A 12V - 140A, 5gr. fw reim 140A Utgått i henhold til Bosch TecDoc. 5gr. fw reim. For Yourex produkt bestilling 90-485-4620

    Spenning: 14
    Ampere: 140
    Reim dist.: 31.50
    Bredde/feste arm: 79.00
    Monteringsbrakett dist.: 55.00
    Brakett hull: 8.50
    Brakett hull 2: 9.00
    Reim diameter: 57.00
    Utspringer/reim: 5
    B+: M8
    Posisjon/B+ i min.: 15
    Rotasjon: CW
    Kontakt nr.: PL75
    Total lengde mm: 180.00
    Reim: SP/FW
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 55.00
    Plug no. PL75
    Bracket hole 8.50
    Bracket hole 2 9.00
    Position/B+ in min. 15
    Pulley SP/FW
    Pulley dia. 57.00
    Pulley dist. 31.50
    Regulator type IR
    Rotation CW
    Grooves/pulley 5
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 79.00
    Amp 140
  • Kjøretøymatching

    • OEM
      F032114257, SAAB12785604, 0124 425 033, 0124 525 017, 0986 046 200, 2123ir, 114257, 12785604, 12803492, 93184952, 93184953, 0124525017

    • Konkurrentreferens
      A0297, CAL10374, DRB6200, LRA02854, 28-4970, 475.511.140, 11043N, 11043R, 111564, 554037RI, 9046200, 12046200, 0986046200, 0986046207

    • Bilmärken
      Saab

    • NormaliseratArtNr
      a0297, cal10374, drb6200, f032114257, lra02854, saab12785604, 2123ir, 11043n, 11043r, 111564, 114257, 284970, 554037ri, 9046200, 12046200, 12785604, 12803492, 93184952, 93184953, 0124425033, 0124525017, 475511140, 0986046200, 0986046207

    • Passar modeller
      Saab Model: 9-3 Model series: 9-3 Model type: BioPower Type of engine: Biopower Size of motor: 2.0 Brand of engine: B207L Type description: YS3F Body: Convertible From date: 01-01-2007 To date: 01-02-2015 Fuel: Bi-Fuel Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Size of motor: 2.0 Brand of engine: B207L Type description: YS3F Body: Convertible From date: 01-09-2004 To date: 01-12-2005 Fuel: Petrol Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Size of motor: 2.0 Brand of engine: B207R Type description: YS3F From date: 01-01-2008 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 1.8 Brand of engine: B207E Type description: YS3F Body: Convertible From date: 01-08-2003 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 1.8 Brand of engine: B207E Type description: YS3F From date: 01-09-2002 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B207L From date: 01-09-2002 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B207L Type description: YS3F Body: Convertible From date: 01-08-2003 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B207R Type description: YS3F Body: Convertible From date: 01-08-2003 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B207R Type description: YS3F From date: 01-09-2002 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
      Saab Series: 9-3 (YS3F) Model: 1.8t BioPower Engine volume: 1.8 Engine type: B 207 E Year: 01.07-
      Saab Series: 9-3 (YS3F) Model: 1.8t Engine volume: 2.0 Engine type: B 207 E Year: 09.02-
      Saab Series: 9-3 (YS3F) Model: 2.0 t BioPower Engine volume: 2.0 Engine type: B 207 L Year: 01.07-
      Saab Series: 9-3 (YS3F) Model: 2.0 t Engine volume: 2.0 Engine type: B 207 L Year: 09.02-08.06
      Saab Series: 9-3 (YS3F) Model: 2.0 T Engine volume: 2.0 Engine type: B 207 T Year: 09.02-
      Saab Series: 9-3 (YS3F) Model: 2.0 T Obs! Ch.nr.! Engine volume: 2.0 Engine type: B 207 R Year: 02.03-
      Saab Series: 9-3 Kombi Model: 1.8 t BioPower Engine volume: 1.8 Engine type: B 207 E Year: 01.07-
      Saab Series: 9-3 Kombi Model: 1.8 t Obs! Ch.nr: 41035598--> Engine volume: 1.8 Year: 03.05-
      Saab Series: 9-3 Kombi Model: 2.0 t BioPower XWD Engine volume: 2.0 Engine type: B 207 H Year: 01.11-02.15
