Varenr.: F032114246

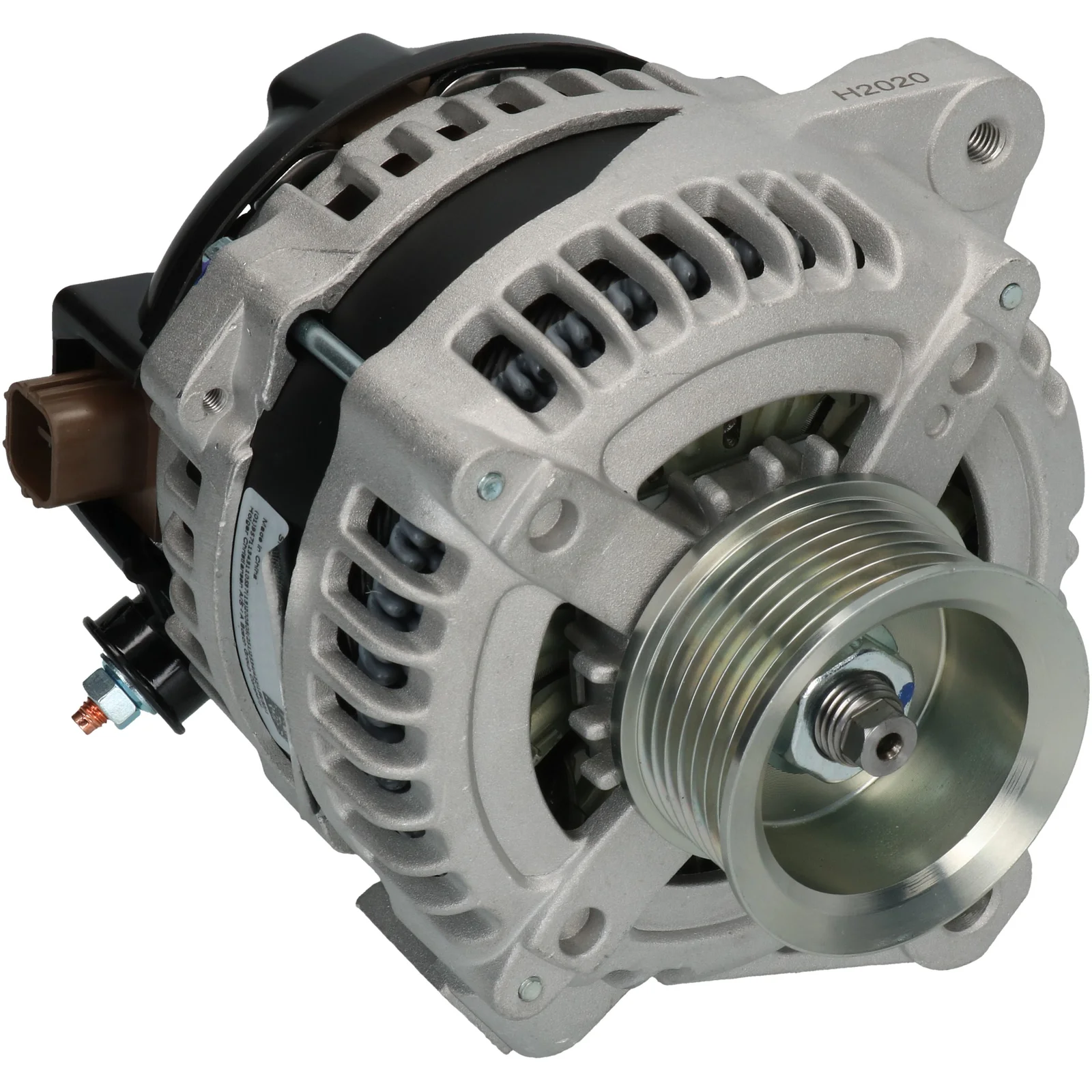

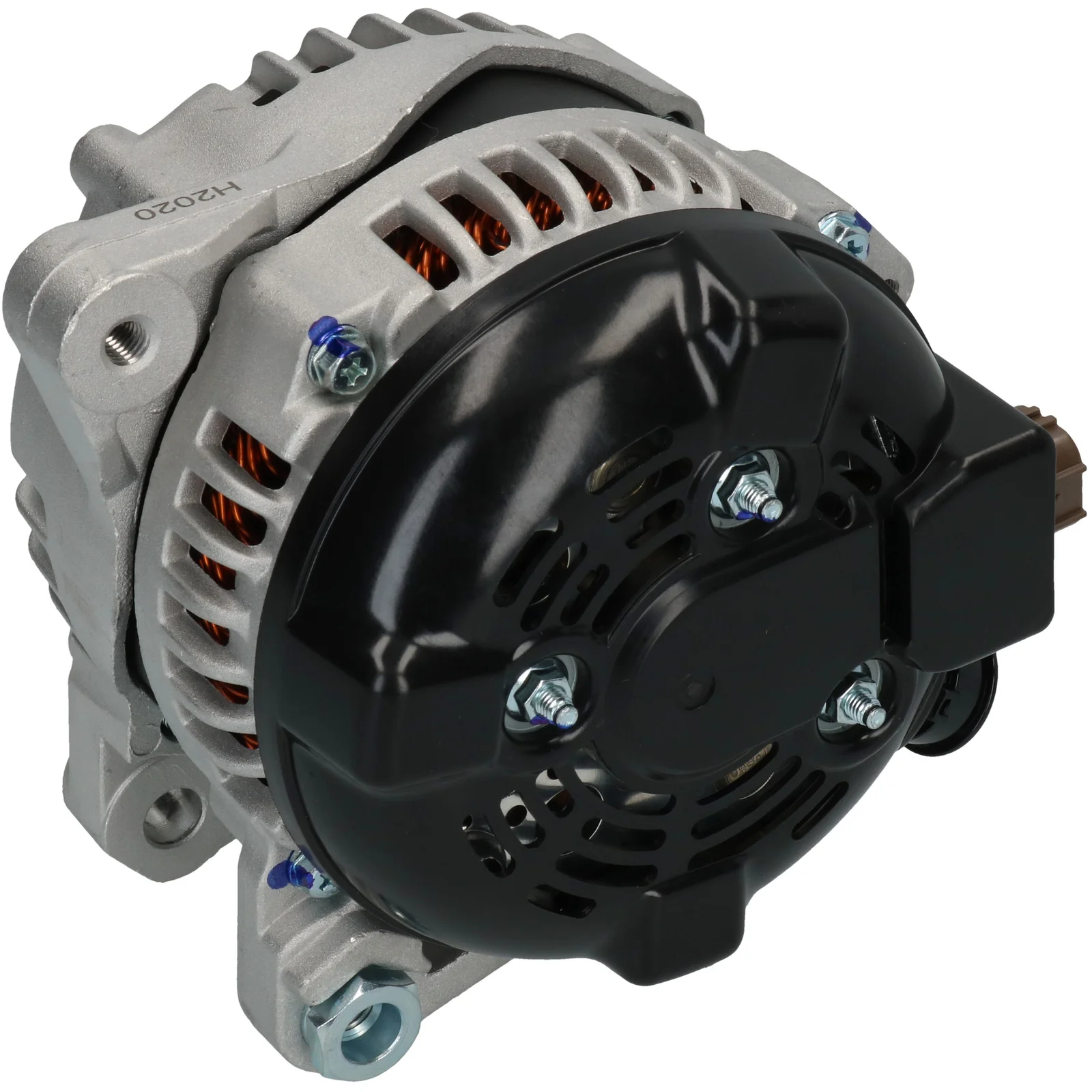

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 100, Rotasjon: CW, Montering. Bøssing avstand: 46,70

Beskrivelse

Toyota RAV4 Dynamo 12V-100A 12V - 100A, 7grader, (IG, L, RLO, M) for Yourrex produktbestilling 90-555-2833 Spenningsnivå: 14 Ampere: 100 Drevavstand: 35,60 Bredde/holderarm: 18,00 Festebrakettavstand: 46,70 Brakettåpning: 11,20 Båndjusteringsbrakettåpning pos.: 15 Båndjusteringsbrakettåpning 1: M8 Drevet diameter: 55,00 Riller/drev: 7 Radius: 84,00 Radius 2: 86,00 B+: M6 Posisjon/B+ i min.: 12 Rotasjon: CW Plugg nr.: PL146 Total lengde mm: 162,00 Kommunikasjon: RLO Drev: SP Regulatorsort: IR Service: Toyota

Spesifikasjon

B+ M6
Communication RLO
Mount. bracket dist. 46.70
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 15
Plug no. PL146
Bracket hole 11.20
Position/B+ in min. 12
Pulley SP
Pulley dia. 55.00
Pulley dist. 35.60
Radius 84.00
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 7
Voltage 14
Total length 162.00 mm
Width/holder arm 18.00
Amp 100
  • OEM

    DAN 1052, F032114246, 021080-2040, 27060-0H200, 27060-0h200, 27060-28190, 27060-28330, 104210-2190, 104210-3610, 104210-4760, 104210-4761, 104210-4762, 114246
  • Konkurrentreferens

    A6312, A6312(DENSO), CAL40316, DAN1052, DRA0659, J5112159, 28-5765, 195.951.100, 235.316.1002, 21418R, 12060953
  • Bilmärken

    Toyota
  • NormaliseratArtNr

    a6312, a6312denso, cal40316, dan1052, dra0659, f032114246, j5112159, 21418r, 114246, 270600h200, 285765, 12060953, 195951100, 0210802040, 1042102190, 1042103610, 1042104760, 1042104761, 1042104762, 2353161002, 2706028190, 2706028330
  • Passar modeller

    Toyota Model: Highlander / Kluger Model series: Highlander / Kluger Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: _U2_ Body: SUV From date: 01-09-2000 To date: 01-05-2007 Fuel: Petrol Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: ACA_, ACE_ From date: 01-02-2006 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    Toyota Series: RAV 4 III (ACA_) Model: 2.0 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 05.06-11.12
    Toyota Series: RAV 4 III (_A3_) Model: 2.0 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 02.06-12.12
  • Beskrivelse
    Toyota RAV4 Dynamo 12V-100A 12V - 100A, 7grader, (IG, L, RLO, M) for Yourrex produktbestilling 90-555-2833 Spenningsnivå: 14 Ampere: 100 Drevavstand: 35,60 Bredde/holderarm: 18,00 Festebrakettavstand: 46,70 Brakettåpning: 11,20 Båndjusteringsbrakettåpning pos.: 15 Båndjusteringsbrakettåpning 1: M8 Drevet diameter: 55,00 Riller/drev: 7 Radius: 84,00 Radius 2: 86,00 B+: M6 Posisjon/B+ i min.: 12 Rotasjon: CW Plugg nr.: PL146 Total lengde mm: 162,00 Kommunikasjon: RLO Drev: SP Regulatorsort: IR Service: Toyota
  • Spesifikasjon
    B+ M6
    Communication RLO
    Mount. bracket dist. 46.70
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 15
    Plug no. PL146
    Bracket hole 11.20
    Position/B+ in min. 12
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 35.60
    Radius 84.00
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 7
    Voltage 14
    Total length 162.00 mm
    Width/holder arm 18.00
    Amp 100
  • Kjøretøymatching
    • OEM

      DAN 1052, F032114246, 021080-2040, 27060-0H200, 27060-0h200, 27060-28190, 27060-28330, 104210-2190, 104210-3610, 104210-4760, 104210-4761, 104210-4762, 114246
    • Konkurrentreferens

      A6312, A6312(DENSO), CAL40316, DAN1052, DRA0659, J5112159, 28-5765, 195.951.100, 235.316.1002, 21418R, 12060953
    • Bilmärken

      Toyota
    • NormaliseratArtNr

      a6312, a6312denso, cal40316, dan1052, dra0659, f032114246, j5112159, 21418r, 114246, 270600h200, 285765, 12060953, 195951100, 0210802040, 1042102190, 1042103610, 1042104760, 1042104761, 1042104762, 2353161002, 2706028190, 2706028330
    • Passar modeller

      Toyota Model: Highlander / Kluger Model series: Highlander / Kluger Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: _U2_ Body: SUV From date: 01-09-2000 To date: 01-05-2007 Fuel: Petrol Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: ACA_, ACE_ From date: 01-02-2006 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
      Toyota Series: RAV 4 III (ACA_) Model: 2.0 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 05.06-11.12
      Toyota Series: RAV 4 III (_A3_) Model: 2.0 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 02.06-12.12
