HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115761

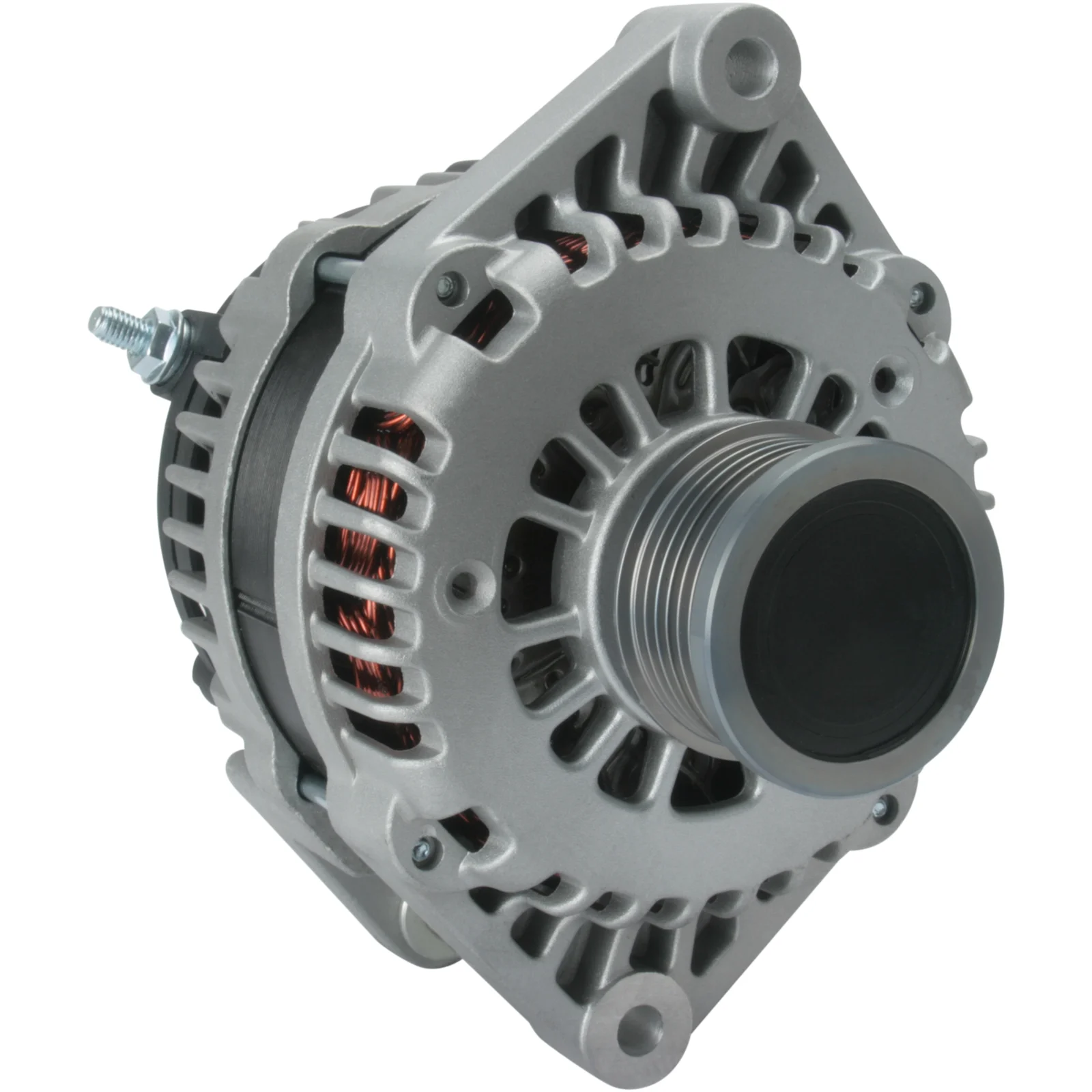

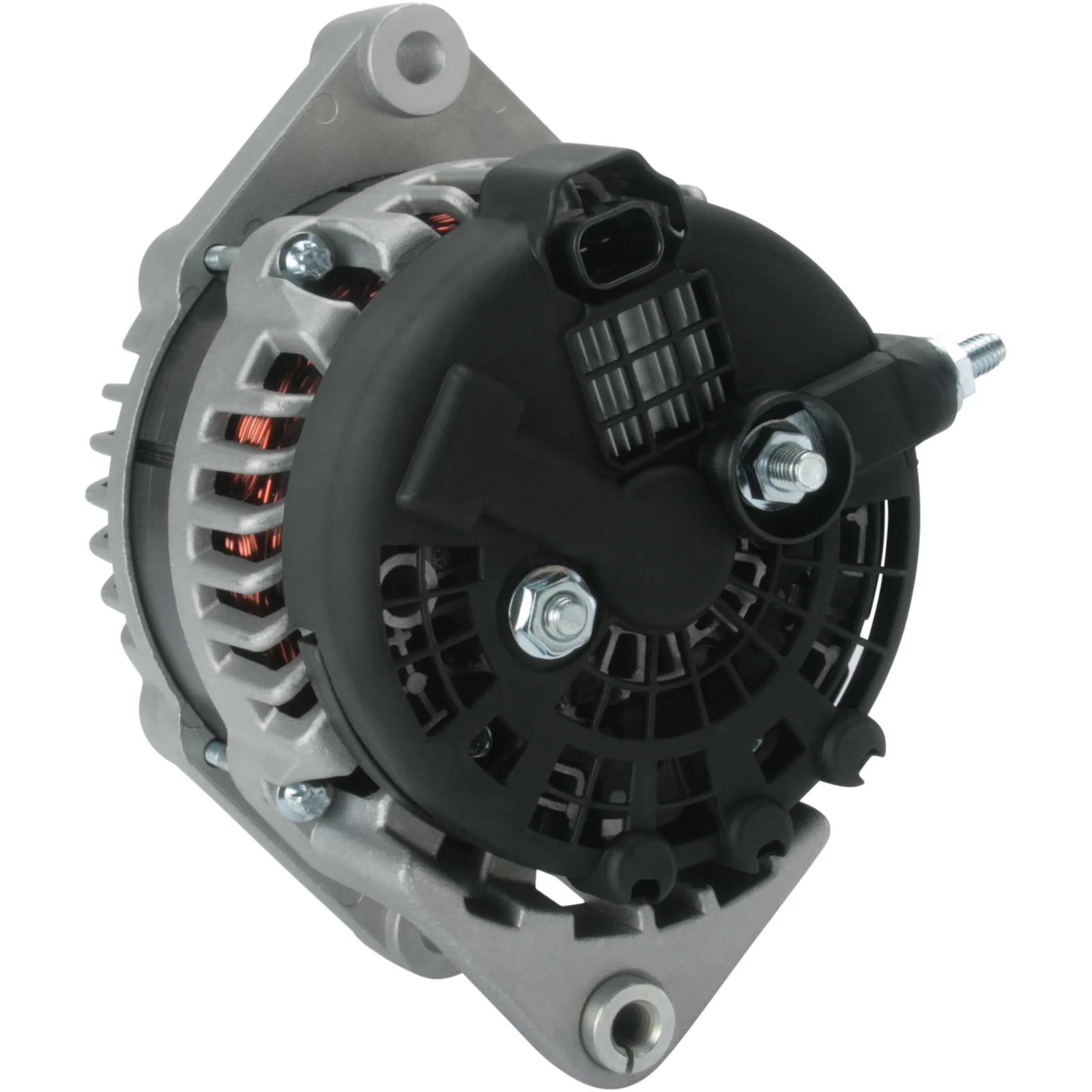

HC-Cargo Dynamo

Teknisk info:

Volt: 14, Amp: 140, Rotasjon: CW, Festebrakett avstand: 59,50

Beskrivelse

Chev/Opel Gen. 12V-140A 12V - 140A, 6r.frg For Yourex produktordre 90-200-0078

Spenning: 14
Ampere: 140
Drivreimskive avstand: 61,00
Bredde/holderarm: 24,60
Festebraketts avstand: 59,50
Brekkhull: 10,20
Belt. justering brakkekhull pos.: 1
Belt. justering brakkekhull 1: 10,40
Drivreimskivens diameter: 55,70
Riller/drivreimskive: 6
Radius: 92,00
Radius 2: 92,00
B+: M8
Posisjon/B+ i min.: 11
D+: Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL180
Total lengde mm: 188,00
Terminaltype: L-F
Kommunikasjon: PWM
Drivreimskive: SP/FW
Regulator type: IR
Prod. info: BN
Merknader: Denne Generator har en PWM-terminál på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication PWM
Mount. bracket dist. 59.50
Belt. adj. bracket hole 1 10.40
Belt. adj. brackethole pos. 1
Plug no. PL180
Bracket hole 10.20
Position/B+ in min. 11
Prod. info BN
Pulley SP/FW
Pulley dia. 55.70
Pulley dist. 61.00
Radius 92.00
D+ Size Plug
Radius 2 92.00
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 188.00 mm
Width/holder arm 24.60
Amp 140

  • OEM
    F032115761, GM 13501719, GM 13579114, GM 13580078, GM 4818330, GM 4819446, 115761, 4818330, 4819446, 13501719, 13579114, 13580078

  • Konkurrentreferens
    A1032, CAL42118, DRA1219, 28-6837, 228.196.1402, 835.919.140, 20096N, 209018, 209018A, 444251, 554204RI, 12090614

  • Bilmärken
    Chevrolet, Opel

  • NormaliseratArtNr
    a1032, cal42118, dra1219, f032115761, gm13501719, gm13579114, gm13580078, gm4818330, gm4819446, 20096n, 115761, 209018, 209018a, 286837, 444251, 554204ri, 4818330, 4819446, 12090614, 13501719, 13579114, 13580078, 835919140, 2281961402

  • Passar modeller
    Chevrolet Model: Captiva Model series: Captiva Model type: 4x4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: Z22D1 From date: 01-03-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Captiva Model series: Captiva Type of engine: Diesel Size of motor: 2.0 Brand of engine: LNP Type description: C100, C140 Body: SUV Fuel: Diesel Approved: Yes
    Chevrolet Model: Captiva Model series: Captiva Type of engine: Diesel Size of motor: 2.2 Brand of engine: LNQ Type description: C100, C140 Body: SUV Fuel: Diesel Approved: Yes
    Chevrolet Model: Captiva Model series: Captiva Type of engine: Diesel Size of motor: 2.2 Brand of engine: Z22D1 Type description: KL1C, C140 From date: 01-03-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Type of engine: CDi Size of motor: 2.0 Brand of engine: LNP Type description: J300 From date: 01-08-2010 Fuel: Diesel Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Type of engine: CDi Size of motor: 2.0 Brand of engine: Z20D1 Body: Hatchback From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Type of engine: CDi Size of motor: 2.0 Brand of engine: Z20D1 Type description: J300 From date: 01-08-2010 Fuel: Diesel Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Type of engine: TD Size of motor: 2.0 Brand of engine: LNP Type description: J308 Body: Estate From date: 01-08-2012 Fuel: Diesel Approved: Yes Manufacture type: Station Wa
    Chevrolet Model: Orlando Model series: Orlando Type of engine: VCDi Size of motor: 2.0 Brand of engine: Z20D1 Type description: KL1Y, J309 Body: MPV From date: 01-02-2011 Fuel: Diesel Approved: Yes
    Chevrolet Series: Captiva Model: 2.2 D 4WD Engine volume: 2.2 Engine type: A 22 DMH / Z 22 D1 Year: 03.11-
    Chevrolet Series: Captiva Model: 2.2 D Engine volume: 2.2 Engine type: Z 22 D1 Year: 03.11-
    Chevrolet Series: Orlando Model: 2.0 D Engine volume: 2.0 Engine type: Z 20 D1 Year: 02.11-
    Opel Model: Antara Model series: Antara Model type: 4x4 Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM From date: 01-12-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Opel Model: Antara Model series: Antara Model type: 4x4 Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DMH From date: 01-12-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Opel Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM From date: 01-12-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Opel Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM Type description: L07 Body: Closed Off-Road Vehicle From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Opel Series: Antara Model: 2.2 CDTi 4x4 Engine volume: 2.2 Engine type: A 22 DM Year: 12.10-
    Opel Series: Antara Model: 2.2 CDTi 4x4 Engine volume: 2.2 Engine type: A 22 DMH Year: 12.10-
    Opel Series: Antara Model: 2.2 CDTi Engine volume: 2.2 Engine type: A 22 DM Year: 12.10-
    Vauxhall Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM From date: 01-12-2010 Fuel: Diesel Approved: Yes
    Vauxhall Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DMH From date: 01-12-2010 Fuel: Diesel Approved: Yes
    1 / 5
  • Beskrivelse
    Chev/Opel Gen. 12V-140A 12V - 140A, 6r.frg For Yourex produktordre 90-200-0078

    Spenning: 14
    Ampere: 140
    Drivreimskive avstand: 61,00
    Bredde/holderarm: 24,60
    Festebraketts avstand: 59,50
    Brekkhull: 10,20
    Belt. justering brakkekhull pos.: 1
    Belt. justering brakkekhull 1: 10,40
    Drivreimskivens diameter: 55,70
    Riller/drivreimskive: 6
    Radius: 92,00
    Radius 2: 92,00
    B+: M8
    Posisjon/B+ i min.: 11
    D+: Størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL180
    Total lengde mm: 188,00
    Terminaltype: L-F
    Kommunikasjon: PWM
    Drivreimskive: SP/FW
    Regulator type: IR
    Prod. info: BN
    Merknader: Denne Generator har en PWM-terminál på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication PWM
    Mount. bracket dist. 59.50
    Belt. adj. bracket hole 1 10.40
    Belt. adj. brackethole pos. 1
    Plug no. PL180
    Bracket hole 10.20
    Position/B+ in min. 11
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 55.70
    Pulley dist. 61.00
    Radius 92.00
    D+ Size Plug
    Radius 2 92.00
    Regulator type IR
    Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type L-F
    Voltage 14
    Total length 188.00 mm
    Width/holder arm 24.60
    Amp 140
  • Kjøretøymatching

    • OEM
      F032115761, GM 13501719, GM 13579114, GM 13580078, GM 4818330, GM 4819446, 115761, 4818330, 4819446, 13501719, 13579114, 13580078

    • Konkurrentreferens
      A1032, CAL42118, DRA1219, 28-6837, 228.196.1402, 835.919.140, 20096N, 209018, 209018A, 444251, 554204RI, 12090614

    • Bilmärken
      Chevrolet, Opel

    • NormaliseratArtNr
      a1032, cal42118, dra1219, f032115761, gm13501719, gm13579114, gm13580078, gm4818330, gm4819446, 20096n, 115761, 209018, 209018a, 286837, 444251, 554204ri, 4818330, 4819446, 12090614, 13501719, 13579114, 13580078, 835919140, 2281961402

    • Passar modeller
      Chevrolet Model: Captiva Model series: Captiva Model type: 4x4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: Z22D1 From date: 01-03-2011 Fuel: Diesel Approved: Yes
      Chevrolet Model: Captiva Model series: Captiva Type of engine: Diesel Size of motor: 2.0 Brand of engine: LNP Type description: C100, C140 Body: SUV Fuel: Diesel Approved: Yes
      Chevrolet Model: Captiva Model series: Captiva Type of engine: Diesel Size of motor: 2.2 Brand of engine: LNQ Type description: C100, C140 Body: SUV Fuel: Diesel Approved: Yes
      Chevrolet Model: Captiva Model series: Captiva Type of engine: Diesel Size of motor: 2.2 Brand of engine: Z22D1 Type description: KL1C, C140 From date: 01-03-2011 Fuel: Diesel Approved: Yes
      Chevrolet Model: Cruze Model series: Cruze Type of engine: CDi Size of motor: 2.0 Brand of engine: LNP Type description: J300 From date: 01-08-2010 Fuel: Diesel Approved: Yes
      Chevrolet Model: Cruze Model series: Cruze Type of engine: CDi Size of motor: 2.0 Brand of engine: Z20D1 Body: Hatchback From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Chevrolet Model: Cruze Model series: Cruze Type of engine: CDi Size of motor: 2.0 Brand of engine: Z20D1 Type description: J300 From date: 01-08-2010 Fuel: Diesel Approved: Yes
      Chevrolet Model: Cruze Model series: Cruze Type of engine: TD Size of motor: 2.0 Brand of engine: LNP Type description: J308 Body: Estate From date: 01-08-2012 Fuel: Diesel Approved: Yes Manufacture type: Station Wa
      Chevrolet Model: Orlando Model series: Orlando Type of engine: VCDi Size of motor: 2.0 Brand of engine: Z20D1 Type description: KL1Y, J309 Body: MPV From date: 01-02-2011 Fuel: Diesel Approved: Yes
      Chevrolet Series: Captiva Model: 2.2 D 4WD Engine volume: 2.2 Engine type: A 22 DMH / Z 22 D1 Year: 03.11-
      Chevrolet Series: Captiva Model: 2.2 D Engine volume: 2.2 Engine type: Z 22 D1 Year: 03.11-
      Chevrolet Series: Orlando Model: 2.0 D Engine volume: 2.0 Engine type: Z 20 D1 Year: 02.11-
      Opel Model: Antara Model series: Antara Model type: 4x4 Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM From date: 01-12-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Opel Model: Antara Model series: Antara Model type: 4x4 Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DMH From date: 01-12-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Opel Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM From date: 01-12-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Opel Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM Type description: L07 Body: Closed Off-Road Vehicle From date: 01-07-2014 Fuel: Diesel Approved: Yes
      Opel Series: Antara Model: 2.2 CDTi 4x4 Engine volume: 2.2 Engine type: A 22 DM Year: 12.10-
      Opel Series: Antara Model: 2.2 CDTi 4x4 Engine volume: 2.2 Engine type: A 22 DMH Year: 12.10-
      Opel Series: Antara Model: 2.2 CDTi Engine volume: 2.2 Engine type: A 22 DM Year: 12.10-
      Vauxhall Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM From date: 01-12-2010 Fuel: Diesel Approved: Yes
      Vauxhall Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DMH From date: 01-12-2010 Fuel: Diesel Approved: Yes
