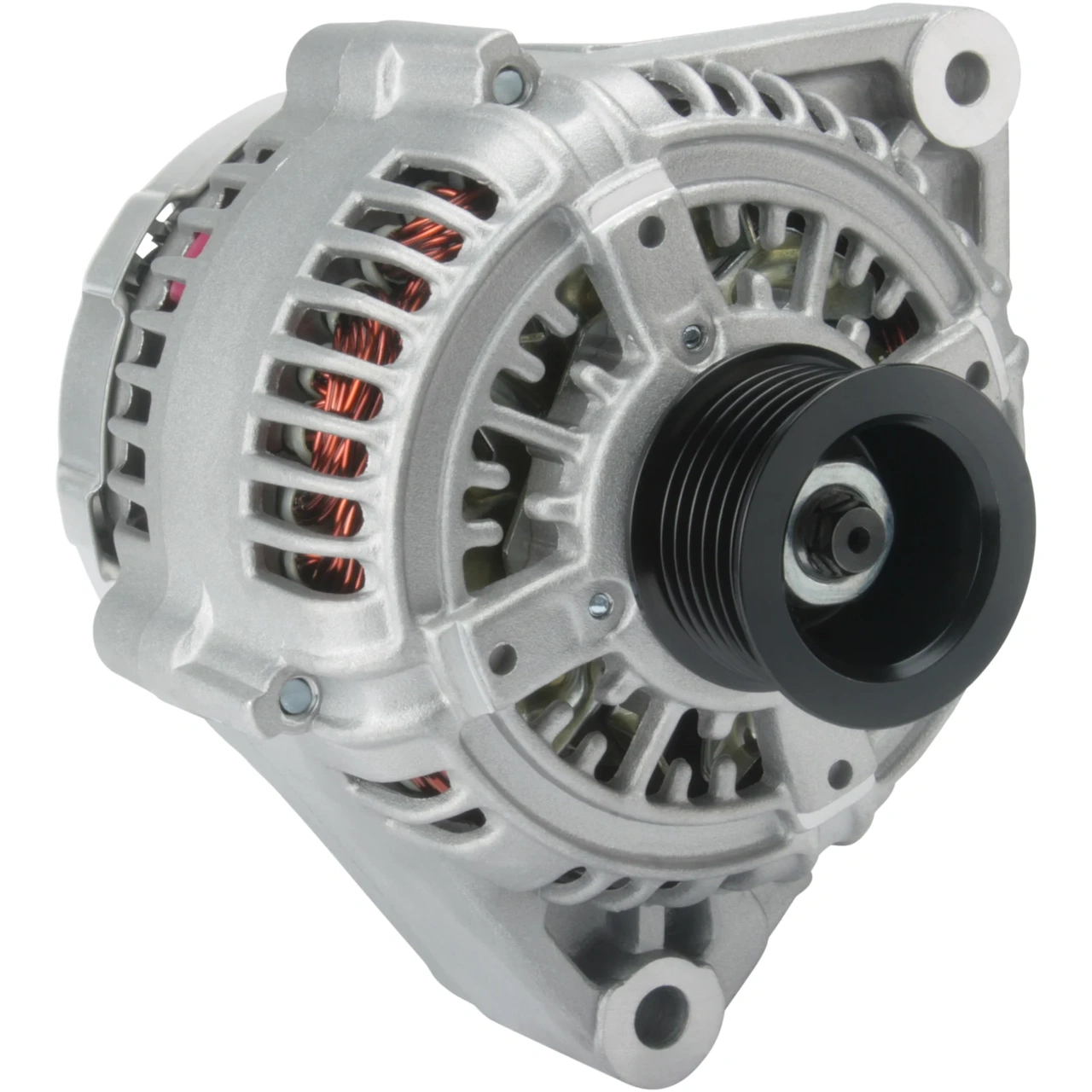

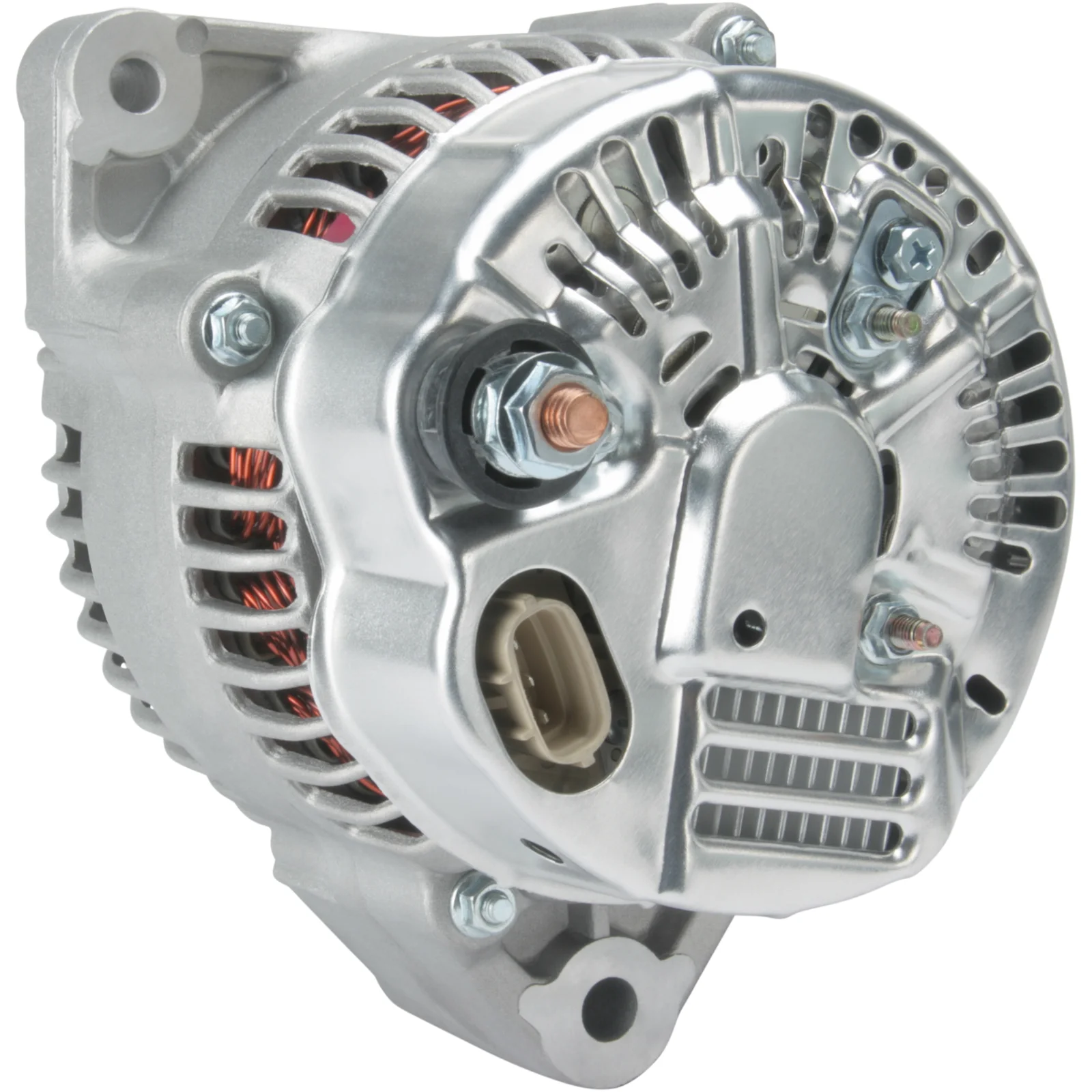

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115748

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp.: 120, Rotasjon: CW, Drivhjul diameter: 48,00

Beskrivelse

Spenningsverdi: 14
Ampere: 120
Drevkugg: 90,50
Bredde/holderarm: 58,00
Bøsninghull: 10,50
Belt. justering bøsninghull pos.: 7
Belt. justering bøsninghull 1: 8,20
Drevkugg dia.: 48,00
Riller/drevkugg: 7
Radius: 87,00
Radius 2: 86,00
B+: M8
Posisjon/B+ i min.: 50
D+-størrelse: Plugg
Rotasjon: medur
Pluggnr.: PL58
Total lengde mm: 190,00
Klemmeype: L-IG
Drevkugg: SP
Regulatortype: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 7
Plug no. PL58
Bracket hole 10.50
Position/B+ in min. 50
Prod. info BN
Pulley SP
Pulley dia. 48.00
Pulley dist. 90.50
Radius 87.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Terminal type L-IG
Voltage 14
Total length 190.00 mm
Width/holder arm 58.00
Amp 120

  • OEM
    C1800AA, F032115748, LJA1800AC, lja1800ad, LJA1800AE, 101211-7630, 101211-7631, 101211-7632, 101211-7633

  • Konkurrentreferens
    A6090, A6090(DENSO), CAL40236, DAN672, DRA0436, LRA03394, 8EL012240-891, 8EL015630-651, 28-6506, 214.172.1202, 845.507.120, 13758R, 111829, 112371, 12090309

  • NormaliseratArtNr
    a6090, a6090denso, c1800aa, cal40236, dan672, dra0436, f032115748, lja1800ac, lja1800ad, lja1800ae, lra03394, 8el012240891, 8el015630651, 13758r, 111829, 112371, 286506, 12090309, 845507120, 1012117630, 1012117631, 1012117632, 1012117633, 2141721202

  • Passar modeller
    Daimler Model: Daimler Xj Model series: Daimler Xj Model type: V8 Super 4.0 Size of motor: 4.0 Brand of engine: AJ27S Type description: X30_ Body: Saloon Fuel: Petrol Approved: Yes
    Jaguar Model: XJ Model series: XJ 8 Size of motor: 4.0 Brand of engine: BC From date: 01-07-1997 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
    Jaguar Model: XJ Model series: XJ R Size of motor: 4.0 Brand of engine: DC From date: 01-07-1997 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
    Jaguar Model: XK Model series: XK 8 Size of motor: 4.0 Brand of engine: AJ27 Type description: QEV Body: Coupe From date: 01-03-1996 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
    Jaguar Model: XK Model series: XK 8 Size of motor: 4.0 Brand of engine: CC Body: Convertible From date: 01-03-1996 To date: 01-12-2002 Fuel: Gasoline Approved: Yes Manufacture type: convertibl
    Jaguar Model: XK Model series: XK 8 Size of motor: 4.0 Brand of engine: CE Body: Convertible From date: 01-03-1996 To date: 01-12-2002 Fuel: Gasoline Approved: Yes Manufacture type: convertibl
    Jaguar Model: XK Model series: XK 8 Size of motor: 4.0 Brand of engine: CE Type description: QEV Body: Coupe From date: 01-03-1996 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
    Jaguar Model: XK Model series: XK 8 Size of motor: 4.0 Brand of engine: EC Body: Convertible From date: 01-02-1998 To date: 01-07-2005 Fuel: Gasoline Approved: Yes Manufacture type: convertibl
    Jaguar Model: XK Model series: XK Size of motor: 4.0 Brand of engine: EC Type description: QDV Body: Convertible From date: 01-05-1998 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
    Jaguar Model: XK Model series: XK Size of motor: 4.0 Brand of engine: EC Type description: QEV Body: Coupe From date: 01-05-1998 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsverdi: 14
    Ampere: 120
    Drevkugg: 90,50
    Bredde/holderarm: 58,00
    Bøsninghull: 10,50
    Belt. justering bøsninghull pos.: 7
    Belt. justering bøsninghull 1: 8,20
    Drevkugg dia.: 48,00
    Riller/drevkugg: 7
    Radius: 87,00
    Radius 2: 86,00
    B+: M8
    Posisjon/B+ i min.: 50
    D+-størrelse: Plugg
    Rotasjon: medur
    Pluggnr.: PL58
    Total lengde mm: 190,00
    Klemmeype: L-IG
    Drevkugg: SP
    Regulatortype: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 8.20
    Belt. adj. brackethole pos. 7
    Plug no. PL58
    Bracket hole 10.50
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP
    Pulley dia. 48.00
    Pulley dist. 90.50
    Radius 87.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Terminal type L-IG
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 58.00
    Amp 120
  • Kjøretøymatching

    • OEM
      C1800AA, F032115748, LJA1800AC, lja1800ad, LJA1800AE, 101211-7630, 101211-7631, 101211-7632, 101211-7633

    • Konkurrentreferens
      A6090, A6090(DENSO), CAL40236, DAN672, DRA0436, LRA03394, 8EL012240-891, 8EL015630-651, 28-6506, 214.172.1202, 845.507.120, 13758R, 111829, 112371, 12090309

    • NormaliseratArtNr
      a6090, a6090denso, c1800aa, cal40236, dan672, dra0436, f032115748, lja1800ac, lja1800ad, lja1800ae, lra03394, 8el012240891, 8el015630651, 13758r, 111829, 112371, 286506, 12090309, 845507120, 1012117630, 1012117631, 1012117632, 1012117633, 2141721202

    • Passar modeller
      Daimler Model: Daimler Xj Model series: Daimler Xj Model type: V8 Super 4.0 Size of motor: 4.0 Brand of engine: AJ27S Type description: X30_ Body: Saloon Fuel: Petrol Approved: Yes
      Jaguar Model: XJ Model series: XJ 8 Size of motor: 4.0 Brand of engine: BC From date: 01-07-1997 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
      Jaguar Model: XJ Model series: XJ R Size of motor: 4.0 Brand of engine: DC From date: 01-07-1997 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
      Jaguar Model: XK Model series: XK 8 Size of motor: 4.0 Brand of engine: AJ27 Type description: QEV Body: Coupe From date: 01-03-1996 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
      Jaguar Model: XK Model series: XK 8 Size of motor: 4.0 Brand of engine: CC Body: Convertible From date: 01-03-1996 To date: 01-12-2002 Fuel: Gasoline Approved: Yes Manufacture type: convertibl
      Jaguar Model: XK Model series: XK 8 Size of motor: 4.0 Brand of engine: CE Body: Convertible From date: 01-03-1996 To date: 01-12-2002 Fuel: Gasoline Approved: Yes Manufacture type: convertibl
      Jaguar Model: XK Model series: XK 8 Size of motor: 4.0 Brand of engine: CE Type description: QEV Body: Coupe From date: 01-03-1996 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
      Jaguar Model: XK Model series: XK 8 Size of motor: 4.0 Brand of engine: EC Body: Convertible From date: 01-02-1998 To date: 01-07-2005 Fuel: Gasoline Approved: Yes Manufacture type: convertibl
      Jaguar Model: XK Model series: XK Size of motor: 4.0 Brand of engine: EC Type description: QDV Body: Convertible From date: 01-05-1998 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
      Jaguar Model: XK Model series: XK Size of motor: 4.0 Brand of engine: EC Type description: QEV Body: Coupe From date: 01-05-1998 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
