HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115720

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 150, Rotasjon: CW, Monteringsbrakett avstand: 47.50

Beskrivelse

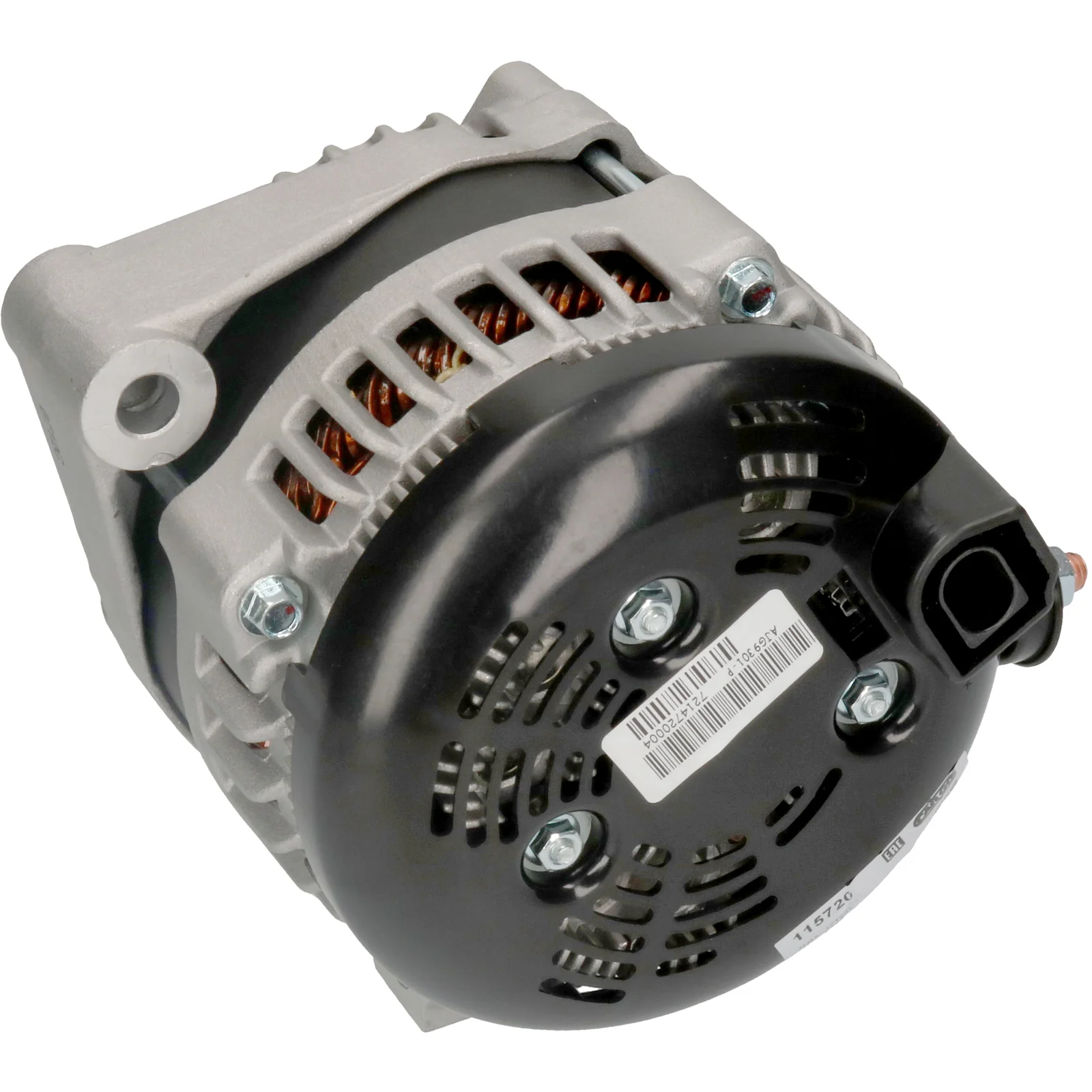

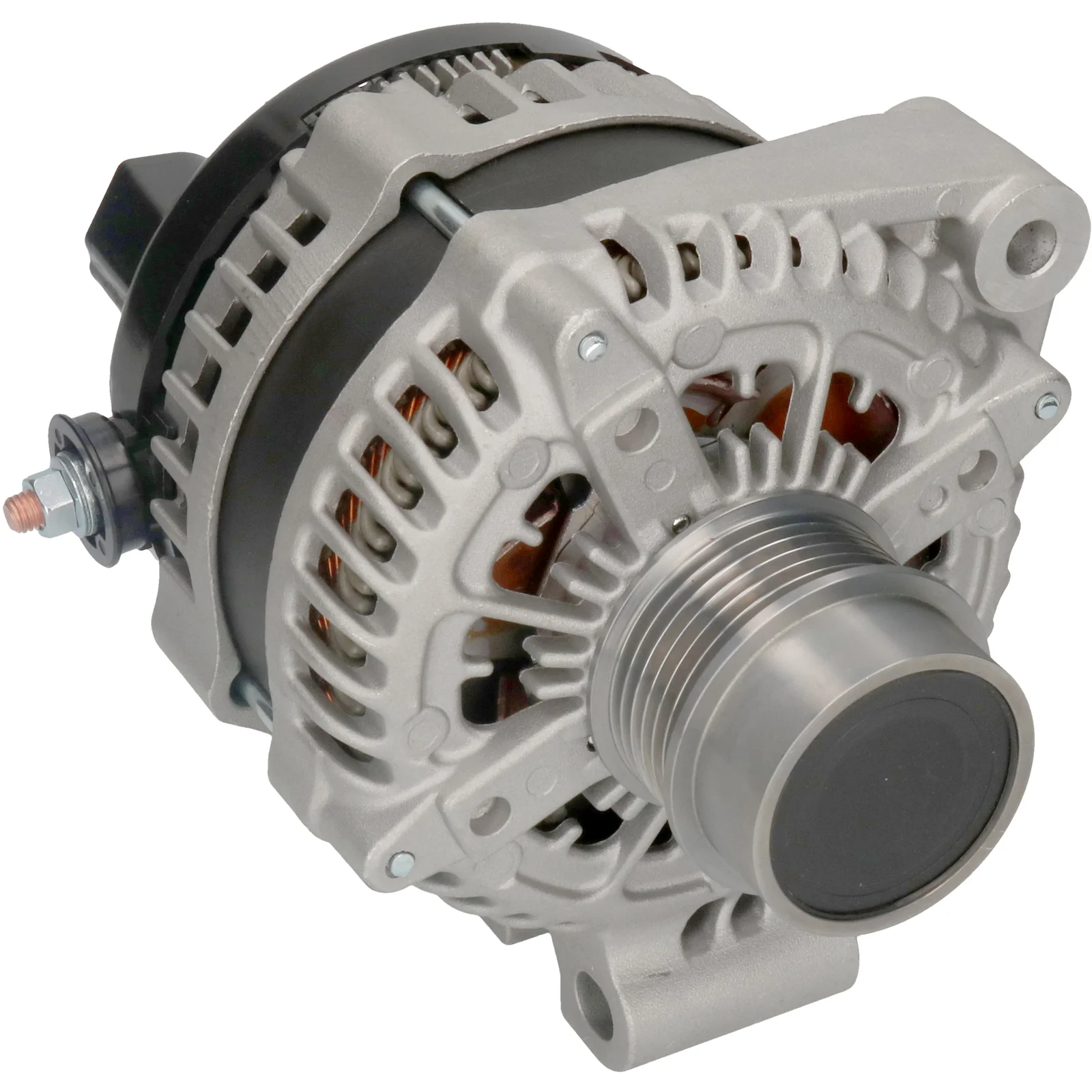

Jaguar XF Diesel Dynamo 12V-180A 12V - 180A, 6gr.frg, (LIN) ID-kode: 28 For Yourex produktbestilling 90-258-4612

Spenning: 14
Ampere: 150
Drivreim hullavstand: 22.00
Bredde/remhåndtak: 50.00
Monteringsbrakett avstand: 47.50
Bracketthull: 14.00
Båndjusteringsbrakett hull posisjon: 9
Båndjusteringsbrakett hull 1: 10.50
Drivreimsdiameter: 57.50
Groovene/drivreim: 6
Radius: 84.00
Radius 2: 86.00
B+: M8
Posisjon/B+ i min.: 15
Rotasjon: medurs
Kontakt nr.: PL174
Total lengde mm: 198.00
Terminaltype: COM
ID-kode: 28
Kommunikasjon: LIN
Drivreim: SP/FW
Regul. type: IR
Prod. info: BN
Anmerkninger: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 47.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 9
Plug no. PL174
Bracket hole 14.00
Position/B+ in min. 15
Prod. info BN
Pulley SP/FW
Pulley dia. 57.50
Pulley dist. 22.00
Radius 84.00
Radius 2 86.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
ID Code 28
Terminal type COM
Voltage 14
Total length 198.00 mm
Width/holder arm 50.00
Amp 150

  • OEM
    C2D2661, C2Z-3415, C2Z31670, C2Z3415, F032115720, 8X23-10300CB, 8X2310300CB, 104210-6120, 115720

  • Konkurrentreferens
    A6348, CAL40443, DRA0964, LRA03641, 8EL015630-731, 28-6781, 214.180.1202, 845.512.150, 20139N, 20139N-OS, 113487, 12090622, 12090936, 32010003

  • Bilmärken
    Jaguar

  • NormaliseratArtNr
    a6348, c2d2661, c2z31670, c2z3415, cal40443, dra0964, f032115720, lra03641, 8el015630731, 8x2310300cb, 20139n, 20139nos, 113487, 115720, 286781, 12090622, 12090936, 32010003, 845512150, 1042106120, 2141801202

  • Passar modeller
    Jaguar Model: XF Model series: XF Sportbrake Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Body: Estate From date: 01-09-2012 To date: 01-04-2014 Fuel: Diesel Approved: Yes
    Jaguar Model: XF Model series: XF Sportbrake Type of engine: Diesel Size of motor: 3.0 Brand of engine: AJV6D Body: Estate From date: 01-09-2012 To date: 01-04-2014 Fuel: Diesel Approved: Yes
    Jaguar Model: XF Model series: XF Type of engine: Diesel Size of motor: 2.7 Brand of engine: AJD From date: 01-03-2008 To date: 01-04-2015 Fuel: Diesel Approved: Yes
    Jaguar Model: XF Model series: XF Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT From date: 01-03-2009 To date: 01-04-2015 Fuel: Diesel Approved: Yes
    Jaguar Model: XF Model series: XF Type of engine: Diesel Size of motor: 3.0 Brand of engine: AJV6D From date: 01-03-2009 To date: 01-04-2015 Fuel: Diesel Approved: Yes
    Jaguar Series: XF Model: 2.7 D Engine volume: 2.7 Engine type: AJD Year: 03.08-04.15
    Jaguar Series: XF Model: 3.0 D Engine volume: 3.0 Engine type: AJV 6D Year: 03.09-04.15
    Jaguar Series: XF Model: 3.0 D Engine volume: 3.0 Year: 03.09-04.15
    Jaguar Series: XF Sportbake Model: 3.0 D Engine volume: 3.0 Year: 09.12-
