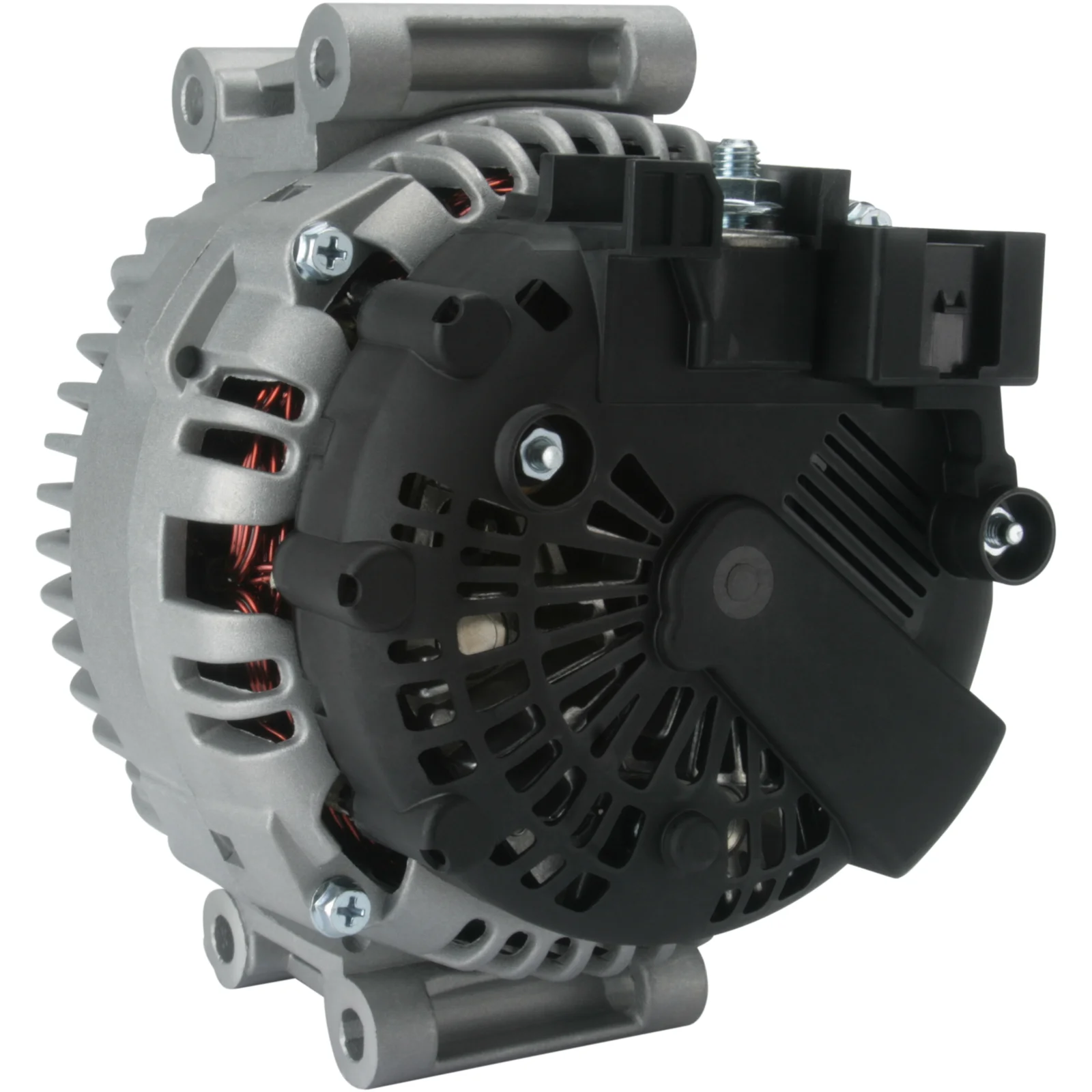

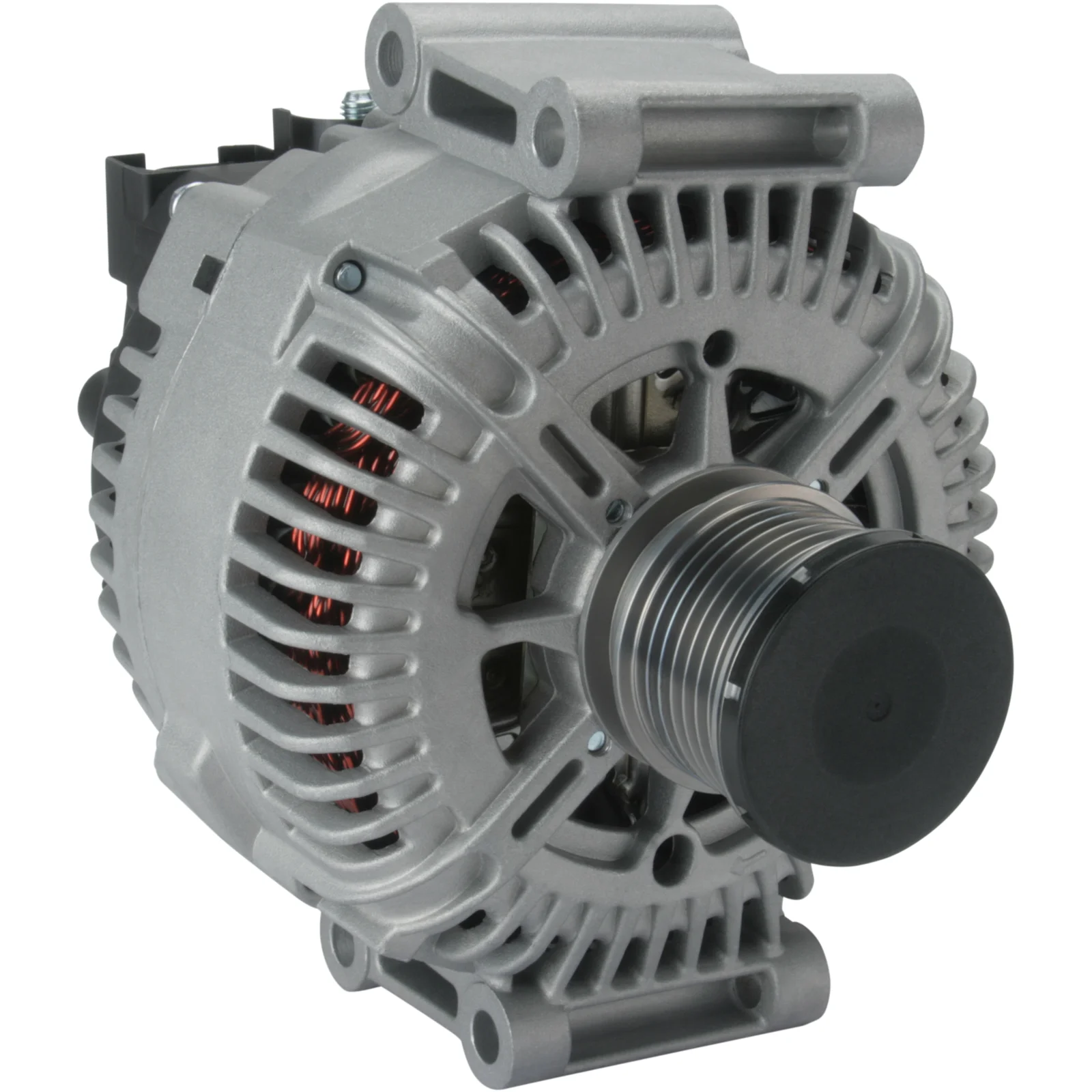

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114832

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 180, Rotasjon: CW, Monteringsbrakett avstand: 56,00

Beskrivelse

Chrysler Diesel Dyn. 12V-180A 12V - 180A, 7gr.frg, (COM) for Yourex produktordre 90-095-6808 Spenning: 14
Ampere: 180
•hjulavstand: 31.00
Bredde/beslagarm: 70.00
Monteringsbøye avstand: 56.00
Bøyehull: 9.00
Belte-justeringshull 1: 9.00
Hjuldiameter: 50.00
Groover/hjul: 7
Radius: 81.50
Radius 2: 81.50
B+: M8
Posisjon/B+ i min.: 30
Rotasjon: CW
Plugg nr.: PL125
Total lengde mm: 200.00
Terminals type: COM
Kommunikasjon: LIN
Hjul: SP/FW
Regulators type: IR
Prod. info: BN
Merknader: Denne Generator har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.00
Plug no. PL125
Bracket hole 9.00
Position/B+ in min. 30
Prod. info BN
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 31.00
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 200.00 mm
Width/holder arm 70.00
Amp 180

  • OEM
    F032114832, TG17C 026, TG17C026, 114832, 440037, 2542845, 2542845A, 04896808 AA, 04896808 AB, 04896808AA, 04896808AB, 04896808AC, 4896808AB, 04996808AA, 04996808AC

  • Konkurrentreferens
    a3199, A3199(VALEO), CAL15339, DRA0396, LRA03165, 28-5777, 835.527.180, 20122, 20122N, 112699, 439579, 440037, 12090300

  • Bilmärken
    Chrysler

  • NormaliseratArtNr
    a3199, a3199valeo, cal15339, dra0396, f032114832, lra03165, tg17c026, 20122, 20122n, 112699, 114832, 285777, 439579, 440037, 2542845, 2542845a, 04896808aa, 04896808ab, 04896808ac, 4896808ab, 04996808aa, 04996808ac, 12090300, 835527180

  • Passar modeller
    Beijing Benz (BBDC) Model: 300 Model series: 300 C Size of motor: 2.7 Brand of engine: EER From date: 01-10-2006 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Beijing Benz (BBDC) Model: 300 Model series: 300 C Size of motor: 3.5 Brand of engine: EGG From date: 01-10-2006 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Beijing Benz (BBDC) Model: 300 Model series: 300 C Size of motor: 5.7 Brand of engine: EZB From date: 01-10-2006 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
    Chrysler Model: 300 C Model series: 300 C Size of motor: 2.7 Brand of engine: EES Body: Estate From date: 01-01-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    Chrysler Model: 300 C Model series: 300 C Size of motor: 2.7 Brand of engine: EES From date: 01-01-2007 To date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Chrysler Model: 300 Model series: 300 C Model type: AWD Size of motor: 3.5 Brand of engine: 3.5CSP Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    Chrysler Model: 300 Model series: 300 C Model type: AWD Size of motor: 3.5 Brand of engine: EGG Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    Chrysler Model: 300 Model series: 300 C Model type: AWD Size of motor: 5.7 Brand of engine: EZB Body: Estate From date: 01-04-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    Chrysler Model: 300 Model series: 300 C Model type: AWD Size of motor: 5.7 Brand of engine: EZH Body: Estate From date: 01-04-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    Chrysler Model: 300 Model series: 300 C Model type: SRT8 Size of motor: 6.1 Brand of engine: ESF Body: Estate From date: 01-06-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    Chrysler Model: 300 Model series: 300 C Model type: SRT8 Size of motor: 6.1 Brand of engine: ESF From date: 01-06-2005 To date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Chrysler Model: 300 Model series: 300 C Size of motor: 2.7 Brand of engine: 2.7FX Type description: LX Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    Chrysler Model: 300 Model series: 300 C Size of motor: 2.7 Brand of engine: EER From date: 01-09-2004 To date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Chrysler Model: 300 Model series: 300 C Size of motor: 2.7 Brand of engine: EER Type description: LX Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    Chrysler Model: 300 Model series: 300 C Size of motor: 3.5 Brand of engine: 3.5CSP Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    Chrysler Model: 300 Model series: 300 C Size of motor: 3.5 Brand of engine: EGG Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    Chrysler Model: 300 Model series: 300 C Size of motor: 3.5 Brand of engine: EGG From date: 01-09-2004 To date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Chrysler Model: 300 Model series: 300 C Size of motor: 5.7 Brand of engine: EZB Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    Chrysler Model: 300 Model series: 300 C Size of motor: 5.7 Brand of engine: EZB From date: 01-09-2004 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Chrysler Model: 300 Model series: 300 C Size of motor: 5.7 Brand of engine: EZD Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    Chrysler Model: 300 Model series: 300 C Size of motor: 5.7 Brand of engine: EZH Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    Chrysler Model: 300 Model series: 300 C Type of engine: CRD Size of motor: 3.0 Brand of engine: EXL Body: Estate From date: 01-09-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes Manufacture type: touring
    Chrysler Model: 300 Model series: 300 C Type of engine: CRD Size of motor: 3.0 Brand of engine: EXL From date: 01-09-2005 To date: 01-11-2012 Fuel: Diesel Approved: Yes
    Chrysler Series: 300 C Model: 3.0 CRD Engine volume: 3.0 Year: 09.05-
    Chrysler Series: 300 C Touring Model: 3.0 CRD Engine volume: 3.0 Engine type: M 664 Year: 09.05-
    1 / 5
  • Beskrivelse
    Chrysler Diesel Dyn. 12V-180A 12V - 180A, 7gr.frg, (COM) for Yourex produktordre 90-095-6808 Spenning: 14
    Ampere: 180
    •hjulavstand: 31.00
    Bredde/beslagarm: 70.00
    Monteringsbøye avstand: 56.00
    Bøyehull: 9.00
    Belte-justeringshull 1: 9.00
    Hjuldiameter: 50.00
    Groover/hjul: 7
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Posisjon/B+ i min.: 30
    Rotasjon: CW
    Plugg nr.: PL125
    Total lengde mm: 200.00
    Terminals type: COM
    Kommunikasjon: LIN
    Hjul: SP/FW
    Regulators type: IR
    Prod. info: BN
    Merknader: Denne Generator har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.00
    Plug no. PL125
    Bracket hole 9.00
    Position/B+ in min. 30
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 31.00
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 200.00 mm
    Width/holder arm 70.00
    Amp 180
  • Kjøretøymatching

    • OEM
      F032114832, TG17C 026, TG17C026, 114832, 440037, 2542845, 2542845A, 04896808 AA, 04896808 AB, 04896808AA, 04896808AB, 04896808AC, 4896808AB, 04996808AA, 04996808AC

    • Konkurrentreferens
      a3199, A3199(VALEO), CAL15339, DRA0396, LRA03165, 28-5777, 835.527.180, 20122, 20122N, 112699, 439579, 440037, 12090300

    • Bilmärken
      Chrysler

    • NormaliseratArtNr
      a3199, a3199valeo, cal15339, dra0396, f032114832, lra03165, tg17c026, 20122, 20122n, 112699, 114832, 285777, 439579, 440037, 2542845, 2542845a, 04896808aa, 04896808ab, 04896808ac, 4896808ab, 04996808aa, 04996808ac, 12090300, 835527180

    • Passar modeller
      Beijing Benz (BBDC) Model: 300 Model series: 300 C Size of motor: 2.7 Brand of engine: EER From date: 01-10-2006 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
      Beijing Benz (BBDC) Model: 300 Model series: 300 C Size of motor: 3.5 Brand of engine: EGG From date: 01-10-2006 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
      Beijing Benz (BBDC) Model: 300 Model series: 300 C Size of motor: 5.7 Brand of engine: EZB From date: 01-10-2006 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
      Chrysler Model: 300 C Model series: 300 C Size of motor: 2.7 Brand of engine: EES Body: Estate From date: 01-01-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: Touring
      Chrysler Model: 300 C Model series: 300 C Size of motor: 2.7 Brand of engine: EES From date: 01-01-2007 To date: 01-11-2012 Fuel: Gasoline Approved: Yes
      Chrysler Model: 300 Model series: 300 C Model type: AWD Size of motor: 3.5 Brand of engine: 3.5CSP Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
      Chrysler Model: 300 Model series: 300 C Model type: AWD Size of motor: 3.5 Brand of engine: EGG Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
      Chrysler Model: 300 Model series: 300 C Model type: AWD Size of motor: 5.7 Brand of engine: EZB Body: Estate From date: 01-04-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
      Chrysler Model: 300 Model series: 300 C Model type: AWD Size of motor: 5.7 Brand of engine: EZH Body: Estate From date: 01-04-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
      Chrysler Model: 300 Model series: 300 C Model type: SRT8 Size of motor: 6.1 Brand of engine: ESF Body: Estate From date: 01-06-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
      Chrysler Model: 300 Model series: 300 C Model type: SRT8 Size of motor: 6.1 Brand of engine: ESF From date: 01-06-2005 To date: 01-11-2012 Fuel: Gasoline Approved: Yes
      Chrysler Model: 300 Model series: 300 C Size of motor: 2.7 Brand of engine: 2.7FX Type description: LX Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
      Chrysler Model: 300 Model series: 300 C Size of motor: 2.7 Brand of engine: EER From date: 01-09-2004 To date: 01-11-2012 Fuel: Gasoline Approved: Yes
      Chrysler Model: 300 Model series: 300 C Size of motor: 2.7 Brand of engine: EER Type description: LX Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
      Chrysler Model: 300 Model series: 300 C Size of motor: 3.5 Brand of engine: 3.5CSP Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
      Chrysler Model: 300 Model series: 300 C Size of motor: 3.5 Brand of engine: EGG Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
      Chrysler Model: 300 Model series: 300 C Size of motor: 3.5 Brand of engine: EGG From date: 01-09-2004 To date: 01-11-2012 Fuel: Gasoline Approved: Yes
      Chrysler Model: 300 Model series: 300 C Size of motor: 5.7 Brand of engine: EZB Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
      Chrysler Model: 300 Model series: 300 C Size of motor: 5.7 Brand of engine: EZB From date: 01-09-2004 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
      Chrysler Model: 300 Model series: 300 C Size of motor: 5.7 Brand of engine: EZD Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
      Chrysler Model: 300 Model series: 300 C Size of motor: 5.7 Brand of engine: EZH Body: Estate From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
      Chrysler Model: 300 Model series: 300 C Type of engine: CRD Size of motor: 3.0 Brand of engine: EXL Body: Estate From date: 01-09-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes Manufacture type: touring
      Chrysler Model: 300 Model series: 300 C Type of engine: CRD Size of motor: 3.0 Brand of engine: EXL From date: 01-09-2005 To date: 01-11-2012 Fuel: Diesel Approved: Yes
      Chrysler Series: 300 C Model: 3.0 CRD Engine volume: 3.0 Year: 09.05-
      Chrysler Series: 300 C Touring Model: 3.0 CRD Engine volume: 3.0 Engine type: M 664 Year: 09.05-
      1 / 5
