HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116297

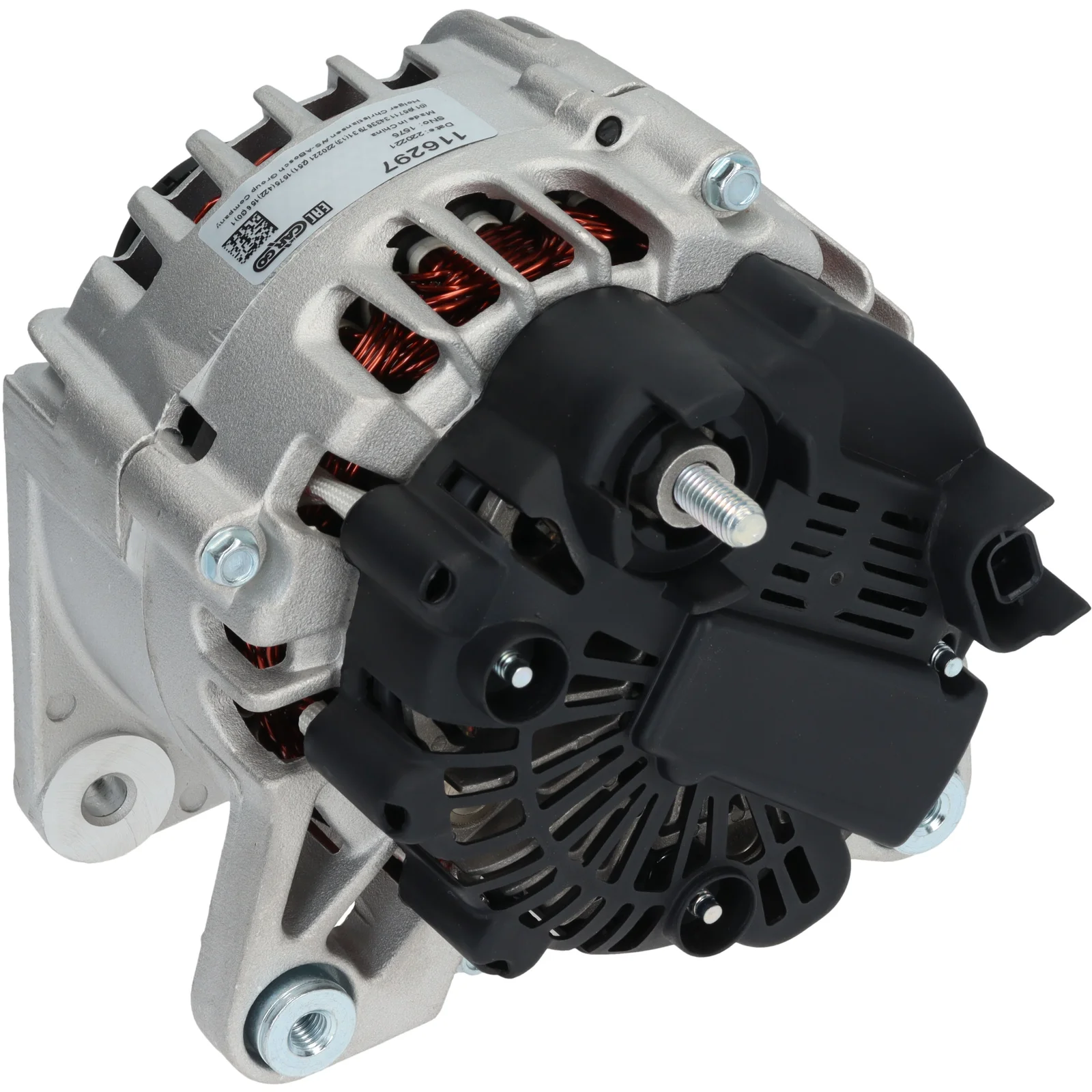

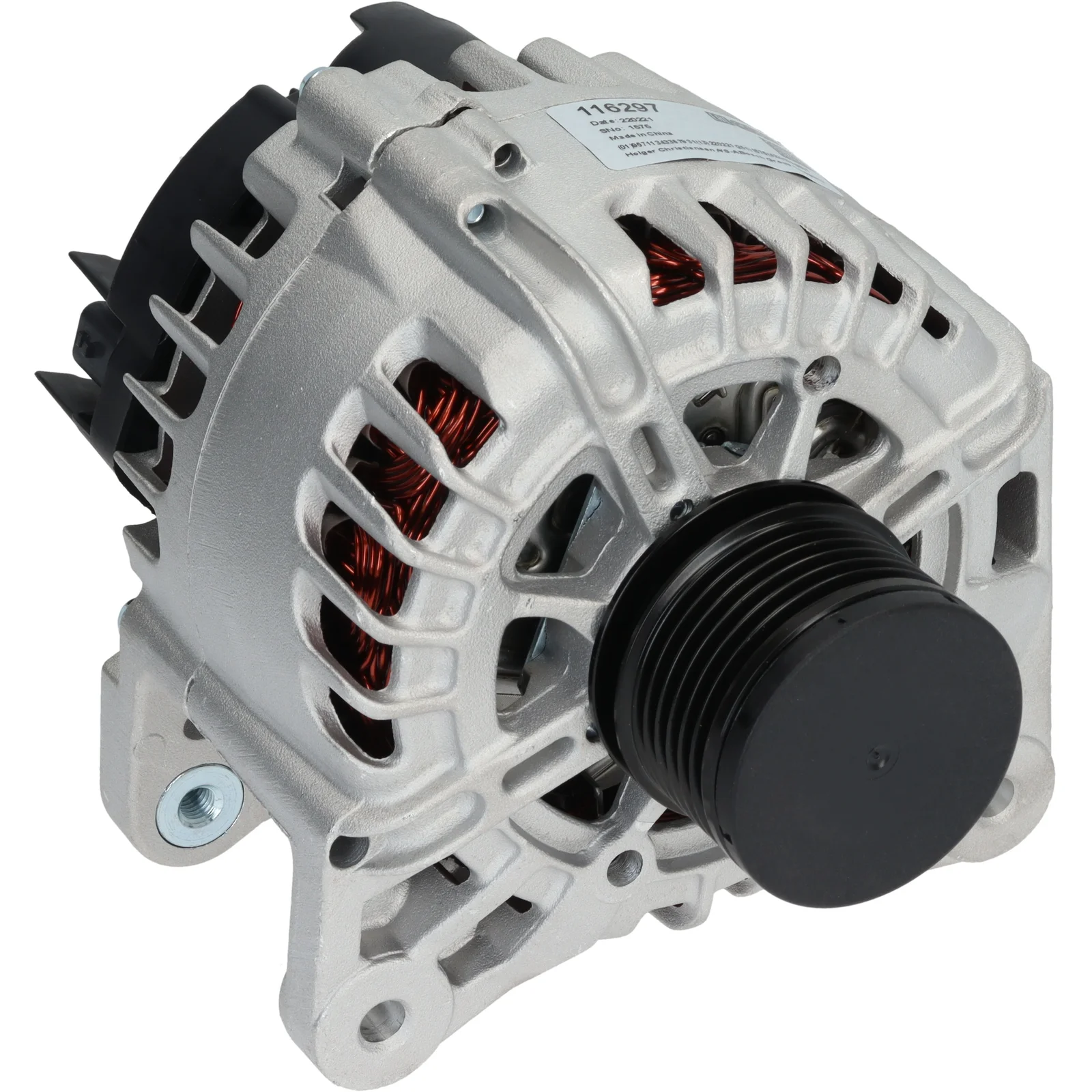

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 150, Rotasjon: CW, Monteringsfeste avstand: 60,50

Beskrivelse

Spenningsnivå: 14
Ampere: 150
Skrueavstand: 38,50
Bredde/holderarm: 14,00
Festebrakettavstand: 60,50
Brenne: 8,50
Båndjustering brakketunnelposisjon: 45
Båndjustering brakketunnel hull 1: 8,50
Båndjustering brakketunnel hull 2: M8
Skrueavstand: 55,00
Grovspor/skrue: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 53
Rotasjon: CW
Propp nr.: PL132
Total lengde mm: 193,00
Kabelterminaltype: COM
ID-kode: 17
Kommunikasjon: LIN
Skrue: SP/FW
Regulator type: IR
Merknader: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 8.50
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 45
Plug no. PL132
Bracket hole 8.50
Position/B+ in min. 53
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 38.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
ID Code 17
Terminal type COM
Voltage 14
Total length 193.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    F032116297, FG15T057, 23100-7281R, 2612717A, 231007281R, 231007281RA

  • Konkurrentreferens
    A3561S, CAL15032, DRA1491, 8EL011713-591, 28-6842, 230.357.1502, 575.958.150, 20608N, 20608N-OE, 209545, 209545A, 439834, 440559, 554409RI, 12090781, 32440559

  • NormaliseratArtNr
    a3561s, cal15032, dra1491, f032116297, fg15t057, 8el011713591, 20608n, 20608noe, 209545, 209545a, 286842, 439834, 440559, 554409ri, 2612717a, 12090781, 32440559, 231007281r, 231007281ra, 575958150, 2303571502

  • Passar modeller
    Renault Model: Clio Model series: Clio Grandtour Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Estate From date: 01-06-2016 Fuel: Diesel Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Grandtour Model type: 75 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K612 Type description: KH_ Body: Van From date: 01-01-2014 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Grandtour Model type: 90 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K608 Type description: KH_ Body: Van From date: 01-01-2014 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Model type: dCi (BHM6) Type of engine: dci Size of motor: 1.5 Brand of engine: K9K838 Type description: BH_ Body: Hatchback Fuel: Diesel Approved: Yes
    Renault Model: Dokker Model series: Dokker Model type: dci Type of engine: dci Size of motor: 1.5 Brand of engine: K9K612 Body: Van Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningsnivå: 14
    Ampere: 150
    Skrueavstand: 38,50
    Bredde/holderarm: 14,00
    Festebrakettavstand: 60,50
    Brenne: 8,50
    Båndjustering brakketunnelposisjon: 45
    Båndjustering brakketunnel hull 1: 8,50
    Båndjustering brakketunnel hull 2: M8
    Skrueavstand: 55,00
    Grovspor/skrue: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Posisjon/B+ i min.: 53
    Rotasjon: CW
    Propp nr.: PL132
    Total lengde mm: 193,00
    Kabelterminaltype: COM
    ID-kode: 17
    Kommunikasjon: LIN
    Skrue: SP/FW
    Regulator type: IR
    Merknader: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 60.50
    Belt. adj. bracket hole 1 8.50
    Belt. adj. bracket hole 2 M8
    Belt. adj. brackethole pos. 45
    Plug no. PL132
    Bracket hole 8.50
    Position/B+ in min. 53
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 38.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    ID Code 17
    Terminal type COM
    Voltage 14
    Total length 193.00 mm
    Width/holder arm 14.00
    Amp 150
  • Kjøretøymatching

    • OEM
      F032116297, FG15T057, 23100-7281R, 2612717A, 231007281R, 231007281RA

    • Konkurrentreferens
      A3561S, CAL15032, DRA1491, 8EL011713-591, 28-6842, 230.357.1502, 575.958.150, 20608N, 20608N-OE, 209545, 209545A, 439834, 440559, 554409RI, 12090781, 32440559

    • NormaliseratArtNr
      a3561s, cal15032, dra1491, f032116297, fg15t057, 8el011713591, 20608n, 20608noe, 209545, 209545a, 286842, 439834, 440559, 554409ri, 2612717a, 12090781, 32440559, 231007281r, 231007281ra, 575958150, 2303571502

    • Passar modeller
      Renault Model: Clio Model series: Clio Grandtour Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Estate From date: 01-06-2016 Fuel: Diesel Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Grandtour Model type: 75 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K612 Type description: KH_ Body: Van From date: 01-01-2014 Fuel: Diesel Approved: Yes
      Renault Model: Clio Model series: Clio Grandtour Model type: 90 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K608 Type description: KH_ Body: Van From date: 01-01-2014 Fuel: Diesel Approved: Yes
      Renault Model: Clio Model series: Clio Model type: dCi (BHM6) Type of engine: dci Size of motor: 1.5 Brand of engine: K9K838 Type description: BH_ Body: Hatchback Fuel: Diesel Approved: Yes
      Renault Model: Dokker Model series: Dokker Model type: dci Type of engine: dci Size of motor: 1.5 Brand of engine: K9K612 Body: Van Fuel: Diesel Approved: Yes
