HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116364

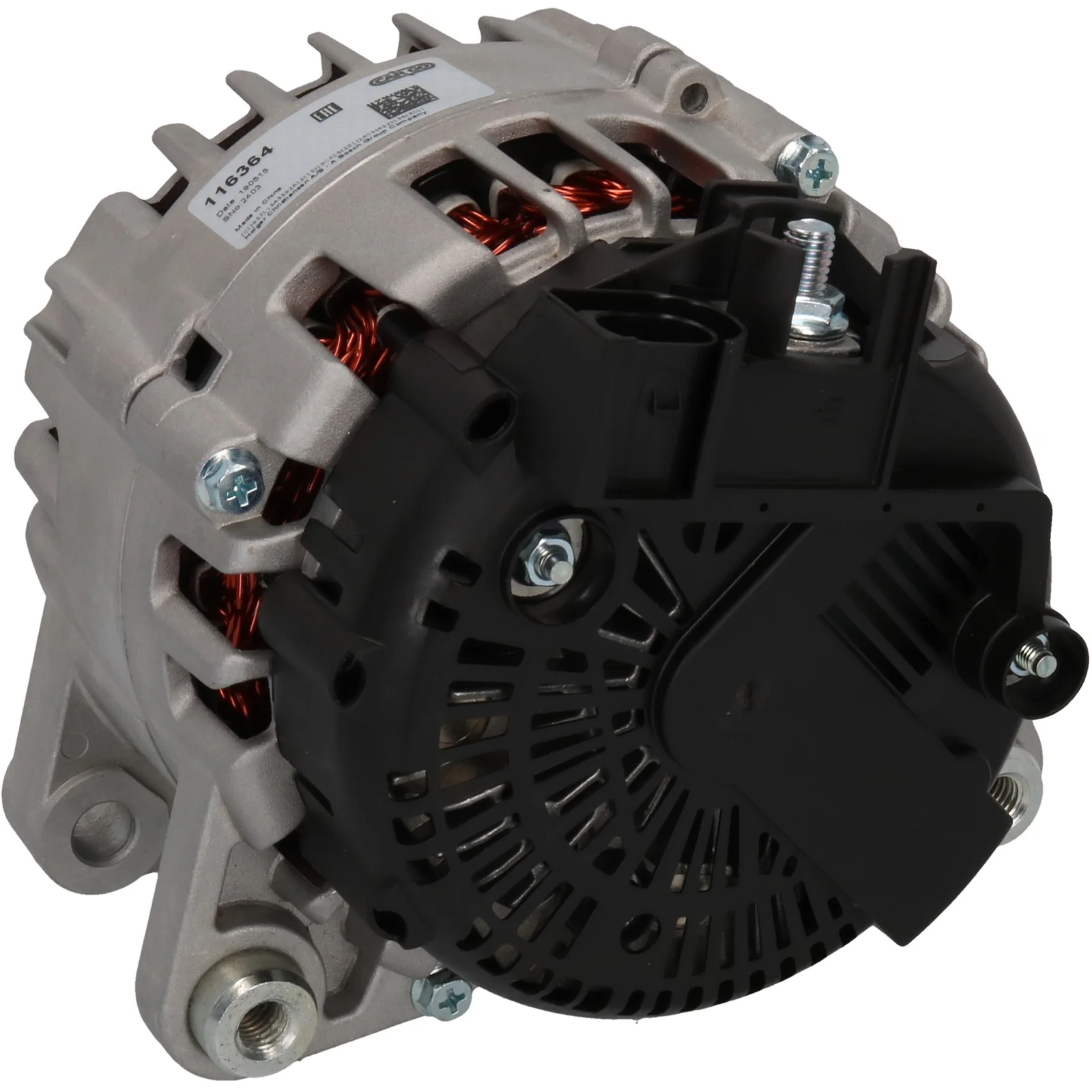

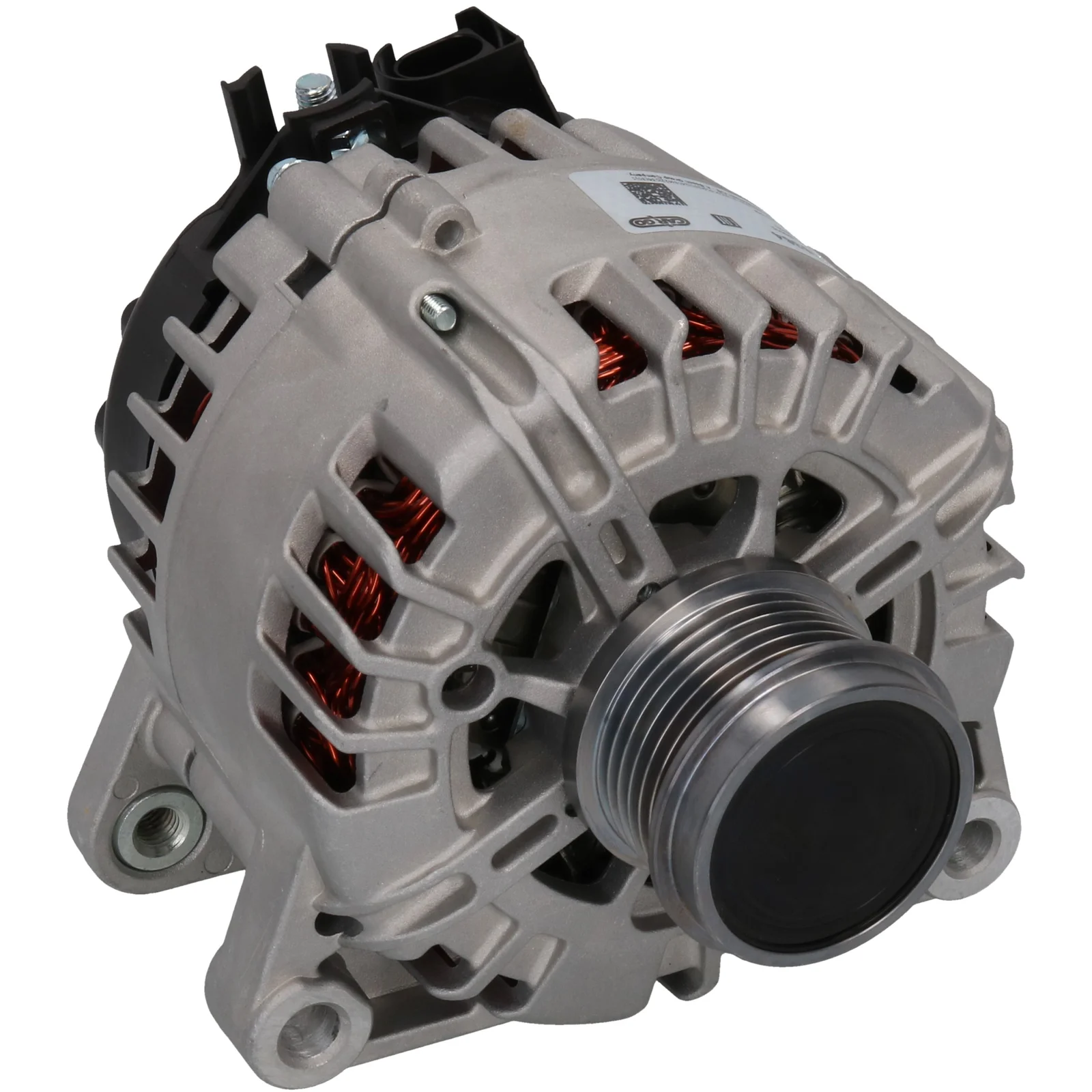

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 150, Rotasjon: CW, Monteringsholderavstand: 48.50

Beskrivelse

Spenning: 14
Amp: 150
Plateverkets avstand: 42,50
Bredde/holderarm: 21,00
Festebrakett avstand: 48,50
Brakettbolt: 11,20
Belteskjørt justering brakket bolthull pos.: 47
Belteskjørt justering brakket hull 1: 11,20
Platediameter: 53,50
Riller/plate: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 54
D+ Størrelse: M5
Rotasjon: Vridehøyre
Stikkontakt nr.: PL174
Total lengde mm: 193,00
Terminaltype: COM
Kommunikasjon: LIN
Plateverk: SP/FW
Vifte: IF
Merknader: Denne Regulator har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 48.50
Belt. adj. bracket hole 1 11.20
Belt. adj. brackethole pos. 47
Plug no. PL174
Bracket hole 11.20
Position/B+ in min. 54
Pulley SP/FW
Pulley dia. 53.50
Pulley dist. 42.50
Radius 90.00
D+ Size M5
Radius 2 90.00
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 193.00 mm
Width/holder arm 21.00
Amp 150

  • OEM
    AG9T10300BA, ag9t10300da, F032116364, TG15C173, TG15C175, 1684713, 2610692B, 2610812A

  • Konkurrentreferens
    A3274(VALEO), A3318, CAL15050, DRA1239, LRA03555, 28-6995, 219.141.1502, 219.327.1502, 595.530.150, 210878, 210878A, 439914, 553944RI, 12090858

  • NormaliseratArtNr
    a3274valeo, a3318, ag9t10300ba, ag9t10300da, cal15050, dra1239, f032116364, lra03555, tg15c173, tg15c175, 210878, 210878a, 286995, 439914, 553944ri, 1684713, 2610692b, 2610812a, 12090858, 595530150, 2191411502, 2193271502

  • Passar modeller
    Ford Model: Mondeo Model series: Mondeo Saloon Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Type description: BA7 Body: Saloon From date: 01-08-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Body: Estate From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Body: Hatchback From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBA Body: Estate From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBA Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBA From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB Body: Estate From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA Body: Box Body / Estate From date: 01-03-2010 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA Body: Estate From date: 01-03-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA Body: Hatchback From date: 01-03-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA From date: 01-03-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFBA Body: Estate From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFBA Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFBA From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UKBA Body: Estate From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UKBA Body: Hatchback From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
