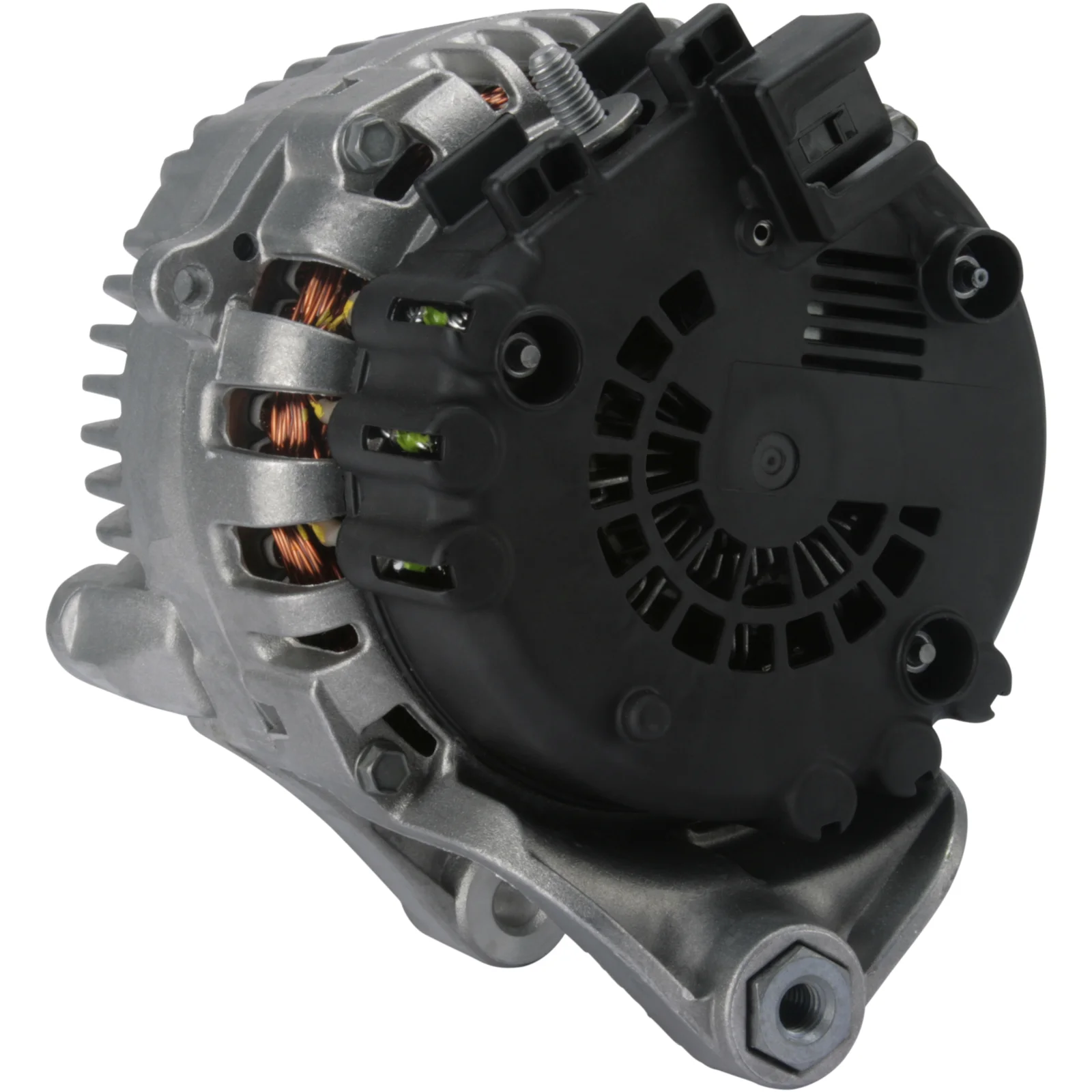

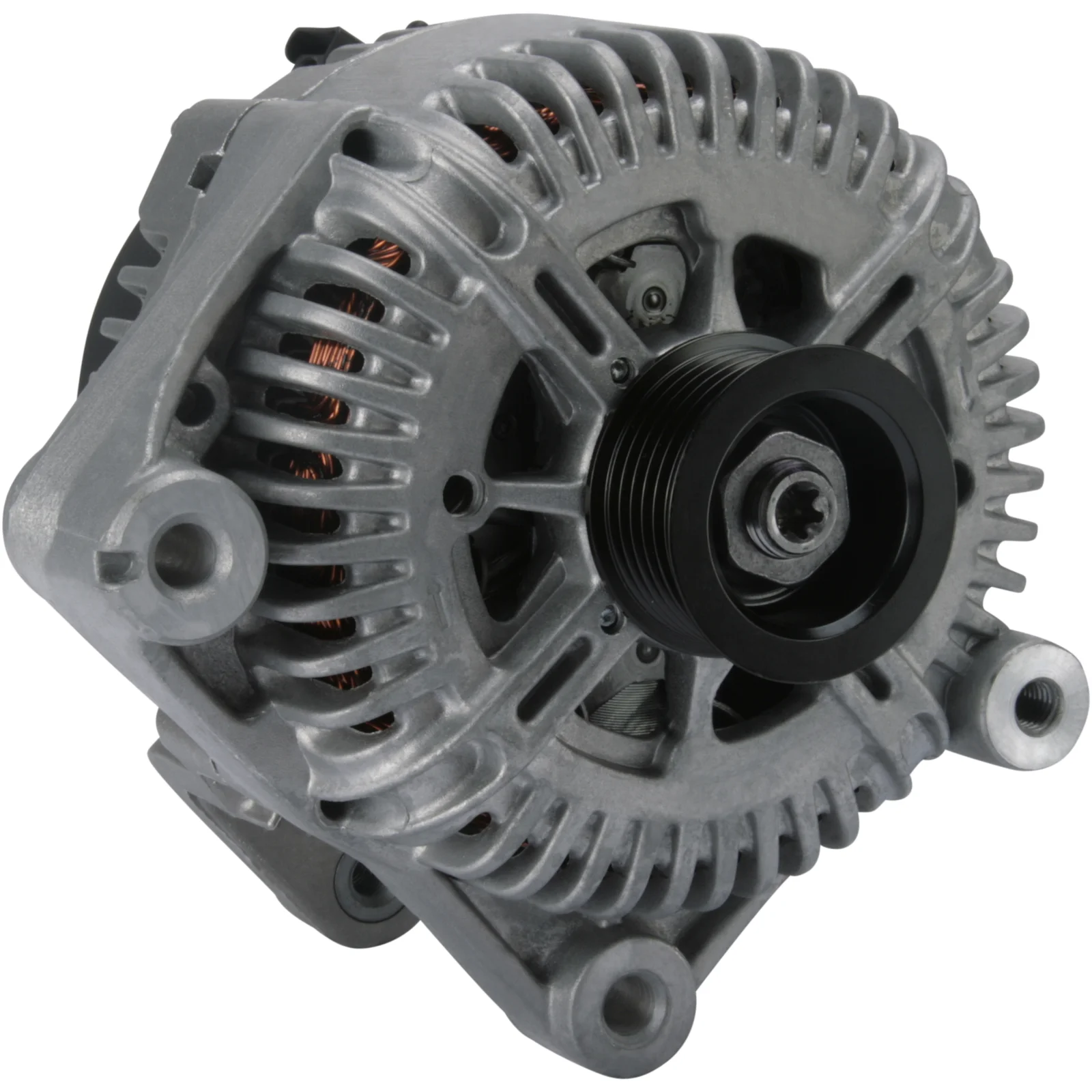

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114189

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 180, Rotasjon: CW, Festebrakettavstand: 75,00

Beskrivelse

Spenningsnivå: 14
Amp: 180
Drevavstand: 57.00
Bredde/beslag arm: 28.00
Festebrakett avstand: 75.00
Brakettønn: 10.00
Beltetilpasning brakettønn pos.: 45
Beltetilpasning brakettønn 1: 10.00
Drev diameter: 49.00
Riller/dreiv: 6
Radius: 92.00
Radius 2: 93.00
B+: M8
Posisjon/B+ i min.: 55
Rotasjon: med urviseren
Stikkontaktnummer: PL125
Total lengde mm: 182.00
Klemmetype: COM
Kommunikasjon: BSS
Drev: SP
Regulator type: IR
Prod. info: BN
Merkninger: Dette dynamoet har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication BSS
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 10.00
Position/B+ in min. 55
Prod. info BN
Pulley SP
Pulley dia. 49.00
Pulley dist. 57.00
Radius 92.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 182.00 mm
Width/holder arm 28.00
Amp 180

  • OEM
    F032114189, TG17C021, TG17C021B, TG17C027, TG17C035, 2542785, 2542785A, 2542785B, 2543221, 2543221C, 2543221D, 2543293, 2543293A, 7524972, 7525440, 7540990, 7540992, 12317524972, 12317525440, 12317540990, 12317540992, 12317542934

  • Konkurrentreferens
    A3228, CAL15328, CAL15348, DRA0488, DRA0489, 8EL011713-331, 28-5635, 28-5636, 215.179.1802, 11355R, 11358N, 11358R, 200158, 200228, 210505, 210505A, 439510, 553110RI, 746141, 746941, 12090180, 32004025

  • NormaliseratArtNr
    a3228, cal15328, cal15348, dra0488, dra0489, f032114189, tg17c021, tg17c021b, tg17c027, tg17c035, 8el011713331, 11355r, 11358n, 11358r, 200158, 200228, 210505, 210505a, 285635, 285636, 439510, 553110ri, 746141, 746941, 2542785, 2542785a, 2542785b, 2543221, 2543221c, 2543221d, 2543293, 2543293a, 7524972, 7525440, 7540990, 7540992, 12090180, 32004025, 2151791802, 12317524972, 12317525440, 12317540990, 12317540992, 12317542934

  • Passar modeller
    BMW Model: 5 Model series: 540 i Model type: 540 i Size of motor: 4.0 Brand of engine: N62B40A Type description: E60 Body: Saloon From date: 01-09-2005 To date: 01-02-2007 Fuel: Petrol Approved: Yes
    BMW Model: 5 Model series: 540 Type of engine: i Size of motor: 4.0 Brand of engine: N62B40A Type description: E60 From date: 01-03-2007 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 545 Type of engine: i Size of motor: 4.4 Brand of engine: N62B44A Type description: E60 From date: 01-09-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 545 Type of engine: i Size of motor: 4.4 Brand of engine: N62B44A Type description: E61 Body: Estate From date: 01-06-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    BMW Model: 5 Model series: 550 Type of engine: i Size of motor: 4.8 Brand of engine: N62B48A Type description: E60 From date: 01-09-2005 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 550 Type of engine: i Size of motor: 4.8 Brand of engine: N62B48A Type description: E61 Body: Estate From date: 01-07-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    BMW Model: 5 Model series: 550 Type of engine: i Size of motor: 4.8 Brand of engine: N62B48B Type description: E60 From date: 01-09-2005 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 550 Type of engine: i Size of motor: 4.8 Brand of engine: N62B48B Type description: E61 Body: Estate From date: 01-07-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    BMW Model: 6 Model series: 645 Ci Model type: 645 Ci Size of motor: 4.4 Brand of engine: N62B44A Type description: E64 Body: Convertible From date: 01-04-2004 To date: 01-12-2005 Fuel: Petrol Approved: Yes
    BMW Model: 6 Model series: 645 Type of engine: Ci Size of motor: 4.4 Brand of engine: N62B44 Type description: E63 Body: Coupe From date: 01-09-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 6 Model series: 645 Type of engine: Ci Size of motor: 4.4 Brand of engine: N62B44 Type description: E64 Body: Convertible From date: 01-04-2004 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 6 Model series: 645 Type of engine: Ci Size of motor: 4.4 Brand of engine: N62B44A Type description: E63 Body: Coupe From date: 01-09-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 6 Model series: 645 Type of engine: Ci Size of motor: 4.4 Brand of engine: N62B44A Type description: E64 Body: Convertible From date: 01-04-2004 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 6 Model series: 650 Type of engine: i Size of motor: 4.8 Brand of engine: N62B48B Type description: E63 Body: Coupe From date: 01-09-2005 To date: 01-08-2010 Fuel: Gasoline Approved: Yes
    BMW Model: 6 Model series: 650 Type of engine: i Size of motor: 4.8 Brand of engine: N62B48B Type description: E64 Body: Convertible From date: 01-09-2005 To date: 01-08-2010 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 735 Type of engine: i Size of motor: 3.6 Brand of engine: N62B36 Type description: E65 From date: 01-11-2001 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 735 Type of engine: i Size of motor: 4.0 Brand of engine: N62B40A Type description: E65, E66 From date: 01-03-2005 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 735 Type of engine: Li Size of motor: 3.6 Brand of engine: N62B36A Type description: E66 From date: 01-11-2001 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 740 Type of engine: i Size of motor: 4.0 Brand of engine: N62B40A Type description: E65 From date: 01-03-2005 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 740 Type of engine: Li Size of motor: 4.0 Brand of engine: N62B40A Type description: E66 From date: 01-03-2005 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 745 Type of engine: Diesel Size of motor: 4.4 Brand of engine: M67D44 (448D1) Type description: E65, E66, E67 From date: 01-07-2005 To date: 01-07-2008 Fuel: Diesel Approved: Yes
    BMW Model: 7 Model series: 745 Type of engine: Diesel Size of motor: 4.4 Brand of engine: N67N448D2 Type description: E65, E66, E67 From date: 01-07-2005 To date: 01-07-2008 Fuel: Diesel Approved: Yes
    BMW Model: 7 Model series: 745 Type of engine: i Size of motor: 4.4 Brand of engine: N62B44 Type description: E65 From date: 01-07-2001 To date: 01-03-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 745 Type of engine: Li Size of motor: 4.4 Brand of engine: N62B44A Type description: E66 From date: 01-07-2001 To date: 01-03-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 750 Type of engine: i Size of motor: 4.8 Brand of engine: N62B48B Type description: E65 From date: 01-03-2005 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 750 Type of engine: Li Size of motor: 4.8 Brand of engine: N62B48B Type description: E66 From date: 01-03-2005 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    BMW Model: X5 Model series: X5 Type of engine: i Size of motor: 4.4 Brand of engine: N62B44 Type description: E53 From date: 01-10-2003 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
    BMW Model: X5 Model series: X5 Type of engine: i Size of motor: 4.4 Brand of engine: N62B44A Type description: E53 From date: 01-10-2003 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
