Varenr.: F032116658

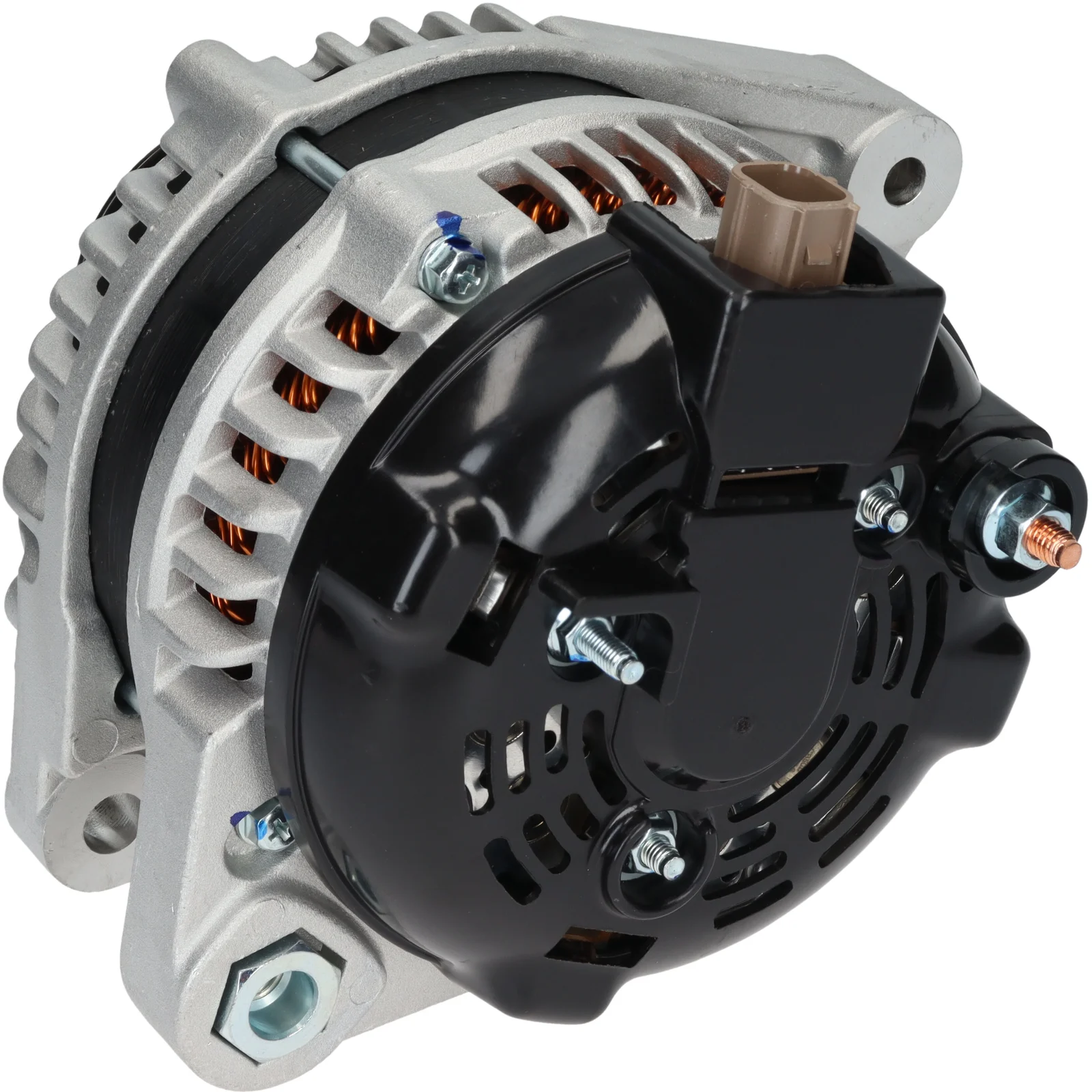

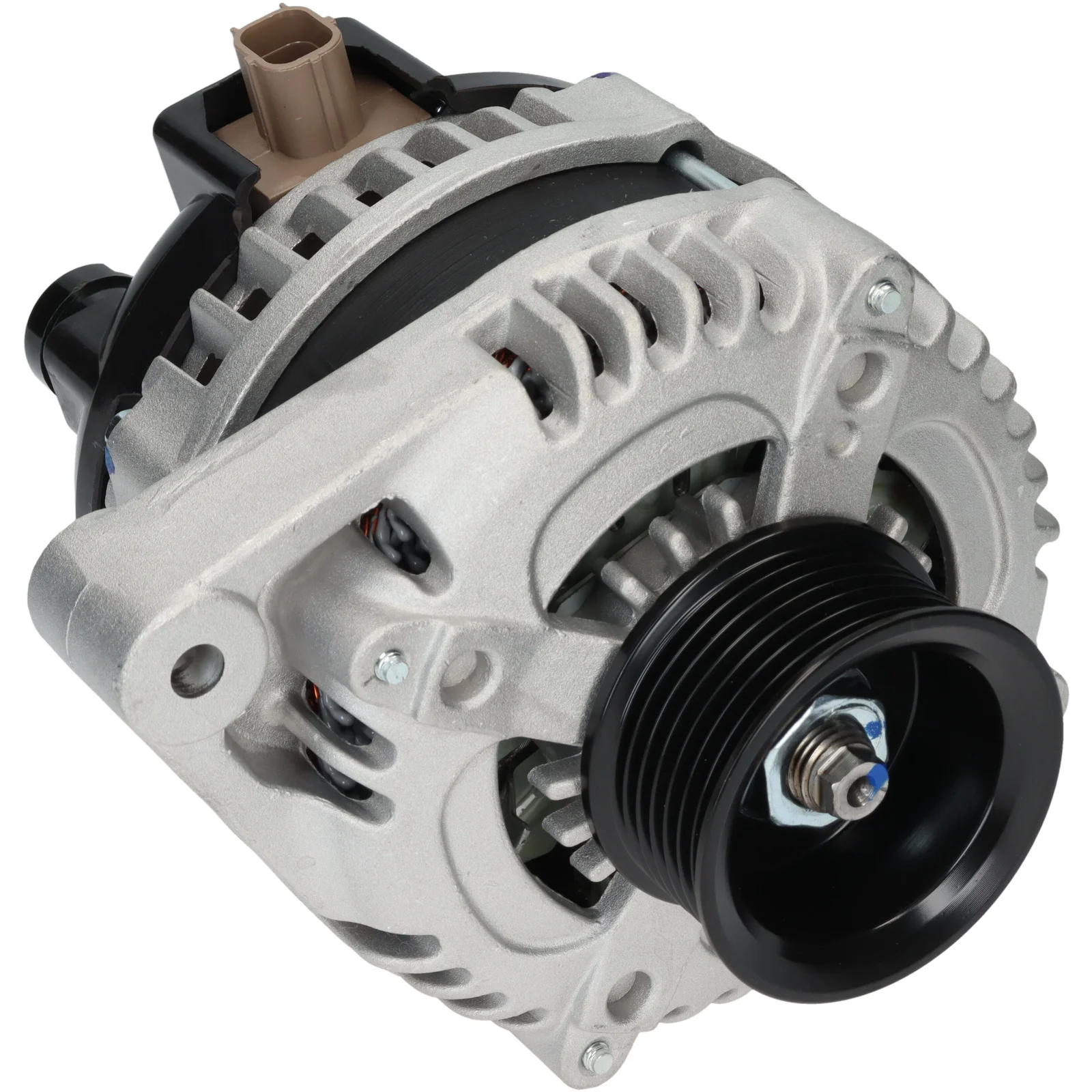

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 130, Rotasjon: CW, Monteringsbrakett avstand: 34,50

Beskrivelse

Spennings: 14
Amp: 130
Drevskive avstand: 42,90
Bredde/holderarm: 15,00
Montasjebracket avstand: 34,50
Bracketshull: 11,00
Båndjusteringsbracketposisjon: 57
Båndjusteringsbracketshull: 8,50
Drevskivediagram: 60,00
Groover/drevskive: 7
Radius: 81,50
Radius 2: 90,00
B+: M6
Posisjon/B+ i min.: 3
Rotasjon: CW
Kontakt nr.: PL193
Total lengde mm: 176,00
Terminaltype: L-IG-FR-C
Drevskive: SP
Vifte: IF
Regulator type: IR

Spesifikasjon

B+ M6
Mount. bracket dist. 34.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 57
Plug no. PL193
Bracket hole 11.00
Position/B+ in min. 3
Pulley SP
Pulley dia. 60.00
Pulley dist. 42.90
Radius 81.50
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type L-IG-FR-C
Voltage 14
Total length 176.00 mm
Width/holder arm 15.00
Amp 130
  • OEM

    F032116658, 31100-r40-a01, 104210-5890
  • Konkurrentreferens

    A6300, CAL40338, DAN1376, DRA0927, LRA03974, 28-7584, 125.567.130, 222.167.1302, 10194, 11390N, 553935RI, 12060956
  • NormaliseratArtNr

    a6300, cal40338, dan1376, dra0927, f032116658, lra03974, 10194, 11390n, 31100r40a01, 287584, 553935ri, 12060956, 125567130, 1042105890, 2221671302
  • Passar modeller

    Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24Z3 Body: Estate From date: 01-07-2008 Fuel: Gasoline Approved: Yes Manufacture type: kombi
    Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24Z3 Type description: CU2 From date: 01-07-2008 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accordi Size of motor: 2.4 Brand of engine: K24Z2 Type description: CP Body: Saloon From date: 01-09-2007 To date: 01-12-2012 Fuel: Petrol Approved: Yes
  • Beskrivelse
    Spennings: 14
    Amp: 130
    Drevskive avstand: 42,90
    Bredde/holderarm: 15,00
    Montasjebracket avstand: 34,50
    Bracketshull: 11,00
    Båndjusteringsbracketposisjon: 57
    Båndjusteringsbracketshull: 8,50
    Drevskivediagram: 60,00
    Groover/drevskive: 7
    Radius: 81,50
    Radius 2: 90,00
    B+: M6
    Posisjon/B+ i min.: 3
    Rotasjon: CW
    Kontakt nr.: PL193
    Total lengde mm: 176,00
    Terminaltype: L-IG-FR-C
    Drevskive: SP
    Vifte: IF
    Regulator type: IR
  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 34.50
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 57
    Plug no. PL193
    Bracket hole 11.00
    Position/B+ in min. 3
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 42.90
    Radius 81.50
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type L-IG-FR-C
    Voltage 14
    Total length 176.00 mm
    Width/holder arm 15.00
    Amp 130
  • Kjøretøymatching
    • OEM

      F032116658, 31100-r40-a01, 104210-5890
    • Konkurrentreferens

      A6300, CAL40338, DAN1376, DRA0927, LRA03974, 28-7584, 125.567.130, 222.167.1302, 10194, 11390N, 553935RI, 12060956
    • NormaliseratArtNr

      a6300, cal40338, dan1376, dra0927, f032116658, lra03974, 10194, 11390n, 31100r40a01, 287584, 553935ri, 12060956, 125567130, 1042105890, 2221671302
    • Passar modeller

      Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24Z3 Body: Estate From date: 01-07-2008 Fuel: Gasoline Approved: Yes Manufacture type: kombi
      Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24Z3 Type description: CU2 From date: 01-07-2008 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accordi Size of motor: 2.4 Brand of engine: K24Z2 Type description: CP Body: Saloon From date: 01-09-2007 To date: 01-12-2012 Fuel: Petrol Approved: Yes
