HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115679

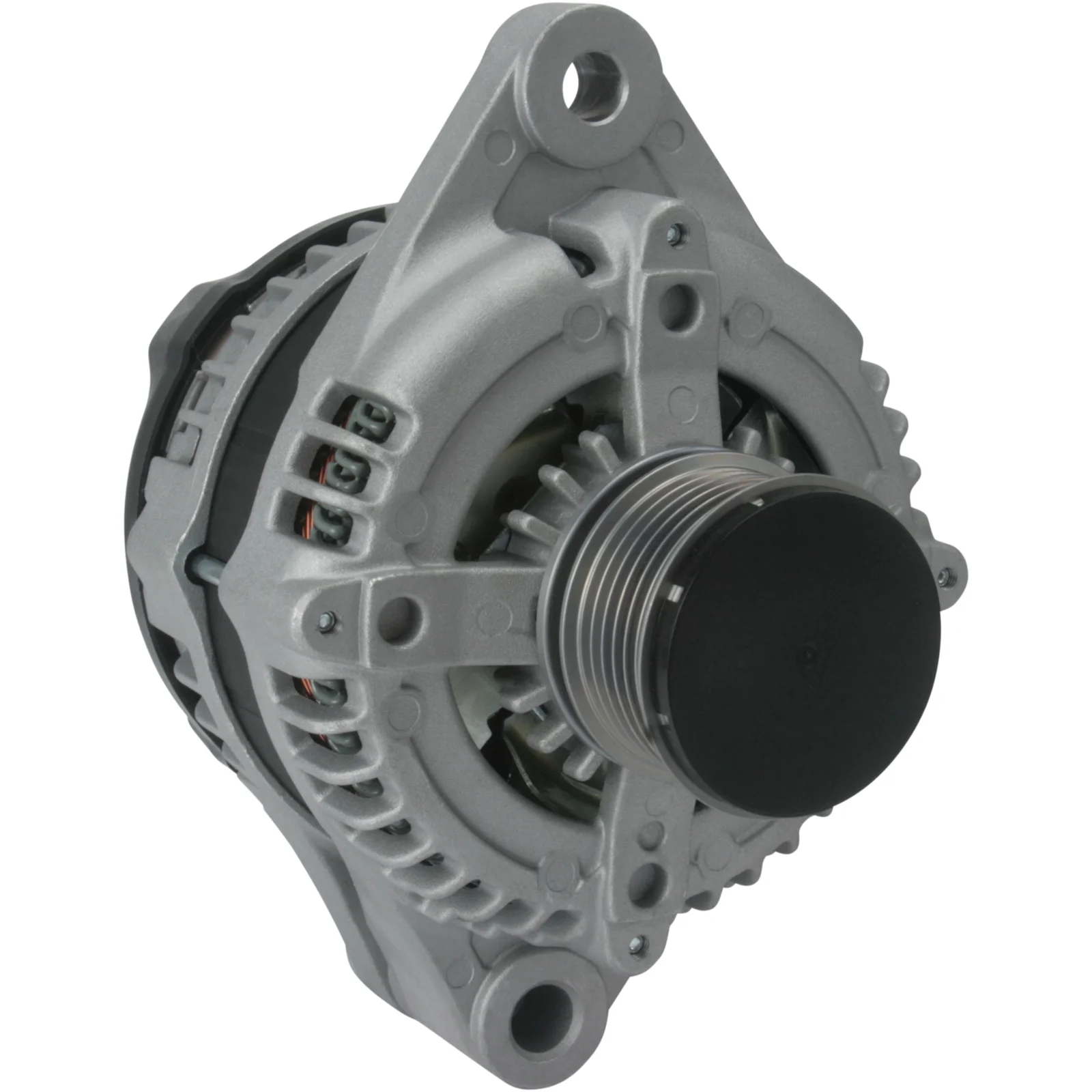

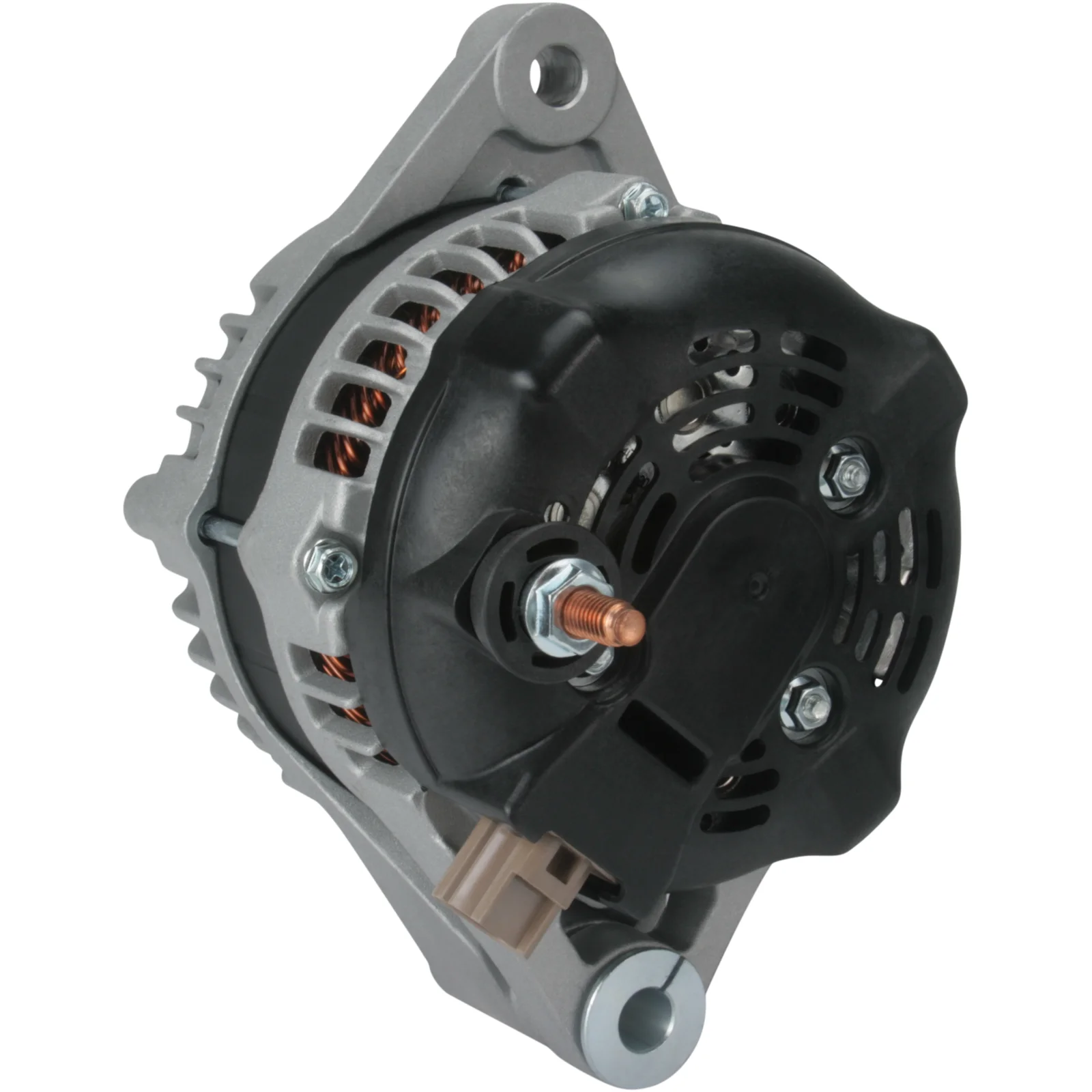

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 130, Rotasjon: CW, Remskive diameter: 53.80

Beskrivelse

Dodge/Fiat D Generator | Dynamo D 12V-130A 12V - 130A, 6gr.frg, ( - LIN - ) For Yourex produktbestilling 90-165-1840

Spenningsinformasjon: 14
Amper: 130
Reimskive avstand: 113.50
Bredde/bøssingarm: 61.50
Brackethull: 14.00
Reimjusteringsbrakethull posisjon: 59
Reimjusteringsbrakethull 1: 12.30
Reimskivediameter: 53.80
Skårer/reimskive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 45
Rotasjon: medurs
Støpseletall: PL154
Total lengde mm: 197.00
Klemmeype: COM
Kommunikasjon: LIN
Reimskive: SP/FW
Spenningsregulator type: IR
Prod. info: BN
Merknader: Denne generatoren har en COM-klemme på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Belt. adj. bracket hole 1 12.30
Belt. adj. brackethole pos. 59
Plug no. PL154
Bracket hole 14.00
Position/B+ in min. 45
Prod. info BN
Pulley SP/FW
Pulley dia. 53.80
Pulley dist. 113.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 197.00 mm
Width/holder arm 61.50
Amp 130

  • OEM
    F032115679, K56029574 AA, K56029574AA, P56029574AA, TN104210-1840, 104210-1840, 115679, 56029574 AA, 56029574AA

  • Konkurrentreferens
    A6217, A6217PR, A6218, CAL40416, DRA1496, lra03707, 28-6768, 218.326.1302, 835.921.130, 835.921.150, 20917, 209002, 209002A, 440981, 554099RI, 12090570

  • Bilmärken
    Fiat

  • NormaliseratArtNr
    a6217, a6217pr, a6218, cal40416, dra1496, f032115679, k56029574aa, lra03707, p56029574aa, tn1042101840, 20917, 115679, 209002, 209002a, 286768, 440981, 554099ri, 12090570, 56029574aa, 835921130, 835921150, 1042101840, 2183261302

  • Passar modeller
    Chrysler Model: Delta Model series: Delta Type of engine: Multijet Size of motor: 2.0 Brand of engine: 198A5.000 Body: Hatchback From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Model type: 4x4 Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Model type: 4x4 Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC_ Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 940A5.000 Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Series: Freemont (345_) Model: 2.0 JTD 4x4 Engine volume: 2.0 Engine type: 939.B5.000 Year: 08.11-
    Fiat Series: Freemont (345_) Model: 2.0 JTD Engine volume: 2.0 Engine type: 939 B5.000 Year: 08.11-
