HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115683

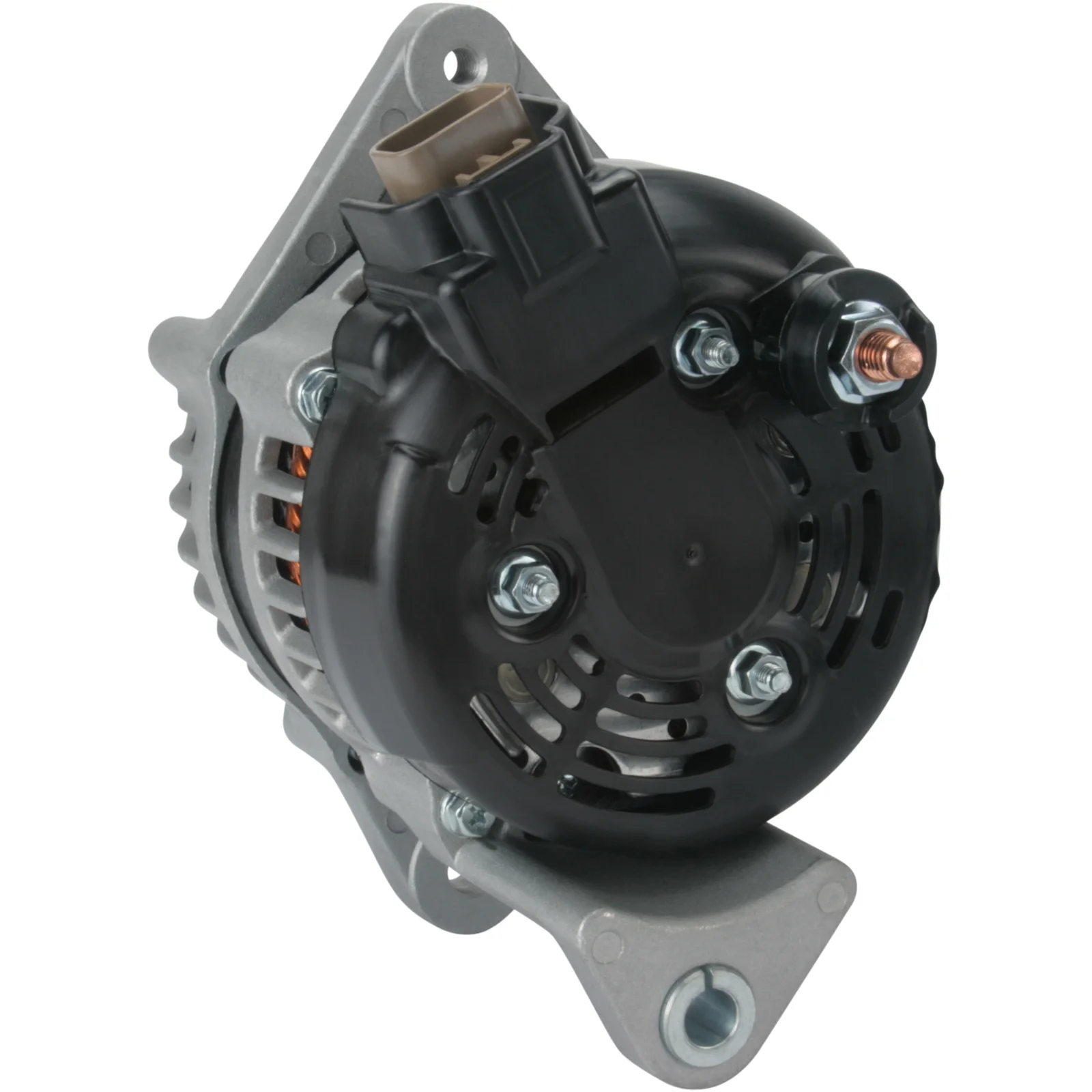

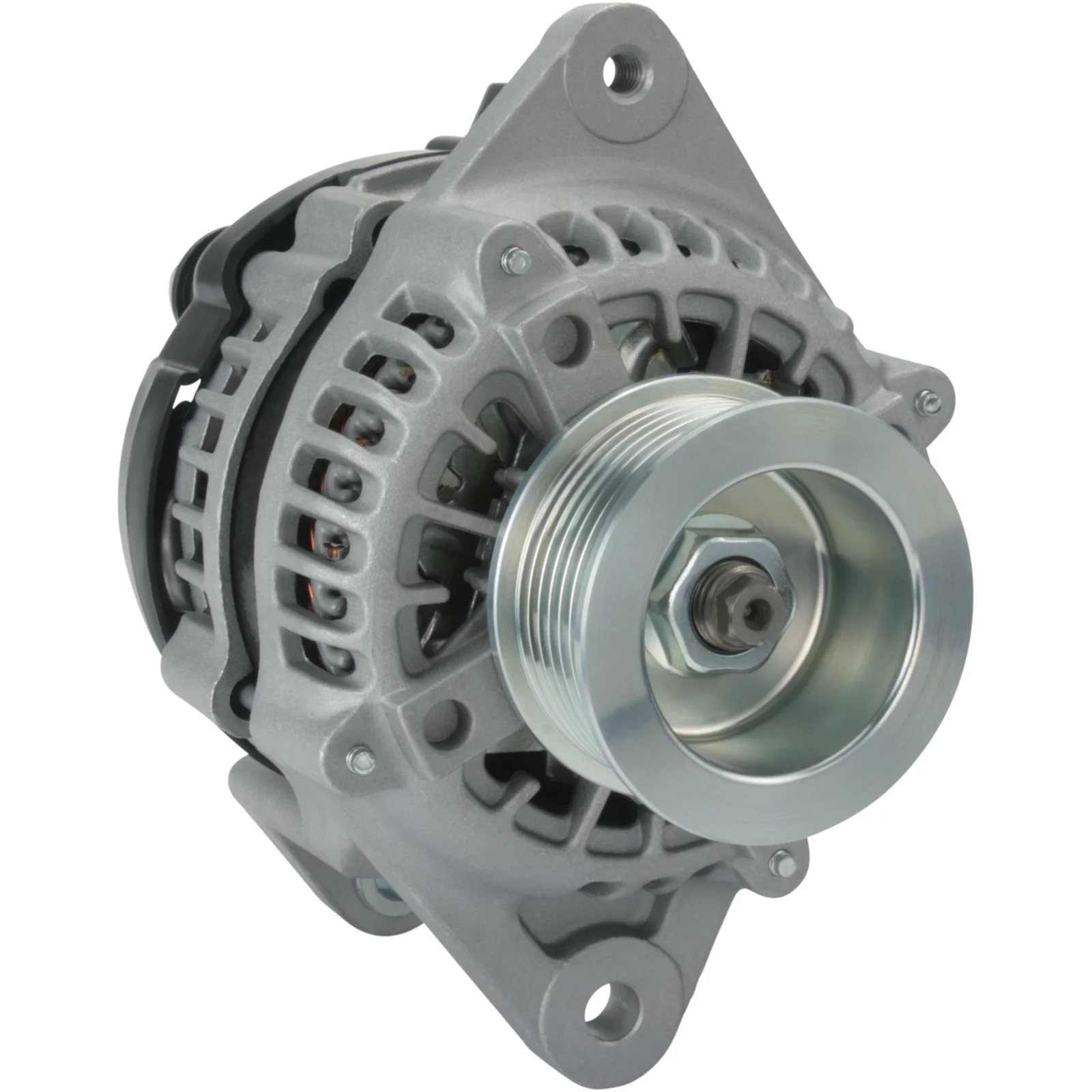

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 85, Rotasjon: CW, Monteringsbøssing avstand.: 80,00

Beskrivelse

Isuzu D-MAX 2.5D Gen. 12V-90A 12V - 90A, 7gr, ( - , L) For Yourrex produktordre 90-250-4903

Spenning: 14
Ampere: 85
Utbredelse av remskive: 43.00
Bredde/holderarm: 13.00
Montasjebrakett avstand: 80.00
Hull i brakket: 10.20
Båndjustering brakkelposisjon: 60
Båndjustering brakkelhull 1: M8
Utbredelse av remskive diameter: 62.50
Groper/remskive: 7
Radius: 80.50
Radius 2: 80.50
B+: M8
Posisjon/B+ i min.: 5
D+ Størrelse: Isolert plugg
Rotasjon: med klokka
Plugg nummer: PL100
Total lengde mm: 185.00
Remskive: SP
Regulator-type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL100
Bracket hole 10.20
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 62.50
Pulley dist. 43.00
Radius 80.50
D+ Size Plug
Radius 2 80.50
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 185.00 mm
Width/holder arm 13.00
Amp 85

  • OEM
    F032115683, TG1042109033, TG1042109840, 8-98196-5850, 8-98229-0710, 104210-9030, 104210-9031, 104210-9032, 104210-9033, 104210-9840, 104210-9841, 104210-9960, 115683, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

  • Konkurrentreferens
    A6152, A6611S, CAL40313, CAL40584, DAN1487, DRA1314, F042205224, LRA03597, 8EL015630-551, 28-6707, 28-7628, 28-7641, 135.573.080, 135.573.090, 135.928.090, 243.130.802, 20212N, 554321RI, 12060997

  • Bilmärken
    Isuzu

  • NormaliseratArtNr
    a6152, a6611s, cal40313, cal40584, dan1487, dra1314, f032115683, f042205224, lra03597, tg1042109033, tg1042109840, 8el015630551, 20212n, 115683, 286707, 287628, 287641, 554321ri, 12060997, 135573080, 135573090, 135928090, 243130802, 1042109030, 1042109031, 1042109032, 1042109033, 1042109840, 1042109841, 1042109960, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

  • Passar modeller
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Platform / Chassis From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK1E5S-L Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Platform / Chassis From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK1E5S-L Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-10-2006 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Series: D-MAX I Model: 2.5 DiTD 4x4 Engine volume: 2.5 Engine type: 4JK1-TC Year: 01.07-06.12
    Isuzu Series: D-MAX II Model: 2.5 CRDi 4x4 Engine volume: 2.5 Engine type: 4JK1... Year: 06.12-
    1 / 3
  • Beskrivelse
    Isuzu D-MAX 2.5D Gen. 12V-90A 12V - 90A, 7gr, ( - , L) For Yourrex produktordre 90-250-4903

    Spenning: 14
    Ampere: 85
    Utbredelse av remskive: 43.00
    Bredde/holderarm: 13.00
    Montasjebrakett avstand: 80.00
    Hull i brakket: 10.20
    Båndjustering brakkelposisjon: 60
    Båndjustering brakkelhull 1: M8
    Utbredelse av remskive diameter: 62.50
    Groper/remskive: 7
    Radius: 80.50
    Radius 2: 80.50
    B+: M8
    Posisjon/B+ i min.: 5
    D+ Størrelse: Isolert plugg
    Rotasjon: med klokka
    Plugg nummer: PL100
    Total lengde mm: 185.00
    Remskive: SP
    Regulator-type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 80.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL100
    Bracket hole 10.20
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 62.50
    Pulley dist. 43.00
    Radius 80.50
    D+ Size Plug
    Radius 2 80.50
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 185.00 mm
    Width/holder arm 13.00
    Amp 85
  • Kjøretøymatching

    • OEM
      F032115683, TG1042109033, TG1042109840, 8-98196-5850, 8-98229-0710, 104210-9030, 104210-9031, 104210-9032, 104210-9033, 104210-9840, 104210-9841, 104210-9960, 115683, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

    • Konkurrentreferens
      A6152, A6611S, CAL40313, CAL40584, DAN1487, DRA1314, F042205224, LRA03597, 8EL015630-551, 28-6707, 28-7628, 28-7641, 135.573.080, 135.573.090, 135.928.090, 243.130.802, 20212N, 554321RI, 12060997

    • Bilmärken
      Isuzu

    • NormaliseratArtNr
      a6152, a6611s, cal40313, cal40584, dan1487, dra1314, f032115683, f042205224, lra03597, tg1042109033, tg1042109840, 8el015630551, 20212n, 115683, 286707, 287628, 287641, 554321ri, 12060997, 135573080, 135573090, 135928090, 243130802, 1042109030, 1042109031, 1042109032, 1042109033, 1042109840, 1042109841, 1042109960, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

    • Passar modeller
      Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Platform / Chassis From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK1E5S-L Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Platform / Chassis From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK1E5S-L Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-10-2006 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Series: D-MAX I Model: 2.5 DiTD 4x4 Engine volume: 2.5 Engine type: 4JK1-TC Year: 01.07-06.12
      Isuzu Series: D-MAX II Model: 2.5 CRDi 4x4 Engine volume: 2.5 Engine type: 4JK1... Year: 06.12-
      1 / 3
