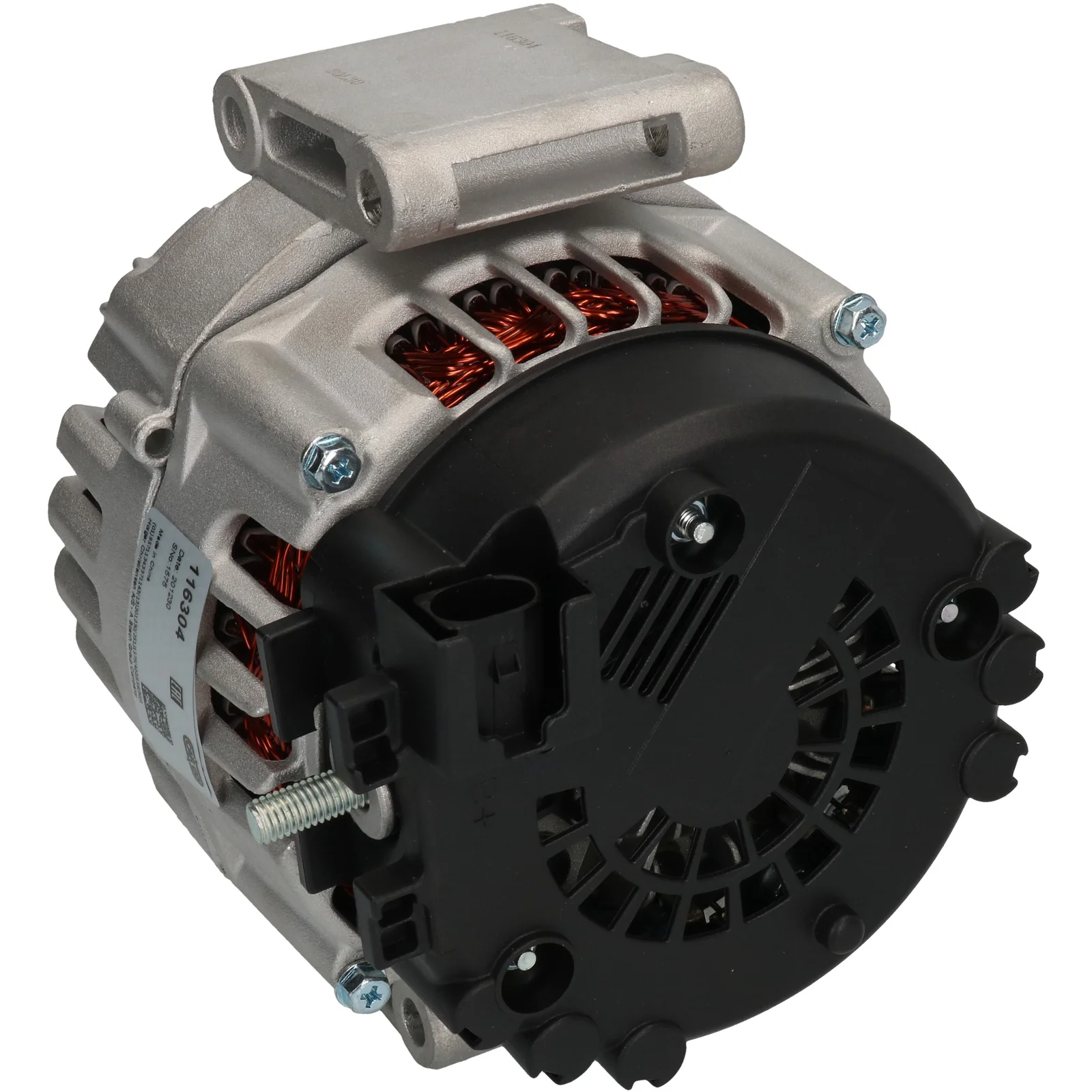

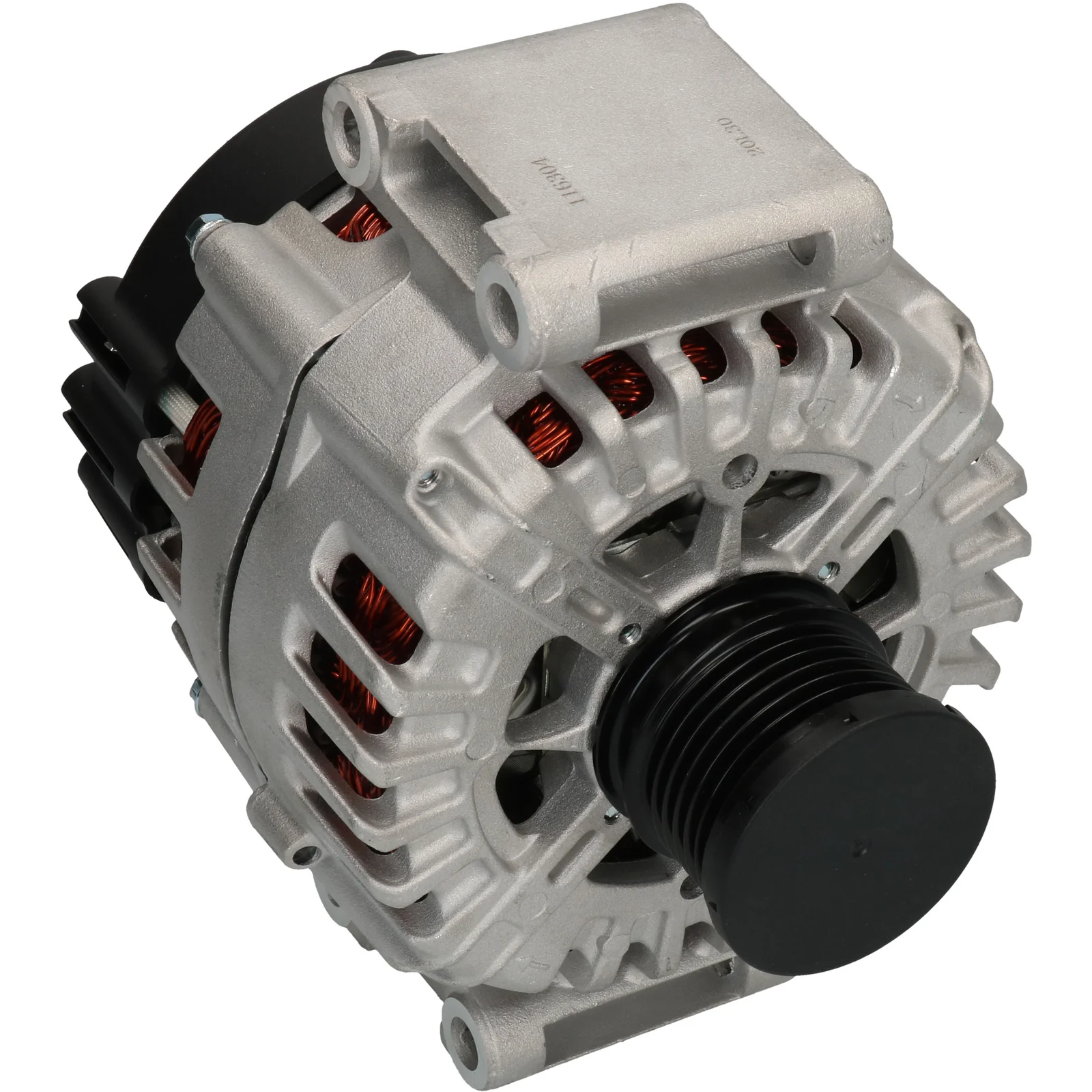

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116304

HC-Cargo Dynamo

Teknisk info:

Spenningsgiver: 14, Amp: 180, Rotasjon: MÅTTE, Monteringsbret. avstand: 55,80

Beskrivelse

Generator 12V-180A (MB) 12V - 180A, 6gr.frg, (LIN) Biler UTEN Start/Stopp Biler UTEN Start/Stopp For Yourex produkt bestilling 90-365-1439

Spenning: 14
Amp: 180
Drivreim avstand: 31,60
Bredde/holderarm: 70,00
Festebrakett avstand: 55,80
Brakettåpning: 9,20
Båndjusteringshull 1: 8,50
Drivreimsdiameter: 50,00
Groper/drivreim: 6
Radius: 81,50
Radius 2: 81,50
B+: M8
Posisjon/B+ i min.: 15
Rotasjon: CW
Kontakt nr.: PL125
Total lengde mm: 193,00
Terminaltype: COM
ID-kode: 41
Kommunikasjon: LIN
Drivreim: SP/FW
Vifte: IF
Regulator type: IR
Anmerkninger: Dette generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnetheten før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 55.80
Belt. adj. bracket hole 1 8.50
Plug no. PL125
Bracket hole 9.20
Position/B+ in min. 15
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 31.60
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 41
Terminal type COM
Voltage 14
Total length 193.00 mm
Width/holder arm 70.00
Amp 180

  • OEM
    A014 1543902, A0141543902, F032116304, FG18S 047, FG18S047, FGN18S047, 014 154 3902, 116304, 439704, 440295, 2607384, 2607384A, 0141543902

  • Konkurrentreferens
    A3466S, CAL15564, DRA1067, LRA03471, 28-6581, 225.304.1802, 555.592.180, 11738N, 209175, 209175A, 439704, 440295, 553550RI, 9090678, 12090646

  • Bilmärken
    Mercedes Benz

  • NormaliseratArtNr
    a0141543902, a3466s, cal15564, dra1067, f032116304, fg18s047, fgn18s047, lra03471, 11738n, 116304, 209175, 209175a, 286581, 439704, 440295, 553550ri, 2607384, 2607384a, 9090678, 12090646, 0141543902, 555592180, 2253041802

  • Passar modeller
    Mercedes Benz Series: E (S212) Kombi Model: 250 CDI/BlueTEC 4-MATIC Engine volume: 2.1 Engine type: OM 651.924 Year: 07.10-
    Mercedes Benz Series: E (W212) Model: 250 CDI/BlueTEC Engine volume: 2.1 Engine type: OM 651.924 Year: 01.09-
    Mercedes Benz Series: GLK (X204) Model: 220 CDI 4-matic Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
    Mercedes Benz Series: GLK (X204) Model: 250 CDI 4-matic Engine volume: 2.1 Engine type: OM 651.912 Year: 09.09-
    Mercedes-Benz Model: 220 Model series: GLK 220 Model type: 4-matic Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.912 Type description: X204 From date: 01-12-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: GLK 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.912 Type description: X204 From date: 01-12-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Model type: 4-matic Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.924 Type description: W212 From date: 01-01-2011 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Model type: 4-Matic Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.924 Type description: S212 Body: Estate From date: 01-07-2010 To date: 01-12-2016 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 350 Model series: GLK 250 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.912 Type description: X204 From date: 01-09-2009 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Generator 12V-180A (MB) 12V - 180A, 6gr.frg, (LIN) Biler UTEN Start/Stopp Biler UTEN Start/Stopp For Yourex produkt bestilling 90-365-1439

    Spenning: 14
    Amp: 180
    Drivreim avstand: 31,60
    Bredde/holderarm: 70,00
    Festebrakett avstand: 55,80
    Brakettåpning: 9,20
    Båndjusteringshull 1: 8,50
    Drivreimsdiameter: 50,00
    Groper/drivreim: 6
    Radius: 81,50
    Radius 2: 81,50
    B+: M8
    Posisjon/B+ i min.: 15
    Rotasjon: CW
    Kontakt nr.: PL125
    Total lengde mm: 193,00
    Terminaltype: COM
    ID-kode: 41
    Kommunikasjon: LIN
    Drivreim: SP/FW
    Vifte: IF
    Regulator type: IR
    Anmerkninger: Dette generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnetheten før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 55.80
    Belt. adj. bracket hole 1 8.50
    Plug no. PL125
    Bracket hole 9.20
    Position/B+ in min. 15
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 31.60
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 41
    Terminal type COM
    Voltage 14
    Total length 193.00 mm
    Width/holder arm 70.00
    Amp 180
  • Kjøretøymatching

    • OEM
      A014 1543902, A0141543902, F032116304, FG18S 047, FG18S047, FGN18S047, 014 154 3902, 116304, 439704, 440295, 2607384, 2607384A, 0141543902

    • Konkurrentreferens
      A3466S, CAL15564, DRA1067, LRA03471, 28-6581, 225.304.1802, 555.592.180, 11738N, 209175, 209175A, 439704, 440295, 553550RI, 9090678, 12090646

    • Bilmärken
      Mercedes Benz

    • NormaliseratArtNr
      a0141543902, a3466s, cal15564, dra1067, f032116304, fg18s047, fgn18s047, lra03471, 11738n, 116304, 209175, 209175a, 286581, 439704, 440295, 553550ri, 2607384, 2607384a, 9090678, 12090646, 0141543902, 555592180, 2253041802

    • Passar modeller
      Mercedes Benz Series: E (S212) Kombi Model: 250 CDI/BlueTEC 4-MATIC Engine volume: 2.1 Engine type: OM 651.924 Year: 07.10-
      Mercedes Benz Series: E (W212) Model: 250 CDI/BlueTEC Engine volume: 2.1 Engine type: OM 651.924 Year: 01.09-
      Mercedes Benz Series: GLK (X204) Model: 220 CDI 4-matic Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
      Mercedes Benz Series: GLK (X204) Model: 250 CDI 4-matic Engine volume: 2.1 Engine type: OM 651.912 Year: 09.09-
      Mercedes-Benz Model: 220 Model series: GLK 220 Model type: 4-matic Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.912 Type description: X204 From date: 01-12-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: GLK 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.912 Type description: X204 From date: 01-12-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 250 Model series: E 250 Model type: 4-matic Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.924 Type description: W212 From date: 01-01-2011 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 250 Model series: E 250 Model type: 4-Matic Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.924 Type description: S212 Body: Estate From date: 01-07-2010 To date: 01-12-2016 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 350 Model series: GLK 250 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.912 Type description: X204 From date: 01-09-2009 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      1 / 2
