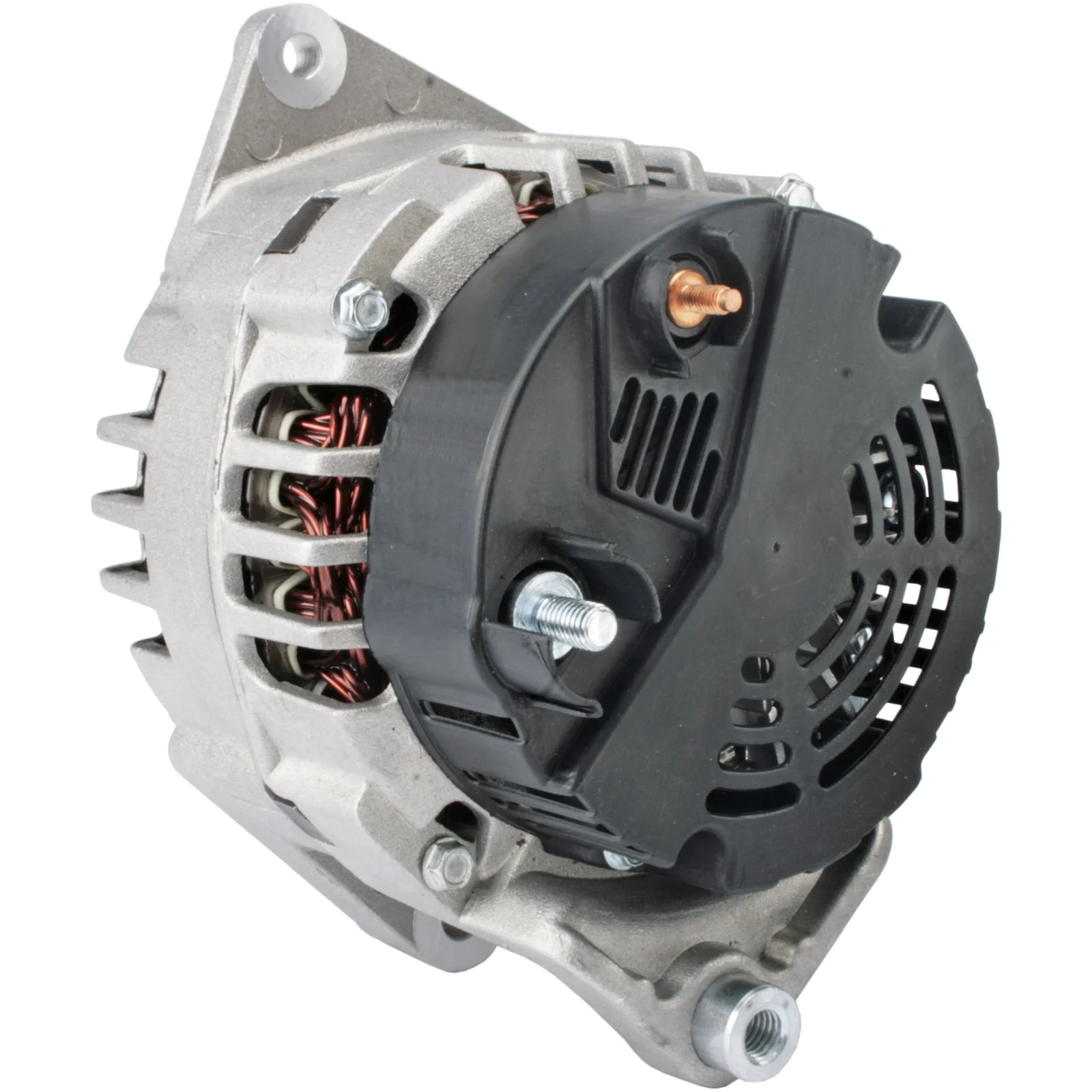

Varenr.: F032113950

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 90, Rotasjon: CW, Monteringsbrakett avstand.: 67.00

Beskrivelse

Spenningsspenning: 14
Amp: 90
Bøssing av skive: 52,50
Bredde/holderarm: 26,40
Festebrakett avstand: 67,00
Brakettåpning: 10,30
Båndjusteringsbrakettåpning pos.: 3
Båndjusteringsbrakettåpning 1: 8,50
Skive dia.: 60,00
Gusser/skive: 6
Radius: 88,50
Radius 2: 92,50
B+: M8
Posisjon/B+ i min.: 44
D+ Størrelse: M5
Rotasjon: med urviseren
Total lengde mm: 179,00
Skive: SP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 67.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 3
Bracket hole 10.30
Position/B+ in min. 44
Prod. info BN
Pulley SP
Pulley dia. 60.00
Pulley dist. 52.50
Radius 88.50
D+ Size M5
Radius 2 92.50
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 179.00 mm
Width/holder arm 26.40
Amp 90

  • OEM
    F032113950, SG9B054, 1781ir, 2542708, 2542708A, 2542708B, 504033459

  • Konkurrentreferens
    A3053SR, A3314, ALT-7225, CAL15313, DRA4267, F042208036, F042A0B014, 8EL012426-361, 8EL738191-001, 28-4689, 218.177.902, 4759, 5705AK, 23222R, 23223N, 111857, 210586, 210586A, 301781RI, 437431, 439472, 747055, 12090123, 0986080030, 944390901980

  • NormaliseratArtNr
    a3053sr, a3314, alt7225, cal15313, dra4267, f032113950, f042208036, f042a0b014, sg9b054, 8el012426361, 8el738191001, 1781ir, 4759, 5705ak, 23222r, 23223n, 111857, 210586, 210586a, 284689, 301781ri, 437431, 439472, 747055, 2542708, 2542708a, 2542708b, 12090123, 218177902, 504033459, 0986080030, 944390901980

  • Passar modeller
    Citroen Model: Jumper Model series: Jumper Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Body: Van From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Citroen Model: Jumper Model series: Jumper Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230L Body: Van From date: 01-09-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Citroen Model: Jumper Model series: Jumper Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230P Body: Bus From date: 01-09-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Citroen Model: Jumper Model series: Jumper Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 244, Z_ Body: Bus From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Citroen Model: Jumper Model series: Jumper Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: F28TDCR Type description: 244 Body: Platform / Chassis From date: 01-02-2002 To date: 01-06-2006 Fuel: Diesel Approved: Yes
    Citroen Model: Jumper Model series: Jumper Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Body: Platform / Chassis From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Citroen Model: Jumper Model series: Jumper Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Body: Van From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Citroen Model: Jumper Model series: Jumper Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230 Body: Platform / Chassis From date: 01-09-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Citroen Model: Jumper Model series: Jumper Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230L Body: Van From date: 01-09-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Citroen Model: Jumper Model series: Jumper Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230P Body: Bus From date: 01-09-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230 Body: Bus From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230L Body: Van From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 244 Body: Platform / Chassis From date: 01-10-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 244 Body: Van From date: 01-07-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 244, Z_ Body: Bus From date: 01-07-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43N Type description: 244 Body: Platform / Chassis From date: 01-05-2004 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43N Type description: 244 Body: Van From date: 01-05-2004 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Body: Bus From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Body: Platform / Chassis From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Body: Van From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230 Body: Bus From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230 Body: Platform / Chassis From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230L Body: Van From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Body: Van From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Type description: 244, Z_ Body: Bus From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S(F28DTCR) Body: Platform / Chassis From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43N Type description: 240,Z_ Body: Bus From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Body: Bus From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Body: Van From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Type description: 230L Body: Van From date: 01-10-2000 To date: 01-11-2001 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Type description: 230L Body: Van From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Type description: 230P Body: Bus From date: 01-10-2000 To date: 01-11-2001 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Type description: ZCT_ Body: Platform / Chassis From date: 01-10-2000 To date: 01-11-2001 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Type description: ZCT_ Body: Platform / Chassis From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230P Body: Bus From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 244 Body: Platform / Chassis From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 244 Body: Van From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S(F28DTCR) Body: Platform / Chassis From date: 01-04-2002 Fuel: Diesel Approved: Yes
    1 / 8
  • Beskrivelse
    Spenningsspenning: 14
    Amp: 90
    Bøssing av skive: 52,50
    Bredde/holderarm: 26,40
    Festebrakett avstand: 67,00
    Brakettåpning: 10,30
    Båndjusteringsbrakettåpning pos.: 3
    Båndjusteringsbrakettåpning 1: 8,50
    Skive dia.: 60,00
    Gusser/skive: 6
    Radius: 88,50
    Radius 2: 92,50
    B+: M8
    Posisjon/B+ i min.: 44
    D+ Størrelse: M5
    Rotasjon: med urviseren
    Total lengde mm: 179,00
    Skive: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 67.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 3
    Bracket hole 10.30
    Position/B+ in min. 44
    Prod. info BN
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 52.50
    Radius 88.50
    D+ Size M5
    Radius 2 92.50
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 179.00 mm
    Width/holder arm 26.40
    Amp 90
  • Kjøretøymatching

    • OEM
      F032113950, SG9B054, 1781ir, 2542708, 2542708A, 2542708B, 504033459

    • Konkurrentreferens
      A3053SR, A3314, ALT-7225, CAL15313, DRA4267, F042208036, F042A0B014, 8EL012426-361, 8EL738191-001, 28-4689, 218.177.902, 4759, 5705AK, 23222R, 23223N, 111857, 210586, 210586A, 301781RI, 437431, 439472, 747055, 12090123, 0986080030, 944390901980

    • NormaliseratArtNr
      a3053sr, a3314, alt7225, cal15313, dra4267, f032113950, f042208036, f042a0b014, sg9b054, 8el012426361, 8el738191001, 1781ir, 4759, 5705ak, 23222r, 23223n, 111857, 210586, 210586a, 284689, 301781ri, 437431, 439472, 747055, 2542708, 2542708a, 2542708b, 12090123, 218177902, 504033459, 0986080030, 944390901980

    • Passar modeller
      Citroen Model: Jumper Model series: Jumper Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Body: Van From date: 01-04-2002 Fuel: Diesel Approved: Yes
      Citroen Model: Jumper Model series: Jumper Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230L Body: Van From date: 01-09-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Citroen Model: Jumper Model series: Jumper Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230P Body: Bus From date: 01-09-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Citroen Model: Jumper Model series: Jumper Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 244, Z_ Body: Bus From date: 01-04-2002 Fuel: Diesel Approved: Yes
      Citroen Model: Jumper Model series: Jumper Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: F28TDCR Type description: 244 Body: Platform / Chassis From date: 01-02-2002 To date: 01-06-2006 Fuel: Diesel Approved: Yes
      Citroen Model: Jumper Model series: Jumper Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Body: Platform / Chassis From date: 01-04-2002 Fuel: Diesel Approved: Yes
      Citroen Model: Jumper Model series: Jumper Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Body: Van From date: 01-04-2002 Fuel: Diesel Approved: Yes
      Citroen Model: Jumper Model series: Jumper Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230 Body: Platform / Chassis From date: 01-09-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Citroen Model: Jumper Model series: Jumper Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230L Body: Van From date: 01-09-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Citroen Model: Jumper Model series: Jumper Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230P Body: Bus From date: 01-09-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230 Body: Bus From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230L Body: Van From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 244 Body: Platform / Chassis From date: 01-10-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 244 Body: Van From date: 01-07-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 244, Z_ Body: Bus From date: 01-07-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43N Type description: 244 Body: Platform / Chassis From date: 01-05-2004 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43N Type description: 244 Body: Van From date: 01-05-2004 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Body: Bus From date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Body: Platform / Chassis From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Body: Van From date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230 Body: Bus From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230 Body: Platform / Chassis From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230L Body: Van From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Peugeot Model: Boxer Model series: Boxer Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Body: Van From date: 01-04-2002 Fuel: Diesel Approved: Yes
      Peugeot Model: Boxer Model series: Boxer Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Type description: 244, Z_ Body: Bus From date: 01-04-2002 Fuel: Diesel Approved: Yes
      Peugeot Model: Boxer Model series: Boxer Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S(F28DTCR) Body: Platform / Chassis From date: 01-04-2002 Fuel: Diesel Approved: Yes
      Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43N Type description: 240,Z_ Body: Bus From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Body: Bus From date: 01-04-2002 Fuel: Diesel Approved: Yes
      Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Body: Van From date: 01-04-2002 Fuel: Diesel Approved: Yes
      Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Type description: 230L Body: Van From date: 01-10-2000 To date: 01-11-2001 Fuel: Diesel Approved: Yes
      Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Type description: 230L Body: Van From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Type description: 230P Body: Bus From date: 01-10-2000 To date: 01-11-2001 Fuel: Diesel Approved: Yes
      Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Type description: ZCT_ Body: Platform / Chassis From date: 01-10-2000 To date: 01-11-2001 Fuel: Diesel Approved: Yes
      Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Type description: ZCT_ Body: Platform / Chassis From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230P Body: Bus From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 244 Body: Platform / Chassis From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 244 Body: Van From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S(F28DTCR) Body: Platform / Chassis From date: 01-04-2002 Fuel: Diesel Approved: Yes
