HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114115

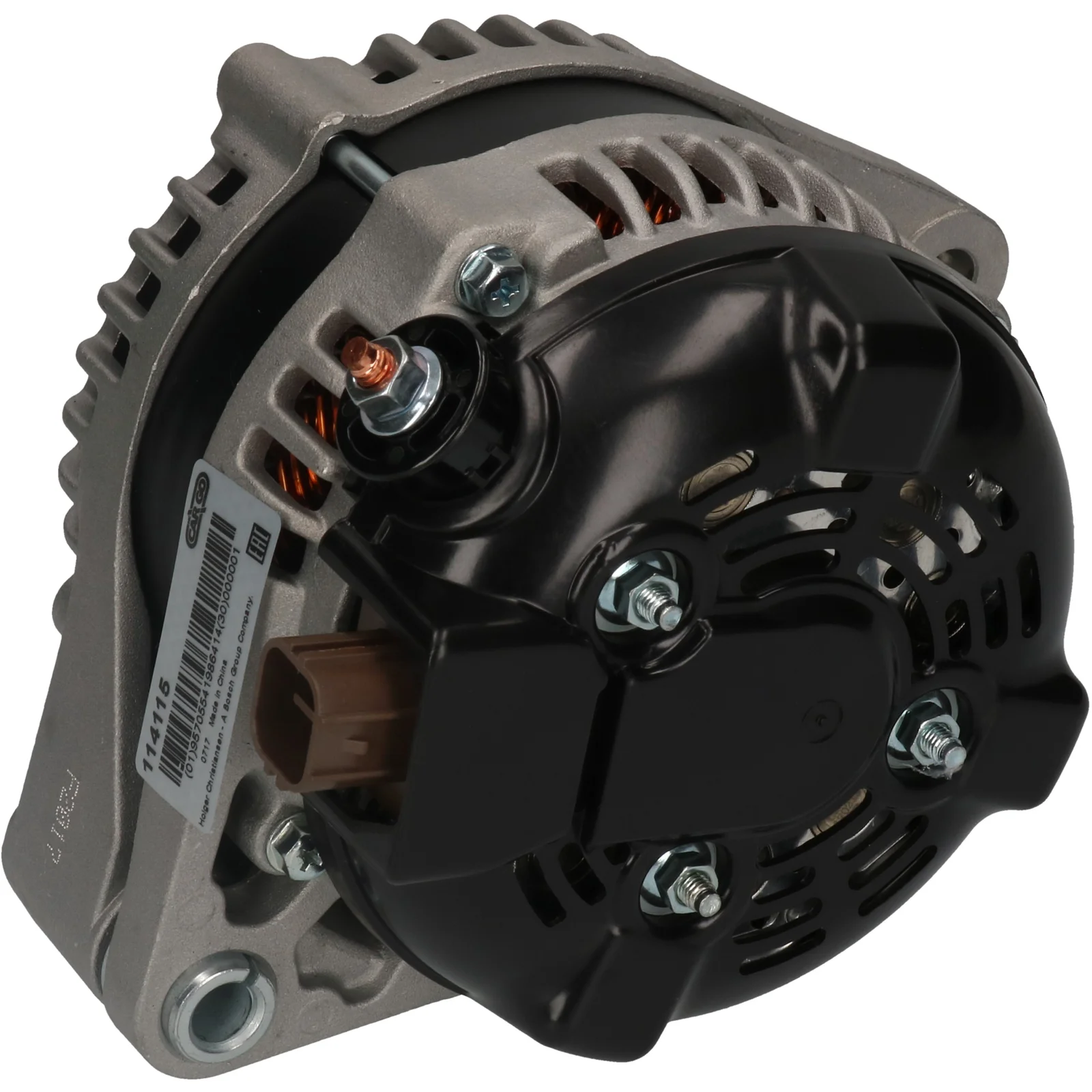

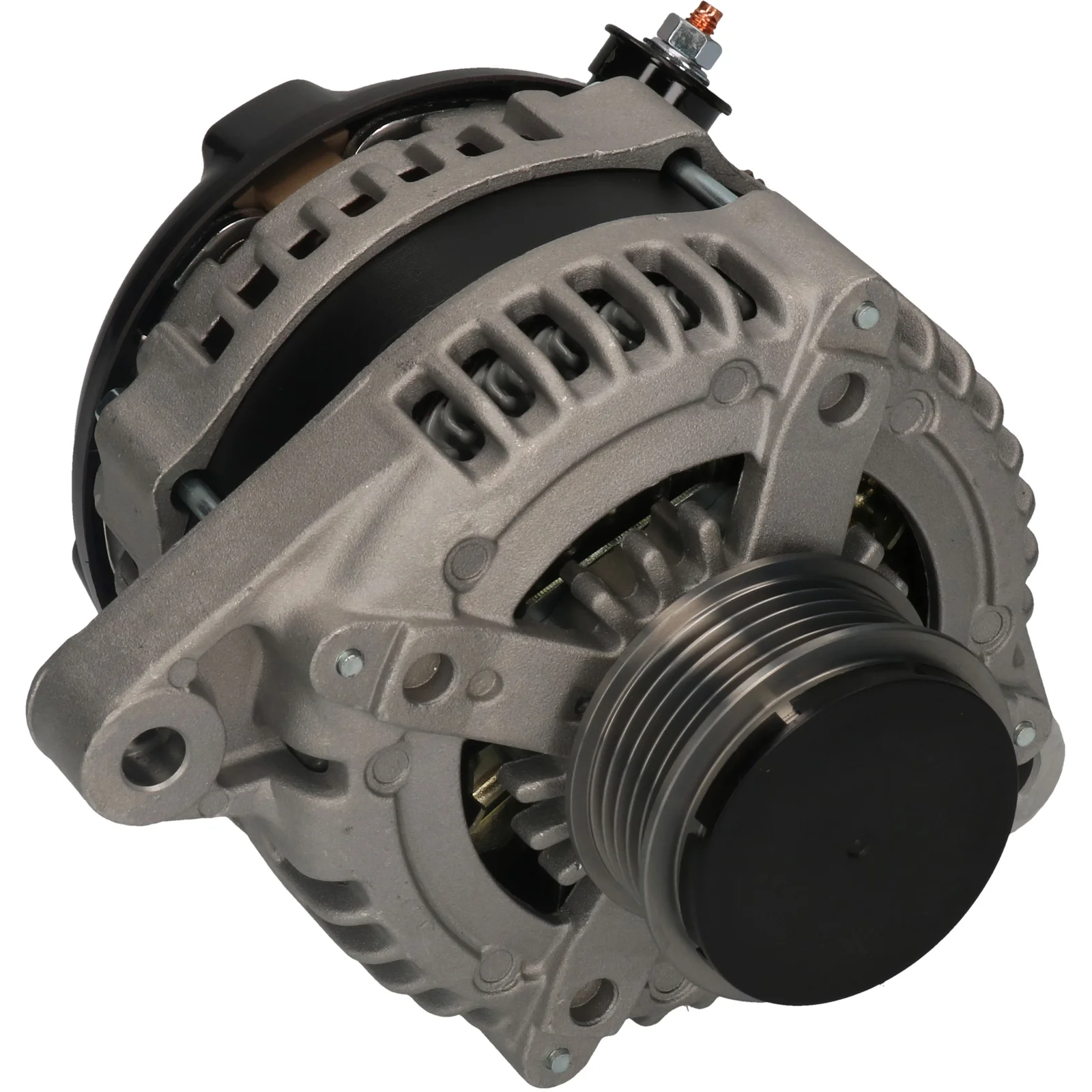

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amper: 130, Rotasjon: CW, Reimhjul diameter: 58,20

Beskrivelse

Spenning: 14
Amp: 130
Drevskive dist.: 94.00
Bredde/holder arm: 53.70
Klemmer hull: 10.50
Båndjustering. Bøssingposisjon: 55
Båndjustering. Bøssing hull 1: 10.00
Drevskive diameter: 58.20
Gjerder/drevskive: 5
Radius: 90.00
Radius 2: 85.00
B+: M6
Posisjon/B+ i min.: 44
D+ Størrelse: Plugg
Rotasjon: SImot klokka
Plugg nr.: PL92
Total lengde mm: 166.00
Drevskive: SP/FW
Vifte: IF
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 55
Plug no. PL92
Bracket hole 10.50
Position/B+ in min. 44
Prod. info BN
Pulley SP/FW
Pulley dia. 58.20
Pulley dist. 94.00
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 5
Voltage 14
Total length 166.00 mm
Width/holder arm 53.70
Amp 130

  • OEM
    F032114115, ja1721ir, 1986A01627, 27060-27070, 27060-27100, 104210-3250, 104210-3251, 104210-3252, 104210-3980, 104210-3981

  • Konkurrentreferens
    A6473(DENSO), A6676S, CAL40330, DAN945, DENDAN945, DRA4275, J5112132, 8EL738124-001, 28-4781, 195.572.130, 235.190.1302, 9302, 13919, 13919N, 23298R, 113365, 210493, 210493A, 440510, 444236, 554122RI, 12061008, 0986049221, 0986084270, 063377503010, 944390904070

  • NormaliseratArtNr
    a6473denso, a6676s, cal40330, dan945, dendan945, dra4275, f032114115, j5112132, ja1721ir, 8el738124001, 1986a01627, 9302, 13919, 13919n, 23298r, 113365, 210493, 210493a, 284781, 440510, 444236, 554122ri, 12061008, 195572130, 0986049221, 0986084270, 1042103250, 1042103251, 1042103252, 1042103980, 1042103981, 2351901302, 2706027070, 2706027100, 063377503010, 944390904070

  • Passar modeller
    Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12 Body: MPV From date: 01-01-2002 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: verso
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Estate From date: 01-01-2002 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Hatchback From date: 01-01-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12U_, _E12J_ Body: Hatchback From date: 01-05-2003 To date: 01-02-2007 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 14
    Amp: 130
    Drevskive dist.: 94.00
    Bredde/holder arm: 53.70
    Klemmer hull: 10.50
    Båndjustering. Bøssingposisjon: 55
    Båndjustering. Bøssing hull 1: 10.00
    Drevskive diameter: 58.20
    Gjerder/drevskive: 5
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Posisjon/B+ i min.: 44
    D+ Størrelse: Plugg
    Rotasjon: SImot klokka
    Plugg nr.: PL92
    Total lengde mm: 166.00
    Drevskive: SP/FW
    Vifte: IF
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 10.00
    Belt. adj. brackethole pos. 55
    Plug no. PL92
    Bracket hole 10.50
    Position/B+ in min. 44
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 58.20
    Pulley dist. 94.00
    Radius 90.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 5
    Voltage 14
    Total length 166.00 mm
    Width/holder arm 53.70
    Amp 130
  • Kjøretøymatching

    • OEM
      F032114115, ja1721ir, 1986A01627, 27060-27070, 27060-27100, 104210-3250, 104210-3251, 104210-3252, 104210-3980, 104210-3981

    • Konkurrentreferens
      A6473(DENSO), A6676S, CAL40330, DAN945, DENDAN945, DRA4275, J5112132, 8EL738124-001, 28-4781, 195.572.130, 235.190.1302, 9302, 13919, 13919N, 23298R, 113365, 210493, 210493A, 440510, 444236, 554122RI, 12061008, 0986049221, 0986084270, 063377503010, 944390904070

    • NormaliseratArtNr
      a6473denso, a6676s, cal40330, dan945, dendan945, dra4275, f032114115, j5112132, ja1721ir, 8el738124001, 1986a01627, 9302, 13919, 13919n, 23298r, 113365, 210493, 210493a, 284781, 440510, 444236, 554122ri, 12061008, 195572130, 0986049221, 0986084270, 1042103250, 1042103251, 1042103252, 1042103980, 1042103981, 2351901302, 2706027070, 2706027100, 063377503010, 944390904070

    • Passar modeller
      Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12 Body: MPV From date: 01-01-2002 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: verso
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Estate From date: 01-01-2002 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Hatchback From date: 01-01-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12U_, _E12J_ Body: Hatchback From date: 01-05-2003 To date: 01-02-2007 Fuel: Diesel Approved: Yes
