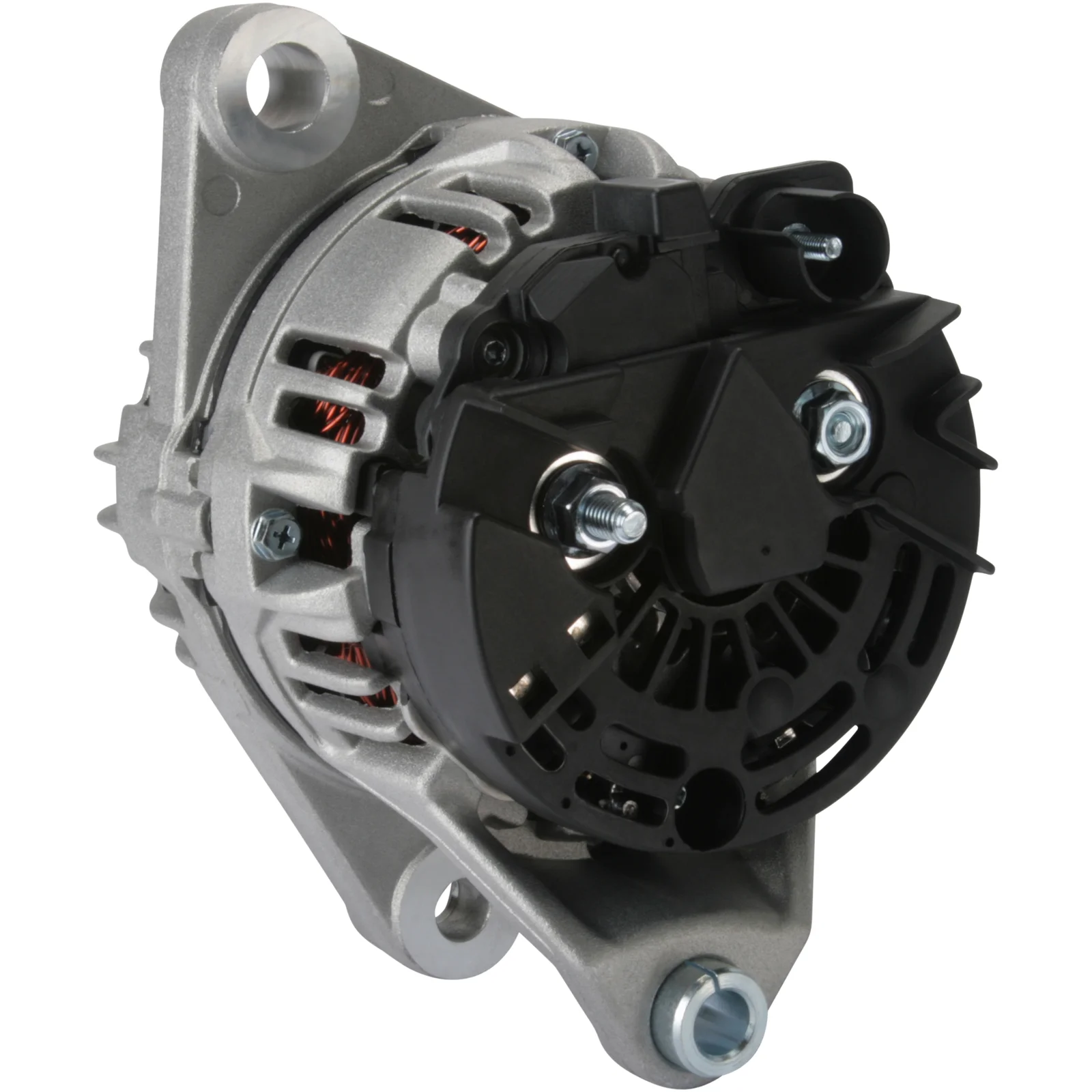

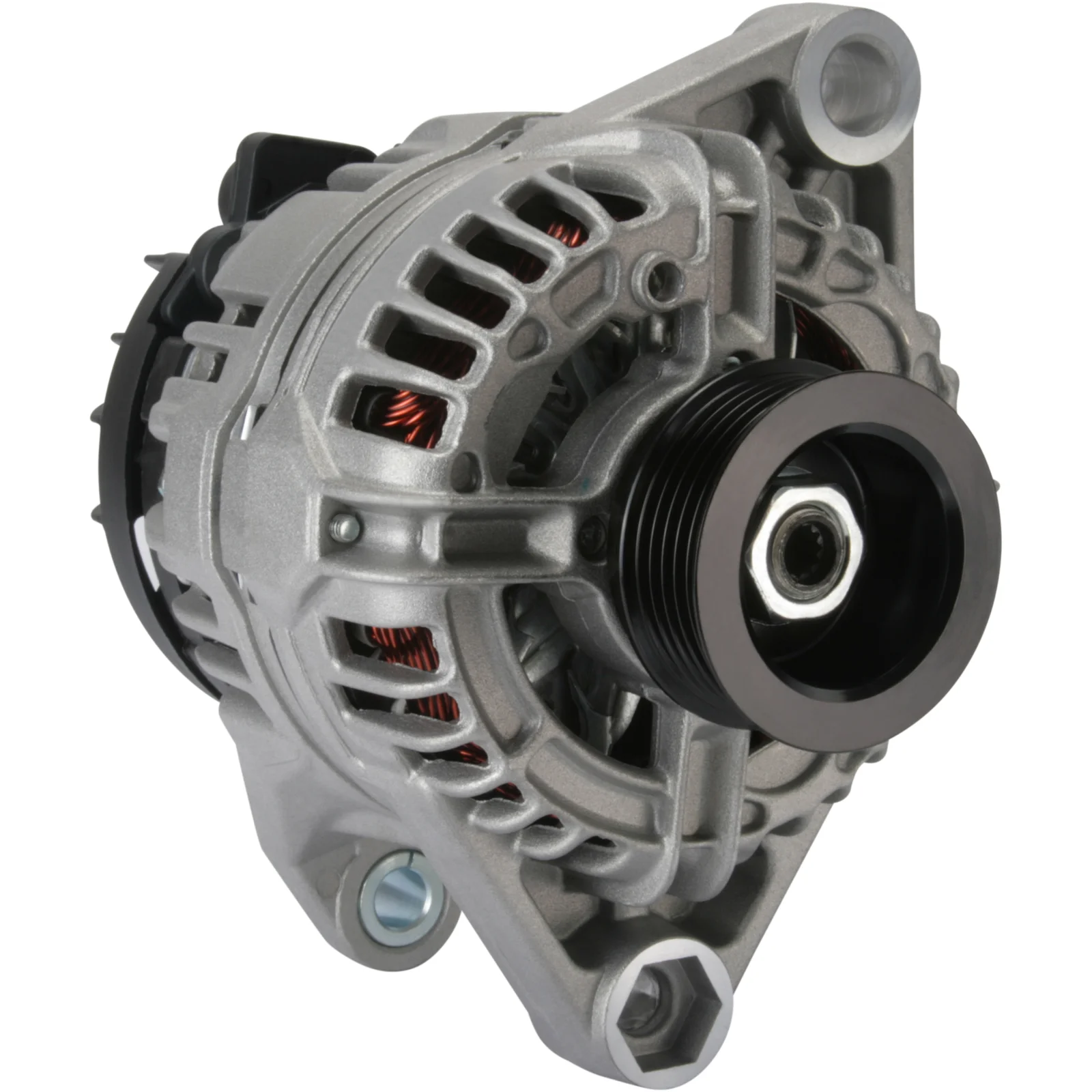

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032112190

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 90, Rotasjon: CW, Monteringsbrakett avstand: 70,60

Beskrivelse

Spenning: 14
Amp: 90
Drevskive dist.: 58.30
Bredde/holderarm: 25.00
Monteringsbeslag dist.: 70.60
Beslagshull: 12.20
Belt. justeringsbeslagshull pos.: 5
Belt. justeringsbeslagshull 1: 16.50
Drevskive dia.: 59.70
Riller/drevskive: 5
Radius: 92.00
Radius 2: 92.00
B+: M8
Posisjon/B+ i min.: 48
D+ Størrelse: M5
Rotasjon: medur
Total lengde mm: 194.00
Drevskive: SP
Regulator-type: IR
Prod. info: BN
Service: Fiat

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 70.60
Belt. adj. bracket hole 1 16.50
Belt. adj. brackethole pos. 5
Bracket hole 12.20
Position/B+ in min. 48
Prod. info BN
Pulley SP
Pulley dia. 59.70
Pulley dist. 58.30
Radius 92.00
D+ Size M5
Radius 2 92.00
Regulator type IR
Rotation CW
Servicing Fiat
Grooves/pulley 5
Voltage 14
Total length 194.00 mm
Width/holder arm 25.00
Amp 90

  • OEM
    F032112190, 1471ir, 1986A00523, 1986A00524, 1986A00788, 1986A00789, 46532667, 46532668, 46813061, 46813063, 46832123, 46841963, 71723381, 71780119, 0124325009, 0124325058, 0124325059, 0124325145, 0124415011

  • Konkurrentreferens
    A0140, A0140PR, A0191, A0341, A0341PR, ALT-H081, CAL10107, CAL10332, DRB2000, DRB2000X, DRB2010, DRB2760, F042A0H081, LRA01874, 8EL012428-131, 8EL012428-641, 8el737679-001, 8el737713-001, 28-3737, 28-3768, 218.163.802, 218.163.902, 505.522.090, 5779, 5798, 22874N, 22898R, 119074, 210201, 210201A, 210254, 210254A, 210287, 210287A, 301471RI, 301485RI, 301648RI, 437672, 443186, 746954, 9042000, 9042010, 9213177, 9213466, 12042000, 12042010, 12042760, 32042000, 32042001, 32042760, 0986042000, 0986042010, 063533250580, 944390420000

  • NormaliseratArtNr
    a0140, a0140pr, a0191, a0341, a0341pr, alth081, cal10107, cal10332, drb2000, drb2000x, drb2010, drb2760, f032112190, f042a0h081, lra01874, 8el012428131, 8el012428641, 8el737679001, 8el737713001, 1471ir, 1986a00523, 1986a00524, 1986a00788, 1986a00789, 5779, 5798, 22874n, 22898r, 119074, 210201, 210201a, 210254, 210254a, 210287, 210287a, 283737, 283768, 301471ri, 301485ri, 301648ri, 437672, 443186, 746954, 9042000, 9042010, 9213177, 9213466, 12042000, 12042010, 12042760, 32042000, 32042001, 32042760, 46532667, 46532668, 46813061, 46813063, 46832123, 46841963, 71723381, 71780119, 0124325009, 0124325058, 0124325059, 0124325145, 0124415011, 218163802, 218163902, 505522090, 0986042000, 0986042010, 063533250580, 944390420000

  • Passar modeller
    Fiat Model: Brava Model series: Brava Model type: 16V (182.BB) Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 182_ Body: Hatchback Fuel: Petrol Approved: Yes
    Fiat Model: Brava Model series: Brava Model type: SX Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 Body: Hatchback From date: 01-02-1996 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Fiat Model: Bravo Model series: Bravo Model type: SX Size of motor: 1.6 Brand of engine: 182A4.000 Body: Hatchback From date: 01-03-1996 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Fiat Model: Doblo Model series: Doblo Box Body/MPV Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223_ Body: Box Body/MPV From date: 01-11-2001 To date: 01-08-2003 Fuel: Petrol Approved: Yes
    Fiat Model: Doblo Model series: Doblo Monocab Model type: Natural Power Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223_ Body: Box Body / Estate From date: 01-02-2004 To date: 01-07-2009 Fuel: CNG Approved: Yes
    Fiat Model: Doblo Model series: Doblo MPV Model type: Natural Power Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 119_, 223_ Body: MPV From date: 01-11-2005 To date: 01-07-2009 Fuel: CNG Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 16V Size of motor: 1.6 Brand of engine: 182B6.000 Body: MPV From date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223 Body: Van From date: 01-10-2001 Fuel: Gasoline Approved: Yes Manufacture type: Cargo
    Fiat Model: Marea Model series: Marea Type of engine: 16V Bipower Size of motor: 1.6 Brand of engine: 185A3.000 Type description: 185_ From date: 01-04-1999 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
    Fiat Model: Marea Model series: Marea Type of engine: i 16V Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 185_ Body: Estate From date: 01-09-1996 To date: 01-05-2002 Fuel: Gasoline Approved: Yes Manufacture type: weekend
    Fiat Model: Marea Model series: Marea Type of engine: i 16V Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 185_ From date: 01-09-1996 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
    Fiat Model: Multipla Model series: Multipla Model type: Blupower Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-04-2002 To date: 01-06-2010 Fuel: Gas Approved: Yes
    Fiat Model: Multipla Model series: Multipla Model type: Blupower Type of engine: 16V Size of motor: 1.6 Brand of engine: 186A3.000 Body: MPV From date: 01-04-1999 To date: 01-06-2010 Fuel: Gas Approved: Yes
    Fiat Model: Multipla Model series: Multipla Model type: GPL Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-10-2001 To date: 01-06-2010 Fuel: Bi-Fuel Approved: Yes
    Fiat Model: Multipla Model series: Multipla Model type: Natural Power Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186_ Body: MPV From date: 01-11-2008 To date: 01-06-2010 Fuel: LNG Approved: Yes
    Fiat Model: Multipla Model series: Multipla Type of engine: 16V Bipower Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-10-2001 To date: 01-06-2010 Fuel: Gasoline/gas Approved: Yes
    Fiat Model: Multipla Model series: Multipla Type of engine: 16V Bipower Size of motor: 1.6 Brand of engine: 186A4.000 Type description: 186 Body: MPV From date: 01-04-1999 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Fiat Model: Multipla Model series: Multipla Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 186 Body: MPV From date: 01-04-1999 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Fiat Model: Multipla Van Model series: Multipla Van Model type: Bipower Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186_ Body: Van From date: 01-10-2001 To date: 01-06-2010 Fuel: Petrol/Ethanol Approved: Yes
    Fiat Model: Multipla Van Model series: Multipla Van Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186_ Body: Van From date: 01-09-2000 To date: 01-06-2010 Fuel: Petrol Approved: Yes
    Fiat Model: Palio Model series: Palio Type of engine: 16V Size of motor: 1.6 Brand of engine: 178B3.000 Body: Estate From date: 01-06-1996 To date: 01-02-2001 Fuel: Gasoline Approved: Yes Manufacture type: weekend
    Fiat Model: Palio Model series: Palio Type of engine: 16V Size of motor: 1.6 Brand of engine: 178B3.000 Body: Hatchback From date: 01-04-1996 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
    Fiat Model: Palio Model series: Palio Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 178DYC1A06 Body: Estate From date: 01-02-2001 To date: 01-01-2012 Fuel: Gasoline Approved: Yes Manufacture type: weekend
    Fiat Model: Palio Model series: Palio Weekend Size of motor: 1.6 Brand of engine: 178D2.011 Type description: 178_, 173_, 373_, 374_, 171_ Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Weekend
    Fiat Model: Siena Model series: Siena Type of engine: 16V Size of motor: 1.6 Brand of engine: 178B3.000 Type description: 178_ From date: 01-09-1998 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    Fiat Model: Stilo Model series: Stilo Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Body: Estate From date: 01-01-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes Manufacture type: MULTI WAGO
    Fiat Model: Stilo Model series: Stilo Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 192(192_XB1A) Body: Hatchback From date: 01-10-2001 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
    Lancia Model: Lybra Model series: Lybra Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 Body: Estate From date: 01-07-1999 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Lancia Model: Lybra Model series: Lybra Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 From date: 01-07-1999 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    1 / 6
  • Beskrivelse
    Spenning: 14
    Amp: 90
    Drevskive dist.: 58.30
    Bredde/holderarm: 25.00
    Monteringsbeslag dist.: 70.60
    Beslagshull: 12.20
    Belt. justeringsbeslagshull pos.: 5
    Belt. justeringsbeslagshull 1: 16.50
    Drevskive dia.: 59.70
    Riller/drevskive: 5
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Posisjon/B+ i min.: 48
    D+ Størrelse: M5
    Rotasjon: medur
    Total lengde mm: 194.00
    Drevskive: SP
    Regulator-type: IR
    Prod. info: BN
    Service: Fiat

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 70.60
    Belt. adj. bracket hole 1 16.50
    Belt. adj. brackethole pos. 5
    Bracket hole 12.20
    Position/B+ in min. 48
    Prod. info BN
    Pulley SP
    Pulley dia. 59.70
    Pulley dist. 58.30
    Radius 92.00
    D+ Size M5
    Radius 2 92.00
    Regulator type IR
    Rotation CW
    Servicing Fiat
    Grooves/pulley 5
    Voltage 14
    Total length 194.00 mm
    Width/holder arm 25.00
    Amp 90
  • Kjøretøymatching

    • OEM
      F032112190, 1471ir, 1986A00523, 1986A00524, 1986A00788, 1986A00789, 46532667, 46532668, 46813061, 46813063, 46832123, 46841963, 71723381, 71780119, 0124325009, 0124325058, 0124325059, 0124325145, 0124415011

    • Konkurrentreferens
      A0140, A0140PR, A0191, A0341, A0341PR, ALT-H081, CAL10107, CAL10332, DRB2000, DRB2000X, DRB2010, DRB2760, F042A0H081, LRA01874, 8EL012428-131, 8EL012428-641, 8el737679-001, 8el737713-001, 28-3737, 28-3768, 218.163.802, 218.163.902, 505.522.090, 5779, 5798, 22874N, 22898R, 119074, 210201, 210201A, 210254, 210254A, 210287, 210287A, 301471RI, 301485RI, 301648RI, 437672, 443186, 746954, 9042000, 9042010, 9213177, 9213466, 12042000, 12042010, 12042760, 32042000, 32042001, 32042760, 0986042000, 0986042010, 063533250580, 944390420000

    • NormaliseratArtNr
      a0140, a0140pr, a0191, a0341, a0341pr, alth081, cal10107, cal10332, drb2000, drb2000x, drb2010, drb2760, f032112190, f042a0h081, lra01874, 8el012428131, 8el012428641, 8el737679001, 8el737713001, 1471ir, 1986a00523, 1986a00524, 1986a00788, 1986a00789, 5779, 5798, 22874n, 22898r, 119074, 210201, 210201a, 210254, 210254a, 210287, 210287a, 283737, 283768, 301471ri, 301485ri, 301648ri, 437672, 443186, 746954, 9042000, 9042010, 9213177, 9213466, 12042000, 12042010, 12042760, 32042000, 32042001, 32042760, 46532667, 46532668, 46813061, 46813063, 46832123, 46841963, 71723381, 71780119, 0124325009, 0124325058, 0124325059, 0124325145, 0124415011, 218163802, 218163902, 505522090, 0986042000, 0986042010, 063533250580, 944390420000

    • Passar modeller
      Fiat Model: Brava Model series: Brava Model type: 16V (182.BB) Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 182_ Body: Hatchback Fuel: Petrol Approved: Yes
      Fiat Model: Brava Model series: Brava Model type: SX Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 Body: Hatchback From date: 01-02-1996 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
      Fiat Model: Bravo Model series: Bravo Model type: SX Size of motor: 1.6 Brand of engine: 182A4.000 Body: Hatchback From date: 01-03-1996 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
      Fiat Model: Doblo Model series: Doblo Box Body/MPV Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223_ Body: Box Body/MPV From date: 01-11-2001 To date: 01-08-2003 Fuel: Petrol Approved: Yes
      Fiat Model: Doblo Model series: Doblo Monocab Model type: Natural Power Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223_ Body: Box Body / Estate From date: 01-02-2004 To date: 01-07-2009 Fuel: CNG Approved: Yes
      Fiat Model: Doblo Model series: Doblo MPV Model type: Natural Power Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 119_, 223_ Body: MPV From date: 01-11-2005 To date: 01-07-2009 Fuel: CNG Approved: Yes
      Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 16V Size of motor: 1.6 Brand of engine: 182B6.000 Body: MPV From date: 01-10-2001 Fuel: Gasoline Approved: Yes
      Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223 Body: Van From date: 01-10-2001 Fuel: Gasoline Approved: Yes Manufacture type: Cargo
      Fiat Model: Marea Model series: Marea Type of engine: 16V Bipower Size of motor: 1.6 Brand of engine: 185A3.000 Type description: 185_ From date: 01-04-1999 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
      Fiat Model: Marea Model series: Marea Type of engine: i 16V Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 185_ Body: Estate From date: 01-09-1996 To date: 01-05-2002 Fuel: Gasoline Approved: Yes Manufacture type: weekend
      Fiat Model: Marea Model series: Marea Type of engine: i 16V Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 185_ From date: 01-09-1996 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
      Fiat Model: Multipla Model series: Multipla Model type: Blupower Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-04-2002 To date: 01-06-2010 Fuel: Gas Approved: Yes
      Fiat Model: Multipla Model series: Multipla Model type: Blupower Type of engine: 16V Size of motor: 1.6 Brand of engine: 186A3.000 Body: MPV From date: 01-04-1999 To date: 01-06-2010 Fuel: Gas Approved: Yes
      Fiat Model: Multipla Model series: Multipla Model type: GPL Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-10-2001 To date: 01-06-2010 Fuel: Bi-Fuel Approved: Yes
      Fiat Model: Multipla Model series: Multipla Model type: Natural Power Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186_ Body: MPV From date: 01-11-2008 To date: 01-06-2010 Fuel: LNG Approved: Yes
      Fiat Model: Multipla Model series: Multipla Type of engine: 16V Bipower Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-10-2001 To date: 01-06-2010 Fuel: Gasoline/gas Approved: Yes
      Fiat Model: Multipla Model series: Multipla Type of engine: 16V Bipower Size of motor: 1.6 Brand of engine: 186A4.000 Type description: 186 Body: MPV From date: 01-04-1999 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Fiat Model: Multipla Model series: Multipla Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 Type description: 186 Body: MPV From date: 01-04-1999 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Fiat Model: Multipla Van Model series: Multipla Van Model type: Bipower Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186_ Body: Van From date: 01-10-2001 To date: 01-06-2010 Fuel: Petrol/Ethanol Approved: Yes
      Fiat Model: Multipla Van Model series: Multipla Van Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186_ Body: Van From date: 01-09-2000 To date: 01-06-2010 Fuel: Petrol Approved: Yes
      Fiat Model: Palio Model series: Palio Type of engine: 16V Size of motor: 1.6 Brand of engine: 178B3.000 Body: Estate From date: 01-06-1996 To date: 01-02-2001 Fuel: Gasoline Approved: Yes Manufacture type: weekend
      Fiat Model: Palio Model series: Palio Type of engine: 16V Size of motor: 1.6 Brand of engine: 178B3.000 Body: Hatchback From date: 01-04-1996 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
      Fiat Model: Palio Model series: Palio Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 178DYC1A06 Body: Estate From date: 01-02-2001 To date: 01-01-2012 Fuel: Gasoline Approved: Yes Manufacture type: weekend
      Fiat Model: Palio Model series: Palio Weekend Size of motor: 1.6 Brand of engine: 178D2.011 Type description: 178_, 173_, 373_, 374_, 171_ Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Weekend
      Fiat Model: Siena Model series: Siena Type of engine: 16V Size of motor: 1.6 Brand of engine: 178B3.000 Type description: 178_ From date: 01-09-1998 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
      Fiat Model: Stilo Model series: Stilo Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Body: Estate From date: 01-01-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes Manufacture type: MULTI WAGO
      Fiat Model: Stilo Model series: Stilo Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 192(192_XB1A) Body: Hatchback From date: 01-10-2001 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
      Lancia Model: Lybra Model series: Lybra Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 Body: Estate From date: 01-07-1999 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
      Lancia Model: Lybra Model series: Lybra Type of engine: 16V Size of motor: 1.6 Brand of engine: 182A4.000 From date: 01-07-1999 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
      1 / 6
