Varenr.: F032111847

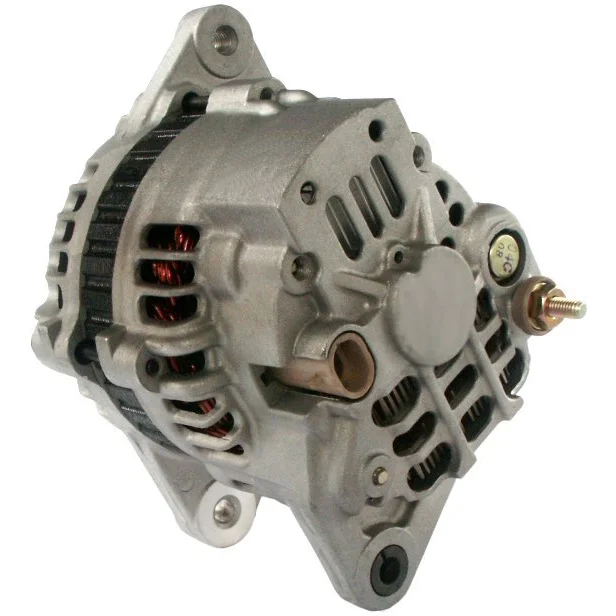

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 65, Rotasjon: Høyre, Monteringsfeste avstand: 65,30

Beskrivelse

Spenning: 14
Amp: 65
Drevkugg dist.: 42.00
Bredde/holder arm: 15.00
Monteringsbrakett dist.: 65.30
Brakett hull: 8.50
Belt. juster badkett hull pos.: 60
Belt. juster brakett hull 1: M8
Drevkugg dia.: 69.50
Riller/drevkugg: 1
Radius: 78.00
Radius 2: 78.00
B+: M6
Posisjon/B+ i min.: 15
D+ Størrelse: Plugg
Rotasjon: medur (CW)
Plugg nr.: PL77
Total lengde mm: 161.00
Drevkugg: P
Vifte: IF
Regulator type: IR
Prod. info: BN
Servicing: Chevrolet

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 65.30
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL77
Bracket hole 8.50
Position/B+ in min. 15
Prod. info BN
Pulley P
Pulley dia. 69.50
Pulley dist. 42.00
Radius 78.00
D+ Size Plug
Radius 2 78.00
Regulator type IR
Rotation CW
Servicing Chevrolet
Fan IF
Grooves/pulley 1
Voltage 14
Total length 161.00 mm
Width/holder arm 15.00
Amp 65

  • OEM
    F032111847, TA000A52201, 2104ir, 2655476, 96404263, 96566262

  • Konkurrentreferens
    A1042, ALT-H064, ALT35002, DRA0572, DRA0572X, DRA0637, DRA0637N, F042A0H064, 28-5846, 20340N, 210208, 210208A, 210683, 210683A, 444346, 600197, 12060869, 0986082910

  • NormaliseratArtNr
    a1042, alt35002, alth064, dra0572, dra0572x, dra0637, dra0637n, f032111847, f042a0h064, ta000a52201, 2104ir, 20340n, 210208, 210208a, 210683, 210683a, 285846, 444346, 600197, 2655476, 12060869, 96404263, 96566262, 0986082910

  • Passar modeller
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: B12D1 Type description: KL1S Body: Hatchback From date: 01-04-2008 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: F12S3 Type description: KL1S From date: 01-03-2005 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LMU Type description: KL1S Body: Hatchback From date: 01-04-2008 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LQ5 Type description: KL1S From date: 01-03-2005 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    SGMW Model: Spark Model series: Spark Size of motor: 0.8 Brand of engine: F8CV Body: Hatchback From date: 01-12-2003 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenning: 14
    Amp: 65
    Drevkugg dist.: 42.00
    Bredde/holder arm: 15.00
    Monteringsbrakett dist.: 65.30
    Brakett hull: 8.50
    Belt. juster badkett hull pos.: 60
    Belt. juster brakett hull 1: M8
    Drevkugg dia.: 69.50
    Riller/drevkugg: 1
    Radius: 78.00
    Radius 2: 78.00
    B+: M6
    Posisjon/B+ i min.: 15
    D+ Størrelse: Plugg
    Rotasjon: medur (CW)
    Plugg nr.: PL77
    Total lengde mm: 161.00
    Drevkugg: P
    Vifte: IF
    Regulator type: IR
    Prod. info: BN
    Servicing: Chevrolet

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 65.30
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL77
    Bracket hole 8.50
    Position/B+ in min. 15
    Prod. info BN
    Pulley P
    Pulley dia. 69.50
    Pulley dist. 42.00
    Radius 78.00
    D+ Size Plug
    Radius 2 78.00
    Regulator type IR
    Rotation CW
    Servicing Chevrolet
    Fan IF
    Grooves/pulley 1
    Voltage 14
    Total length 161.00 mm
    Width/holder arm 15.00
    Amp 65
  • Kjøretøymatching

    • OEM
      F032111847, TA000A52201, 2104ir, 2655476, 96404263, 96566262

    • Konkurrentreferens
      A1042, ALT-H064, ALT35002, DRA0572, DRA0572X, DRA0637, DRA0637N, F042A0H064, 28-5846, 20340N, 210208, 210208A, 210683, 210683A, 444346, 600197, 12060869, 0986082910

    • NormaliseratArtNr
      a1042, alt35002, alth064, dra0572, dra0572x, dra0637, dra0637n, f032111847, f042a0h064, ta000a52201, 2104ir, 20340n, 210208, 210208a, 210683, 210683a, 285846, 444346, 600197, 2655476, 12060869, 96404263, 96566262, 0986082910

    • Passar modeller
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: B12D1 Type description: KL1S Body: Hatchback From date: 01-04-2008 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: F12S3 Type description: KL1S From date: 01-03-2005 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LMU Type description: KL1S Body: Hatchback From date: 01-04-2008 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LQ5 Type description: KL1S From date: 01-03-2005 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      SGMW Model: Spark Model series: Spark Size of motor: 0.8 Brand of engine: F8CV Body: Hatchback From date: 01-12-2003 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
